2 CH DALI constant current (CC) dimmer

€133.71*

Prices incl. VAT plus shipping costs

Current

350mA

350mA(DE)

500mA

500mA(DE)

700mA

1000mA

Type of contacts

common (+)

common (-)

Product number: 89453845-1000-GM

Product information "2 CH DALI constant current (CC) dimmer"

Multi channel DALI constant current (CC) dimmer by Lunatone

Every channel of the DALI constant current dimmer has its own DALI address
Configuration and control via DALI
For the direct control of LED modules with current input
The outputs are dimmable from 1% to 100%
Different variants for 350mA per channel in a small housing, further 1000mA per channel in a big housing are available
Configuration via DALI cockpit and DALI USB interface
Integrated short protection

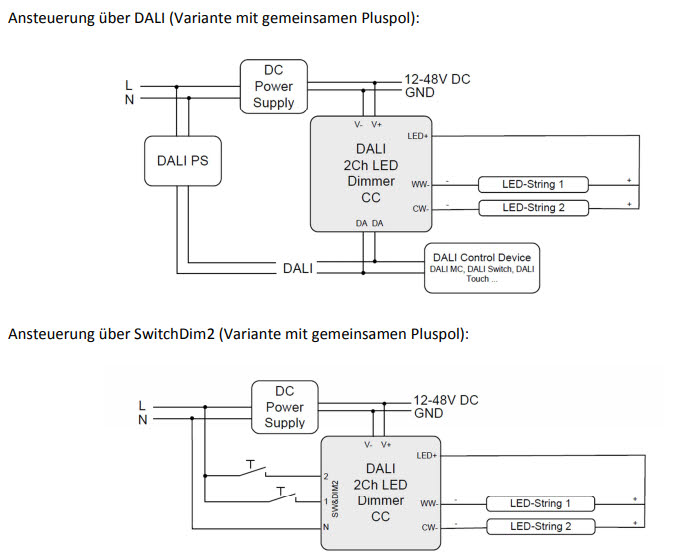

The following versions are available:

Two channel versions, with 2 DALI addresses each (one address per channel)

Up to max. 2x 350mA output currents: 89453845-350
With a collectice positive pole: 89453845-350DE
With a collectice minus pole: 89453845-350GMDE

Up to max. 2x 500mA output currents: 89453845-500
With a collectice positive pole: 89453845-500DE
With a collectice minus pole: 89453845-500GMDE

Up to max. 2x 700mA output currents:
With a collectice positive pole: 89453845-700
With a collectice minus pole: 89453845-700GM

Up to max. 2x 1000mA output currents:
With a collectice positive pole: 89453845-1000
With a collectice minus pole: 89453845-1000GM

Three channel versions, with 3 DALI addresses each (one address per channel)

Up to max. 3x 350mA output current
With a collective positive pole: 89453846-350
With a collective minus pole: 89453846-350GM

Up to max. 3x 500mA output current
With a collective positive pole: 89453846-500
With a collective minus pole: 89453846-500GM

Up to max. 3x 700mA output current
With a collective minus pole: 89453846-700GM

Four channel versions, with 4 DALI addresses each (one address per channel)

Up to max. 4x 350mA output current
With a collective positive pole: 89453855-350
With a collective minus pole: 89453855-350GM

Up to max. 4x 500mA output current
With a collective positive pole: 89453855-500
With a collective minus pole: 89453855-500GM

Up to max. 4x 700mA output current
With a collective minus pole: 89453855-700GM

Other technical data:

Output voltage range: 3V-45V (with 48V supply)
Supply: 12VDC-48VDC resp. 56VDC
Control input: DALI
Temperature: -15 °C - 50 °C resp. -20 °C - 60 °C
Protection type: IP20
Condition after return: depends on the DALI settings
Max. cross wire section: up to 2,5 mm²

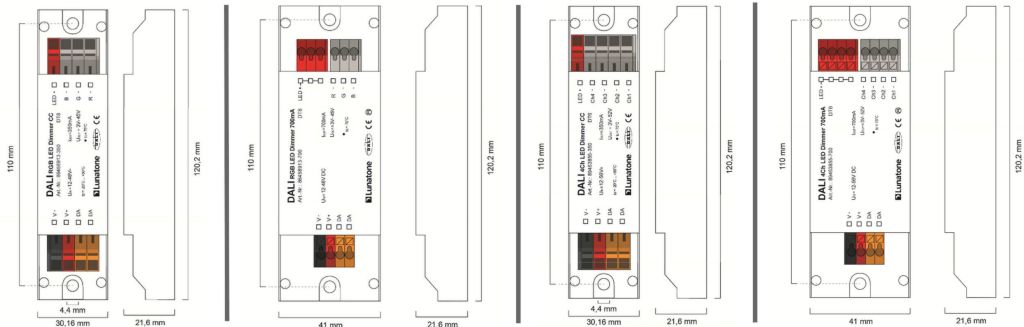

Dimensions: Check the data sheet

Constant Current:	0,5A, 0,7A, 0,35A, 1,0A
Dimmable/Control:	DALI, Push-Button
