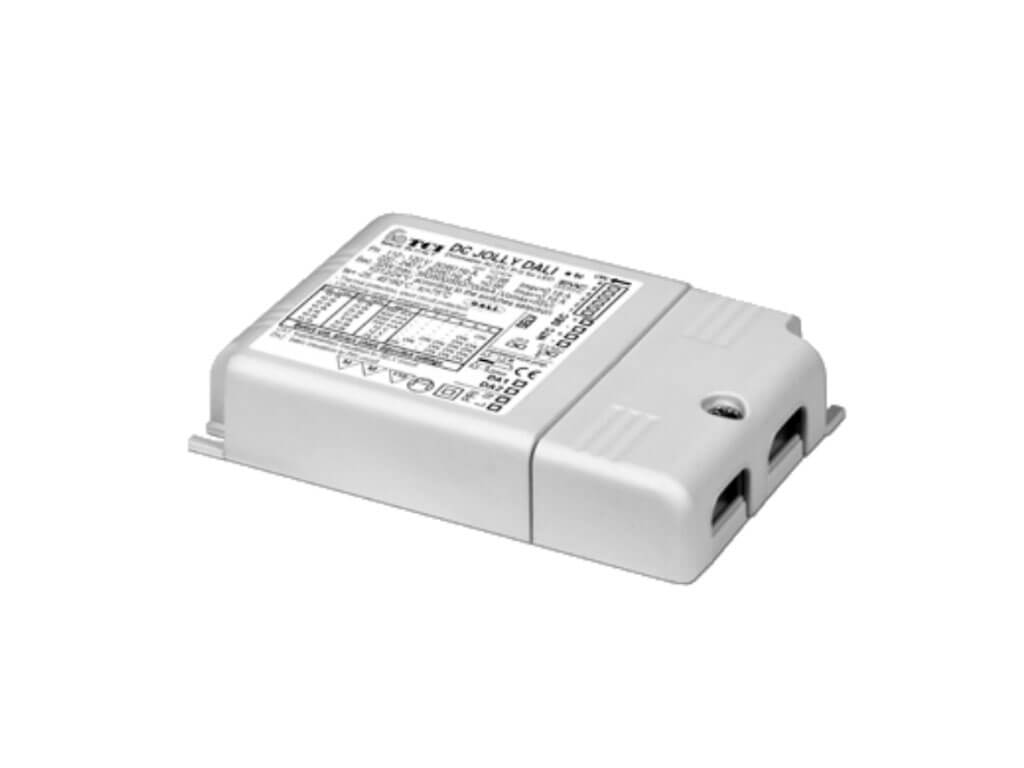

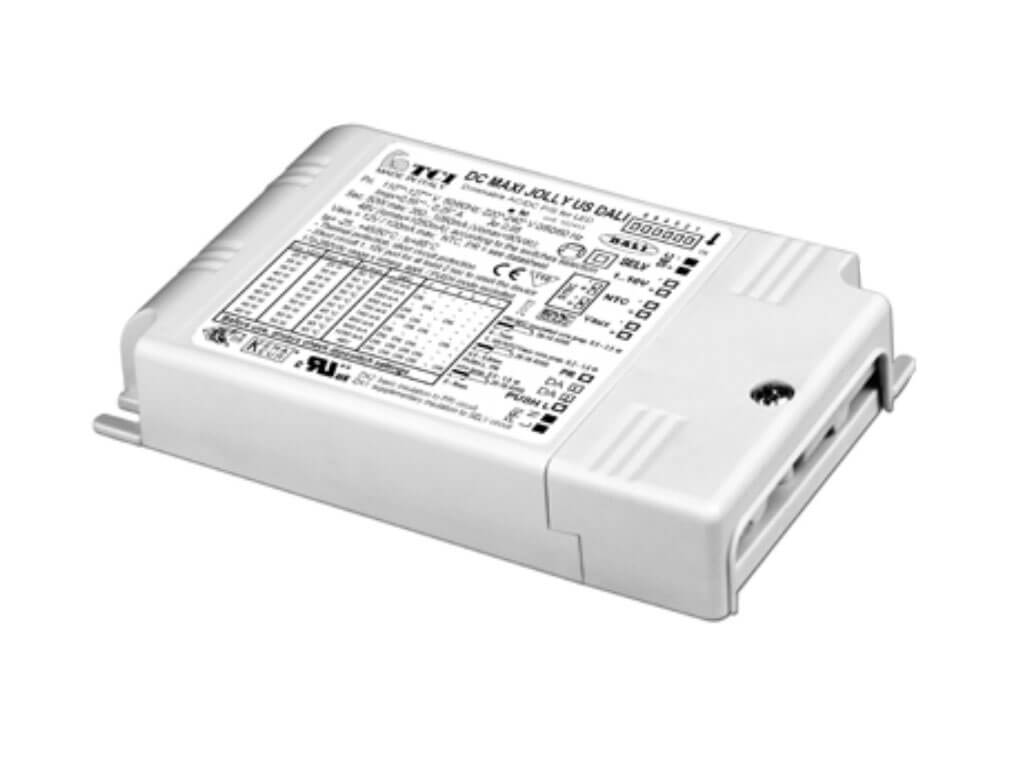

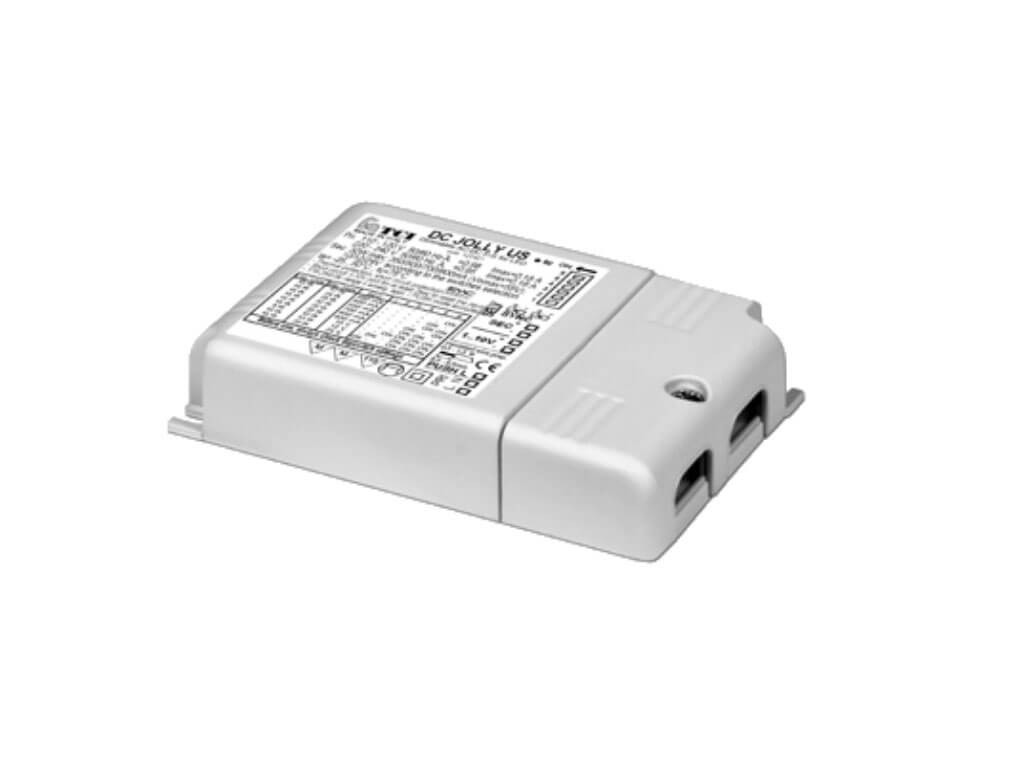

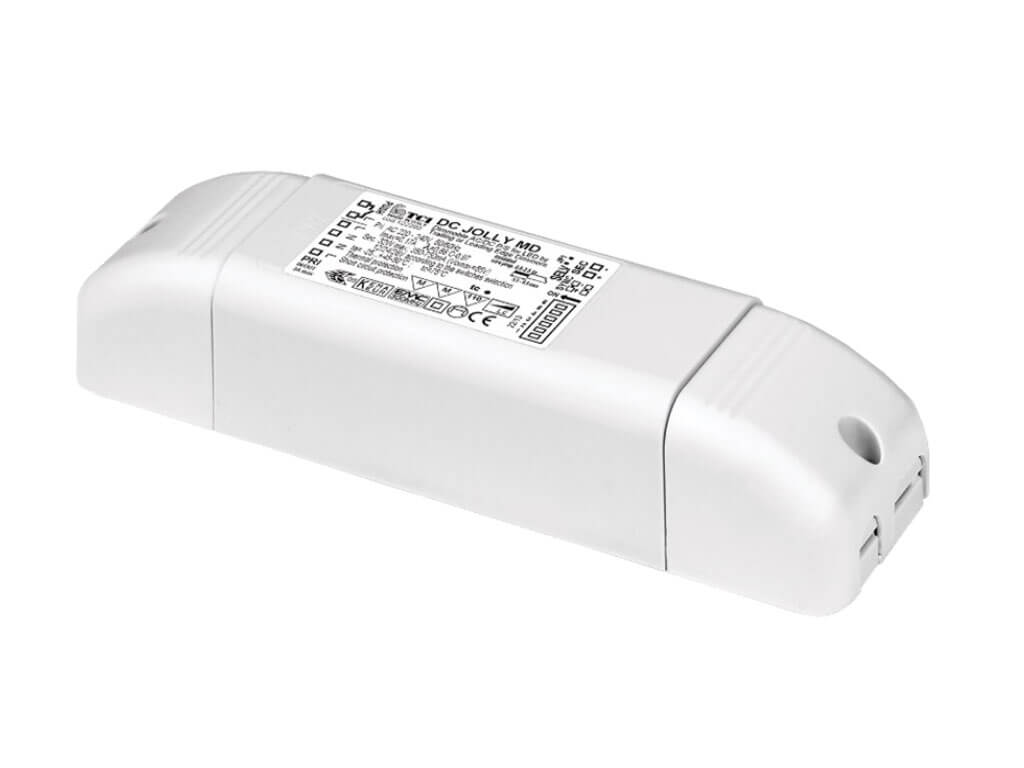

500mA LED Driver for Illuxtron Pointer Series 7W

Illuxtron Pointer 40 Gen2 The new era of architectural lighting Imagine entering a perfectly lit room, but you don't see any light spots anywhere. This is the new era in architectural lighting. And it starts with the Illuxtron Pointer series: a new spotlight, unique lenses, without any glare. All attention here is focused on the room. The light-giving surface of the pointer has a diameter of less than one centimetre, but produces 350 lumens. The result: an almost invisible lighting experience that opens up completely new design possibilities for architects and lighting designers. Light revolution on 8 millimeters The Pointer series is completely in the light of the new lenses. They bundle the opening angle in such a way that the light beam is reflected in an hourglass shape. The thinnest part, the focal point, runs exactly through the narrow opening of the spot. A diameter of 8 millimetres is sufficient as a light-giving surface. The spots can also be equipped with an anti-glare ring. In addition to a clean design, this ensures an extremely low UGR value. The light is distributed evenly and harmoniously throughout the room. The most important technical details of the Pointer 40 Series: Casing color matt white RAL 9016 (XX=MW)   matt black RAL 9005 (XX=BL) Material housing: die-cast aluminium Dimensions 47 mm x 68 mm Hole diameter 40 mm Required installation depth > 73 mm Application Inside area CRI / Ra (typ.) 85 Colour consistency (MacAdam) SDCM3 IP Code IP20 / IP44 IK Code IK10 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMV Directive EN55015 Guarantee 7 years Energy class A Pointer 40 100-240V This version is only switchable, dimming is not possible. This version is available in 35° and 60° beam angles. For further information about Pointer 40 100-240 V please refer to the data sheet. Product specifications Pointer 40 100-240V: article number 0N2703XX-XXXX LG13 LH13 LJ13 LK13 LL13 LM13  Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,4 7,6 7,9 17,8 18,0 19,2 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. PSU Input 100-240V W 6,6 Pf 0,6 Protection class II Ripple < 3% Input current 20A 170µS Power factor 60 Dimmability No Pointer 40 500mA This version has the extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver. You can order these additionally here:  To the overview matching 500mA constant current sources (LED driver). This version is available in 35° and 60° beam angles. For further information on Pointer 40 500 mA please refer to the data sheet. Product specifications Pointer 40 500mA: Article number 0N2703XX-XXX LG11 LH11 LJ11 LK11 LL11 LM11 Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,4 7,6 7,9 17,8 18,0 19,2 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. connection box. Input 500mA W 5,7 Pf 0,6 Protection class III Dimmability Alternative: DALI, 1-10V, Push, Triac (phase dimming) depending on LED driver selection Data sheets of downlights Pointer 40-series see Download tab: Note: The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.
