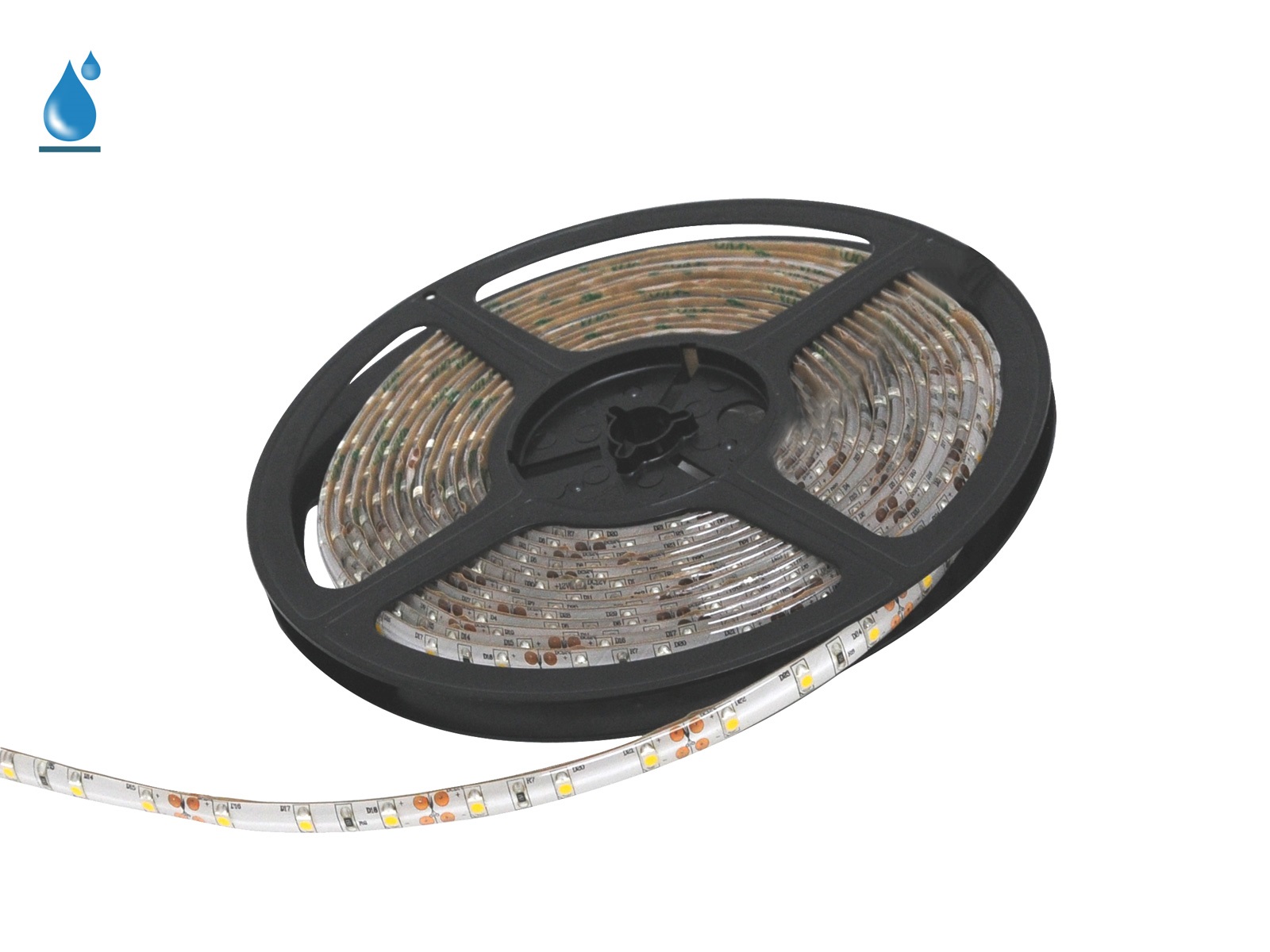

5m Outdoor LED Stripe 12V white 60LEDs/m
Product number:
O12W60-54-WW
Product information "5m Outdoor LED Stripe 12V white 60LEDs/m"
Flexible 12V LED Stripes white for outdoor applications with 60 LEDs/m
This LED strip is suitable for outdoor applications and is ideal for ambient and mood lighting and shelves or terrariums can be highlighted. Individual steps or edges in the garden can be emphasized by deliberate attachment. In this version, the LED strips can be combined with all of our ALU profiles, which are also used for cooling.
For a sustainable operation, please note the information on the cooling of the LED strips in the data sheet.
The most important features
- The supply voltage of 12V allows a large selection of power supplies and the use in the car sector
- The beam angle of 120 ° ensures large-area illumination
- The population density of 60 LEDs / m ensures optimal light distribution
- With a pitch of 50 mm, you can customize the LED strip to your own needs
Available color temperature
- Cold white 5,500 - 6,500 K
- Warm white 3,000 - 3,500 K
Available protection types
- IP54 (protected against dust in damaging amount, protection against splashes of water on all sides)

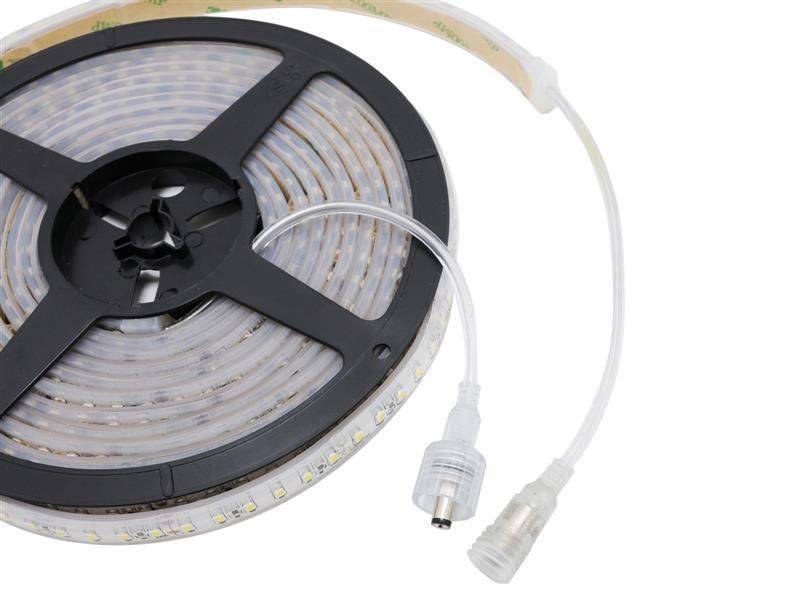

- IP67 - incl. Connecting cable with plugs (dustproof, protection against temporary submersion)
Application examples:
- Effect lighting of cupboards, terrariums and shelves
- Highlighting individual pieces of furniture through targeted lighting
- Lighting in the car sector, eg for motorhomes or assembly vehicles
- Increase accessibility by illuminating stairs and other tripping hazards
- Atmospheric lighting in party cellars
- Set accents in the garden
- Neon signs
- Many other applications in the outdoor area possible
Technical data
| Version | Outdoor, flexible |
| Power supply | 12V dc |
| Luminous flux | 260-330 lm/m depending on the color temperature |
| Power | Cold white IP54: 4.8 W/m Cold white IP67: 4 W/m Warm white IP54: 4 W/m Warm white IP67: 4 W/m |
| Packing density | 60 LEDs/m |
| Beam angle | 120° |
| Length | 5.000 mm (5m) |
| Width | 10 mm |
| Height | 4 mm |
| Division | 50 mm |
For further technical information, please refer to the data sheet.
In our shop you will find a large selection of matching 12V power supplies
| Amount LEDs/m: | 60 LEDs/m |
|---|---|
| Application/IP-Code: | IP65/67 (Outdoor) |
| Color Temperature/Color: | 3000K, >5000K |
| Constant Voltage: | 12V |
| Lamp shape: | flexible (stripes) |
| Power/Meter: | < 10W/m |
| rated luminous flux lm/m: | less than 500 lm/m |
