TCI Mini Jolly 1..10V&PUSH-LED-driver 122400 123400
Go to homepage
€0.00*

Mini Jolly 20 | 1-10V & PUSH | 125400 | 151400

€33.36*

% €37.07* (10.01% saved)

Prices incl. VAT plus shipping costs

25 Reviews
Type
Product number: 295-151400
Product information "Mini Jolly 20 | 1-10V & PUSH | 125400 | 151400"

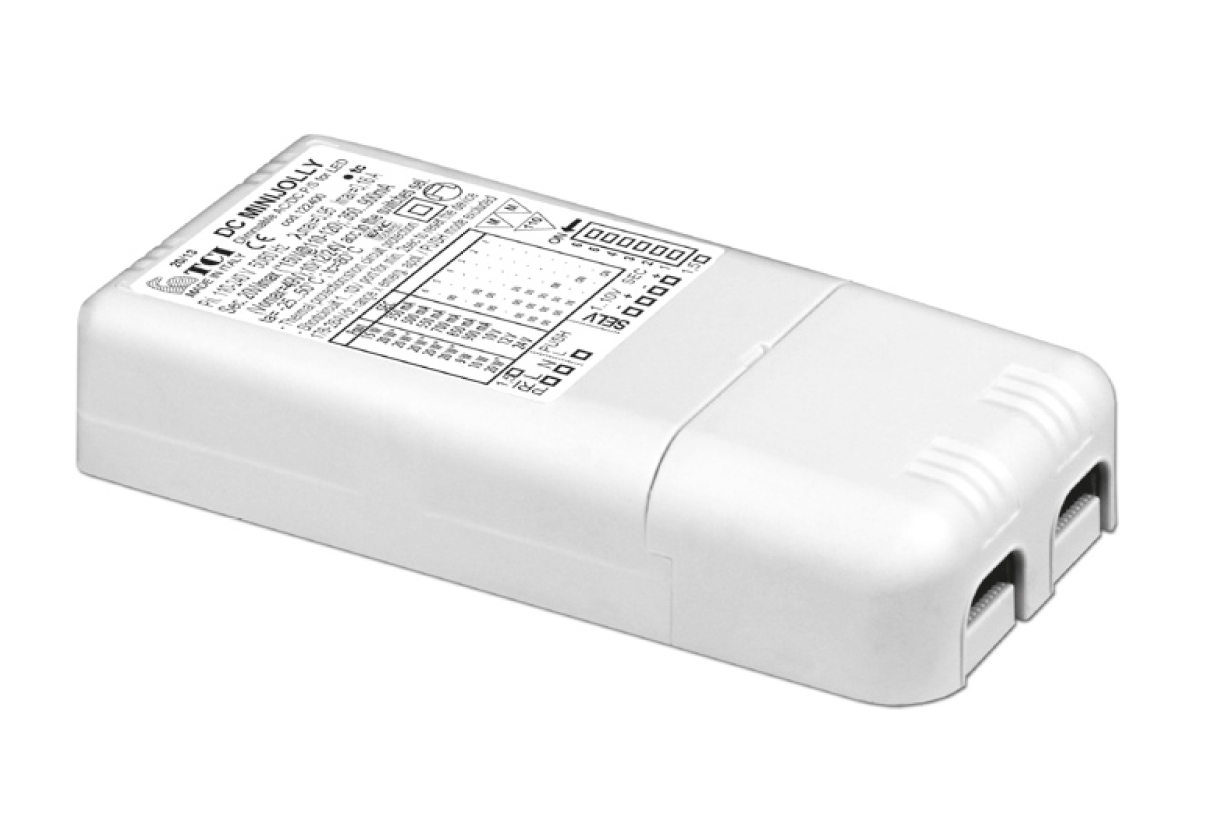

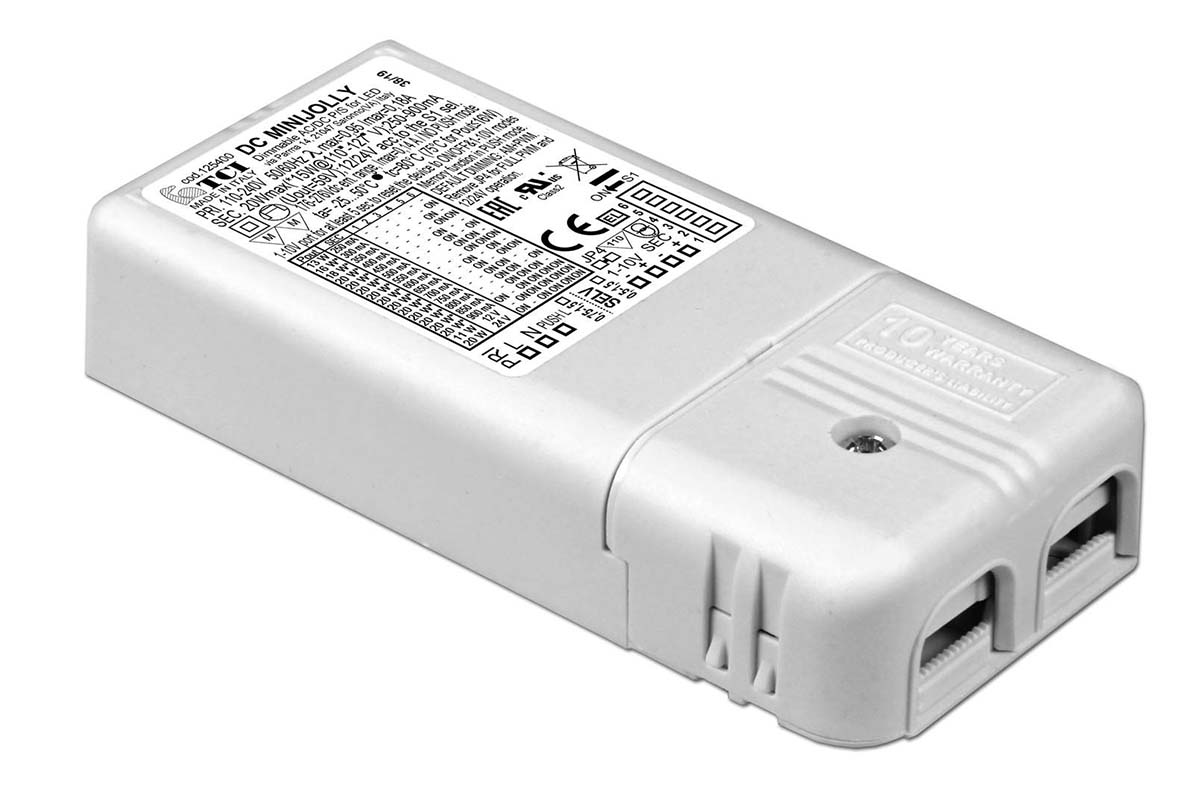

LED driver DC Mini Jolly dimmable

Dimming via 1-10V & push-button function

dimming via 1-10V & push-button operation

125400/404, 151400/404 for up to 20Watt. Constant current and voltage can be set via dip switches.

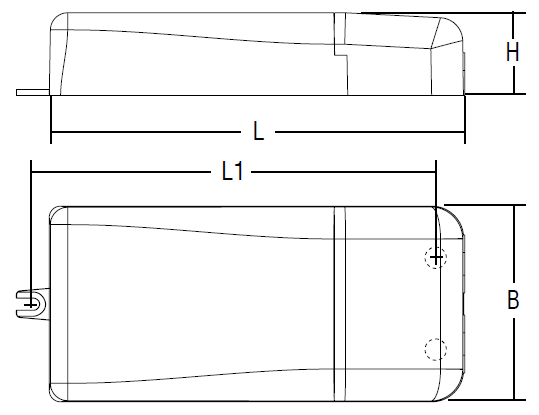

DC Mini Jolly is the little brother of the LED driver DC Maxi Jolly and fits through 68mm ceiling holes for e.g. recessed lights with LED.

  • Multi-current or multi-voltage converter - universally applicable
  • flicker (output ripple) <= 3%

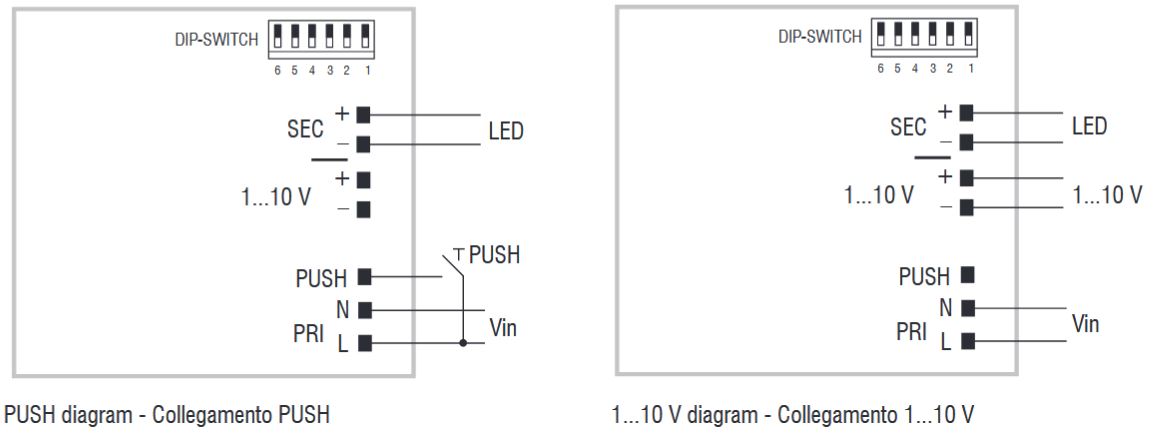

  • Control via 1-10V interface or button
  • On/Off with a short key press, brightness change via held button
  • available in different versions (PWM, Hybrid, AM)

TCI 123400 (formerly 122400) with 20 Watt. Constant current or voltage. All adjustable via dip-switches.
(123400 is the identical successor to the 122400 and thus complies with the Ecodesign Directive)
The LED current is regulated without exception via pulse width modulation (PWM).
(Since Oct 2018 only available on request with MOQ>50)

TCI 125400 (20W) is the technologically improved successor of the #123400 and its innovation is the combination of PWM and AM control. This so-called hybrid control ensures absolutely flicker-free light in the range of 100% - 25% by linear control. Only in the range below 25% to 1% the known PWM control is switched over. Thus the advantages of both methods are used.
By removing a jumper (JP4) you can switch back to "PWM-only" (incl. activation of constant voltage mode). (see 123400).
In addition, further current settings have been added.

TCI 151400 (20W) is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%. Perfectly suited for use with Dim2Warm.
Attention: No constant voltage operation adjustable.

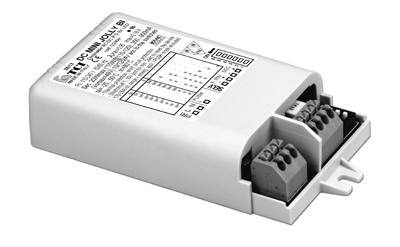

As a proven multi-current converter - universally applicable. Also available as Built-In version (123404, 125404, 151404)



TCI 151404 and 151400 are ripplefreeDimmable over 1-10V and Push Button for MinijollyFunctions for TCI 125400

TCI 123400/ TCI 123404 (phased out)

Dip-SW Performance Spg. sec Current sec # LED
Position 1 15 W 2...43 V 350mA const max 12
Position 2 20 W 2...40 V 500mA const max 11
Position 3 20 W 2...36 V 550mA const max 10
Position 3 20 W 2...29 V 700mA const max 8
Position 4 20 W 2...24 V 850mA const max 6
Position 5 20 W 2...22 V 900mA const max 6
Position 6 10 W 12 V constant 900mA max -
Position 7 20 W 24 V constant 900mA max -


TCI 125400 / TCI 125404 / TCI 151400 / TCI 151404

Dip-SW Performance Spg. sec Current sec # LED
Position 1 13 W 20...53 V 250mA const max 15
Position 2 15 W 20...52 V 300mA const max 14
Position 3 18 W 15...50 V 350mA const max 14
Position 4 20 W 15...50 V 400mA const max 14
Position 5 20 W 5...45 V 450mA const max 12
Position 6 20 W 5...40 V 500mA const max 11
Position 7 20 W 3...37 V 550mA const max 10
Position 8 20 W 3...34 V 600mA const max 9
Position 9 20 W 3...31 V 650mA const max 8
Position 10 20 W 3...29 V 700mA const max 8
Position 11 20 W 3...27 V 750mA const max 7
Position 12 20 W 3...25 V 800mA const max 7
Position 13 20 W 3...24 V 850mA const max 6
Position 14 20 W 3...23 V 900mA const max 6
Position 15* 10 W 12 V constant 830mA max -
Position 16* 20 W 24 V constant 900mA max -

*digit 15/16 only available for 125400/125404 (Remove JP4 for this)

Efficiency as a function of power:  84%  - 91%

New version of TCI 123400

Buttons and installation material are not included.

Please refer to the data sheets for a detailed description.

#Kategoriefilter: LED-Trafos- alles mit CV, LED-Treiber-alles mit CC
Constant Current: 0,4A, 0,5A, 0,6A, 0,7A, 0,9A, 0,25A, 0,35A, 0,45A, 0,55A, 0,65A, 0,85A
Constant Voltage: 12V, 24V
Dimmable/Control: 1..10V, Linear/AM, PWM, Push-Button
Power range: 5 - 20 W
