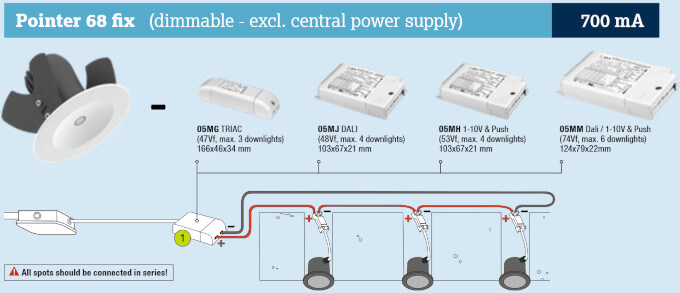

Pointer 68 fix

Illuxtron Pointer 40 Gen2 The new era of architectural lighting Imagine entering a perfectly lit room, but you don't see any light spots anywhere. This is the new era in architectural lighting. And it starts with the Illuxtron Pointer series: a new spotlight, unique lenses, without any glare. All attention here is focused on the room. The light-giving surface of the pointer has a diameter of less than one centimetre, but produces 350 lumens. The result: an almost invisible lighting experience that opens up completely new design possibilities for architects and lighting designers. Light revolution on 8 millimeters The Pointer series is completely in the light of the new lenses. They bundle the opening angle in such a way that the light beam is reflected in an hourglass shape. The thinnest part, the focal point, runs exactly through the narrow opening of the spot. A diameter of 8 millimetres is sufficient as a light-giving surface. The spots can also be equipped with an anti-glare ring. In addition to a clean design, this ensures an extremely low UGR value. The light is distributed evenly and harmoniously throughout the room. The most important technical details of the Pointer 40 Series: Casing color matt white RAL 9016 (XX=MW)   matt black RAL 9005 (XX=BL) Material housing: die-cast aluminium Dimensions 47 mm x 68 mm Hole diameter 40 mm Required installation depth > 73 mm Application Inside area CRI / Ra (typ.) 85 Colour consistency (MacAdam) SDCM3 IP Code IP20 / IP44 IK Code IK10 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMV Directive EN55015 Guarantee 7 years Energy class A Pointer 40 100-240V This version is only switchable, dimming is not possible. This version is available in 35° and 60° beam angles. For further information about Pointer 40 100-240 V please refer to the data sheet. Product specifications Pointer 40 100-240V: article number 0N2703XX-XXXX LG13 LH13 LJ13 LK13 LL13 LM13  Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,4 7,6 7,9 17,8 18,0 19,2 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. PSU Input 100-240V W 6,6 Pf 0,6 Protection class II Ripple < 3% Input current 20A 170µS Power factor 60 Dimmability No Pointer 40 500mA This version has the extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver. You can order these additionally here:  To the overview matching 500mA constant current sources (LED driver). This version is available in 35° and 60° beam angles. For further information on Pointer 40 500 mA please refer to the data sheet. Product specifications Pointer 40 500mA: Article number 0N2703XX-XXX LG11 LH11 LJ11 LK11 LL11 LM11 Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,4 7,6 7,9 17,8 18,0 19,2 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. connection box. Input 500mA W 5,7 Pf 0,6 Protection class III Dimmability Alternative: DALI, 1-10V, Push, Triac (phase dimming) depending on LED driver selection Data sheets of downlights Pointer 40-series see Download tab: Note: The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.

Illuxtron Pointer 68 (adjustable) The new Ära architectural lighting Imagine you are entering a perfectly lit room, but you can't see any light spots anywhere. This is what the new Ära looks like in architectural lighting. And it starts with the Illuxtron Pointer series: a new spotlight, unique lenses, without any glare. All attention here is focused on the room. The light-giving surface of the pointer has a diameter of less than one centimetre, but produces 350 lumens. The result: an almost invisible lighting experience that opens up new design possibilities for architects and lighting designers. Light revolution to 8 millimetres >The Illuxtron Pointer series is entirely in the light of the new lenses. They adjust the opening angle so that the light is reflected in an hourglass shape. The thinnest spot, the focal point, is exactly through the narrow opening of the spot. A diameter of 8 millimetres is sufficient as a light-giving surface. The spots can also be equipped with an anti-glare ring. In addition to a clean design, this ensures an extremely low UGR value. The light is distributed evenly and harmoniously throughout the room. The most important technical details of the Pointer 68 (adjustable) Series: Curtain matt white RAL 9016 (XX=MW)   matt black RAL 9005 (XX=BL) Material Casing: die-cast aluminium Dimensions 92 mm x 57 mm Hole diameter 68-75 mm Required installation depth > 62 mm Application Inside area CRI / Ra (typ.) 85 Colour consistency (MacAdam) SDCM3 IP Code IP20 / IP44 IK Code IK10 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMV Directive EN55015 Guarantee 7 years Energy class A Pointer 68 220-240V (adjustable), Triac (phase dimmable) The power supply is already available in this version. This version only supports dimming via triac (phase dimming). This version is available in 35° and 60° beam angles. The version is also available in the mounting types concrete spring and wire spring. Further information on Pointer 68 (adjustable) 220-240 V can be found in the data sheet. Product specifications Pointer 68 (adjustable) 220-240V, Triac: Article number 082703XXXXXX LG13 LH13 LJ13 LK13 LL13 LM13  Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,2 7,3 7,5 16,3 16,6 16,8 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. PSU Input 220-240V W 6,6 Pf 0,96 Protection class II Ripple < 3% Power input current 20A 170µS Power factor 60 Dimmability Triac (phase dimming) Pointer 68 220-240V (adjustable), 1-10V dimmable The power supply is already available in this version. This version only supports dimming above 1-10V&Push. This version is available in 35° and 60° beam angles. The version is also available in the mounting types concrete spring and wire spring. Further information on Pointer 68 (adjustable) 220-240 V can be found in the data sheet. Product specifications Pointer 68 (adjustable) 220-240V, 1-10V: Article number 082703XXXXXX WG13 WH13 WJ13 WK13 WL13 WM13  Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,2 7,3 7,5 16,3 16,6 16,8 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. PSU Input 220-240V W 6,6 Pf 0,6 Protection class II Ripple < 20% Power input current 2A 50µS Power factor 96 Dimmability 1-10V Pointer 68 220-240V (adjustable), DALI dimmable The power supply is already available in this version. This version only supports dimming via DALI. This version is available in 35° and 60° beam angles. The version is also available in the mounting types concrete spring and wire spring. Further information on Pointer 68 (adjustable) 220-240 V can be found in the data sheet. Product specifications Pointer 68 (adjustable) 220-240V, DALI: Article number 082703XXXXXX L013 L113 L213 L313 L413 L513  Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,2 7,3 7,5 16,3 16,6 16,8 Lm/W (with ECG) 53 57 61 61 64 68 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. PSU Input 220-240V W 6,6 Pf 0,6 Protection class II Ripple < 20% Power input current 2A 50µS Power factor 96 Dimmability DALI Pointer 68 (adjustable) 500mA This version has the extensive possibilities for dimming. This is done depending on the selection of the external and additionally required LED driver. These can also be ordered here:  To the overview of matching 500mA constant current sources (LED driver). This version is available in 35° and 60° beam angles. In addition, the version is available in the mounting types concrete spring and wire spring. Further information on Pointer 68 (adjustable) 500 mA can be found in the data sheet. Product specifications Pointer 68 (adjustable) 500mA: Article number 082703XXXXXX LG11 LH11 LJ11 LK11 LL11 LM11  Colour temperature 2700 K 3000 K 4000 K 2700 K 3000 K 4000 K Luminous flux 350 lm 375 lm 400 lm 400 lm 425 lm 450 lm UGR 7,2 7,3 7,5 16,3 16,6 16,8 Lm/W (with ECG) 61 66 70 70 75 79 Emitted beam angle 35° (45° FWTM) 60° (80° FWTM) Type Incl. connection box. Input 500mA W 5,7 Pf x Protection class III Dimmability Alternative: DALI, 1-10V, Push, Triac(phase dimming) depending on LED driver selection Data sheet of Downlights Pointer 68 (adjustable)-series see Download tab: Note: The products of the manufacturer Illuxtron are manufactured individually according to your specifications. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
