AL-500-00 DALI Eingangsmodul 4-Kanal The AL-500-00 DALI input module 4-channel is a universal module for reading in 4 potential-free switching contacts via DALI (V1). The device is supplied from the DALI bus. The signals are evaluated via the BL-204-10-868 EVG FLEX, EnOcean DALI controller and thus integration into the Enocean network. Technical Data:   DALI Slave   Number 1 Current consumption typ. 4,1 mA Input voltage DALI 16V DC (+/-5%) Galvanic isolation No Environment conditions   Operating temperature 0°C to +50°C Storage temperature -20 °C to +70°C Humidity 10% to 95%, non condensing Examinations / Approvals In general: 2011/65/EU RoHS Directive EMC immunity: according to EN 61000-6-2 EMC interference: according to EN 61000-6-3, EN 61000-6-4 Remove further data from our download tab Application example AL-500-00 with EnOcean DALI controller BL-204-10-868 EVG FLEX The following video shows the use of an AL-500-00 DALI 4-channel input module on a BL-204-10-868 EVG FLEX. The AL500-00 is connected to the DALI bus and is supplied by it. The first input A is connected with a conventional light switch. On the left side of the picture you can see the software BL-PC-FLEX-2. This has been started and the EnOcean USB stick is connected (COM field highlighted in green). If the button is now pressed, it first appears on the right in the EnOcean Explorer as "available". With a double click this is "projected". The key press corresponds to “A1.” The ON/OFF/DIM function is configured as DALI BROADCAST for the A1 key and the configuration is loaded into the EnOcean DALI controller BL-204-10-868 EVG FLEX. At the end you can see the desired functionality when you press the button. .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} AL-500-00 with BL-204-10-868 EVG FLEX V1   Video from Deuta Controls on the AL-500-00 with BL-204-10-868 EVG FLEX V1

AL-520-00 DALI POWER SUPPLY The AL-520-00 is a quite reliablesupply with a voltage of 230V AC and a DALI compliant output voltage of up to 250mA.The device is 36mm wide and has to be mounted on a standard DIN rail. Features AL-520-00 : Supply voltage: 230V AC 1x DALI power supply output (2 push-in contacts for DALI + and DALI -) 1x Status LED Please remember that you need one supply for each DALI line (max. 64 DALI ballasts). Technical data: DALI Number 1 Outout current Max. 240 mA(+/-5%) Output voltage Typ. 16V DC (+/- 5%) Supply   Supply voltage 230V AC (+/- 10%) Power consumption max. 5,0W / 22mA Backup integrated, not resetting Environmental conditions Operating temperature +0°C to +50°C Storage temperature -20°C to +70°C Humidity 10% to 95% rel. humidity, non condensing Protection class IP20 Demensions and weight   Weight 68 g Dimensions (in mm) 94 x 36 x 60 EMV EN 61000-4-3:2006 + A1:2007 + A2:2010 EN 61000-4-4:2012 EN 61000-4-5:2014 EN 61000-4-6:2013 EN 61000-4-11:2004 EN 55015:2013 + A1:2015 CISPR 15:2013 + IS1:2013 + IS2:2013 + A1:2015 DIN EN 61547:2010-03 VDE 0875-15-2:2010-03 EN61547:2009 IEC 61547:2009 DIN EN 61547 Ber. 1:2010-07 VDE 0875-15-2 Ber. 1:2010-07 EN 61547:2009 Ber. Zu DIN EN 61547:2010-03 Further information as well as the user and installation instructions can be found in the Download tab.

BL-204-FLEX-2 STARTERKIT Das BL-204-FLEX-2 Starter-Kit ermöglicht einen schnellen und kostengünstigen Einstieg in die praktische Arbeit mit den frei konfigurierbaren FLEX-Optionen der bewährten BL-201 und BL-202 EnOcean-DALI-Controller / Lichtsteuerungen. Im Kit enthalten sind folgende Komponenten (s. Abbildung oben): BL-202-10-868 EVG FLEX, EnOcean-DALI-Controller, #11329, 1 Stück BL-PC-FLEX-2, PC-Software, Windows, USB-Stick, #11228, 1 Stück Funk Flächentaster reinweiß EnOcean, #11051, 1 Stück EnOcean USB-Stick 868 MHz, #11227, 1 Stück Schlitzschraubendreher 0.4 x 2.0, #11145, 1 Stück Netzanschlussleitung mit Eurostecker, 2,0m , #11230, 1 Stück Außer einem DALI EVG mit zugehöriger Leuchte, oder einem LED-Streifen mit entsprechendem DALI Treiberbaustein, liegt somit dem Kit alles bei was für den einfachen Start erforderlich ist. Prüfungen / Standards: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 +A2:2013 ETSI EG 203 367 DIN/EN 55032 EN/IEC 61000-4-2 EN/IEC 61000-4-3 EN/IEC 61000-4-4 EN/IEC 61000-4-5 EN/IEC 61000-4-6 Entnehmen Sie weitere Daten aus unserem Download-Tab.

Casambi Dimmer Bluetooth Unit - dimming via app by DALI light Control The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Compact controller to integrate a DALI-compatible LED driver in your lighting unit. Control a lamp via smartphone with Casambi Bluetooth App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a Bluetooth connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors.   Compatible devices and minimum requirements for Casambi App: Android  iOS   min. Android 4.4 KitKat with Bluetooth 4.0  from iPhone 4S                            recommended: Android 5.0 Lollipop with Bluetooth 4.0  from iPad 3  or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App Android (Google Play) Casambi App iOS (iTunes)  Specifications of Casambi CBU ASD Bluetooth Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II   Casambi App in Appstore Casambi App for Android

Casambi Dimmer Radio Unit Class II with Classic Software - Dimming with easy through Casambi App Compact controller to integrate a DALI-compatible LED driver in your lighting unit. The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Casambi Dimmer Radio Unit Class II with Classic Software - Dimming with easy through Casambi App Compact controller to integrate a DALI-compatible LED driver in your lighting unit. The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Casambi Dimmer Radio Unit Class II with Classic Software - Dimming with easy through Casambi App Compact controller to integrate a DALI-compatible LED driver in your lighting unit. The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Casambi Dimmer Radio Unit Class II with Classic Software - Dimming with easy through Casambi App Compact controller to integrate a DALI-compatible LED driver in your lighting unit. The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Casambi Dimmer Radio Unit Class II with Classic Software - Dimming with easy through Casambi App Compact controller to integrate a DALI-compatible LED driver in your lighting unit. The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Casambi Dimmer Radio Unit Class II with Classic Software - Dimming with easy through Casambi App Compact controller to integrate a DALI-compatible LED driver in your lighting unit. The well-proven Classic variant of these Casambi radio modules allow for the usual effortless operation and are real bargain buys! Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors. Compatible devices and minimum requirements for Casambi App: Android  iOS  min. Android 4.4 KitKat from iPhone 4S recommended: Android 5.0 Lollipop from iPad 3 or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android    Specifications of Casambi CBU ASD Radio Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For more information please refer to the data sheet in the Download-Tab.

Testprodukt zum Check von hreflang.angelegt im backend

BL-201-18-868 EUTRAC FLEX, EnOcean DALI controller for EUTRAC light rail with data bus The proven series of BL-201 EnOcean DALI gateways for flush-mounted installation or integration in luminaires offers the simplest way of connecting wireless communication based on EnOcean with DALI for connecting lighting technology. This product now supplements the series with a freely configurable lighting controller with the following essential features: Simple snapping into the DALI light rail 230 V AC supply voltage via light rail 1x DALI master Integrated DALI power supply for up to 15 DALI slaves (Iout max. = 30 mA) 1x EnOcean master, bidirectional (TCM310) Internal antenna PC configuration tool BL-PC-FLEX for wireless configuration of the control functions Useful for existing buildings and missing DALI bus from the switching unit to the luminaire unit. The function of the gateways with FLEX option is configured using the BL-201-FLEX PC software.In contrast to the other software options, instead of the fixed functions / assignments, e.g. groups and scenes can first be configured on the DALI. Then the assignment of one or more switches / rockers to the individual groups or scenes. The communication and The gateways are programmed wirelessly via an EnOcean USB stick.For beginners we recommend the starter kit, consisting of software and USB stick: #11228, BL-PC-FLEX setup kit for Windows PC

Beschreibung beim Vater

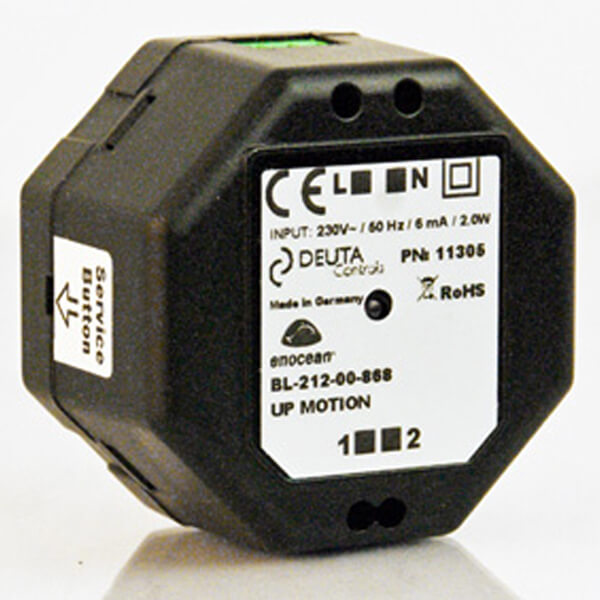

BL-212-00-868 UP MOTION, EnOcean-Adapter Implementation of standard switching output 230V AC to EnOcean motion detector telegram (EEP: A5-07-01) The EnOcean adapter type BL-212-00-868 UP MOTON offers the possibility to provide standard motion detectors, which are not available in EnOcean technology, with an EnOcean interface. In this way, you can integrate EnOcean switching actuators or our light controllers with any standard motion detector. Characteristics: 230 V AC supply voltage via switching output of the motion detector (L1';) 1x EnOcean Master, bidirectional (TCM310) Internal antenna Installation directly in a standard UP box or surface-mounted socket Technical data: EnOcean Master NUmber 1 Master Transceiver TCM310 Transmit / receive yes / yes Antenna Internal Transmit-/ receive center frequency 868.0 MHz / ASK Occupied frequency band 868.0 - 868.6 MHz Maximum transmission power Typ. 3 dBm @ 868.300 MHz Recipient category according to EN 300200 2 Environment conditions Supply voltage 230V AC Power consumption Typ. 1,6W, max. 2,5W Operating temperature +5°C to +50°C Storage temperature -20°C to +70°C Humidity 10% to 95% rel. humidity, non condensing Protection class IP20 Tests / Standards: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 +A2:2013 ETSI EG 203 367 DIN/EN 55032 EN/IEC 61000-4-2 EN/IEC 61000-4-3 EN/IEC 61000-4-4 EN/IEC 61000-4-5 EN/IEC 61000-4-6 Further information as well as the user and installation instructions can be found in the Download tab.

BL-211-00-868 UP SWITCH, EnOcean-Adapter Implementation of standard locker contact on EnOcean RPS telegram The EnOcean adapter type BL-211-00-868 UP SWITCH offers the possibility to provide standard light switches or light switches, which are not available in EnOcean technology, with an EnOcean interface. In this way, you can use any switch model to operate EnOcean switching actuators, such as blinds, or even our light controllers. Technical data: Digital input Type For potential free, closing contact (not 230V AC!) Number 1 Output current Max. 30mA Output voltage 16V DC (+/- 5%) EnOcean Master NUmber 1 Master Transceiver TCM310 Transmit / receive yes / yes Antenna Internal Transmit-/ receive center frequency 868.0 MHz / ASK Occupied frequency band 868.0 - 868.6 MHz Maximum transmission power Typ. 3 dBm @ 868.300 MHz Recipient category according to EN 300200 2 Environment conditions Supply voltage 230V AC Power consumption Typ. 1,6W, max. 2,5W Operating temperature +5°C to +50°C Storage temperature -20°C to +70°C Humidity 10% to 95% rel. humidity, non condensing Protection class IP20 Tests / Standards: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 +A2:2013 ETSI EG 203 367 DIN/EN 55032 EN/IEC 61000-4-2 EN/IEC 61000-4-3 EN/IEC 61000-4-4 EN/IEC 61000-4-5 EN/IEC 61000-4-6 Further information as well as the user and installation instructions can be found in the Download tab.
