Strada 90 LV
Product information "Strada 90 LV"
Illuxtron Strada 90 LV (Low Voltage) Downlight
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
| Version | Power range | Beam angle | Special feature |
| HV-FD (High voltage- Flimmerfree Dimmtechnology) | 10,1-10,5 W | 40° / 80° | directly connectable to 220-240V |
| LV (Low Voltage) This Version | 5,0 - 13,8 W | 24° / 60° / 80° | CRI-97 standard, driver included |
| LV-TW (Low Voltage - Tuneable White) | 11,4 W | 60° / 80° | Tuneable White Technology |
These recessed spotlights are available in 1800-3000K, 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Strada 90 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good color rendering
Further details of these technical features can be found in the Illuxtron Mini recessed spotlight overview.
This downlight is also available in HV and LV downlight versions.
The most important technical details of the Strada 90 series:

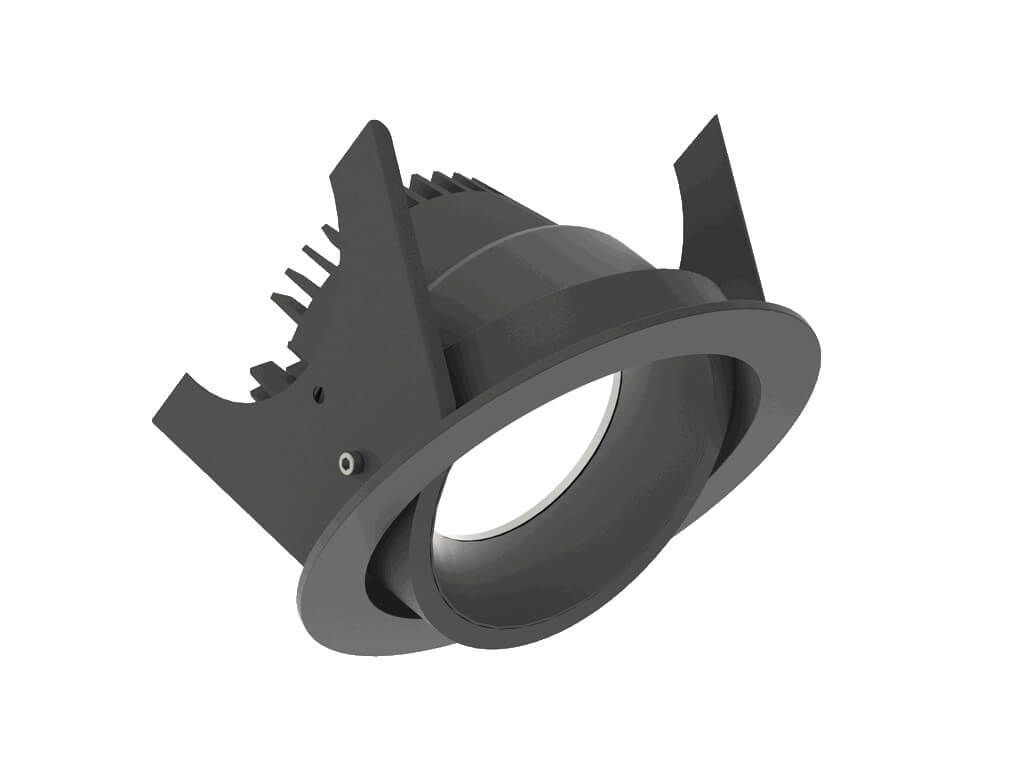

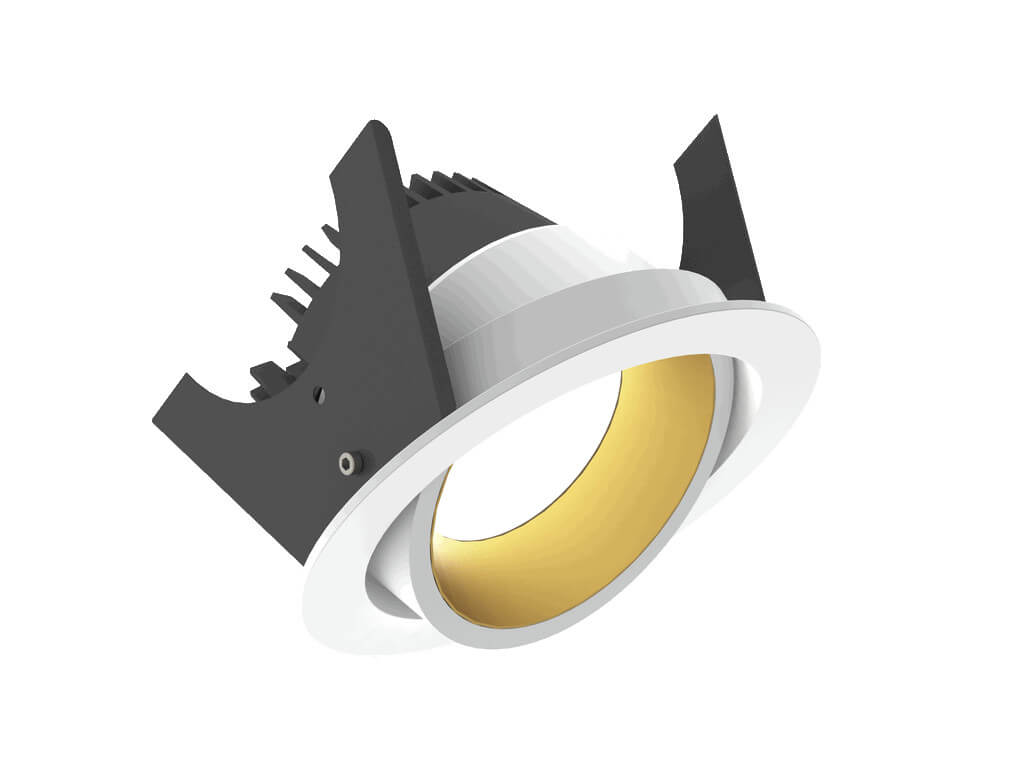

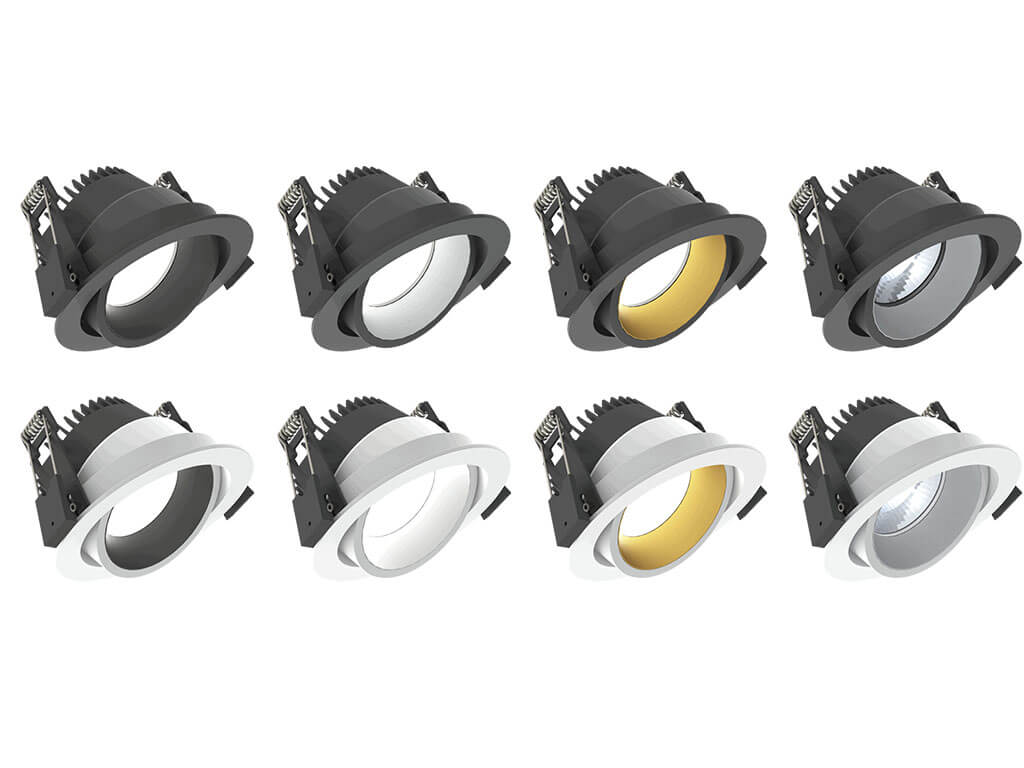

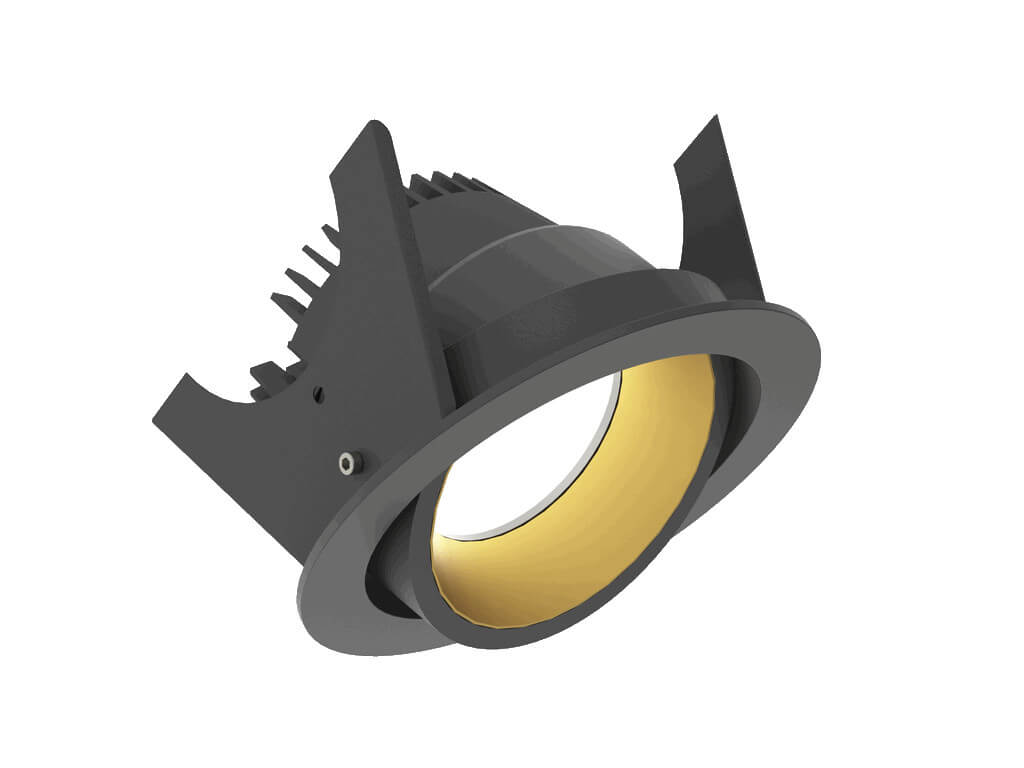

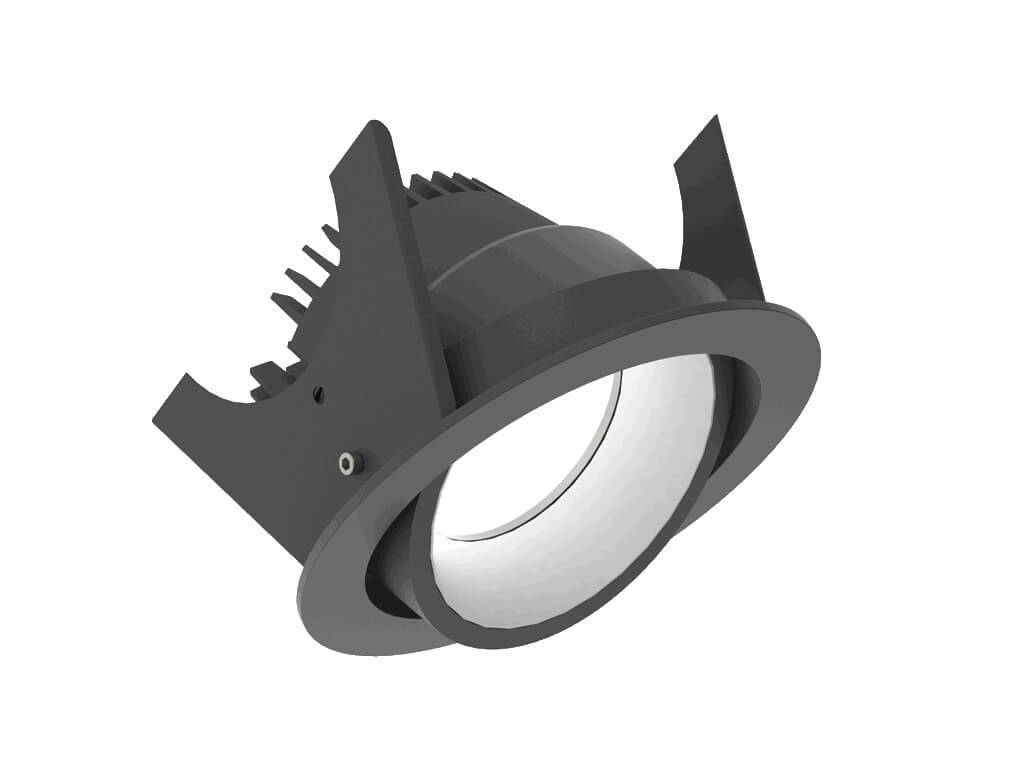

| Housing colour / reflector ring | matt white RAL9016 / Gold (XX=61) matt white RAL9016 / Silver (XX=63) matt white RAL9016 / White (XX=64) matt white RAL9016 / Black (XX=62) matt black RAL9005 / Gold (XX=71) matt black RAL9005 / Silver (XX=74) matt black RAL9005 / White (XX=75) matt black RAL9005 / Black (XX=72) |
| Material | Housing: Die-cast aluminium Reflector glass: Polycarbonate |
| Dimensions | ø 81 mm |
| Required installation depth | > 70 mm |
| Ceiling cut-out |
90 mm: Use of concrete springs. |
| Usage | Indoors |
| Colour Consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Life time | at 25°C |
| L70B50 | > 70.000 h |
| L80B50 | > 70.000 h |
| L90B50 | > 37.000 h |
| Safety signs | EN60598 / EN62031 / EN62471 |
| EMV-Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |
Strada 90 Low Voltage (LV)
High Efficiency, CRI 97
The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
Further information on Strada 90 LV downlights can be found in the respective data sheet.
Strada 90 LV
| Dimmability |
Casambi |
|||
| Art. No. | 855C03XX4F02 | 855D03XX4F02 | 855H03XX4F02 | 855F03XX4F02 |
| Colour temperature | 2700 K | 3000 K | 4000 K | 1800 - 3000 K |
| UGR | 23,7 | 24,0 | 24,2 | 24,0 |
| Luminous flux | 1150 lm | 1250 lm | 1350 lm | 1250-125 lm |
| Lm/W (with EVG) | 83 | 91 | 98 | 89-91 |
| Type | Inc. PSU | |||
| Input | 220-240 V | |||
| Power | 13,8 W | 1,4-13,8 W | ||
| Protection class | II | |||
| Pf | 0,95 | |||
*Note: This table shows only the switchable 1150lm version with 60° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting options and the 80° beam angle.
For data sheets of the downlights Strada 90 series see download tab:
Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 4000K |
| Dimmable/Control: | 1..10V, Casambi radio, DALI, Phase-Cut (Triac) |
| Hole diameter: | 90mm |
