Accessories for TRACK ON busbar system from ALS

Product information "Accessories for TRACK ON busbar system from ALS"

Electrical accessories for DALI track "TRACK ON" from ALS

In addition to the rails themselves, other components depending on the requirements and specifications are necessary for the successful use of the surface-mounted track. On our website you will find all components available via selection menus.

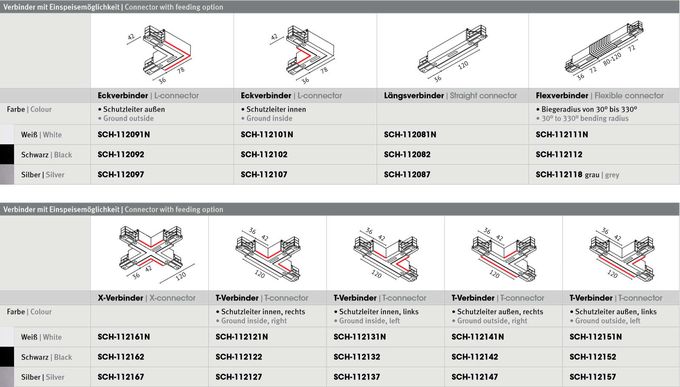

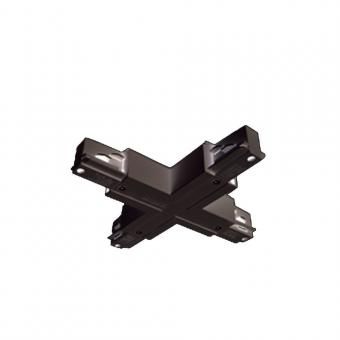

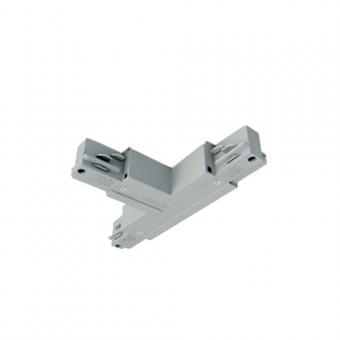

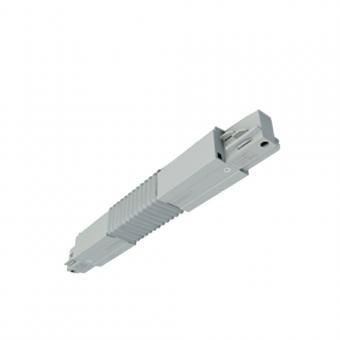

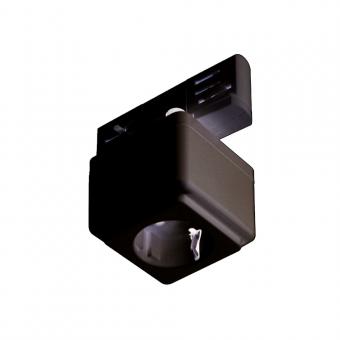

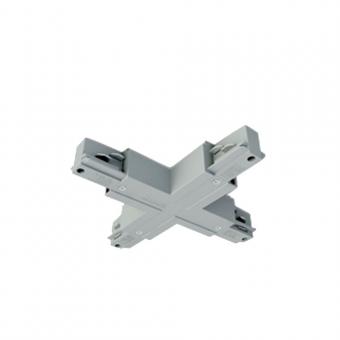

The overview below will help you find the right parts using the picture list.

Below the picture table you will find some application examples to help you configure your own.

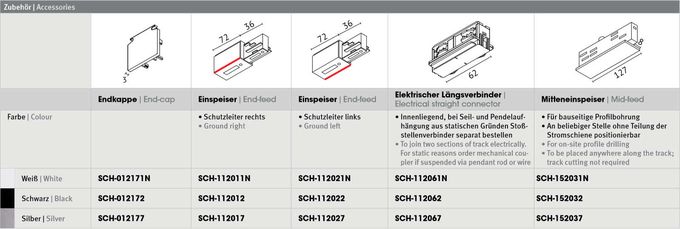

Pictures and selection of electrical accessories for ALS TRACK ON tracks see here:

lanning example for the TRACK ON track:

Example 1: Requirement: 3m power track black, surface mounting, end feed
At least are needed:

3 Phase construction rail 1m --> SCH-102
3 Phase construction rail 2m --> SCH-202

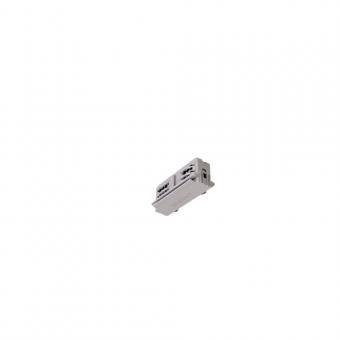

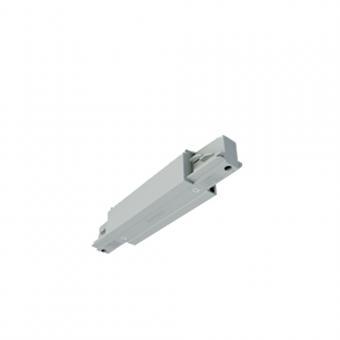

Electrical straight connector --> SCH-112062

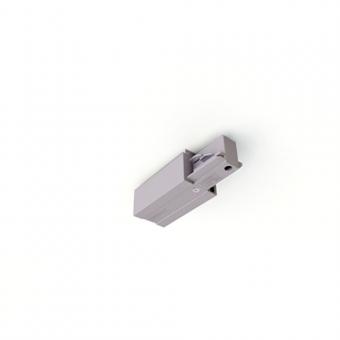

End feeder --> SCH-112012 (depending on the orientation of the protective conductor)

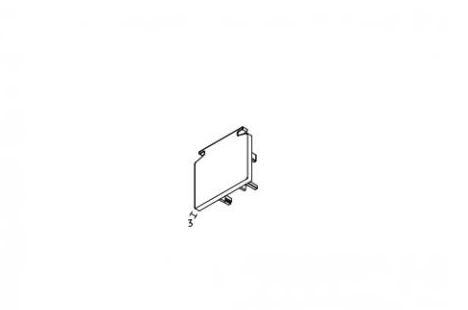

End cap for the other side --> SCH-012172

Example2: Requirement: 2 x 90 ° arrangement of U-shaped busbar with the partial lengths 2m - 4m - 1m, white, feed in the middle of the 4m section, surface mounting

1x 3 Phase construction rail 1m --> SCH-101N
1x 3 Phase construction rail 2m --> SCH-201N
1x 3 Phase construction rail 4m --> SCH-401N

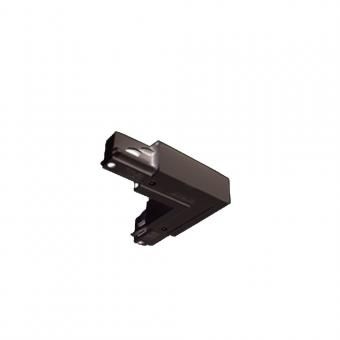

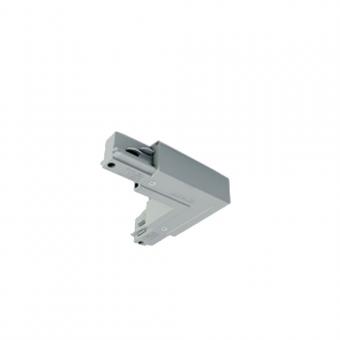

2x Corner connector protection Inside --> SCH-112101N

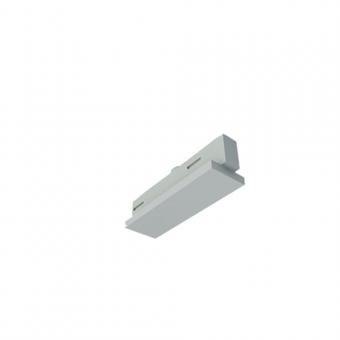

1x DALI center feeder --> SCH-152031N
2x End cap --> SCH-012171N
