Alu T-wallwasher profile with 12 ° radiation

€197.75*

Content: 2 Meter (€98.88* / 1 Meter)

Prices incl. VAT plus shipping costs

Covering

transparent

diffuse

Length

1,0 m

2,0 m

packing unit

Product number: ALU9453022-2000-d

Product information "Alu T-wallwasher profile with 12 ° radiation"

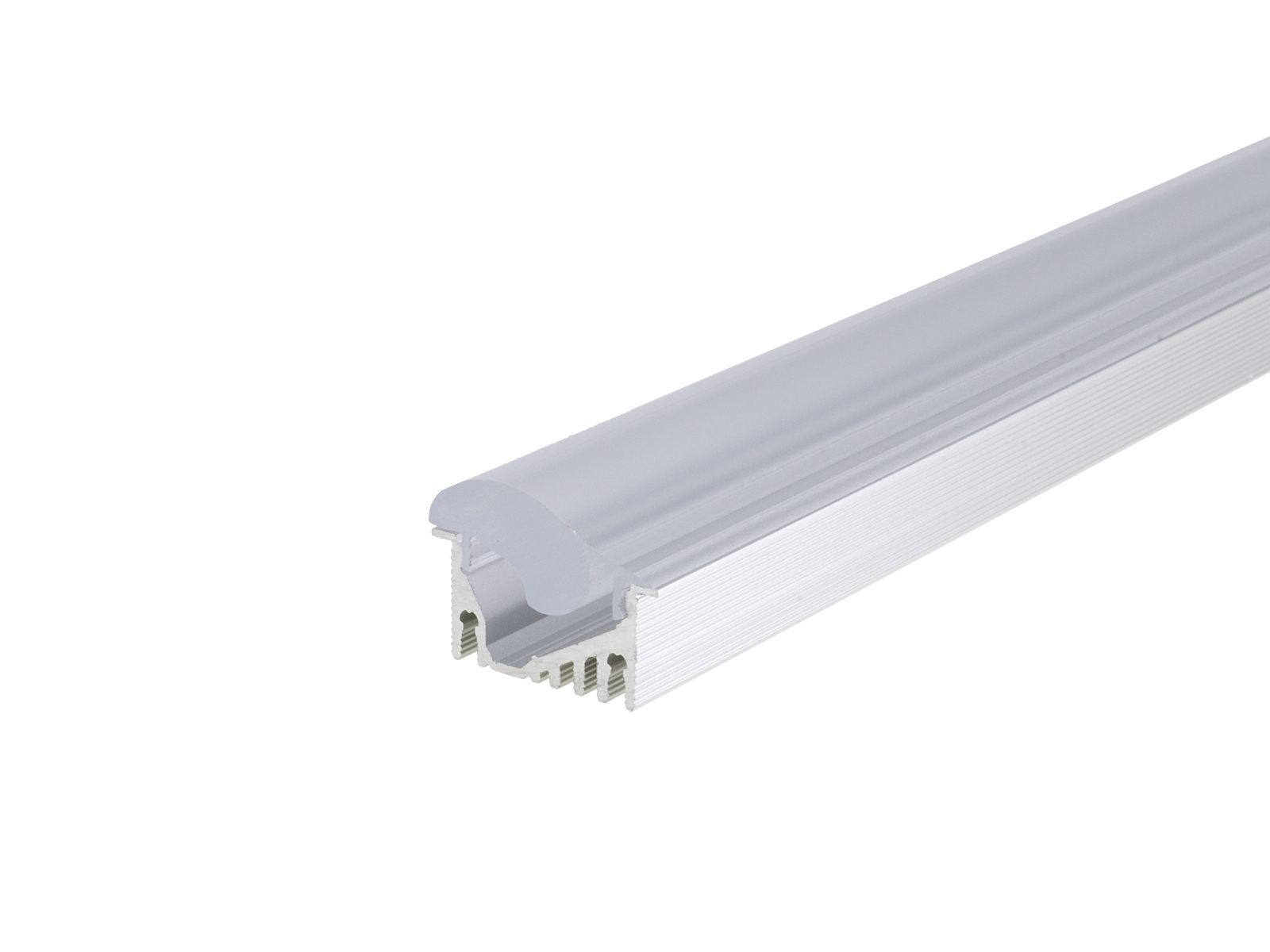

Alu T-wallwasher profile

A silver anodized aluminum profile in lengths of 1 and 2 meters.

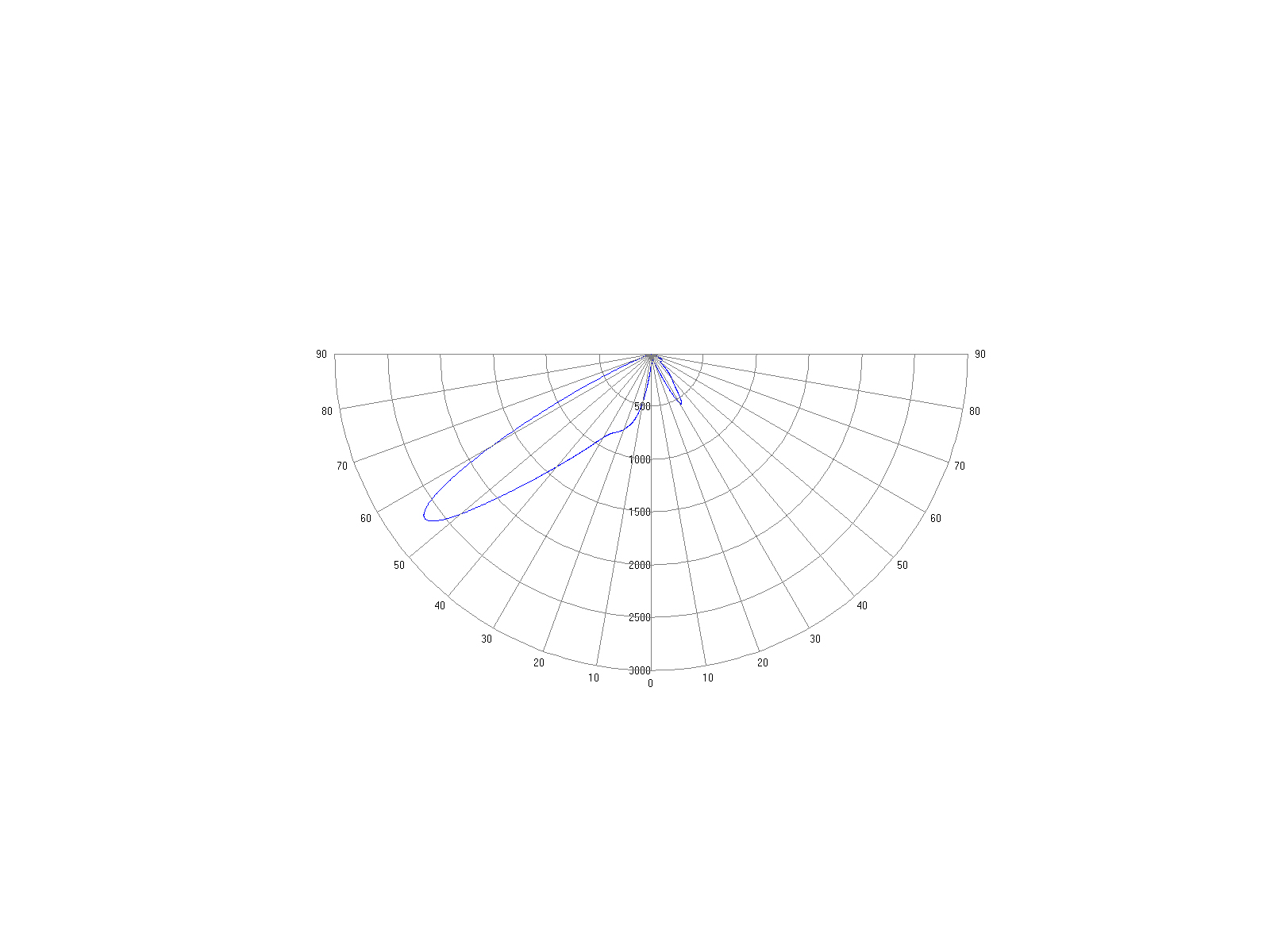

The aluminum T-wallwasher profile can be used with a special lens with a directed light emission of 12 ° to flood surfaces with light.

Due to the shape of the collar, the profile is very suitable for installation in plasterboard or wooden frame structures.
The profile is available in lengths of 1.0m or 2.0m.

We are happy to offer you individual cuts on request.

Technical specifications:

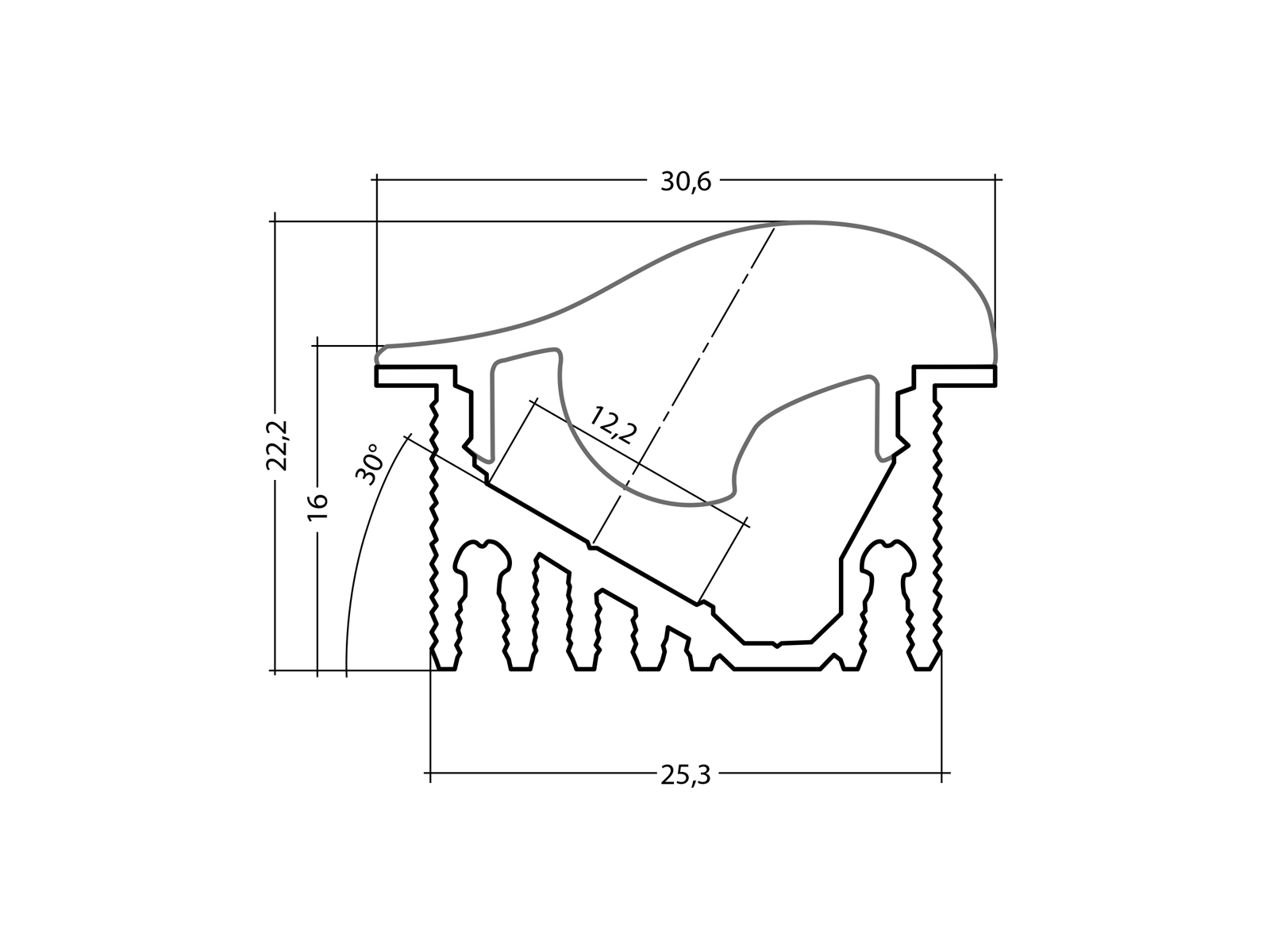

Dimensions (LxWxH) in mm: 1000-2000 x 25.3-30.6 x 22.2
Inner dimension: 12.2mm

Areas of application of the aluminum profile:

Illumination of surfaces
Business expenses
Exhibition construction

Scope of delivery:

LED aluminum T-wallwasher profile, of your choice in a length of 1-2m
Cover optionally transparent or diffuse
without lamps

Lamp shape:	T-profile
Power/Meter:	> 20W/m
