ATON DALI 30W 250-700mA
ATON DALI - Universal LED converter 250mA-700mA adjustable, inc. DALI interface

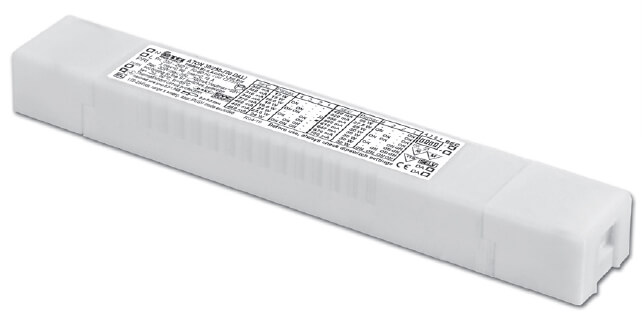

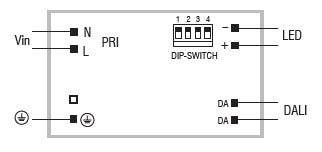

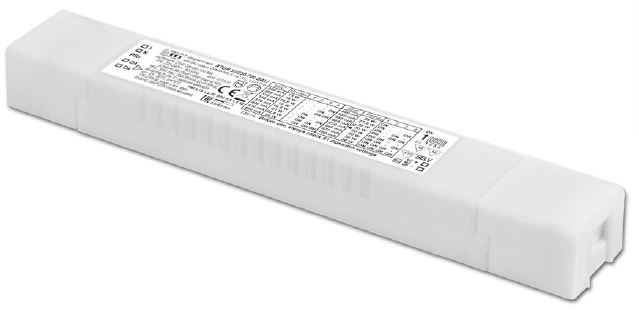

This ATON DALI 30/250-700 by TCI serves as an electronic LED converter/ballast for control via DALI, and is perfectly suited for the supply of constant current operated power LED modules/luminaires or LED systems designed for protection class I, IP20. The output current can be set via an integrated dip-switch.
To correct the power factor, an active over-current filter Active Power Factor Corrector is integrated. The rated power is 30W. In addition, this ECG is adequately protected against overheating and short circuits, power surges and overload. With this TCI DALI ballast, the current control is + - 5% including temperature fluctuations.
The ATON series is particularly popular for its slim design, making it an attractive alternative to the proven Jolly series from TCI.
Type: DC ATON 30/250-700 DALI
Product No.: 127370 / 127372 (BI) and 151370/ 151372 (BI)
Rated power: 13W to 30W depending on the selected constant current
Constant current range selectable in steps: 250mA-700mA
Max. Output voltage: 59V
Dimensions: L210/W21/B30 L179/H21/W30 (BI)

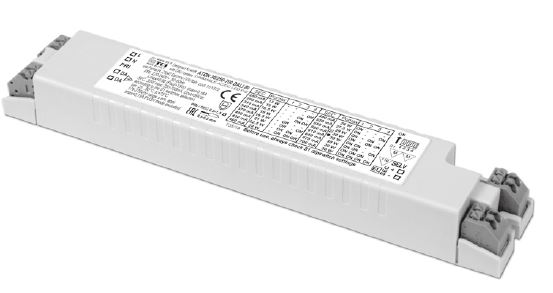

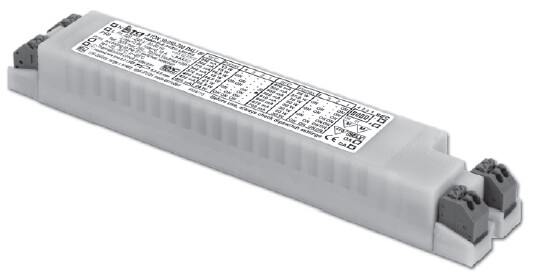

As a proven multi-current converter universally applicable. Also available as built-in version (127372BI and 151372BI)
Technical data for 127370 / 127372 und 151370/ 151372 (BI):
| Dip-SW | Power | Voltage out | Current out |
| Position 1 | 13 W | 20...54V/ 52V* | 250mA const. |
| Position 2 | 15 W | 15...54V/ 52V* | 280mA const. |
| Position 3 | 16.5 W/ 16W* | 10...54V/ 52V* | 310mA const. |
| Position 4 | 18 W | 2/3*...54V/ 52V* | 340mA const. |
| Position 5 | 19.5 W/ 20W* | 2/3*...54V/ 52V* | 370mA const. |
| Position 6 | 21 W | 2/3*...54V/ 52V* | 400mA const. |
| Position 7 | 22.5 W/ 23W* | 2/3*...54V/ 52V* | 430mA const. |
| Position 8 | 24 W/ 25W* | 2/3*...54V/ 52V* | 460mA const. |
| Position 9 | 26 W | 2/3*...54V/ 52V* | 490mA const. |
| Position 10 | 27.5 W/ 26W* | 2/3*...50V/ 50V* | 520mA const. |
| Position 11 | 29 W/ 27W* | 2/3*...50V/ 50V* | 550mA const. |
| Position 12 | 30 W/ 29W* | 2/3*...50V/ 50V* | 580mA const. |
| Position 13 | 30 W | 2/3*...50V/ 50V* | 610mA const. |
| Position 14 | 30 W | 2/3*...46V/ 46* | 640mA const. |
| Position 15 | 30 W | 2/3*...45V/ 45* | 670mA const. |
| Position 16 | 30 W | 2/3*...43V/ 43* | 700mA const. |
*Version TCI 151370/151372 (BI) with AM dimming is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%.
Efficiency of 127370/ 127372 (BI) and 151370/ 151372 (BI) depending on performance: >88%
For a detailed description of the LED converter, please see the data sheet in the download area.
| #Kategoriefilter: | LED-Treiber-alles mit CC |
|---|---|
| Constant Current: | 0,4A, 0,5A, 0,6A, 0,7A, 0,25A, 0,26A, 0,34A, 0,38A, 0,45A, 0,55A, 0,65A |

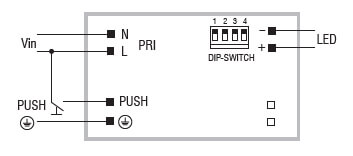

| Dimmable/Control: | DALI, DALI2, Linear/AM, Push-Button |
| Power range: | 5 - 20 W, 20 - 50 W |
