Built-in LED power supply 7W with constant current/constant voltage
Built-in LED power supply with constant current and voltage 24V 350mA / 12V 700mA - for high power LEDs
This LED power supply is ideal for the operation of high power LEDs. The module has screw terminals and is used both as a power supply with a constant output current and as such with a constant output voltage.
Further features:
- Power supply built-in with constant output current for high power LEDs
- With screw terminals
- Protection against overheating, overload and short circuit
- Also usable as power supply with constant output voltage:
- Connect 12V / 24V 5,95W / 8,4W LEDs parallel
Note:
Do not insert switches into the secondary circuit!
Only connect high power LEDs in series!
Technical data:
| Nominal output current | 350 mA | 700 mA |
| Article number | 401243 | 401244 |
| Type | NE352-7 | NE701-7 |
| Input voltage | 220..240 Vac | |
| Frequecy | 50..60 Hz | |
| Output power | 1,05..8,4 W | 2,1..5,95 W |
| Operating output voltage | 3..24 Vdc | 3..8,5 Vdc |
| Max. output voltage | 24 Vdc | 12 Vdc |
| Power factor acc. to EN61000-3-2 | 0,6 | |
| Ambient temperature | 50 °C | |
| Rated max. temperature | 85 °C | |
| Thermal protection | yes | |
| Overload protection | yes | |
| Short circuit protection | yes | |

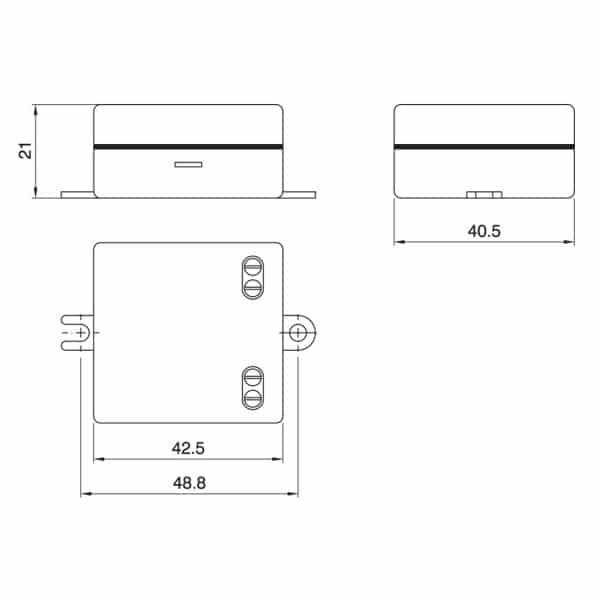

| Dimensions | 42,5x41x21 mm | |
For further information please refer to the data sheet in the Download tab.
| #Kategoriefilter: | LED-Trafos- alles mit CV, LED-Treiber-alles mit CC |
|---|---|
| Application/IP-Code: | IP20 - IP44 (Indoor) |
| Constant Current: | 0,7A, 0,35A |
| Constant Voltage: | 12V, 24V |
| Power range: | 5 - 20 W |
