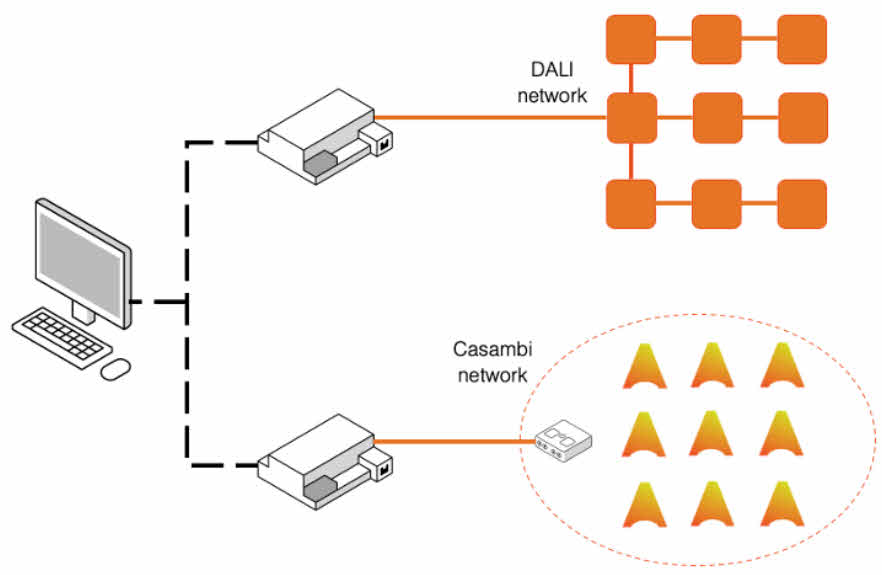

CBU-DCS DALI CASAMBI Gateway

Casambi Module - Dimming via App with 0-10V and 1-10V Compact Casambi Module for integrating with 0-10V (alternatively 1-10V) enabled LED driver in your lighting unit. Dimm a lamp via smartphone with the Casambi App for the Casambi Module ... ... to create a perfect lighting control system Through a BT 4.0 (2,4 GHz) connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors.   Compatible devices and minimum requirements for Casambi App: Android  iOS   min. Android 4.4 KitKat with BT 4.0 (2,4 GHz)  from iPhone 4S                            recommended: Android 5.0 Lollipop with BT 4.0 (2,4 GHz)  from iPad 3  or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App in Appstore Casambi App for Android Specifications of Casambi CBU ASD Bluetooth Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  Output    Voltage  0-10V  Current max. 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II For further technical data to Casambi Modules please refer to data sheet (ref Download)

Casambi Dimmer Unit - dimming via app by DALI light control Compact controller to integrate a DALI-compatible LED driver in your lighting unit. Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit... ... to create a perfect lighting control system Through a BT 4.0 (2,4 GHz) connection and appropriate App you can dim your Smart Device lamps, switch individual lights on and off, create light scenes and a desired mood in your own 4 walls. Available in 4 different versions: 1 Channel (sent via DALI-Broadcast) 2 Channel (sent to DALI addresses*: 0, 1) 3 Channel RGB (sent to DALI addresses*: 0, 1, 2) 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3) CCT / TW (sent to DALI addresses*: 0,1) RGB (sent to DALI addresses*: 0,1, 2) RGB-W (sent to DALI addresses*: 0, 1, 2, 3) Professional (combines all functions, selectable via profile) (* DALI addresses of devices has to be programmed regarding this) Another Casambi highlight: Even with your conventional light switch you can dim and switch your lights. Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI are missing and you still want to dim. So you can easily adjust with Casambi reduce lights. 1. Switch on illumination with a usually switch. 2. Short off and on again withing 1 second. The illumination slowly dims up. 3. Another short off and on again at the desired dimming level. The current dimming value is stored. 4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%. All products by Casambi family have following features: Creates automatically a wireless Mesh-Network with other Casambi products. Wireless control using the free Casambi App for smartphones and tablets. Integrate the use of regular wall switches for dimming and scene control. Support for external on / off motion sensors.   Compatible devices and minimum requirements for Casambi App: Android  iOS   min. Android 4.4 KitKat with BT 4.0 (2,4 GHz)  from iPhone 4S                            recommended: Android 5.0 Lollipop with BT 4.0 (2,4 GHz)  from iPad 3  or current Android versions  from iPod 5 These functions does the free Casambi App: Dimming of single or multiple lights with simple touch gestures. Controlling the lighting of your stores, offices, or personal spaces. Installation of single or complex scenarios with one or more lightings.   Define the security of the network. There are four different levels of security for access control. Also support Philips HUE. Casambi App free download: Casambi App Android (Google Play) Casambi App iOS (iTunes)  Casambi App in Appstore Casambi App for Android Specifications of Casambi CBU ASD Unit:  Input    Input voltage  220-240VAC (50Hz)  Max. input voltage  1.2A  Standby power  220-240VAC (50Hz)  DALI Output    Bus voltage  12VDC  Current 7mA  Radio transceiver    Frequency range  2,4-2,483 GHz  Max. output power  +4 dBm  Mechanical data    Dimensions  56.5 x 35.8 x 22.3 mm  Weight  48g  Protection  IP20  Protection class  Built-in class II .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CBU-ASD overview   In this video, we’ll provide a brief overview of the CBU-ASD and its features and functions. .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} CBU-ASD modules, control of lighting with 3 wires and dimming LEDclusive.de We show the idea behind.Video Language is german

Neolighter - CASAMBI wireless switch This Handy wireless switch is used to control Casambi devices via smartphone (Apple / Android). For this purpose, the Neolighter Module  contains 3+1 programmable functions and the programming is done again with the tablet or smartphone. The user has various switching options: In addition to a knob and button a radio control by shaking is also possible. Further features: Remote control to control Casambi devices Various switching options: knob, shaking, button 3+1 programmable functions Programming via smartphone/table The battery lifetime depends on the usage The usage is only achievable in connection with Casambi interfaces Setup and operating instructions:  It is recommended to install the free app from CASAMBI. It is available both in the "App Store" and in the "Play Store". This offers you the following options: Lighting control (colour/dim level) Configuration of luminaires and luminaires networks Creation of scenes and animations (colour gradient) Automatic detection of new devices Intelligent timer and gallery function Protection settings of your luminaires network (“just me”, “with password”,...) Note: Corresponding: silicon housing “Aria Brick” Art. 808790 Technical data:  Article number 808800 Type Aria Neolighter Signal input BT 4.0 (2,4 GHz) lite @ Smart device Radio signal 2,4..2,483 GHz; 4 dBm Switch possibility turning knob, shaking, button Range 10 m Battery CR2032 Battery lifetime 2-5 years Dimensions Ø 29×49,5 mm Regarding to CASAMBI neo lighter, there are appropriate cases (made of wood, stone and silicon) available:   Silicon case Stone case Wooden case Article number 808790 808791 808792 Type Aria Brick Aria Brick_Pietra Aria Brick_Legno Dimensions 90x90x47 mm Casambi App in Appstore Casambi App for Android Further information can be found in the data sheet in the Download tab.

Casambi bluetooth control unit CBU-A2D - Control two devices with 0-10V or DALI via Bluetooth Features of the Casambi CBU A2D The CBU-A2D is a casambi bluetooth control unit with 2-channel 0-10V / DALI . The module is operated over a universal input voltage range of 100-277 VAC. The CBU-A2D enables the control of two LED drivers with 0-10V or DALI input. Alternatively, the tuneable white control with two independent LED drivers for warm white / cold white is also possible.The product can also be configured as a DALI push-button interface, where it can be connected for presence and / or daylight use functions. The CBU-A2D can be controlled and configured using the Casambi app. Various Casambi-capable products can be used, from a simple direct control of a luminaire to a complete and full lighting control system, in which up to 250 units automatically form an intelligent mesh network. Technical facts about the Casambi A2D Voltage range 100-240 (CE/UL/CSA)277 VAC (only UL/CSA) Frequency 50-60 Hz Max. main current 35 mA No-load standby power <0,5 W Channel 1 output Output voltage, 0-10V, 0-10 VDC, max. 7 mA (sinking)Output voltage, DALI 12 VDCmax. 20 mA (sourcing)Maximum number of drivers: 1  Channel 2 output Output voltage, 0-10V: 0-10 VDC, max7mA (sinking)Output voltage, relay control: 12 VDC,max. 100 mA (sourcing)Maximum number of drivers: 1 Dimensions 76,0 x 26,0 x 23,0 mm3.0 x 1.0 x 0.9 Zoll Protection IP20Built-in class II

CASAMBI - radio blind control with 2 external buttons   Product characteristics and features: Controller for electric blinds Integrated antenna (drawing grey marking, do not cover with metal case) Also possible to control with 2 external push buttons (mains potential), do not connect another external mains! Maximum 1 motor per device Don't reverse direction of running motor With exchangeable Fuse T1.6, H250V, 5x20mm Setup and operating instructions:  It is recommended to install the free CASAMBI app. It is available in both the "App Store" and the "Play Store". This offers you the following options: Configuration of devices in networks Creation of scenes Automatic detection of new devices Intelligent timer and gallery functions Protection settings of your network („just me“, „all“, „with password“,...) Technical data: Article number 808939 Type IBTROL Input Voltage 230 Vac Frequency 50..60 Hz Signal input BT 4.0 (2,4 GHz) lite @ smart devices Radio signal 2,4..2,483 GHz; 4 dBm Alternative control 2 external push buttons (mains potential) Motor output power max. 345VA Ambient temperature (ta) -20..+50 °C Rated Max. temp. (tc) 60 °C IP protection level 20 Dimensions 143 x 39 x 27 mm Casambi App in Appstore Casambi App for Android

CASAMBI - radio Relay Control of 2 loads   Product characteristics and features: Controller to independently control 2 loads Integrated antenna (drawing grey marking, do not cover with metal case) Setup and operating instructions: It is recommended to install the free CASAMBI app. It is available in both the "App Store" and the "Play Store". This offers you the following options: Configuration of devices in networks Creation of scenes and animations Automatic detection of new devices Intelligent timer and gallery functions Protection settings of your network („just me“, „all“, „with password“,...) Technical data: Article number 808938 Type IBT2RE Input voltage 230 Vac Frequency 50..60 Hz Signal input Bluetooth 4.0 lite @ smart device Radio signal 2,4..2,483 GHz; 4 dBm Max. switching capacity 2x 28Vdc / 250Vac, 6A Ambient temperature (ta) -20..+50 °C Rated max. temp. (tc) 60 °C IP protection level 20 Dimensions 143 x 39 x 27 mm Casambi App im Appstore Casambi App für Android     Weitere Informationen entnehmen Sie bitte dem Datenblatt im Download-Tab.

Versatile CASAMBI Interface -  IP20, DALI controllable, for DIN-rails Using this high-quality CASAMBI interface you are able to comfortably control selected smart applications with your mobile phone or tablet because of the module´s versatility. Therefore, the interface communicates with luminaires networks which can be controlled by the CASAMBI app. This includes automatic detection of new devices, lighting control and the creation of scenes and animations. In addition to that, intelligent timer and gallery funcitons aim to provide an even more flexible controlling. Especially, the interface refers to an application DIN-rails as well as relay and window shape control. Due to its protection level, the module is resistant against temperatures between -20°C and +45°C.    Product Overview (additional features): Interface to control: Gira Bus 1119 00 Konnex, Philips LCU2070, Creston C2N-UNI8IO, Lutron QSE-CI-WCI,  Relay and window shape control, single- and multichannel D-PWM ballast control. Free App from CASAMBI (Apple/Android): Lighting control (colour/dim level) Configuration of luminaires and luminaires networks Creation of scenes and animations (colour gradient) Automatic detection of new devices Intelligent timer and gallery function Protection settings of your luminaires network („just me“, „with password“,...) Especially for DIN-rail, when installed in control cabinets, reduced BT availability is expected. Hint: A gateway is not necessary but there is the possibility for a setup anyway. Technical Data:  Article number 808947 Type Jellyfish A.JF_A01 Power supply input 100..240 Vac, 18..30 Vdc Signal input DALI, 4 Kanäle, BT 4.0 (2,4 GHz) lite @ smart devices Signal output 4 channels 100mA and 30Vdc, controlling of the inductive load (with relays) is allowed Max. output power 100 mA, 30 Vdc Ambient temperature (ta) -20..+45 °C Rated max. temperature (tc) 65 °C IP protection level IP20 Dimensions 90x53x58 mm The data sheet located in the download tab provides more helpful information.
