Converter from 0-10V to DALI for DIN rail
Product information "Converter from 0-10V to DALI for DIN rail"

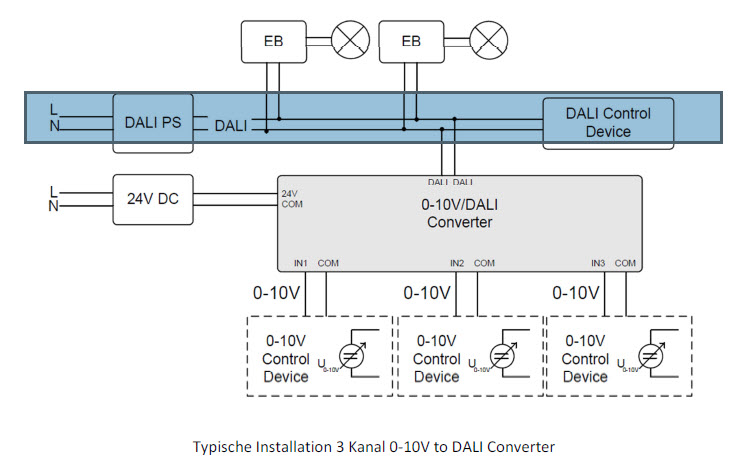

0-10V to DALI converter (1, 2 or 3-channel) for DIN rail mounting
- The compact module converts 0-10V control signals into DALI dimming levels
- The 0-10V input is passive, that is the reason why the module does not supply voltage. Thus, it is suitable for control with 0-10V analog signal
- The read-in 0-10V voltage is sent as a dimming value to the desired effective range in the DALI circuit
- To trigger the process, the 0-10V input voltage >1% is changed
- The module is powered by external 12V to 24V
- For operation, this module requires a DALI bus supply. (DALI PS1 or PS2)
- With the help of DALI-Cockpit and DALI-USB interface, the module can be programmed in terms of effective range, conversion characteristics and OFF function
- Between DALI bus and 0-10V input or 24V supply is a galvanic isolation
- The device is available with 1, 2 or 3 channels
Technical data of the 0-10V to DALI converter:
| Type | 0-10V to DALI converter | ||
| Product No. | 86468353-1-HS | 86468353-2-HS | 86468353-3-HS |
| Power supply | 12V-24V | ||
| Input current | 5mA | ||
| Input | 1 x 0-10V/0,1mA | 2 x 0-10V/0,1mA |
3 x 0-10V/0,1mA |
| Output | DALI | ||
| Ambient temperature | -20°C to 60°C | ||
| Assembly | DIN rail | ||
| Protection class | IP20 | ||
| Cross section connecting wires | up to 2,5 mm² | ||
| Dimensions | 98 x 56 x 18mm | ||
For further details on the Lunatone 0-10V to DALI converter please see the manufacturer's data sheet (download tab)
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Dimmable/Control: | 1..10V, DALI |
