DALI DT6 Powersupply 20W 24V/350-1050mA 89453849

€74.54*

Prices incl. VAT plus shipping costs

2 Reviews

Variation

DALI 25W 24V (89453849-24V)

DALI 15W 350mA (89453849-350)

DALI 20W 500mA (89453849-500)

DALI 20W 700mA (89453849-700)

DALI 20W 1050mA (89453849-1050)

Product number: 89453849-500

Product information "DALI DT6 Powersupply 20W 24V/350-1050mA 89453849"

1-channel DALI LED Power Supply with DALI control input

Product features

Types for constant voltage (24V) and constant current (250mA, 350mA, 500mA, 700mA, 1050mA) available
Control via DALI-address (DT6)

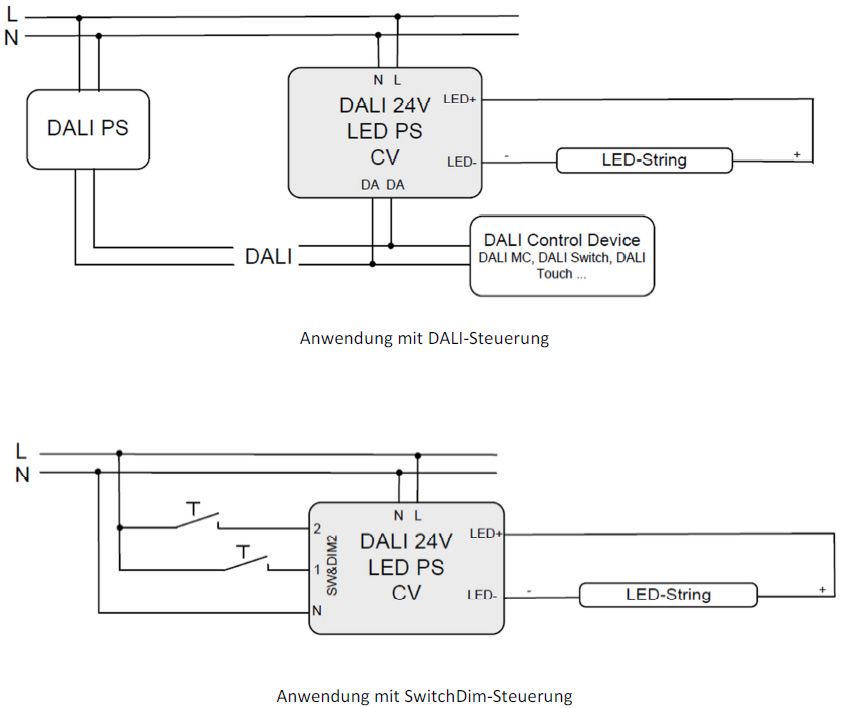

SwitchDim2: level control via switching inputs without DALI
Dimming range from 0.1%-100% (constant current operation)
Supply voltage 230V AC
Configuration with DALI-Cockpit softwaretool and DALI USB interface
Over temperature shutdown, integrated short circuit protection
User-friendly factory default settings
Suitable for integration in luminaires and remote ceiling

Technical data

Supply: 220/240 V AC 50/60 Hz
Idle power: < 0,3W
Inrush current: >0,2 A
Power factor: >0,95
Control input: DALI or SwichDim2
Number of DALI addresses: 1
Current consumption DALI: 2mA
Temperature: -20 °C to +45 °C
Protection class: IP20
Power on behaviour: Configurable via DALI: 0%-100% or last value
Max. connecting wire cross section : 1,5 mm²

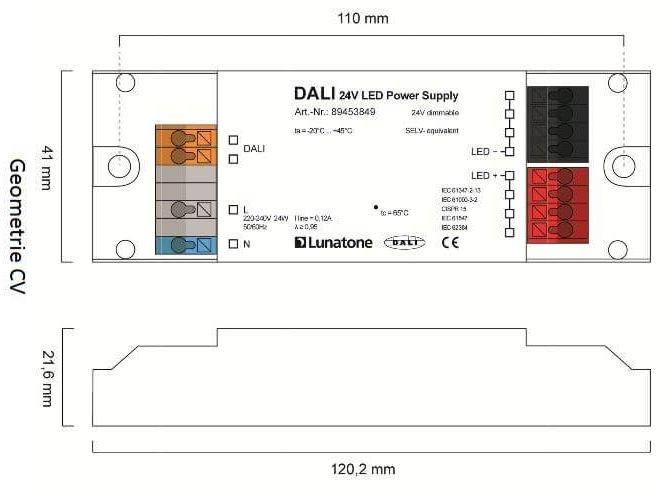

Dimensions (LxWxH): 120 mm x 41 mm x 22mm

Specification:

Constant voltage (CV)

Type:	DALI 24V LED Power Supply CV DT6
Article number 89453849-XXX	24V
Electrical data:
Output voltage	24V+- 0,5V PWM
max. output current	1A

Constant current (CC)

Type	DALI LED Power Supply CC DT6
Article number 89453849-XXX	250	350	500	700	1050
Electrical data:
Output current	250mA	350mA	500mA	700mA	1050mA
Output voltage range	12-44V	12-44V	12-36V	12-32V	12-21V

RECOMMENDATION: Care should be taken on keeping cable lengths between dimmer and luminaires (Led-Strings) as short as possible. This kind of installation will minimize the influence of voltage drops.ieren.

For more information on the Lunatone 1-channel DALI, please refer to the data sheet in the Downloads tab.

#Kategoriefilter:	LED-Trafos- alles mit CV, LED-Treiber-alles mit CC
Application/IP-Code:	IP20 - IP44 (Indoor)
Constant Current:	0,5A, 0,7A, 0,25A, 0,35A, 1,05A
Constant Voltage:	24V
Dimmable/Control:	DALI, DALI DT8
