DALI light sensor LS module

€61.48*

Prices incl. VAT plus shipping costs

Structural shape

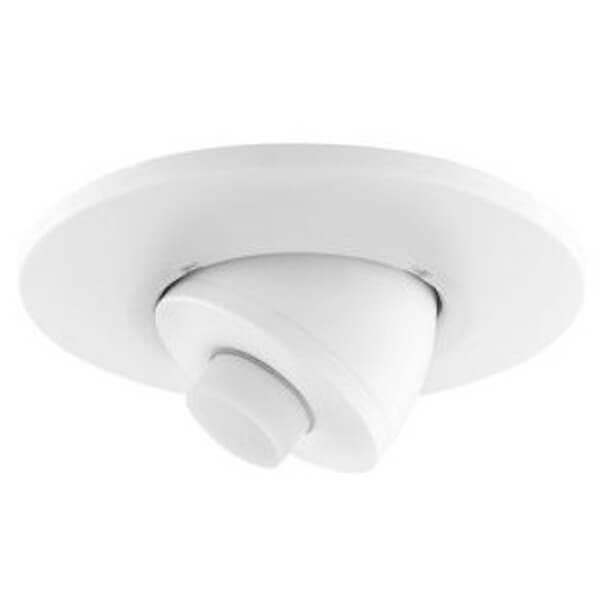

RAL9016/Surface mounted (L86458674-W16-AP)

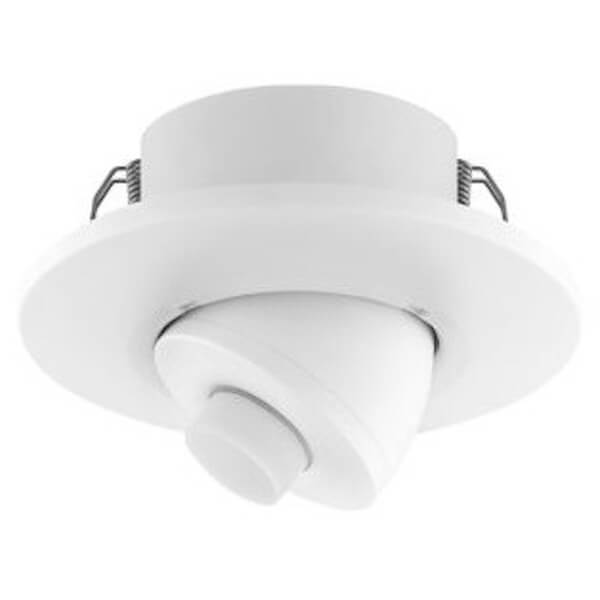

RAL9016/suspended ceiling (L86458674-W16-ZD)

Product number: L86458674-0

Product information "DALI light sensor LS module"

DALI light sensor LS module from Lunatone

The DALI light sensor LS automatically controls the light level of individual luminaires or luminaire groups. A rotary switch allows the desired illuminance to be set directly at the rear of the device. The measured light level can also be queried via the DALI bus.

Product Characteristics

Light intensity sensor for brightness measurement in DALI lighting control systems
Optional use as active lighting control unit or for monitoring purposes
As an active lighting control unit, the module can be configured either as a threshold switch with hysteresis or as an ambient light-dependent controller
As threshold switch, the DALI light sensor LS can send various DALI commands (such as ON, OFF, RECALL MIN/MAX, GO TO SCENE X,...) to defined destinations
As adaptive light level-dependent dimming control, the target address and brightness setpoint can be specified for the module
Simple configuration of the sensor via the DALI bus using the DALI Cockpit software. Individual and group addresses or broadcast addresses can be used as destination addresses
The default setting can be used for simple applications. The rotary switch on the rear panel is used to set the brightness setpoint. The default destination address is Broadcast
The combination of several DALI LS in one DALI circuit is possible
The compact module can be mounted in a flush-mounted box or directly on cavity walls
The module is supplied directly via the DALI line; no additional connection is necessary
Simple installation with DALI double terminal

Dimmable/Control:	DALI
