DCC HPFU
Features
•Active Power Factor Corrector.
•IP20 independent driver, for indoor use.
•Class II protection against electric shock for direct or indirect contact.
•Supplied with terminal cover and cable retainer.
•Input and output terminal blocks on opposite sides (wire cross-section up to 2,5 mm2 / AWG13).

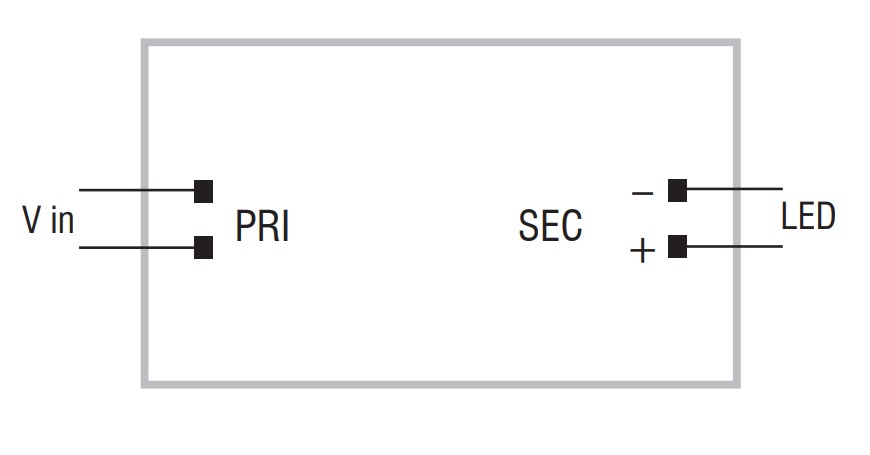

•Single terminal block on primary and secondary circuit.
•Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm.
•Driver can be secured with slot for screws.
•Protections: - against overheating and short circuits; - against mains voltage spikes; - against overloads
More Data
| Article | Code | P out W | V out DC | I out DC | U out V | ta C° | tc C° | max Power Factor | max Efficiency |
| DCC 12W 500mA HPFU | 127711 | 12 | 1...24 | 500 mA cost. | 25 | -25....+50 | 80 | 0,85 C | >83 |
| DCC 12W 700mA HPFU | 127712 | 12 | 2...16 | 700 mA cost. | 19 | -25...+45 | 75 | 0,85 C | >80 |
| DCC 15W 350mA | 127713 | 15 | 2...41,5 | 350 mA cost. | 45 | -25...+45 | 75 | 0,80 C | >85 |
For more information see our download tab.
| #Kategoriefilter: | LED-Treiber-alles mit CC |
|---|---|
| Constant Current: | 0,5A, 0,7A, 0,35A |
| Power range: | 5 - 20 W |
