Dimmable Rotary Switch DALI ROT
Product information "Dimmable Rotary Switch DALI ROT"

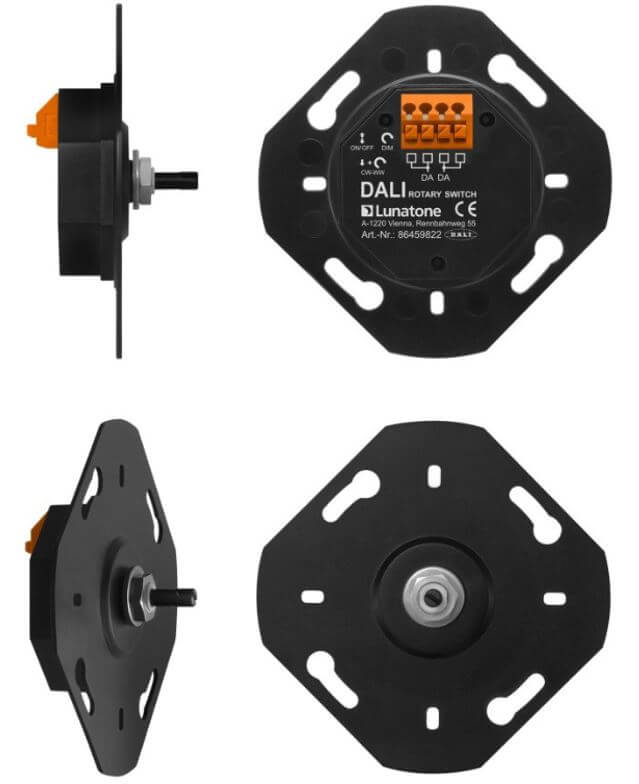

DALI ROT Rotary Switch with Control Module - Dimming in DALI Systems
With the help of the highly functional DALI ROT control module, the brightness and color of DALI luminaires can be set depending on the variant. For this, the module has several versions for controlling Tuneable White or RGB/W capable luminaires. Individual DALI commands can be assigned to the pushbutton and rotary knob. DALI ROT is particularly suitable for commercially available flush-mounted boxes and is used in combination with most switch programs.
Product overview / features:
- DALI ROT control module for switching, dimming and setting color or color temperature, depending on the variation (dimming function):
- Intensity : Brightness control
- TW : Control of brightness and color temperature of DT8 Tunable White luminaires
- RGB : Control of brightness and color of DT8 RGB luminaires
- RGBW : Control of brightness and color / white channel of DT8 RGBW luminaires
- Multi-master capable, i.e. installation of several modules in a DALI circuit
- Simple software configuration and installation in a standard flush-mounted box

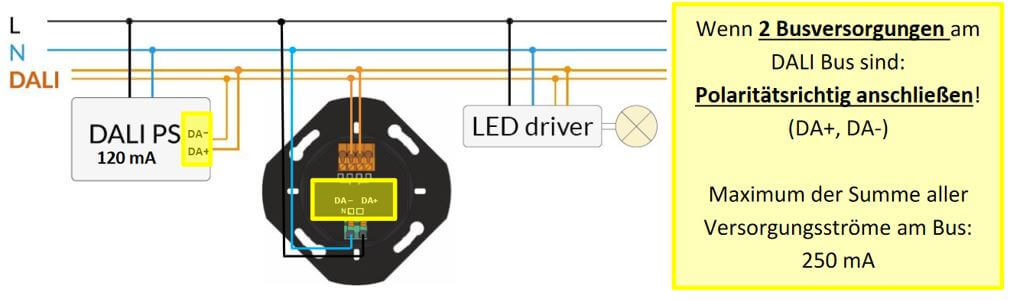

- Variants also available with direct bus power supply 70mA (-PS)
Notes :
- The control module is compatible with covers and rotary knobs from common manufacturers. Suitable accessories can also be found under the following link:

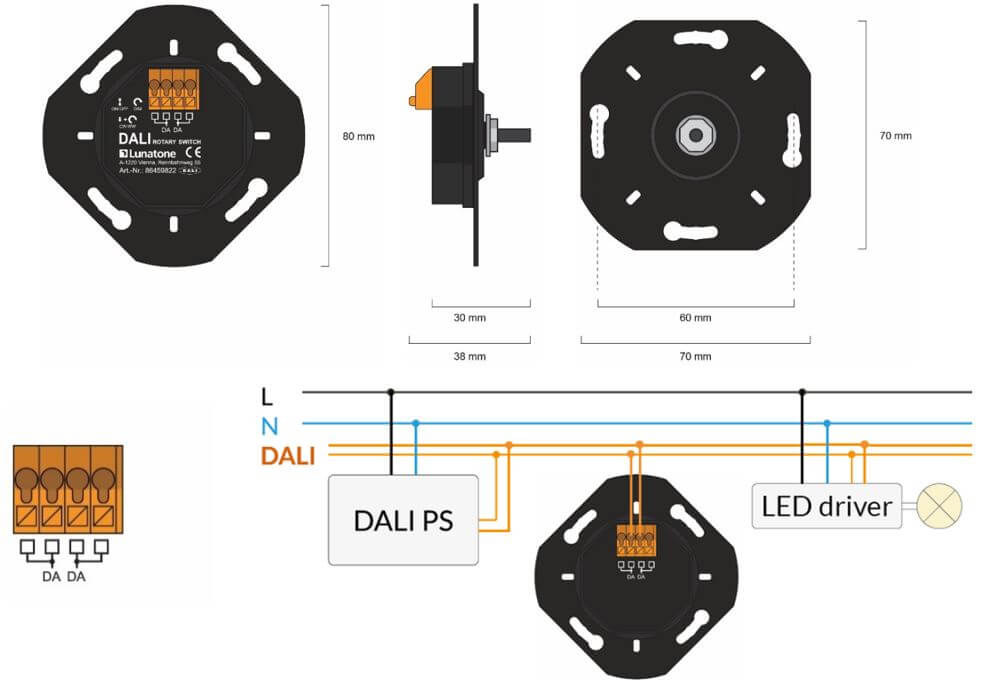

DALI ROT Accessories - Rotary Knob, Cover and Adapter. - Detailed instructions regarding installation and commissioning can be found in the attached data sheet (starting page 6).
Technical data:
Specification DALI ROT (standard version):
| Type | DALI ROT | DALI ROT TW | DALI ROT RGB | DALI ROT RGBW |
| Article number | 86459822-I-0 | 86459822-TW-0 | 86459822-RGB-0 | 86459822-RGBW-0 |
| DALI interface, supply: | ||||
| Type of input | DALI, supply | |||
| Marking of terminals | DA, DA | |||
| Voltage range | 9.5V ... 22.5 VDC according to IEC62386 | |||
| Typical Current consumption DALI | 1.6 mA | |||
| Environmental conditions: | ||||
| Transport and storage temperature | - 20 °C ... + 75 °C | |||
| Operating temperature | - 20 °C ... + 75 °C | |||
| Rel. humidity | 15% ... 90%, non-condensing | |||
| General data: | ||||
| Dimensions (LxWxH) | 70mm x 70mm x 45mm | |||
| Axis diameter | 4mm, adapter for 6mm | |||
| Assembly / use | Installation box | |||
| Protection class | II if installed as intended | |||
| Protection type housing | IP40 | |||
| Protection class terminals | IP20 | |||
| Operation | Push button and rotary knob | |||

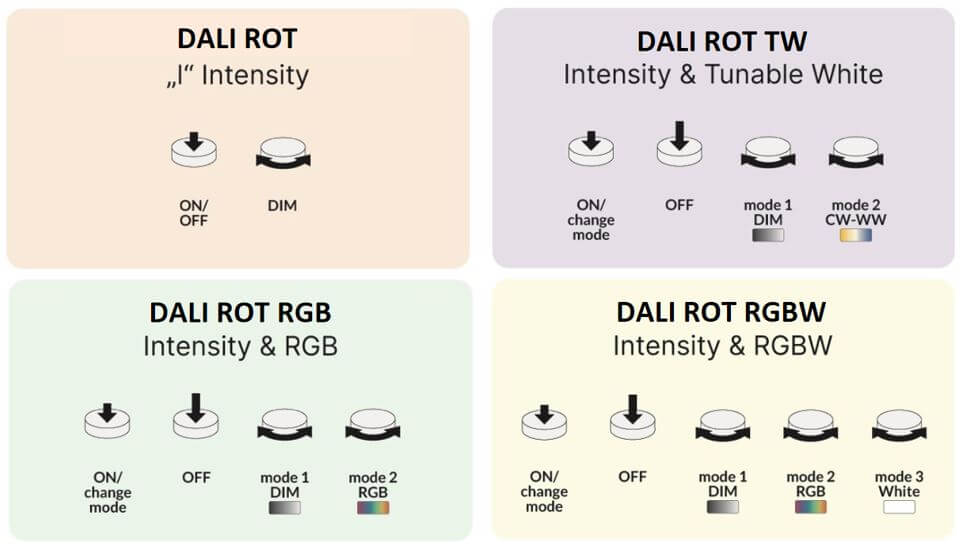

| Function | Intensity | Intensity & Tunable White | Intensity & RGB | Intensity & RGBW |

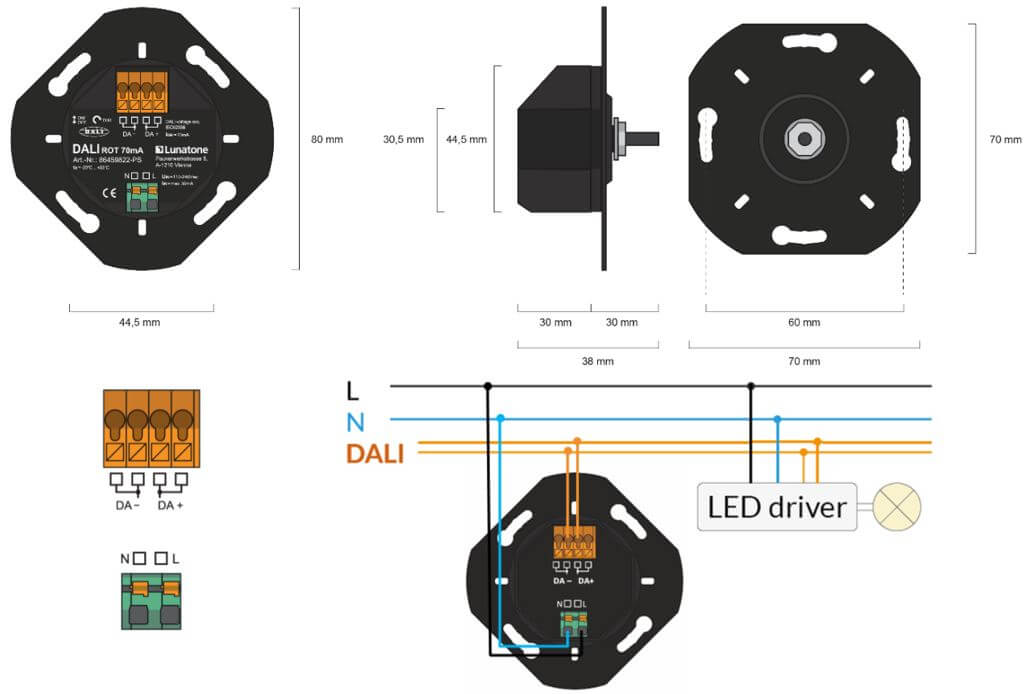

Specification DALI ROT PS (bus supply):
Unless specified otherwise in the table below, the information applies to the standard version.
| Type | DALI RED | DALI ROT TW | DALI RED RGB | DALI ROT RGBW |
| Article number | 86459822-I-PS | 86459822-TW-PS | 86459822-RGB-PS | 86459822-RGBW-PS |
| Input: L, N | ||||
| Type of input | Supply, mains voltage | |||
| Marking of terminals | N, L | |||
| Input voltage range | 230 VAC | |||
| Max. Input current | 17 mA | |||
| Mains frequency | 50Hz / 60Hz | |||
| Power consumption max. | 2 W | |||
| Switch-on ramp-up time | <250 ms | |||
| Output: DA +, DA- | ||||
| Type of output | DALI | |||
| Marking of terminals | DA-, DA + | |||
| Output voltage range | 12 VDC ... 20.5 VDC | |||
| Guaranteed DALI output current | 70 mA | |||
| Max. DALI output current | 80 mA | |||
| No-load proof | Yes | |||
| Short-circuit proof | Yes | |||
| General data: | ||||
| Dimensions (LxWxH) | 70mm x 70mm x 60mm | |||
For more information, please refer to the data sheet in the download tab.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | RGB/3-Ch, RGBW/4-Ch, Tuneable White |
| Dimmable/Control: | DALI, DALI DT8 |
| Lamp shape: | Socket installation |
Login
sw_similar
DALI Power Poti
€117.81*
DALI Potentiometer with integrated Power Supply
DALI can be that easy.DALI Poti on the one side at 230V. Connect the output via two wires with the DALI ballast of the LED luminaire. Done - dimm and switch!
Main Features:
Setting of the colour temperature for luminaires with DALI Device Type 8 for Tunable White according to IEC 62386-209 (only Version TW)
The DALI Power Regulator allows a common brightness control (broadcast) of up to 26 DALI stations without additional DALI power supply
Parallel switching of two DALI power potentiometer extends the maximum number of DALI stations to 104
Use of further DALI power potis as extension (without connection of the integrated power supply)
Switching / dimming by pressing / turning the operation button
Storing of basic brightness and switch-on brightness
Specifications to DALI Power Regulator:
DALI Power Poti UP
DALI Power Poti TW
Rated Voltage
AC 230 V ~
AC 230 V ~
Mains Frquency
50 / 60 Hz
50 / 60 Hz
Output Current
max. 52 mA
max. 52 mA
Light Temperature adjustable
--
2000K - 10000K
Ambient Temperature
-5 bis+45 Grad Celsius
-5 bis+45 Grad Celsius
Dimensions
70,7 x 70,7 x 32 mm
70,7 x 70,7 x 32 mm
Connection
Screw Terminals
Screw Terminals
Cable Length
max. 300 Meter
max. 300 Meter
Interface
DALI
DALI
Test Mark
VDE
VDE
Programming
none
none
DALI rated Voltage
DC 16 V (typ.)
DC 16 V (typ.)
Operation of the Lighting System
push, turn (Endless-Poti)
Connenction single stranded
max. 4mm²
max. 4mm²
Number of DALI Subscribers
max. 26
max. 26
Number of active DALI Potentiometers
max. 4
max. 4
Protocol
--
acc. to IEC 62386-101 /-102 /-209
Number per DALI System
--
104
Axial Dimensions
4 mm
4 mm
Device components Power DALI Poti:The DALI Power Poti comes with the following structure:DALI potentiometer, frame, central plate, central knob, screw terminals (Details see instructions in the download area)
Function of the DALI controller:Intended use:
Brightness setting for luminaires with DALI interface
Setting the colour temperature for luminaires with DALI Device Type 8 for Tunable White in accordance with IEC 62386-209
Installation in appliance box according to DIN 49073
Product characteristics:
If mains voltage is connected to the device " = active operation", it supplies the control current for 26 DALI subscribers.
If no mains voltage is connected " = passive operation", then the device is powered using the DALI voltage (counts as DALI subscriber) and serves as an additional control section. - Parallel switching of up to four "active" DALI potentiometers with the option of supplying up to 104 DALI subscribers
All the control sections have the same functionality.
Saving the basic brightness and a fixed-switch-on brightness is possible. To ensure trouble-free operation, do not combine the device with other DALI controllers.Behaviour after a mains voltage failuresWhen the mains voltage returns, the lighting is switched to the brightness and colour temperature present before the mains voltage failed.
Operation of the DALI controllerOperation can take place from multiple control sections and always applies to all connected subscribers (broadcast).Switch light with the DALI potentiometer
Press the control knob Adjust the brightness
Turn the control knob. Save the switch-on brightness. When switching on, either the brightness and colour temperature present prior to switching off is switched to or to the saved switch-on brightness.
Turn on light
Set required switch-on brightness. Press the control knob briefly twice in succession (double-click). The lightning briefly switches to maximum brightly twice. The switch-on brightness is saved. Delete switch-on brightness
Switch the light off.
Press the control knob briefly twice in succession, double-click. After about 2 seconds the lightning switches to maximum brightness. the switch-on brightness has been deleted.
wDALI GR Receiver PS20
€184.43*
DALI-Receiver from Lunatone
Module to wirelessly tether spatially divided DALI ballast to a DALI system. The GR transmitter, connected to the DALI line, wirelessly sends DALI commands to one or more receivers. The wDALI Receiver PS20 has got an integrated 20mA bus supply for the DALI subsystem. Using the dial on the back of the receiver an address for the DALI subsystem can be selected. The devices in the subsystem can be controlled via broadcast or the set group address.
We also offer the wDALI GR Transmitter (86459587-GRTM) from Lunatone.
Overview:
Module for the wireless integration of spatially separated DALI ballasts in a DALI system
For the wireless connection at least two components are required: one transmitter and one receiver
Range of wireless connection up to 300m outdoors, indoors typically 10m-20m
Easy group assignment to G0...G15 with the help of a rotary group selector on the receiver: all commands sent to the selected group or broadcast are forwarded to the receiver subnet
The commands are sent broadcast on the subnet
The transmitter is supplied from the DALI-line, the receiver is supplied by mains and provides a 20mA DALI bus power supply for the subnet
A DALI-Expander can be used on the subnet for higher DALI loads
A transmitter can control finitely many DALI subnets with a separate transceiver for each subnet
Double DALI terminals – the DALI signal line is connected through
Electrical data receiver
Supply
210-250V AC / 50-60Hz
Output
DALI, 20mA (for up to 10 DALI ballasts)
Function
Receiving DALI-commands via RF
Group selection with rotary switch
Broadcast-forwarding of commands to selected group on DALI subnet
RF range
2,4 GHz
Technical data receiver
Ambient temperature
-10°C bis + 50°C
Protection class
IP20
Connecting wire cross-section
max. 1,5mm²
Mounting
Back box
Dimensions L x W x H
59 x 33 x 15 mm
More information about this product can be found in the data sheet in the Download tab.
sw_related
Accessories Rotary Switch DALI ROT
€1.61*
DALI ROT Accessories - Rotary Knob / Cover and Adapter
DALI ROT is a dimmable rotary switch including a control module for switching, dimming and setting the color or color temperature of LED luminaires. With the right accessories in the form of a cover and an adapter, DALI ROT is ideally suited for standard flush-mounted boxes and is used in combination with most switch programs. The corresponding DALI ROT control module can be found under the following link:
Dimmable Rotary Switch DALI ROT - Control Module.
The rotary knob or the cover is available in different versions depending on the design and color.
Construction: Standard or Jung Series A
Color: Black or White
Specification DALI ROT Accessories:
Article Number
Item Name
Z-86459822-C-J-W
Rotary knob and cover, Jung Series A, alpine white
Z-86459822-C-J-S
Rotary knob and cover, Jung series A, black
Z-86459822-C-0-W
Rotary knob and cover, standard, white RAL9016
Z-86459822-C-0-W
Rotary knob and cover, standard, black
Z-86459822-A
Adapter 6 mm
For more information, please refer to the manufacturer's data sheet in the download tab.
Variants from €1.69*
