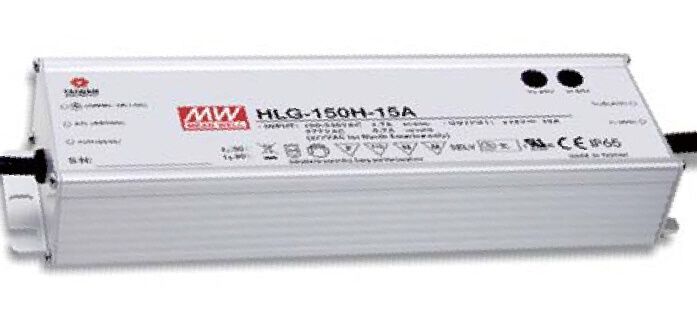

Meanwell HLG-150H power supply
Meanwell HLG150H-xx"Type"
The HLG150H is a high performance dust - and waterproof AC-to-DC LED power supply up to 150W. The Meanwell HLG150H - the LED switching power supply is suitable in execution, for example -12A, perfect for for performance among others with 12V lamps, such as low-voltage LED spotlight MR16 / GU5.3 or MR11 and LED Stripes. The high power (up to 150W), many LED lamps can be switched to a single transformer.
Saving of costs! Even in outdoor applications is the HLG150 very suitable due to high protection.
It is also possible to dim via an additional input (Typ B)
HLG150H features (depends on type):
- 7 Years manufacturers warranty
- IP65 for indoor or outdoor installations
- Cooling by free air convection
- Built-in active PFC function
- Protections: over -/laod, -/voltage, -/temperature
- IP65/IP67 for outdoor installations
- Three possibilities of dimming via 1-10 V, PWM or resistance
- OCP point adjustable through output cable or internal potentiometer
- Universal alternate current up to 305VAC
- Type H for use Class I Zone 2 (gases and vapors)
- Compliance to worldwide safety regulations for lighting
- LED lighting especially street lighting applications
Performance HLG150H Typ -xx"A":
- IP65 design for indoor or outdoor installations
- IP65 rated. Output voltage and and constant current level can
- be adjusted through internal potential meter.
Performance HLG150H Typ -xx"B":
- Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
- IP67 protection. For indoor -and outdoor applications
Technical data to Meanwell power supply HLG:
| Execution | For LED and lighting applications |
| Model | Switching power supply, Performance H |
| Input | 90 - 305 VAC / 127 - 431 VDC 47 -63 Hz |
| Rated Power | 150 - 151,2 W (voltage depending, see datasheet) |
| Surge solidity | 4 kV |
| Output operating parameters | See data sheet |
| Design | HLG |
| Approbation | UL / EN Class C |

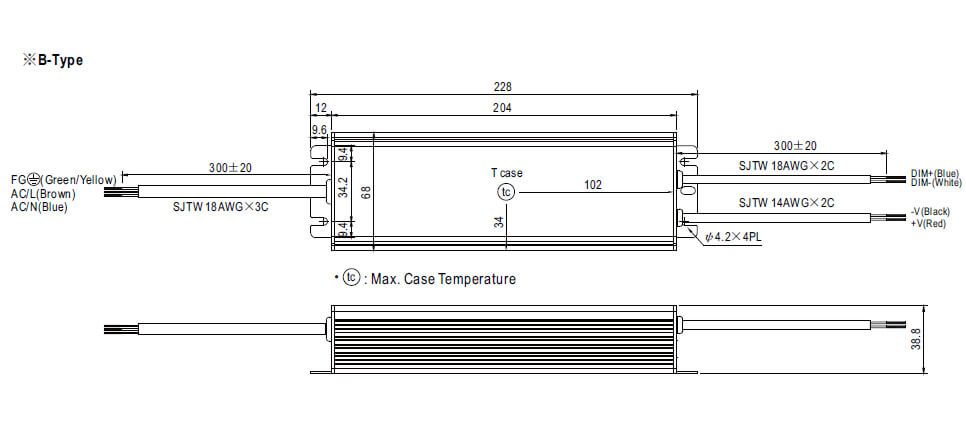

| Dimension | 220mm x 68mm x 38,8mm (H x W x D) |
On request, we also offer the type D or other voltage ranges.
| #Kategoriefilter: | LED-Trafos- alles mit CV, LED-Treiber-alles mit CC |
|---|---|
| Application/IP-Code: | IP65/67 (Outdoor) |
| Constant Current: | 1,75A, 2,1A, 2,4A, 4,0A |
| Constant Voltage: | 12V, 24V |
| Dimmable/Control: | 1..10V, PWM |
| Meanwell Series: | HLG |
| Power range: | 100 - 250 W |
