LED aluminum tile profile AL-PU20 light gap silver

€30.74*

Content: 2 Meter (€15.37* / 1 Meter)

Prices incl. VAT plus shipping costs

Lenght

2 m

2,5 m

packing unit

Product number: ALU945820-200

Product information "LED aluminum tile profile AL-PU20 light gap silver"

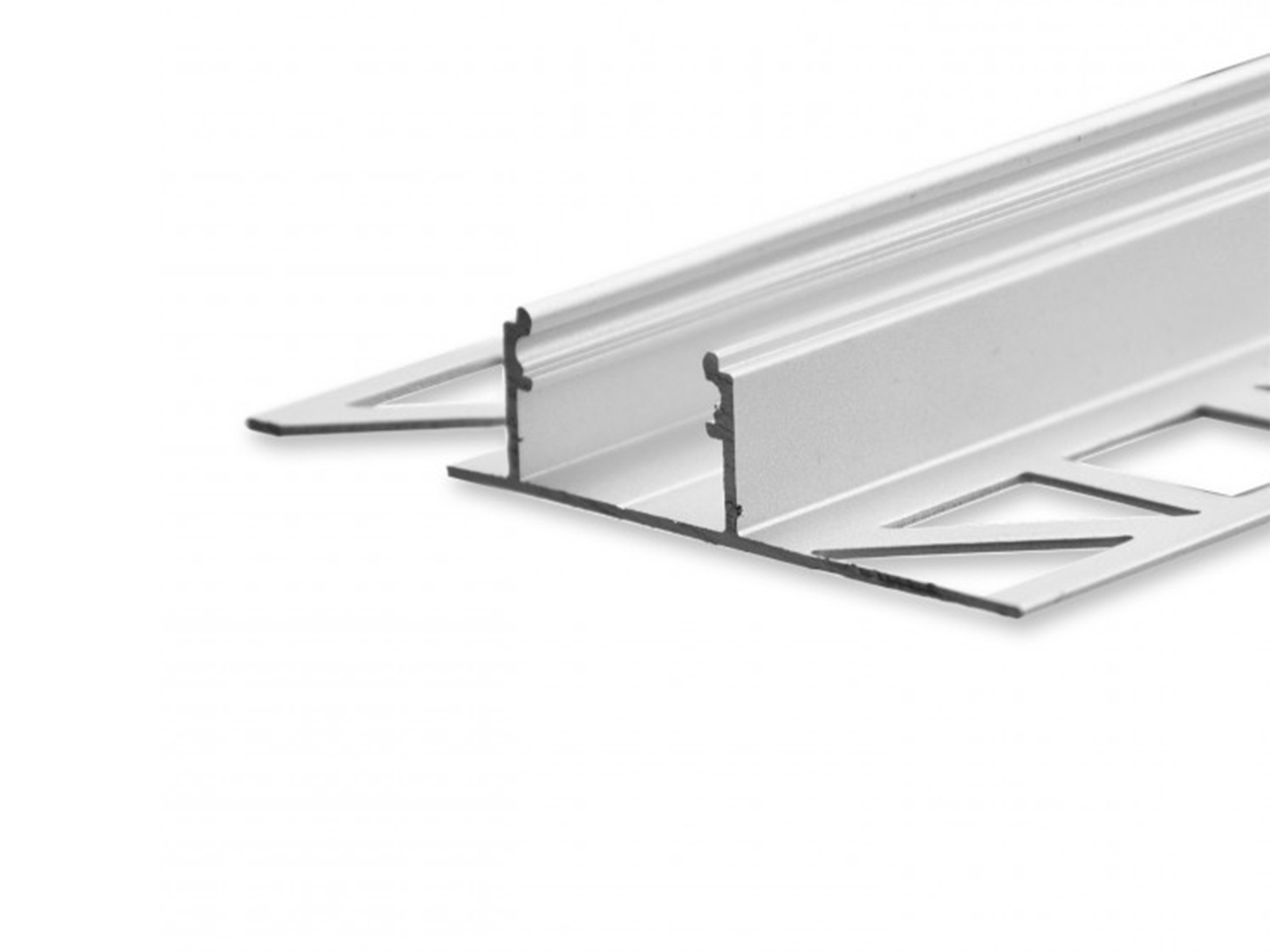

Aluminum tile profile AL-PU20 silver

This LED aluminum tile profile has large wings on both sides (20 mm wide), which are filled with tile adhesive and thus integrated into the tile concept.

The tiles are glued to the wings. Due to its large surface, the tile profile dissipates the heat generated very well. Available in lengths of 2 or 2.5 meters.

Info: We are happy to offer you individual cuts on request.

Technical specifications:

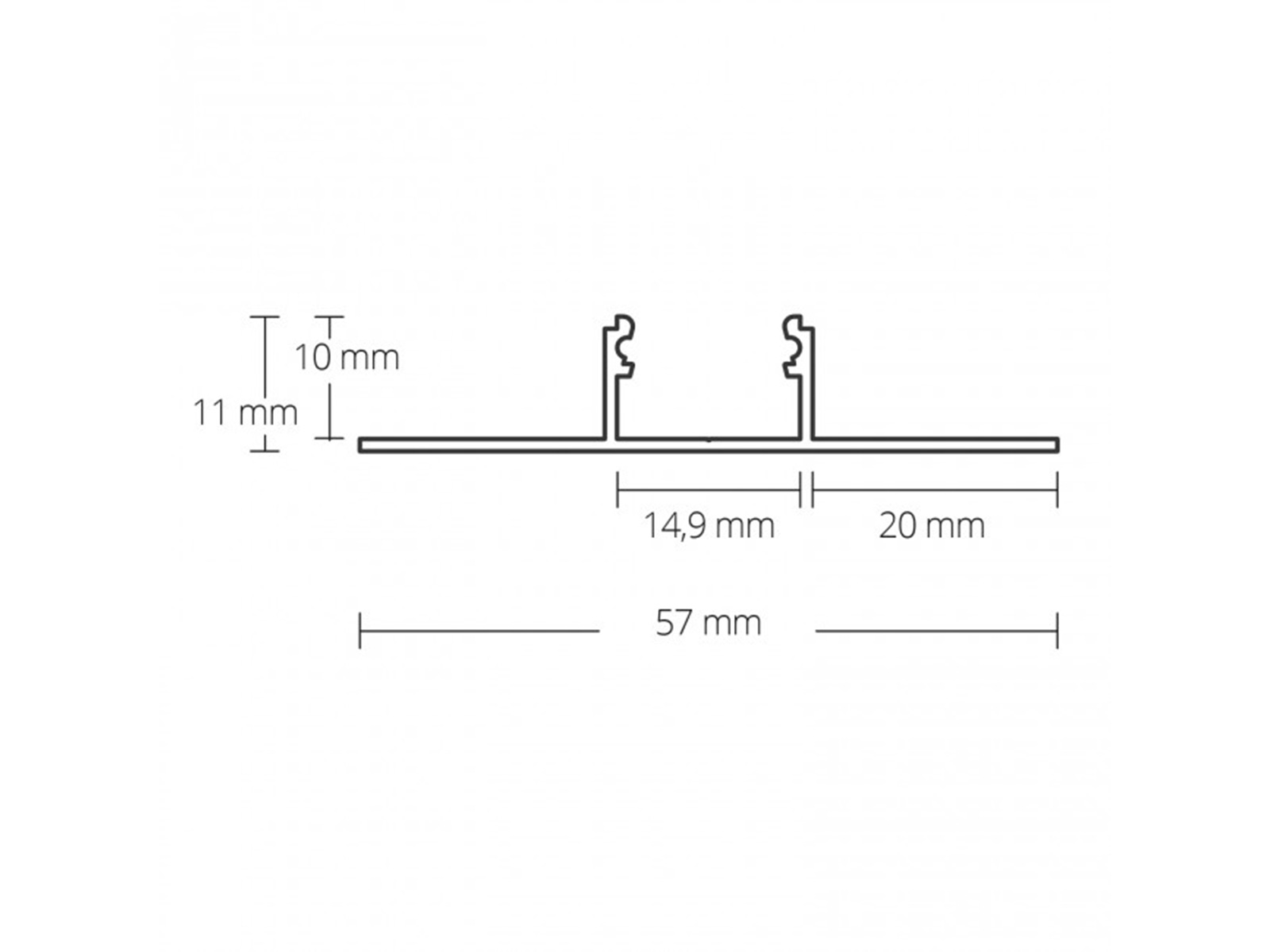

Dimensions (LxWxH) in mm: 2000/2500 x 57 x 11
Inner dimensions in mm: 14.9

For flexible LED strips up to max .: 14mm

Application Areas:

Bath / WC
Kitchen
Laundry room / cellar
Technical rooms
SPA and wellness Areas
Swimming pools / indoor pools
Car washes / car washes
Basically in every tile concept
Assembly / installation on / in wooden strips and panels, plasterboard, tiles, stone, granite, marble and metal surfaces

Scope of delivery:

LED aluminum tile profile for outer corners silver 2m or 2.5m
without cover
without lamps

Lamp shape:	Tile profile
Power/Meter:	> 20W/m

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

sw_similar

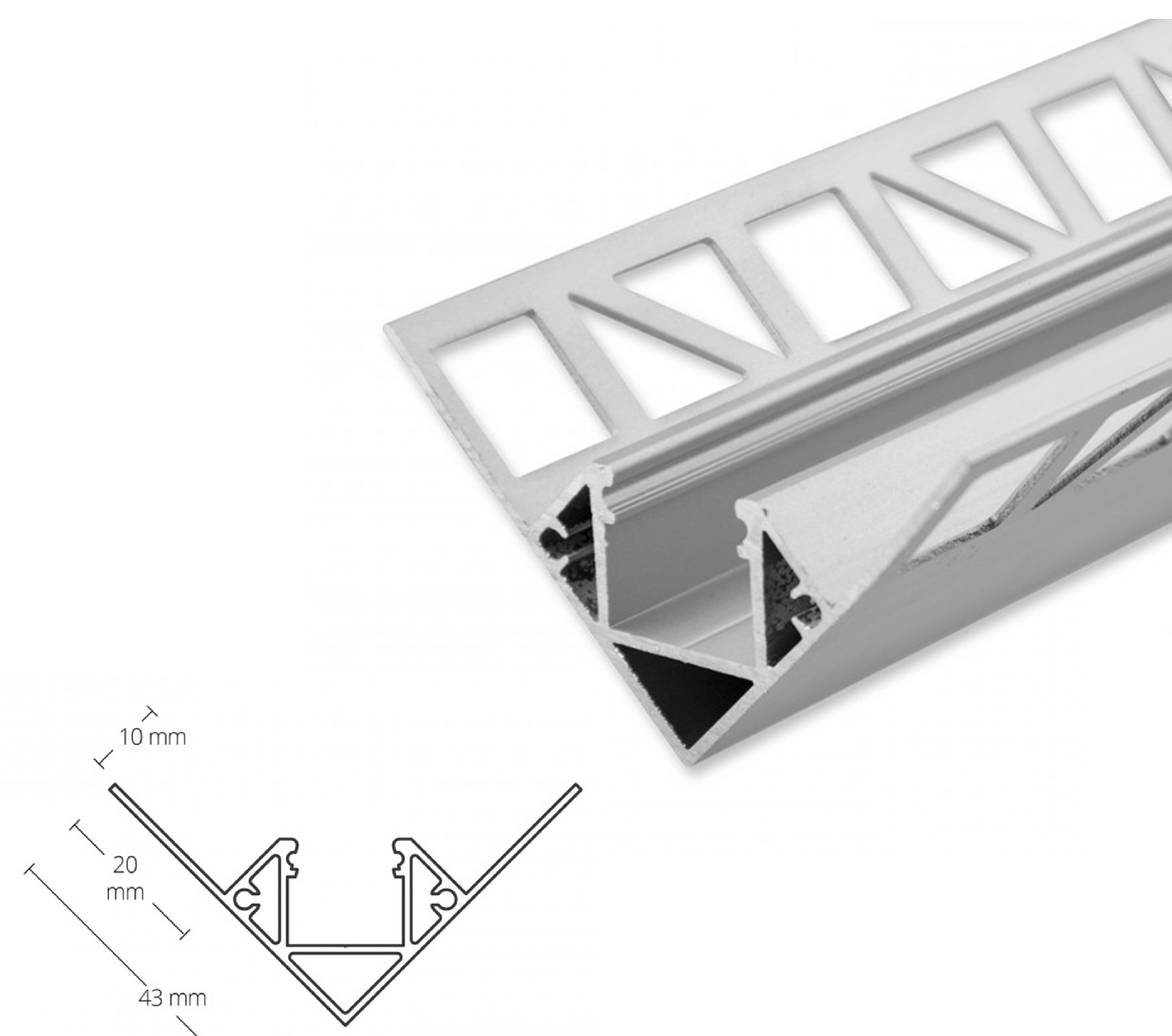

LED aluminum tile profile AL-PU21 for inside corners silver

LED aluminum tile profile AL-PU21 for inside corners This LED aluminum tile profile for inside corners is filled with tile adhesive on the large side wings (20 mm wide) in vertical corners of a room and thus in the tile concept. Due to its large surface, the tile profile dissipates the heat generated very well. Info: We are happy to offer you individual cuts on request. Technical specifications: Dimensions (LxWxH) in mm: 2000/2500 x 43 x 10 Inner dimensions in mm: 14.6 For flexible LED strips up to max .: 14mm Length: 2 m or 2.5 m Application Areas: Bath / WC Kitchen Laundry room / cellar Technical rooms SPA and wellness areas Swimming pools / indoor pools Car washes / car washes Basically in every tile concept Assembly / installation on / in wooden strips and panels, plasterboard, tiles, stone, granite, marble and metal surfaces Scope of delivery: LED aluminum tile profile for inside corners silver 2 m or 2.5 m (depending on the selection) without cover without lamps

Content: 2 Meter (€24.16* / 1 Meter)

Variants from €53.30*

€48.31*

Details

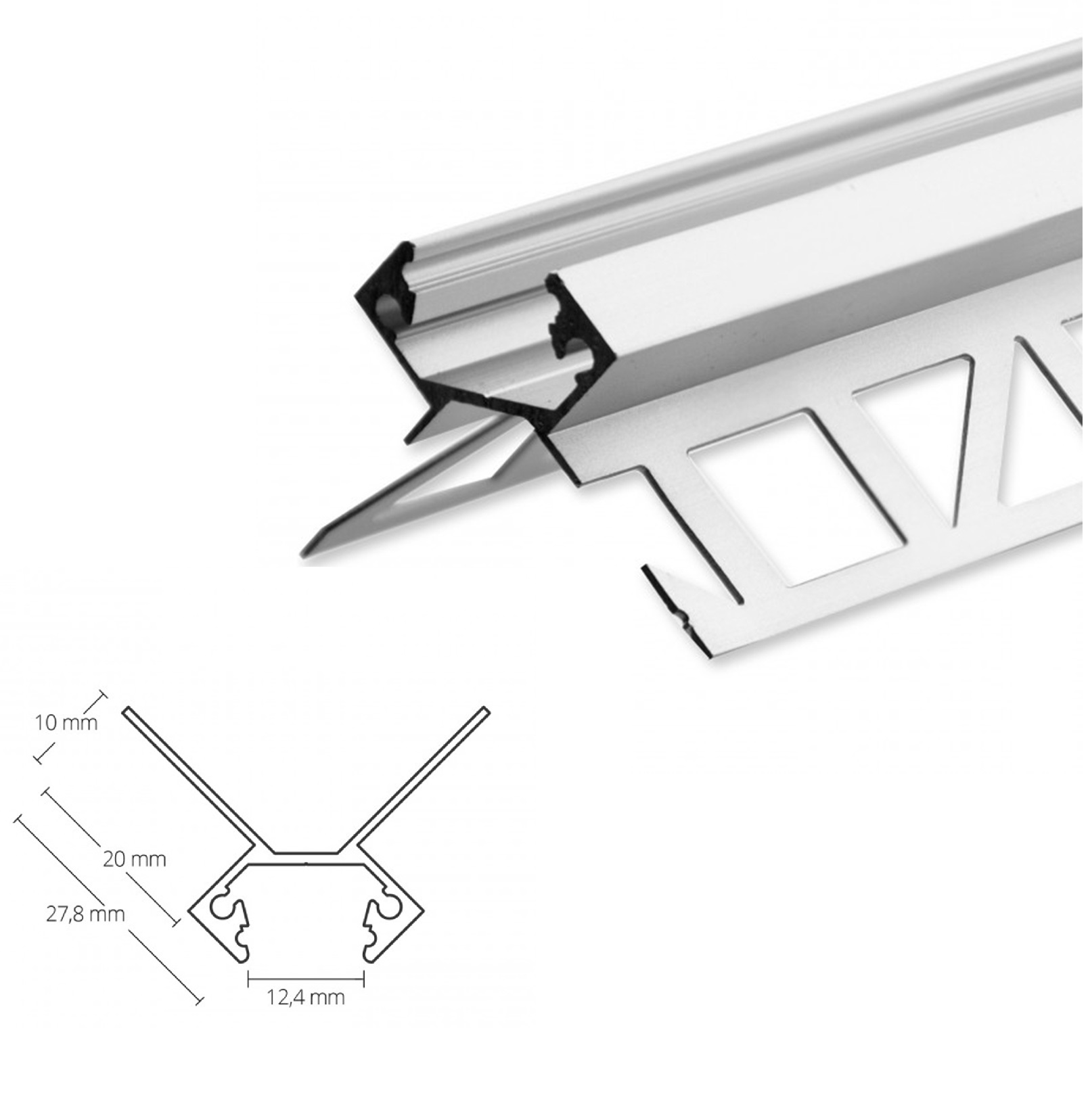

LED aluminum tile profile AL-PU22 for outside corners silver

LED aluminum tile profile AL-PU22 for outside corners This LED aluminum tile profile for outside corners is filled with tile adhesive on the rear, large-area wings (20 mm wide) on the outside of vertical corners of a room and integrated into the tile concept. Due to its large surface, the tile profile dissipates the heat generated very well. Info: We are happy to offer you individual cuts on request. Technical specifications: Dimensions (LxWxH) in mm: 2000/2500 x 27,8 x 10 Inner dimensions in mm: 12,4 For flexible LED strips up to max .: 12mm Length: 2 m or 2.5 m Application Areas: Bath / WC Kitchen Laundry room / cellar Technical rooms SPA and wellness areas Swimming pools / indoor pools Car washes / car washes Basically in every tile concept Assembly / installation on / in wooden strips and panels, plasterboard, tiles, stone, granite, marble and metal surfaces Scope of delivery: LED aluminum tile profile for outer corners silver 2 m or 2.5 m (depending on the selection) without cover without lamps

Content: 2 Meter (€16.41* / 1 Meter)

Variants from €39.95*

€32.82*

Details

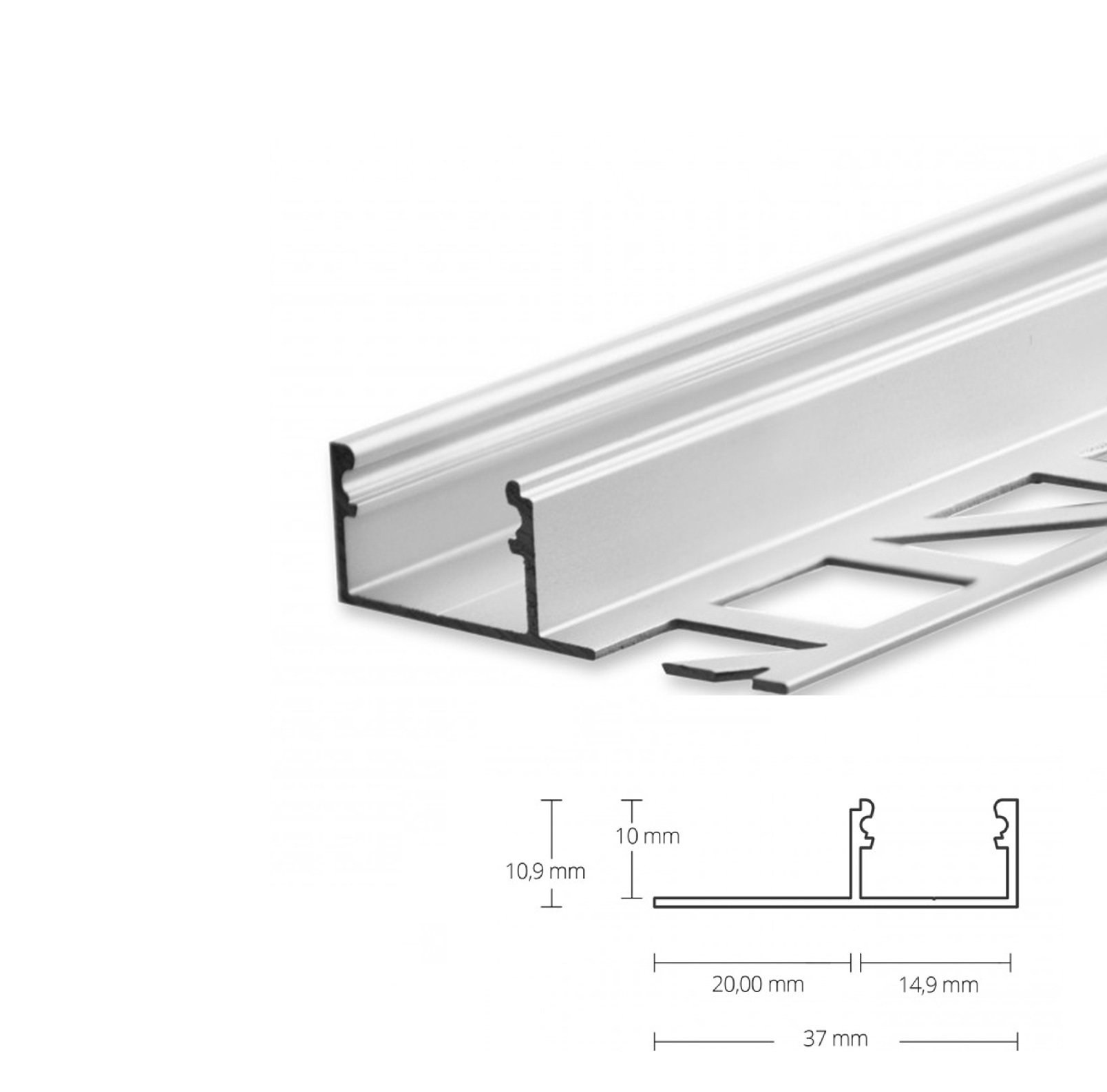

LED aluminum end tile profile AL-PU23 silver
