Lunatone DALI CS presence sensor

€113.73*

Prices incl. VAT plus shipping costs

2 Reviews

versions

86458621-O-W16 (Office-RAL9016)

86458621-O-W16-AP (Office-RAL9016-surface socket)

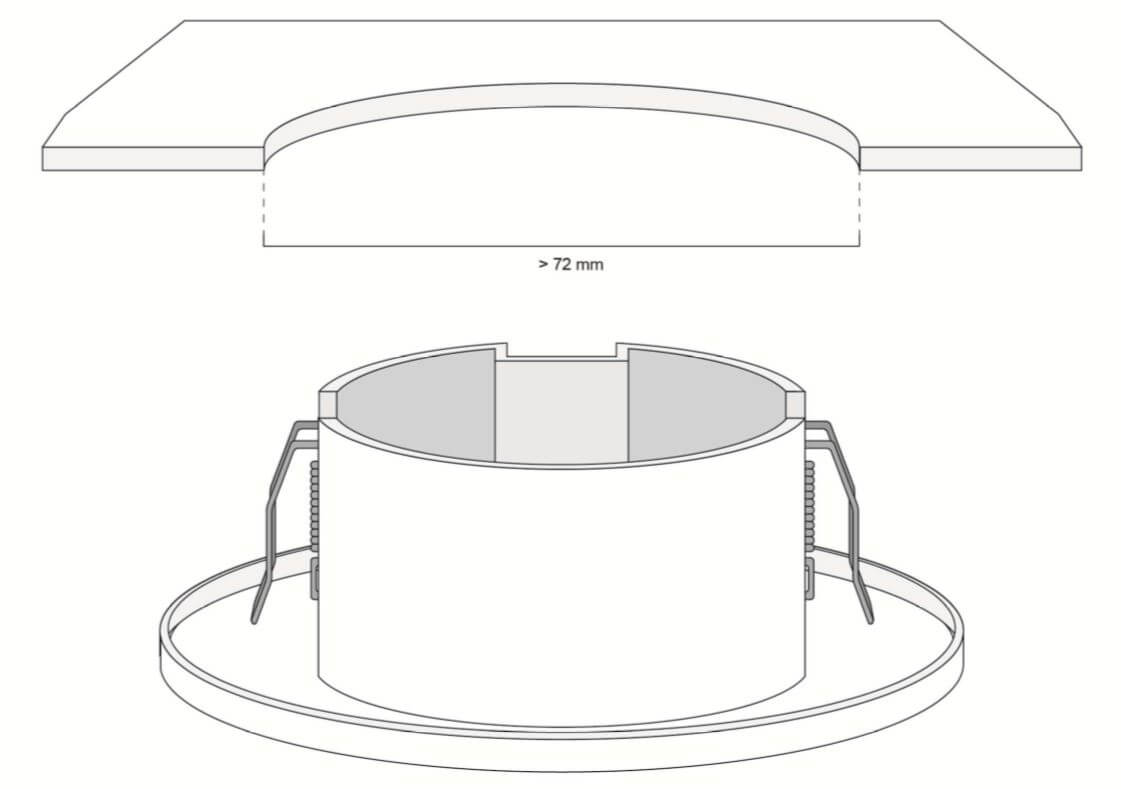

86458621-O-W16-ZD (Office-RAL9016-false ceiling)

Product number: 86458621-O-W16

Product information "Lunatone DALI CS presence sensor"

Lunatone DALI presence detector CS

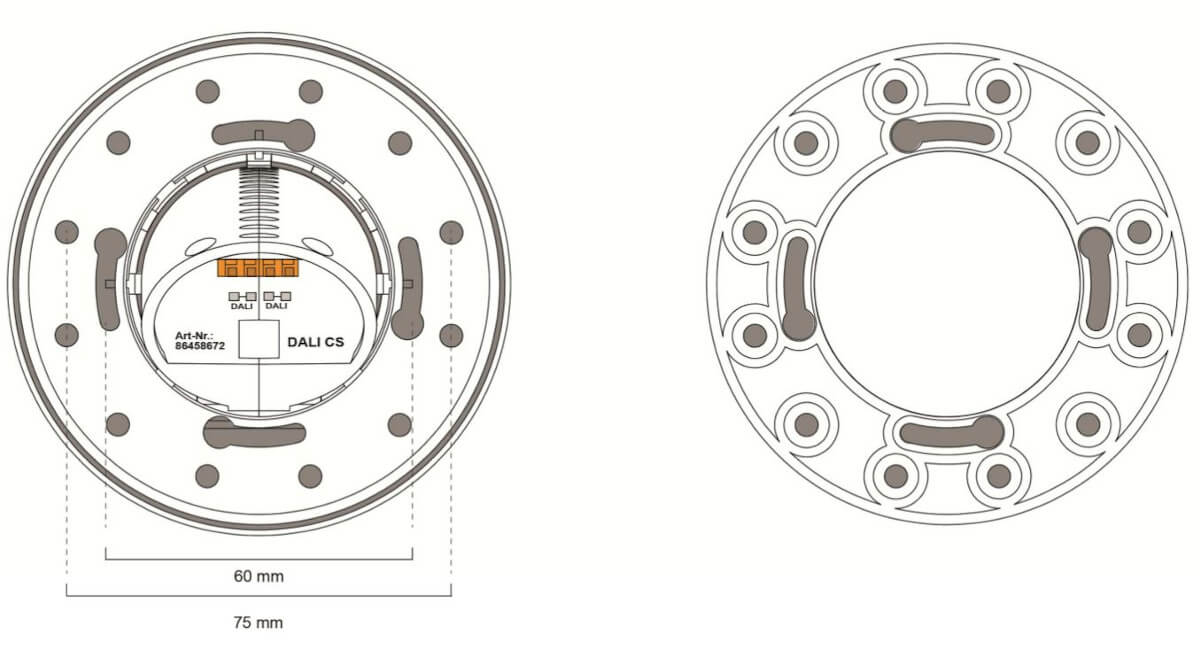

Lunatone's compact DALI presence detector DALI CS with integrated light and temperature sensor. The module can either be used directly to control the DALI system, or it can be used for measured value acquisition in conjunction with a central control system. The area of application ranges from office applications, corridors, classrooms to factory buildings. If there are several sensors in a group, they synchronize automatically. The device is suitable for direct mounting on installation boxes or in cavity walls; variants for surface mounting and false ceiling installation are available.

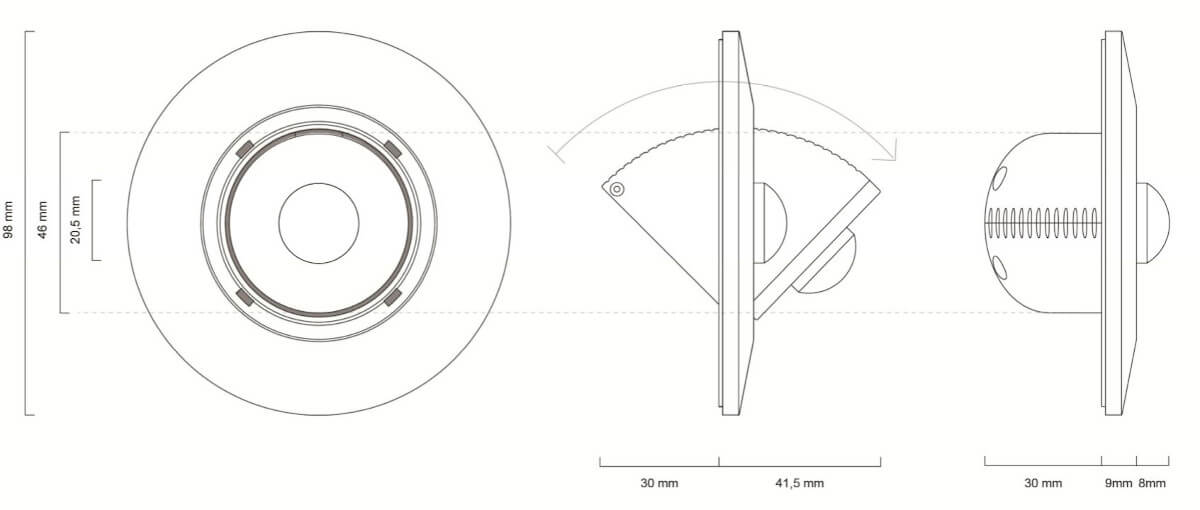

Technical data

Part number	89453862	89453862-15	89453862-O
Application	Standard	Hall	Office
Principle	PIR	PIR	PIR
Detection range	12m	15m	2,3m / 3m
Max. mounting height	8m	12m	3m
Zones	92	128	36 /48
Horizontal	±51°	±35,5°	±44°/±90°
Vertical	±46°	±34,5°	±44°/±90°
Min temperature difference	>4°C	>4°C	>4°C
Light sensor range	0-2500lux
Resolution	1lux
Temperature sensor	Range: -20°C to +70°C Resolution: 1°C
Group selector switch	Yes
Function	programmable

Electrical data

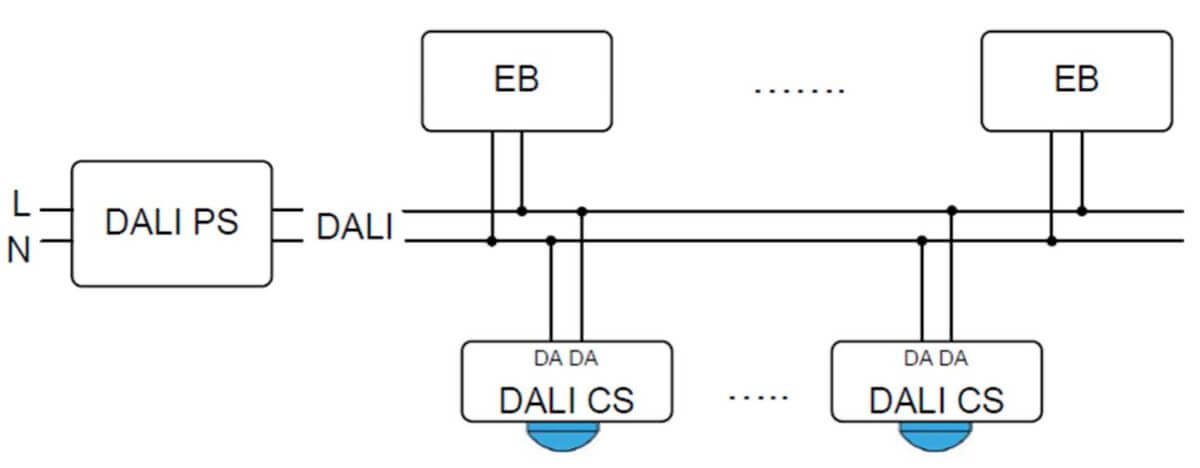

Supply	from DALI bus (DALI voltage according to IEC62386)
Terminal designation	DA, DA
Max. current consumption	DALI 3.5 mA
Power consumption max.	<100mW
Control	DALI

Further data can be found in our download tab.

Application/IP-Code:	IP20 - IP44 (Indoor)
Dimmable/Control:	DALI

2 of 2 reviews

5 out of 5 stars

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Sort by

5 March 2020 12:40

Sehr zuverlässig

n/a

22 October 2020 22:06

Erfreulich empfindlich und vielseitig!

Hab die Office-Version im Einsatz. Reagiert im zentralen Präsenzbereich auf kleinste Bewegungen (Mausbewegungen aus Handgelenk, Montagehöhe ~2,65m).
