Meanwell ELG-100 Power Supply
Product information "Meanwell ELG-100 Power Supply"
Meanwell ELG-100-xx"Type"
The Meanwell power supply ELG-100 Series includes a constant voltage source as well as a constant current source.It has an output power of 100 watts and output voltages from 24V to 54V so that various LED applications such as road-, indoor-, and architectural- lighting can be realized.
With its metal housing and IP65 / IP67 the use for indoor and outdoor applications in the temperature ranges from -40 ° C to 85 ° C is possible.
Depending on the type the connected LED illumination can be dimmed via 0-10V, PWM signal, potentiometer or DALI interface.
.jpg)
ELG100 features (depends on type):
- 5 Years warranty
- Universal input voltage from 100V up to 305V AC
- High efficiency up to 90%
- Built-in active PFC function
- Protections: over -/load, -/voltage, -/temperature
- Type "?HL?" for use in Class I, Division 2hazardous (Classified) location
- IP65/IP67 for indoor or outdoor installations
- Standby power consumption < 0.5W
- Compliance to worldwide safety regulations for lighting
Performance ELG-100 Typ -xx"-"(Blank):
- Current and voltage output fixed
- IP67 protection. For indoor -and outdoor applications
Performance ELG-100 Typ -xx"A":
- Output voltage and current level adjustable through built-in-potentiometer
- IP65 design for indoor or outdoor installations
- be adjusted through internal potential meter
Performance ELG-100 Typ -xx"B":
- Constant current control regulation about 1-10V or PWM entrance, as well as external potentiometer
- IP67 protection. For indoor -and outdoor applications
Performance ELG-100 Typ -xx"DA":
- Lightning control via DALI interface
- IP67 protection. For indoor -and outdoor applications
Technical data Meanwell ELG-100 Power Supply:
| Input | 100 - 305 VAC / 142 - 431 VDC 47 - 63 Hz |
| Output | Depending on type, see data sheet |
| Rated Power | 70 - 96,12 W (voltage depending, see datasheet) |
| Series | ELG |
| Typical lifetime | > 50.000 h |

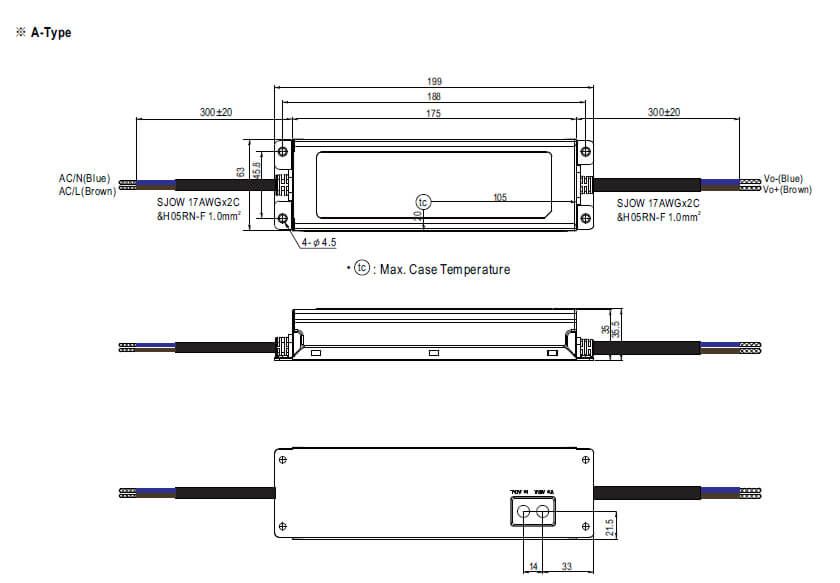

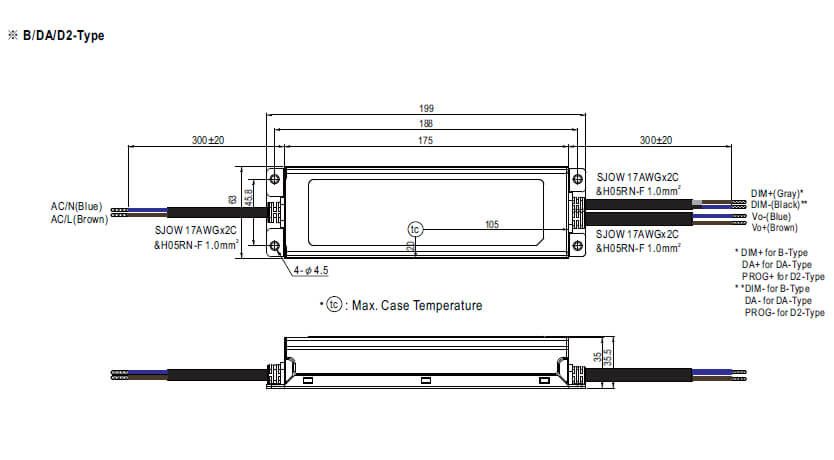

| Dimensions (LxWxH) | 199mm x 63mm x 35,5mm |
For further technical data, please refer to the data sheet (in tab "DOWNLOADS").
On request, we also offer type and voltage ranges.
| #Kategoriefilter: | LED-Trafos- alles mit CV, LED-Treiber-alles mit CC |
|---|---|
| Application/IP-Code: | IP65/67 (Outdoor) |
| Constant Current: | 2,1A, 2,4A, 4,0A |
| Constant Voltage: | 24V |
| Dimmable/Control: | 1..10V, DALI, PWM |
| Meanwell Series: | ELG |
| Power range: | 50 - 100 W |
