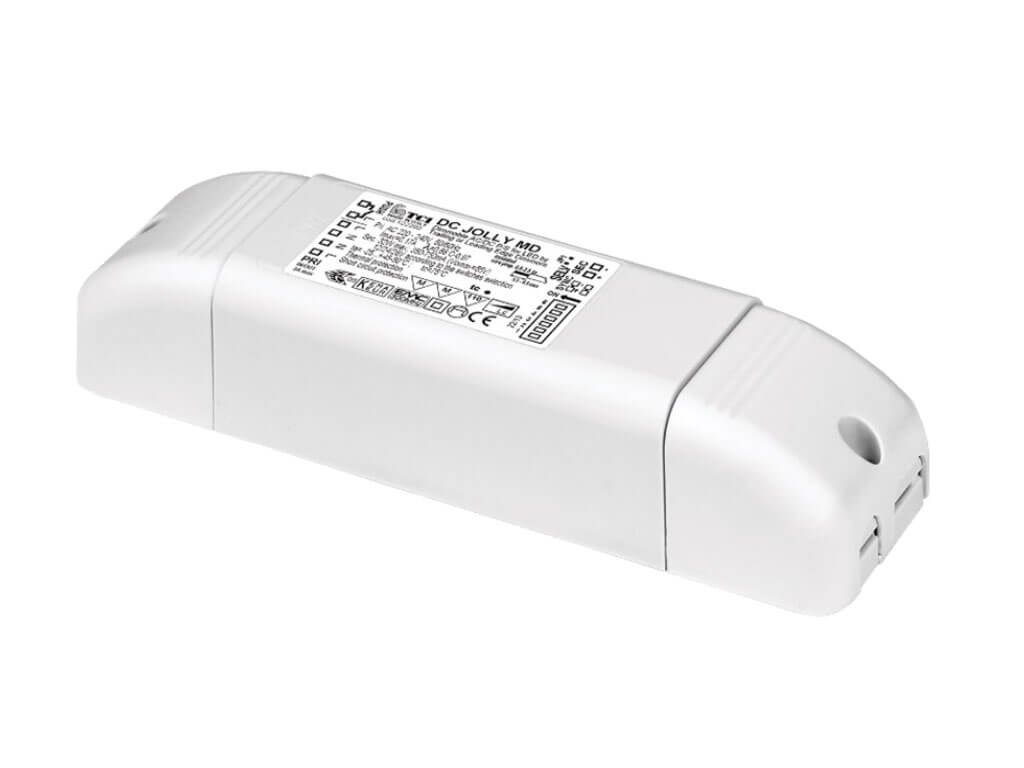

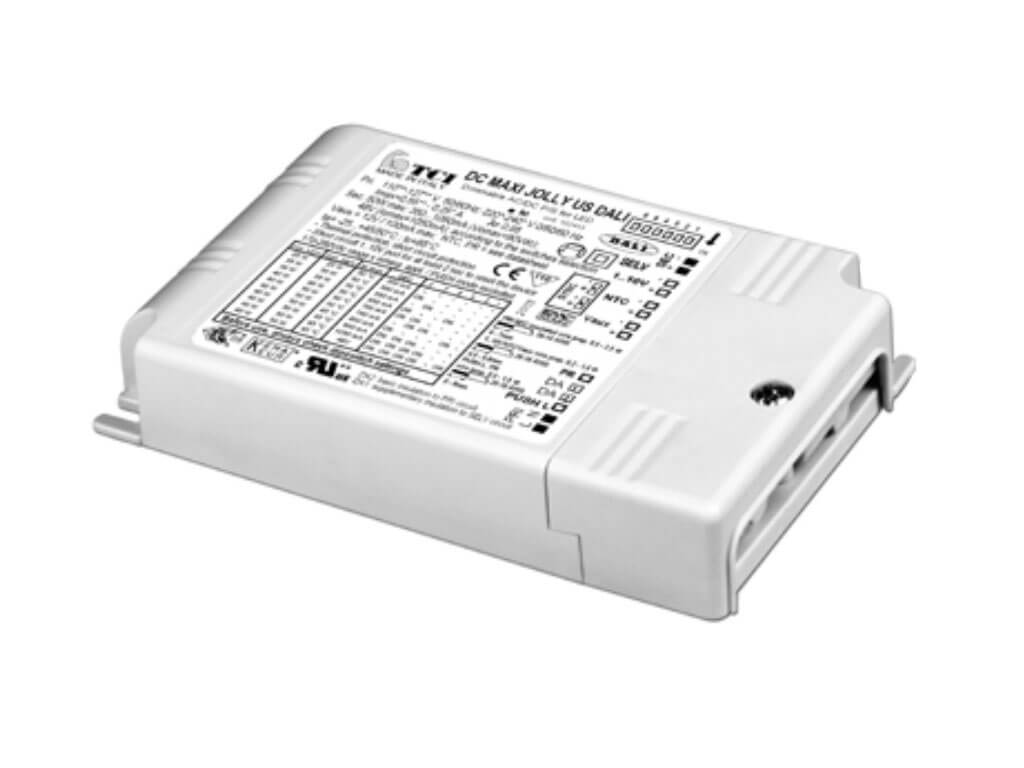

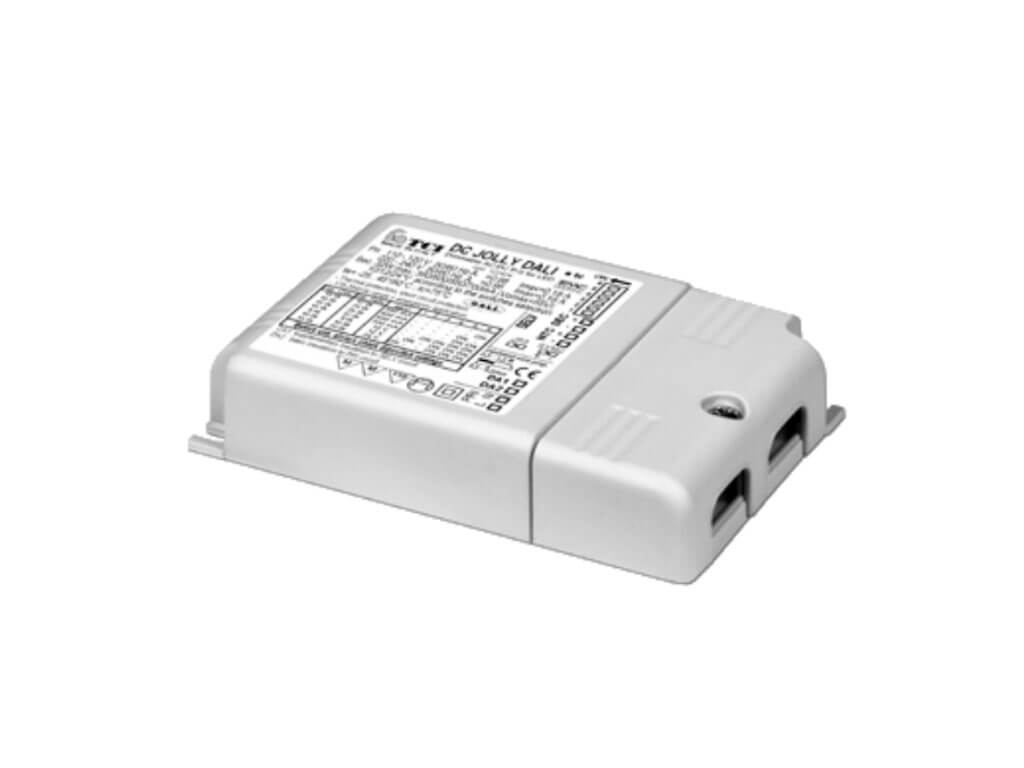

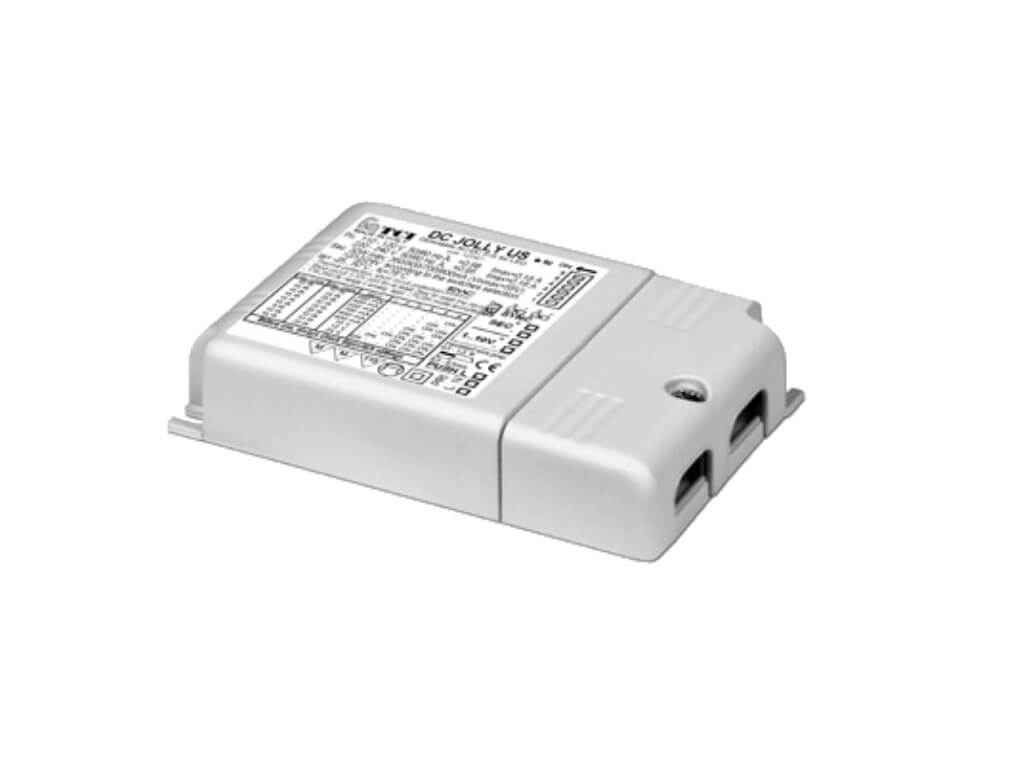

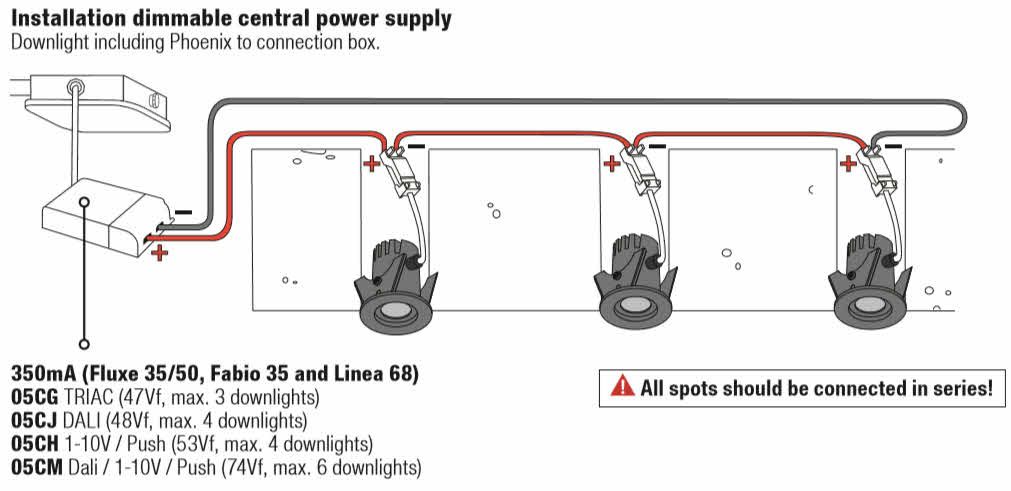

350mA Constant Current Sources for Illuxtron Mini DL Series

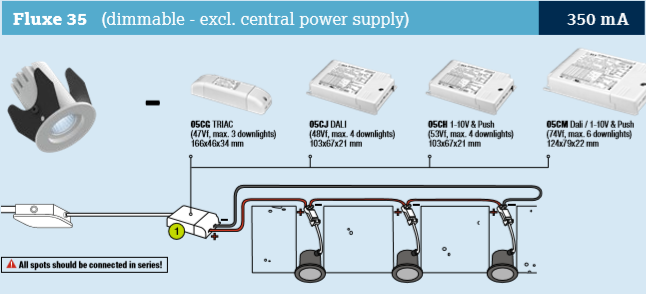

Illuxtron Fluxe 35 Mini Downlight The Fluxe downlights are one of the first luminaires of Illuxtron. The series has expanded and grown over the years with new technologies and now consists of 5 luminaires with different hole sizes and specifications.The mini recessed spotlights Fluxe 35 from Illuxtron are real powerhouses!Compact, technologically innovative and economical. So strong in light output that they are also available in dimmable version!These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with microfacets. These Fluxe 35-series microfacets provide perfect illumination of objects and premises.The microfacets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages: Special features of these so-called Dark Light - reflectors High light output due to very good efficiency thanks to the very good reflectivity of microfacet technology Low glare values (UGR index) by avoiding unnecessary stray light Ideal light mixing of the LED light spectra for very good color rendering Further in-depth details of these technical features can be found in the overwiev of Illuxtron Mini Downlights. The most important technical details of the Fluxe 35 series: The mini recessed spotlights Fluxe 35 from Illuxtron are real powerhouses!Compact, technologically innovative and economical. So strong in light output that they are also available in dimmable version!These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with microfacets. These Fluxe 35-series microfacets provide perfect illumination of objects and premises.The microfacets were developed for Illuxtron by the leading Bartenbach Institute and result in the following remarkable advantages: Special features of these so-called Dark Light - reflectors High light output due to very good efficiency thanks to the very good reflectivity of microfacet technology Low glare values (UGR index) by avoiding unnecessary stray light Ideal light mixing of the LED light spectra for very good color rendering Further in-depth details of these technical features can be found in the Overview of Illuxtron Mini recessed spotlights. The most important technical details of the Fluxe 35 series: case color matt white; RAL 9016 (XX=MW)matt grey RAL 9006 (XX=GR)matte black RAL 9005 (XX=BL) Material Housing: Die-cast aluminumReflector glass: Polycarbonate Dimensions 42 mm x 48 mm Hole diameter 35 mm Required installation depth > 80 mm Use Interior Flash angle (FWHM) 40° (70° FWTM) UGR 14.4 CRI / Ra (typ.) 82 Color consistency (MacAdam) SDCM3 IP Code IP20 / IP44 IK Code IK03 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMC Directive EN55015 Guarantee 7 years Energy class A Fluxe 35 100-240 V The power supply is already included with this version. This version is only switchable, dimming is not possible.For more information on Fluxe 35 100-240 V Mini Downlights, please refer to the data sheet. article number 925303XX6513 925303XX6613 925303XX6713  color temperature 2700 K 3000 K 4000 K Luminous flux 375 lm 400 lm 425 lm type Incl. PSU Input 100-240V W 5.7 Lm/W (with electronic ballast) 66 70 75 Pf 0.6 Class of protection II Ripple < 3% Input current 20A 170µS Dimmability No Fluxe 35 350 mA This version has the extensive possibilities for dimming. This is done depending on the selection of the external and additionally required LED driver.You can additionally order here: For an overview of matching 350mA constant current sources (LED drivers).For more information on Fluxe 35 350 mA Mini Downlights, please refer to the data sheet. article number 925303XX0111  925303XX7211  925303XX0211  color temperature 2700 K 3000 K 4000 K Luminous flux 375 lm 400 lm 425 lm type Incl. connection cable Input 350mA Vf 11.9 W 4.5 Lm/W (without ECG) 83 89 94 Class of protection III Dimmability Alternatively: DALI, 1-10V, Push, Triac(phase dimming)dependent on LED driver selection Note: This table only shows the data for the concrete spring version. *Note: This version is available with different mounting types and as a switchable version. Data sheets of the mini downlights Fluxe 35 series see download tab.Note: The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.

Illuxtron Fluxe 50 Adjustable mini downlightThe Fluxe downlights are among the first luminaires from Illuxtron. The series has been expanded over the years and has grown with new technologies and now consists of 5 luminaires with different hole sizes and specifications. The adjustable mini recessed spotlights Fluxes 50 from Illuxtron are real powerhouses! Compact, technologically innovative and economical. So powerful in light output that they are also available in a dimmable version! These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with microfacettes. These microfacettes of the Fluxe 50 series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits: Special features of these so-called Dark Light - Reflectors High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology low glare values (UGR index) by avoiding unnecessary stray light Ideal light mixing of LED light spectra for very good colour rendering More detailed details of these technical features can be found in the Illuxtron Mini Recessed Spotlight Overview.   The most important technical details of the Fluxe 50 series: Casing color matt white RAL 9016 (XX=MW)matt black RAL 9005 (XX=BL) Material housing: die-cast aluminiumReflector glass: Polycarbonate Dimensions 55 mm x 45 mm Hole diameter 50 mm Required installation depth > 50 mm Application Inside area beam angle (FWHM) 40° (65° FWTM) Adjustable angle +/- 30° CRI / Ra (typ.) 82 Colour consistency (MacAdam) SDCM3 IP Code IP20 / IP44 IK Code IK03 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMV Directive EN55015 Guarantee 7 years Energy class A Fluxe 50 - 220-240V The power supply is already included in this version. This version is DALI and Triac dimmable.For more information on Fluxe 50 220-240 V Mini Downlights, please refer to the data sheet. Product specifications Fluxe 50 220-240 V: Art. No. 865303XX4813 865303XX5913 865303XX5013 Color temperature 2700 K 3000 K 4000 K Luminous Flux 375 lm 400 lm 425 lm Type Incl. PSU Input 220-240V W 5,7 Lm/W (with EVG) 66 70 75 UGR 14,2 14,4 14,6 Pf 0,96 Protection class II Input current 2A 50µS Ripple < 20% B-16A Fuse 50 pcs Dimmability Triac*DALI *Note: This table only shows the Triac version with concrete spring mounting. This downlight is also available with wire spring mounting and as dimmable DALI version. Fluxe 50 350mA This version has extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver.To the overview of matching 350mA constant current sources (LED driver).For further information about the Fluxe 50 Mini Downlight please refer to the data sheet. Product specifications Fluxe 50 350mA: Art. No. 865303XX0111 865303XX7211 865303XX0211 Color temperature 2700 K 3000 K 4000K Luminous Flux 375 lm 400 lm 425 lm Type Inkl. Anschlusskabel Input 350mA Vf 11,9 W 4,5 Lm/W (with EVG) 83 89 94 UGR 14,2 14,4 14,6 Protection class III Dimmability Alternativ: DALI, 1-10V, Push, Triac(Phase dimming)depending on LED driver selection *Note: This table shows only the version with concrete spring mounting type. This version is also available with wire spring mounting. For the data sheet of Mini Downlights Fluxe 50 series please check the download tab. Note:The 24Vdc version is a discontinued item and is only available on special request. Note: The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.

Illuxtron Fabio 35 Mini Downlight The mini recessed spotlights Fabio 35 from Illuxtron are real powerhouses! Compact, technologically innovative and economical. So powerful in light output that they are also available in dimmable versions! These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These Fabio 35 series microfacets provide perfect lighting for objects and spaces. The microfacets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages: Special features of these so-called dark light reflectors High luminous efficacy due to the very good reflectivity of the microfacet technology Low glare values (UGR index) due to avoidance of unnecessary scattered light Ideal light mixture of the LED light spectra for very good color rendering For more extensive details of these technical features, please refer to the Illuxtron Mini recessed spotlight overview. The most important technical features of Fabio 35: case color matte white; RAL 9016 (XX=MW) matte gray RAL 9006 (XX=GR) matte black RAL 9005 (XX=BL) Material Housing: Die-cast aluminum Reflector glass: Polycarbonate Hole diameter 35 mm x 35 mm Required installation depth > 80 mm Use Interior Flash angle (FWHM) 40° (65° FWTM) CRI / Ra (typ.) 82 Color consistency (MacAdam) SDCM3 IP Code IP20 / IP44 IK Code IK03 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMC Directive EN55015 Guarantee 7 Jahre Energy class A Fabio 100-240 V The power supply is already included in this version. This version is only switchable, dimming is not possible. For more information on Fabio 35 100-240 V Mini Downlights, please refer to the data sheet. Product Specifications Fabio 100-240 V: Art.no. 965303XX6513 965303XX6613 965303XX6713  Color temperature 2700 K 3000 K 4000K Luminous flux 375 lm 400 lm 425 lm Type Incl. PSU Input 100-240V W 5,7 UGR 10,7 10,9 11,1 Lm/W (with EVG) 66 70 75 Pf 0,6 Protection class II Ripple < 3% Input current 20A 170µS Efficiency 77 Power factor 60 Dimmability No Note: This table only includes the Concrete spring version. Fabio 35 350 mA This version has extensive possibilities for dimming. This is done depending on the selection of the external and additionally required LED driver. You can additionally order here: To the overview of fitting 350mA constant current sources (LED-Driver). Further information about Fabio 35 350 mA Mini Downlights can be found in the data sheet. Product Specifications Fabio 35 350 mA: Art.no 965303XX0111  965303XX7211 965303XX0211 Color temperature 2700 K 3000 K 4000K Luminous Flux 375 lm 400 lm 425 lm Type Incl. Connection box Input 350mA Vf 11,9 W 4,5 UGR 10,7 10,9 11,1 Lm/W (without EVG) 83 89 94 Protection Class III Dimmability Alternative: DALI, 1-10V, Push, Triac(Phase dimming) depending on the LED driver Note: This table only includes the Concrete spring version. Note: All Illuxtron products are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the workload.

Illuxtron Linea 68 Mini DownlightThe mini recessed spotlights Linea 68 from Illuxtron are real powerhouses!Compact, technologically innovative and economical. So powerful in light output that they are also available in a dimmable version!These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with microfacettes. These microfacettes of the Linea 68 series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits: Special features of these so-called Dark Light - Reflectors High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology low glare values (UGR index) by avoiding unnecessary stray light Ideal light mixing of LED light spectra for very good colour rendering More detailed details of these technical features can be found in the Illuxtron Mini Recessed Spotlight Overview. The most important technical details of the Linea 68 series: Casing color matt white RAL 9016 (XX=MW)matt black RAL 9005 (XX=BL) Material housing: die-cast aluminiumReflector glass: Polycarbonate Dimensions 83 x 53 mm Hole diameter 68-75 mm Required installation depth > 58 mm Application Inside area beam angle (FWHM) 40° (65° FWTM) UGR 14.4 CRI / Ra (typ.) 82 Colour consistency (MacAdam) SDCM3 IP Code IP20 IK Code IK03 Operating temperature (Ta) -20°C / +45°C Safety sign EN60598 / EN62031 / EN62471 EMV Directive EN55015 Guarantee 7 years Energy class A Linea 68 220-240 V The power supply is already available in this version  This version is dimmable.Further information about Linea 68 220-240 V Mini Downlights can be found in the data sheet.Product specifications Linea 68 220-240 V: Article number 375303XX4813 375303XX4913  375303XX5013  Colour temperature 2700 K 3000 K 4000K Luminous flux 375 lm 400 lm 425 lm Type Incl. PSU Input 220-240V W 5,7 Lm/W (with ECG) 66 70 75 Pf 0,96 Protection class II Ripple < 20% Input current 2A 50µS Efficiency 85 Power factor 96 Dimmability Triac PSU *Note: This version is also available in the dimmer versions 1-10V&Push and DALI, as well as in different mounting forms. Linea 68 350 mA This version has the extensive possibilities for dimming. This depends on the selection of the external and additionally required LED driver.You can order these additionally here:  To the overview matching 350mA constant current sources (LED driver).Further information about Linea 68 350 mA Mini Downlights can be found in the data sheet.Product specifications Linea 68 350 mA: Article number 375303XX4811  375303XX4911  375303XX5011  Colour temperature 2700 K 3000 K 4000K Luminous flux 375 lm 400 lm 425 lm Type Incl. connection box. Input 350mA Vf 11,9 W 4,5 Lm/W (without ECG) 83 89 94 Protection class III Dimmability Alternative: DALI, 1-10V, Push, Triac(phase dimming)depending on LED driver SelectionData sheets of the Mini Downlights Linea 68-Series see Download Tabs:Note: The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.
