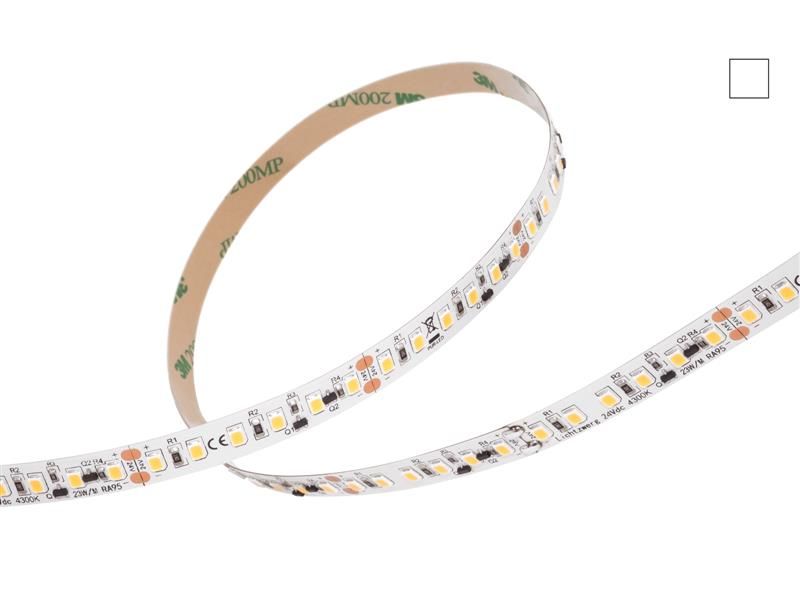

Flexible LED strips 24V white 120LEDs/m
Product information "Flexible LED strips 24V white 120LEDs/m"
Flexible 24V LED strips white for indoor applications with 120 LEDs/m
These LED strips from the upper class segment are suitable for indoor applications and are ideal for room lighting and workplace lighting. For example, these flexible LED strips can be used to illuminate kitchen units or effectively stage rooms through targeted installation. In this version, the stipes can be combined with all of our ALU profiles, which are also used for cooling.
For a sustainable operation, please note the information on the cooling of the LED strips in the data sheet.
The most important features
- The supply voltage of 24V allows a large selection of power supplies and use in the truck interior
- The beam angle of 120 ° ensures large-area illumination
- The assembly density of 120 LEDs / m ensures even and homogeneous light distribution
- With a pitch of 50mm, you can customize the LED bar exactly to your indoor application
Available color temperatures
- Neutral white 4,400 K
- Warm white 3,000 K
- Warm white Comfort 2,700 K
Application examples:
- Effect lighting of cabinets, showcases and shelves
- Highlighting individual pieces of furniture through targeted lighting
- Lighting in the vehicle interior, eg for motorhomes
- Increase accessibility by illuminating stairs and other tripping hazards
- Atmospheric lighting in party cellars
- Indirect lighting of suspended ceilings
- Backlight of TV sets
- Many other indoor applications possible
Specifications of the 24V LED strip
| Variants | indoor, flexible |
| Power supply | 24V dc |
| Luminous flux | 1750-1850lm/m depending on the color temperature |
| Power | 23 W/m |
| Packing density | 120 LEDs/m |
| Beam angle | 120° |
| Width | 10 mm |
| Height | 2 mm |
| Division | 50 mm |
For further technical information, please refer to the data sheet.
In our shop you will find a large selection of matching 24V power supplies
| Amount LEDs/m: | 120 LEDs/m |
|---|---|
| Application/IP-Code: | IP20 - IP44 (Indoor) |
| Color Temperature/Color: | 2700K, 3000K, 4000K |
| Constant Voltage: | 24V |
| Lamp shape: | flexible (stripes) |
| Power/Meter: | > 20W/m |
| rated luminous flux lm/m: | 1000-2000 lm/m |
