Dimmable LED power source 22W/39W 350/500/700mA
Highly efficient LED power source dimmable up to 39W with for high power LEDs
In conjunction with the operation of high-power-LEDs, this power source is the ideal solution. The independent module, which acts as a power-supply with a constant output current, has the option of leading/trailing edge dimming.
The product is available in six versions, see in our table.
Further features:
- Independent Power supply with constant output current for high power LEDs
- Dimmable by dimmer with leading/trailing edge
- High power factor of 95%
- Protection against overload, overheating and short circuit
- The load must not fall below the minimum load of the dimmer
- It could be necessary to increase the minimum brightness
Note:
Do not insert switches into the secondary circuit!
Only connect high power LEDs in series!
Reference:
- We recommend the following products (non-binding) (always test before use)
- GIRA 0707 00/I02
- KOPP 8033
- FELLER 40300.RC
- BUSCH-JÄGER 6523U*
- GIRA 2390 00/I00
- JUNG 1224 LEDUDE*
- ARDITI D12S230-25 (Dimmer 1012S 250 W Universal)
- ARDITI DUT230-25 (Dimmer ART. 1004/P)
- ARDITI DEBT230-150 (800698), DUBT230-150 (800680)
Technical data:
| Variation | 22W 350mA |
22W 500mA |
22W 700mA |
39W 350mA |
39W 500mA |
39W 700mA |
| Article number | 808601 | 808602 | 808603 | 808605 | 808606 | 808607 |

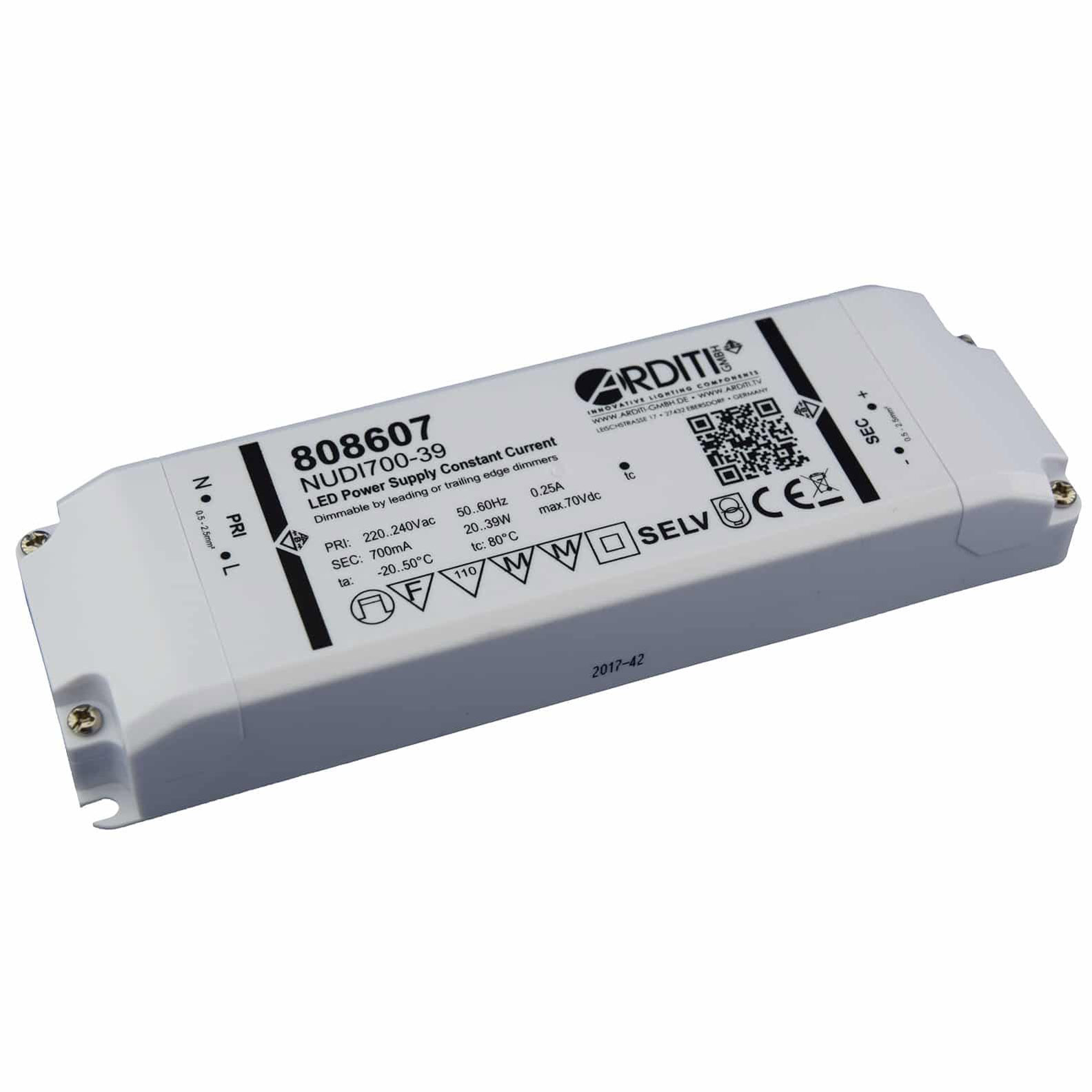

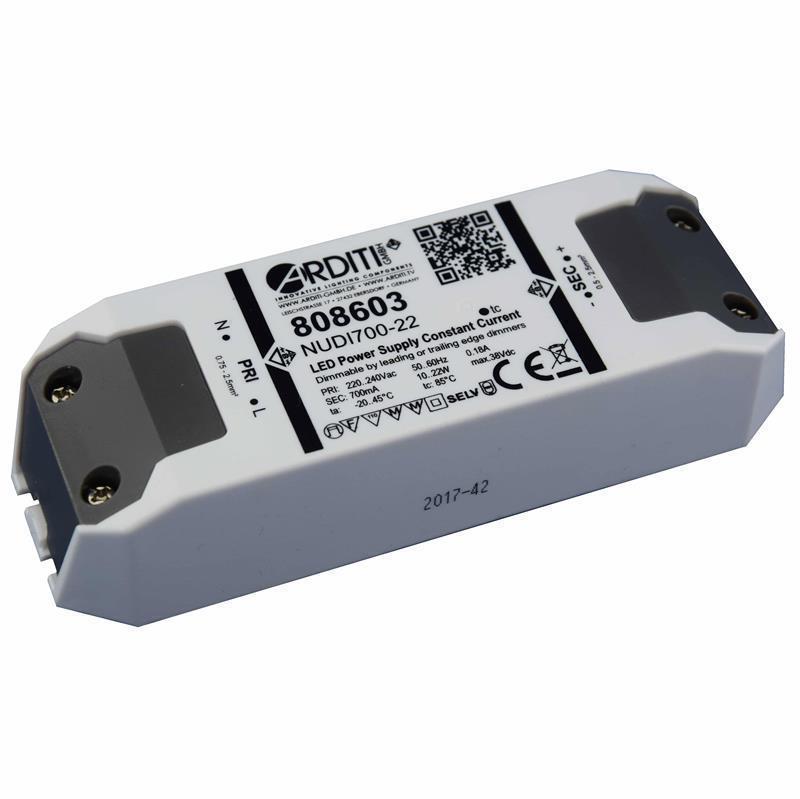

| Type | NUDI350-22 | NUDI500-22 | NUDI700-22 | NUDI350-39 | NUDI500-39 | NUDI700-39 |
| Input voltage | 220..240 Vac | |||||
| Frequency | 50..60 Hz | |||||
| Nominal output current | 350 mA | 500 mA | 700 mA | 350 mA | 500 mA | 700 mA |
| Output power | 10..20 W | 10..22 W | 10..22 W | 19..37 W | 20..40 W | 20..39 W |
| Operating output voltag | 28..56 Vdc | 20..44 Vdc | 14..32 Vdc | 53..106 Vdc | 40..80 Vdc | 28..56 Vdc |
| Max. output voltage | 65 Vdc | 50 Vdc | 38 Vdc | 117 Vdc | 93 Vdc | 70 Vdc |
| Power factor acc. to EN61000-3-2 | 0,95 | |||||
| Ambient temperature | -20..+45 °C | -20..+50 °C | ||||
| Rated max. temperature | 85 °C | 80 °C | ||||
| Thermal protection | yes | |||||
| Overload protection | yes | |||||
| Short circuit protection | yes | |||||

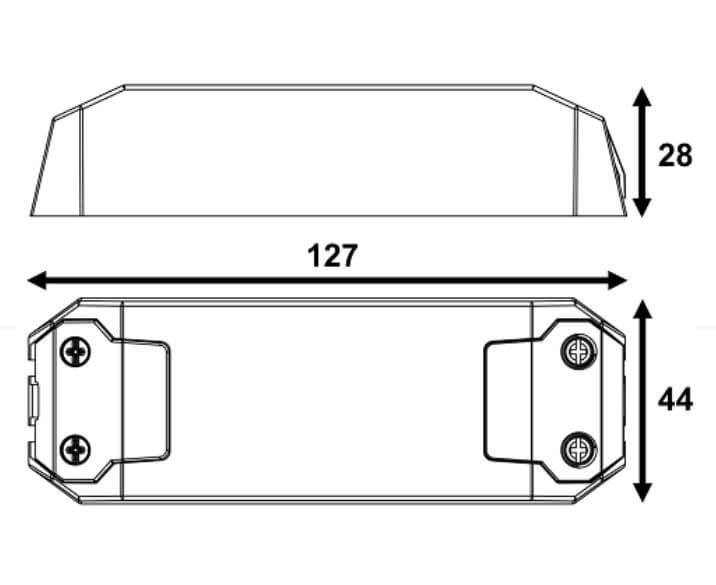

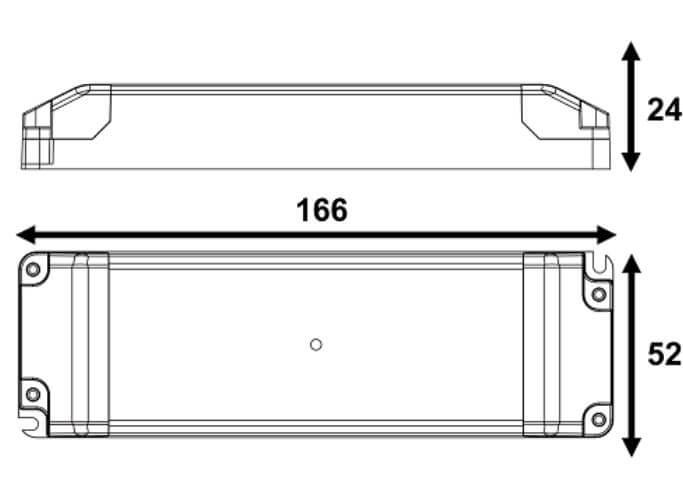

| Dimensions | 144x44x28 mm | 166x52x24 mm | ||||
For further information please refer to the data sheet in the Download tab.
| #Kategoriefilter: | LED-Treiber-alles mit CC |
|---|---|
| Application/IP-Code: | IP20 - IP44 (Indoor) |
| Constant Current: | 0,5A, 0,7A, 0,35A |
| Dimmable/Control: | Phase-Cut (Triac) |
| Power range: | 20 - 50 W |
