Dimmable LED-power supply 60W or 80W IP65

€92.82*

Prices incl. VAT plus shipping costs

3 Reviews

Voltage/Power

12V / 80W 800596

24V / 80W 800597

12V / 60W 800594

24V / 60W 800595

Product number: 318-800597

Product information "Dimmable LED-power supply 60W or 80W IP65"

LED power supply 60W / 80W IP65 - dimmable via phasecut/edge dimmer

This independent IP65 protected LED power supply is available in versions 12VDC or 24VDC output voltage or output power 60W or 80W.
With this universal LED power supply, it is possible to dim LED strips or other LED lamps with DC (DC voltage) via an external phasecut/edge dimmer.
The high degree of protection allows ideal operation in combination with moisture-proof LED strips in the outdoor area.

Proven and recommended phase dimmers are in particular products by GIRA (030700/I02), JUNG (225TDE), Berker (2874), Kopp (8033), Feller (40300.RC), Busch-Jäger (6523U), as well as our Casambi-module for control via Bluetooth for intelligent lighting control.

Please observe:

The dimming range on is less with a lower LED load small (depending on dimming).
The minimum load of the dimmer must not be underdriven.
This is unavoidable in the case of phase dimmers: in dimming mode, can buzzing occur, especially with phase- or section dimmers.
LED modules only connect in parallel! Do not switch in the secondary circuit of the LED power supply!

Technical data of the dimmable LED power supply units:

Designs	12V 60W	12W 80W	24V 60W	24V 80W
Article number	800594	800596	800595	800597
Type	NIDI12-60	NIDI12-80	NIDI24-60	NIDI24-80
Imput voltage	220-240 Vac
Frequency	50..60 Hz	50..60 Hz	50..60 Hz	50..60 Hz
Nominal output voltage	12 Vdc		24 Vdc
Output power	36..60 W	48..80 W	36..60 W	48..80 W
Power factor λ acc. to EN61000-3-2	0,94
Ambient temperature (ta)	-25..40° C
Rated maximum temperature (tc)	70° C
Overheating protection	ja	ja	ja	ja
Short circuit protection	ja	ja	ja	ja
Protection	IP65	IP65	IP65	IP65

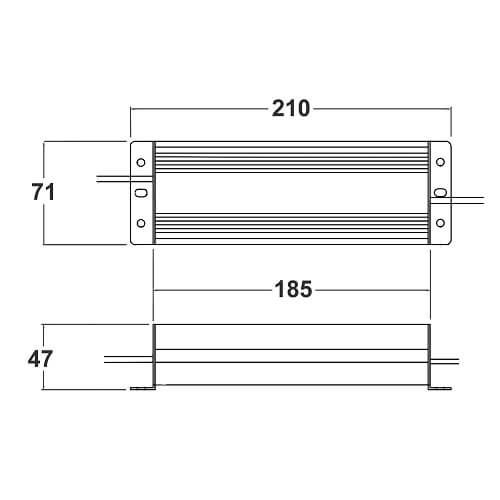

Dimensions	210mm x 71mm x 47mm

#Kategoriefilter:	LED-Trafos- alles mit CV
Application/IP-Code:	IP65/67 (Outdoor)
Constant Voltage:	12V, 24V
Dimmable/Control:	Phase-Cut (Triac)
Power range:	50 - 100 W
