Downlight PASSUM UP GU10

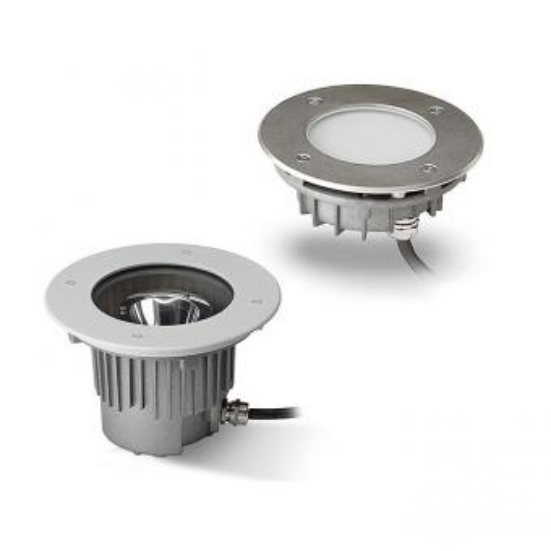

LED Recessed floor luminaire PASSUM-UP 1W from A.L.S. These recessed luminaires optimally meet the requirements for upwards or downwards illumination. The innovative technology and the variety of combinations are to be emphasized here. The recessed luminaires are corrosion-resistant and passable with exchangeable covers, which impress with their versatile installation options. The luminaire housings with LED or conventional lamps can be swiveled or adjusted, thus allowing the inclination of the light for perfect illumination of the surfaces. Features of the PASSUM-UP series: Structure: Luminaire housing made of primary aluminum with reduced copper content, painted with anti-corrosive polyester powder after phosphorus chromating Tempered, transparent glass T = 40 ° C; Thickness from 6 to 12 mm and max. Load of 2,000 to 3,500 kg 0.5 m floor-retractable H07RN-F cable with IP68 connection Built-in box made of stabilized technopolymer The covers are available in: round with primary aluminum with double coating; round and square made of INOX AISI 316L stainless steel with stainless steel hexagon screws Manufactured in accordance with European standards EN 60598-1: 2015 Version is available in round and square Technical data: Light source LED LED Colour temperature 3000K 4000K Beam angle 38° System power 1W Connection voltage 24 VDC Luminous flux 62 lm Colour rendering index CRI >80 Mechanical load IK08 passable 1000Kg Protection type IP67 Lifespan L80 B20; 60.000 h Dimensions round Ø70mm square 70mm x 70mm INFO: incl. Luminaire housing, cover, external driver, floor-mounting box and longitudinal connector For further information please refer to the data sheet in the Download-tab.

LED Recessed floor luminaire PASSUM-UP 3W from A.L.S. These recessed luminaires optimally meet the requirements for upwards or downwards illumination. The innovative technology and the variety of combinations are to be emphasized here. The recessed luminaires are corrosion-resistant and passable with exchangeable covers, which impress with their versatile installation options. The luminaire housings with LED or conventional lamps can be swiveled or adjusted, thus allowing the inclination of the light for perfect illumination of the surfaces. Features of the PASSUM-UP series: Structure: Luminaire housing made of primary aluminum with reduced copper content, painted with anti-corrosive polyester powder after phosphorus chromating Tempered, transparent glass T = 40 ° C; Thickness from 6 to 12 mm and max. Load of 2,000 to 3,500 kg 0.5 m floor-retractable H07RN-F cable with IP68 connection Built-in box made of stabilized technopolymer The covers are available in: round with primary aluminum with double coating; round and square made of INOX AISI 316L stainless steel with stainless steel hexagon screws Manufactured in accordance with European standards EN 60598-1: 2015 Version is available in round and square Technical data: Light source LED LED Colour temperature 3000K 4000K Beam angle 38° System power 3W Connection voltage 24 VDC Luminous flux 105 lm Colour rendering index CRI >80 Protection class 1 Mechanical load IK08 passable 1000Kg Protection type IP67 Lifespan L80 B20; 60.000 h Dimensions round Ø70mm square 70mm x 70mm INFO: incl. Luminaire housing, cover, external driver, floor-mounting box and longitudinal connector For further information please refer to the data sheet in the Download-tab.

LED Recessed floor luminaire PASSUM-UP 4W from A.L.S. These recessed luminaires optimally meet the requirements for upwards or downwards illumination. The innovative technology and the variety of combinations are to be emphasized here. The recessed luminaires are corrosion-resistant and passable with exchangeable covers, which impress with their versatile installation options. The luminaire housings with LED or conventional lamps can be swiveled or adjusted, thus allowing the inclination of the light for perfect illumination of the surfaces. Features of the PASSUM-UP series: Structure: Luminaire housing made of primary aluminum with reduced copper content, painted with anti-corrosive polyester powder after phosphorus chromating Tempered, transparent glass T = 40 ° C; Thickness from 6 to 12 mm and max. Load of 2,000 to 3,500 kg 0.5 m floor-retractable H07RN-F cable with IP68 connection Built-in box made of stabilized technopolymer The covers are available in: round with primary aluminum with double coating; round and square made of INOX AISI 316L stainless steel with stainless steel hexagon screws Manufactured in accordance with European standards EN 60598-1: 2015 Version is available in round and square Technical data: Light source LED LED Colour temperature 3000K 4000K Beam angle 38° pivoted 15° System power 4W Connection voltage 230 V Luminous flux 248 lm Colour rendering index CRI >80 Protection class 1 Mechanical  load IK10 passable 2000Kg Protection type IP67 Lifespan L80 B20; 60.000 h Dimenions round Ø125mm square 125mm x 125mm INFO: incl. Luminaire housing, cover, external driver, floor-mounting box and longitudinal connector For further information please refer to the data sheet in the Download-tab.

LED Recessed floor luminaire PASSUM UP 11W from A.L.S. These recessed luminaires optimally meet the requirements for upwards or downwards illumination. The innovative technology and the variety of combinations are to be emphasized here. The recessed luminaires are corrosion-resistant and passable with exchangeable covers, which impress with their versatile installation options. The luminaire housings with LED or conventional lamps can be swiveled or adjusted, thus allowing the inclination of the light for perfect illumination of the surfaces. Features of the PASSUM-UP series: Structure: Luminaire housing made of primary aluminum with reduced copper content, painted with anti-corrosive polyester powder after phosphorus chromating Tempered, transparent glass T = 40 ° C; Thickness from 6 to 12 mm and max. Load of 2,000 to 3,500 kg 0.5 m floor-retractable H07RN-F cable with IP68 connection Built-in box made of stabilized technopolymer The covers are available in: round with primary aluminum with double coating; round and square made of INOX AISI 316L stainless steel with stainless steel hexagon screws Manufactured in accordance with European standards EN 60598-1: 2015 Version is available in round and square Technical data: Light source LED LED Colour temperature 3000K 4000K Beam angle 38° pivoted 15° System power 11W Connection voltage 230 V Luminous flux 1060 lm Colour rendering index CRI >80 Protection class 1 Mechanical  load IK10 passable 3500Kg Protection type IP67 Lifespan L80 B20; 60.000 h Dimensions round Ø180mm Square 180mm x 180mm INFO: incl. Luminaire housing, cover, external driver, floor-mounting box and longitudinal connector For further information please refer to the data sheet in the Download-tab.

LED Recessed floor luminaire PASSUM-UP 33W from A.L.S. These recessed luminaires optimally meet the requirements for upwards or downwards illumination. The innovative technology and the variety of combinations are to be emphasized here. The recessed luminaires are corrosion-resistant and passable with exchangeable covers, which impress with their versatile installation options. The luminaire housings with LED or conventional lamps can be swiveled or adjusted, thus allowing the inclination of the light for perfect illumination of the surfaces. Features of the PASSUM-UP series: Structure: Luminaire housing made of primary aluminum with reduced copper content, painted with anti-corrosive polyester powder after phosphorus chromating Tempered, transparent glass T = 40 ° C; Thickness from 6 to 12 mm and max. Load of 2,000 to 3,500 kg 0.5 m floor-retractable H07RN-F cable with IP68 connection Built-in box made of stabilized technopolymer The covers are available in: round with primary aluminum with double coating; round and square made of INOX AISI 316L stainless steel with stainless steel hexagon screws Manufactured in accordance with European standards EN 60598-1: 2015 Technical data: Light source LED LED Colour temperature 3000K 4000K Beam angle 38° pivoted 25° System power 33W Connection voltage 230 V Luminous flux 1060 lm Colour rendering index CRI >80 Protection class 1 Mechanical  load IK10 passable 3500Kg Protection type IP67 Lifespan L80 B20; 60.000 h Dimension round Ø245mm INFO: incl. Luminaire housing, cover, external driver, floor-mounting box and longitudinal connector For further information please refer to the data sheet in the Download-tab.
