eldoLED LINEARdrive 100 DALI/DMX

€169.50*

% €209.52* (19.1% saved)

Prices incl. VAT plus shipping costs

Type

Product number: LIN100-S1

Product information "eldoLED LINEARdrive 100 DALI/DMX"

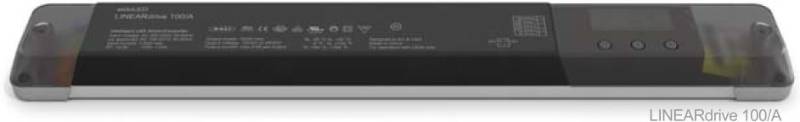

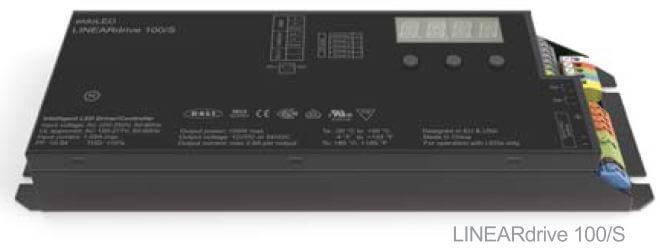

eldoLED LINEARdrive 100 LED driver

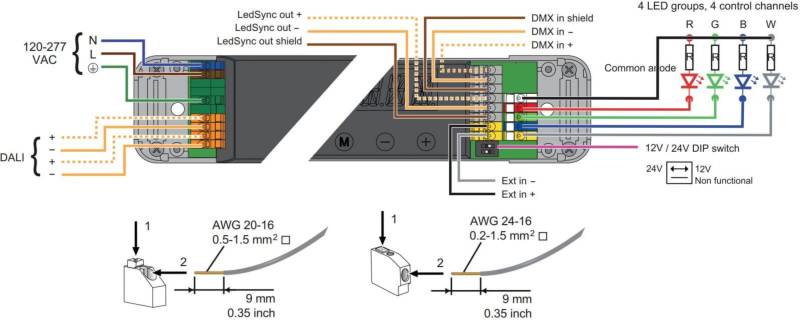

Dimmable constant voltage LED driver with 4 LED outputs that can be controlled individually via DMX or DALI. 100W

LINEARdrive 100 led driver have four separately controllable LED outputs, which can be used for wide range of full-colour (RGBW), dynamic LED lighting applications.

You can configure the driver over its intuitive, 3-button user interface with display:

The number of channels
DMX or DALI settings
Colour and dim values

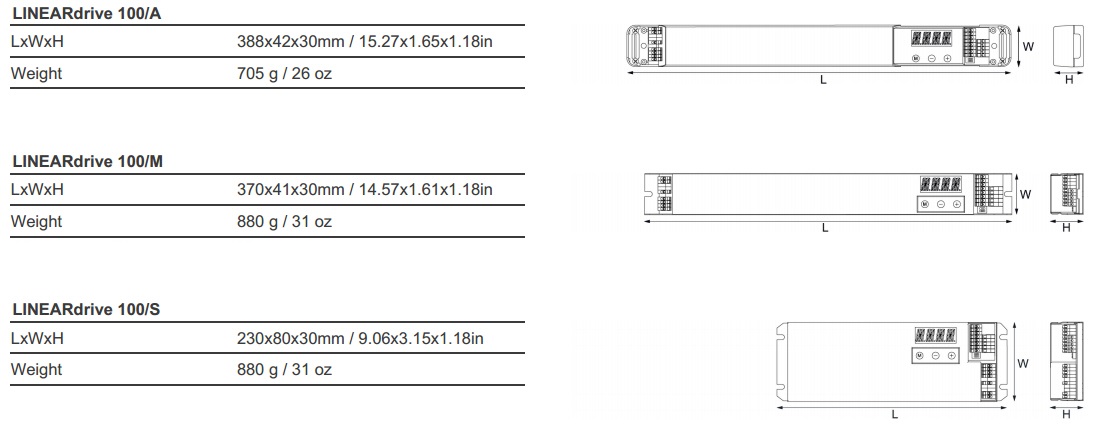

The LINEARdrive 100 Series is available in 3 different versions, which differ only in dimensions and weight:

eldoLED POWERdrive 106 DALI/DMX

Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input.

Instruction Operating with astronomical clock (PDF)
Instruction Operating with motion sensor (PDF)

Technical Data eldoLED LINEARdriver 100:

Input:
Input voltage AC	120-250V (ENEC approved) 120-277V (UL approved)
Input voltage DC	120-275V
Input current	1.05A max @ 120V/60Hz 0.5A max @ 230V/50Hz 0.45A max @ 277V/60Hz

Output:
RGBW @ 12V	2.08A per output
RGB @ 12V	2.76A per output
RGBW @ 24V	1A per output
RGB @ 24V	1.33A per output
LED output voltage	12V, 24V
LED output current	2.8A max.
LED Outputs	4
Control channels	4

Dimming protocol	DMX and DALI
Dimming range	100%-0% (HydraDrive)
Dimming curve	linear, logarithmic, square
Driver configuration	via 3-button user interface on driver

Weight	705g / 880g

#Kategoriefilter:	LED-Trafos- alles mit CV
Application/IP-Code:	IP20 - IP44 (Indoor)
Color Temperature/Color:	RGB/3-Ch, RGBW/4-Ch
Constant Voltage:	12V, 24V
Dimmable/Control:	DALI, DMX

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

No reviews found. Share your insights with others.

sw_similar

eldoLED LINEARdrive 720D DALI/DMX

eldoLED LINEARdrive 720D LED converter Dimmable constant voltage LED supply with 4 LED outputs that can be controlled individually via DMX or DALI. 100W You can configure the driver over its intuitive, 3-button user interface with display: The number of channels DMX or DALI settings Colour and dim values Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input. Instruction Operating with astronomical clock (PDF) Instruction Operating with motion sensor (PDF) Technical Data eldoLED LINEARdrive 720D: Input: Input voltage DC 12-48V Input current 24A max, irrespective of PSU voltage Output: RGBW @ 12V 6A RGB @ 12V 6A RGBW @ 24V 6A RGB @ 24V 6A RGBW @ 48V 6A RGB @ 48V 6A LED output voltage 5V, 12V, 24V, 48V LED Outputs 4 Control channels 4 Dimming protocol DMX and DALI Dimming range 100%-0% (HydraDrive) Dimming curve linear, logarithmic, square Driver configuration via 3-button user interface on driver Dimension (LxWxH) 153x50x23mm Weight 144g

€128.00* €135.90* (5.81% saved)

eldoLED POWERdrive 180D DALI/DMX

eldoLED POWERdrive 180D LED driver Dimmable constant current LED driver with 4 LED outputs that can be controlled individually via DMX or DALI. You can configure the driver over its intuitive, 3-button user interface with display: The number of channels DMX or DALI settings Colour and dim values Furthermore, e.g. an astronomical clock (night-time reduction) or a motion sensor can be connected to the external input. Instruction Operating with astronomical clock (PDF) Instruction Operating with motion sensor (PDF) Technical Data eldoLED Powerdrive 180D: Input: Input voltage DC 12-32V Input current 6,16A max. Output: LED output power 180W max. LED output current range 200-1400mA LED output current resolution 50mA LED output current tolerance +/- 5% LED outputs 4 LED output voltage range 11-31V (Vsup=1V) Control channels 4 Dimming protocol DMX and DALI Dimming range 100%-0% (HydraDrive) Dimming curve linear, logarithmic, square Driver configuration via 3-button user interface on driver Dimension (LxWxH) 193x50x23mm Weight 191g

€148.25* €162.57* (8.81% saved)

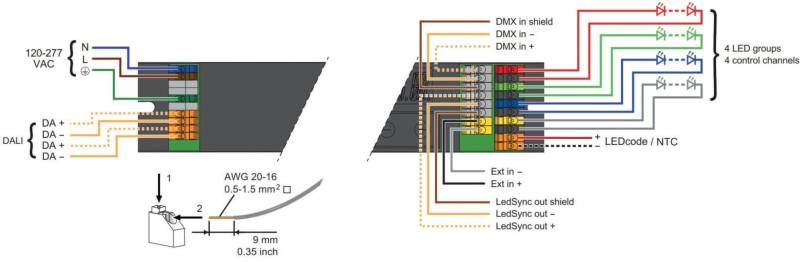

eldoLED POWERdrive 106 DALI/DMX
