High Current LED Driver MP55
Product information "High Current LED Driver MP55"
Direct current electronic driver with DIP-Switch from TCI

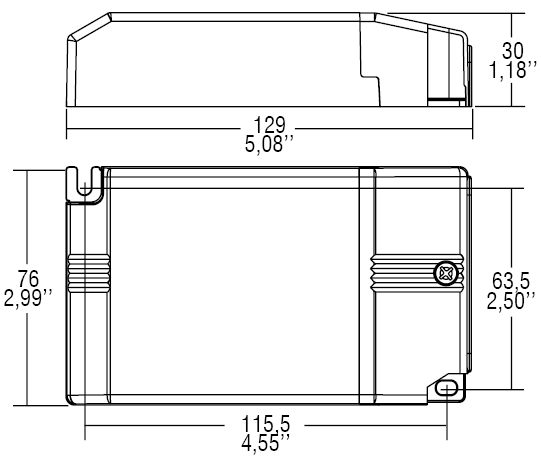

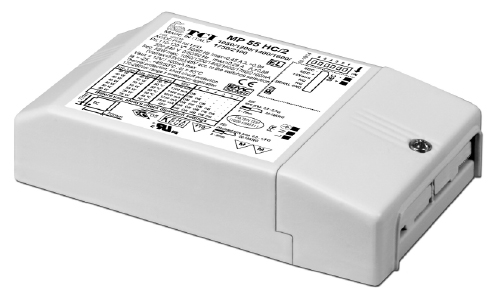

The TCI MP 55 HC is a LED-converter, which is able to supply power operated high performance LEDs.The output current is adjustable via DIP-Switch. Not dimmable.
Features of TCI MP 55 HC
- Multipower driver supplied with dip-switch for the selection of the output current.
- IP20 independent driver, for indoor use (MP 55 /2).
- Class I protection against electric shock for direct or indirect contact (MP 55 /2).
- It can be used for lighting equipment in protection class I (MP 55 BI).
- Driver for built-in use (MP 55 BI).
- Active Power Factor Corrector.
- Auxiliary output 12 V max. 100 mA.
- Current regulation ±5 % including temperature variations.
- Input and output terminal blocks on the same side (wire cross-section up to 1,5 - 2,5 mm2 / AWG15 - AWG13).
- Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (MP 55 /2).
- Driver can be secured with slot for screws.
- Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
- Thermal protection = C.5.a.
- Flicker (Output Ripple) < 3 %
Setting options MP 55 HC/2 and MP 55 HC BI
| Dip-SW | Power out | Voltage out | Current out | # LED |
| Position 1 | 45 W | 2...44 V | 1,05 A const. | 12 |
| Position 2 | 52 W | 2...44 V | 1,2 A const. | 12 |
| Position 3 | 55 W | 2...39 V | 1,4 A const. | 11 |
| Position 4 | 55 W | 2...35 V | 1,6 A const. | 10 |
| Position 5 | 55 W | 2...30 V | 1,75 A const. | 8 |
| Position 6 | 55 W | 2...26V | 2,1 A const. | 7 |

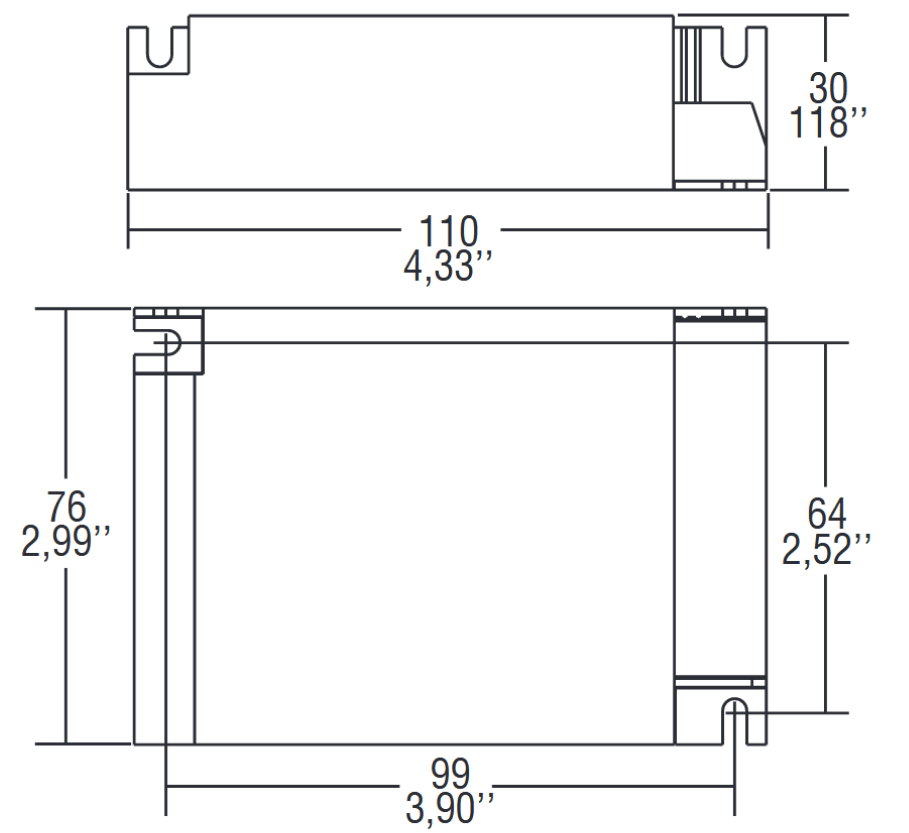

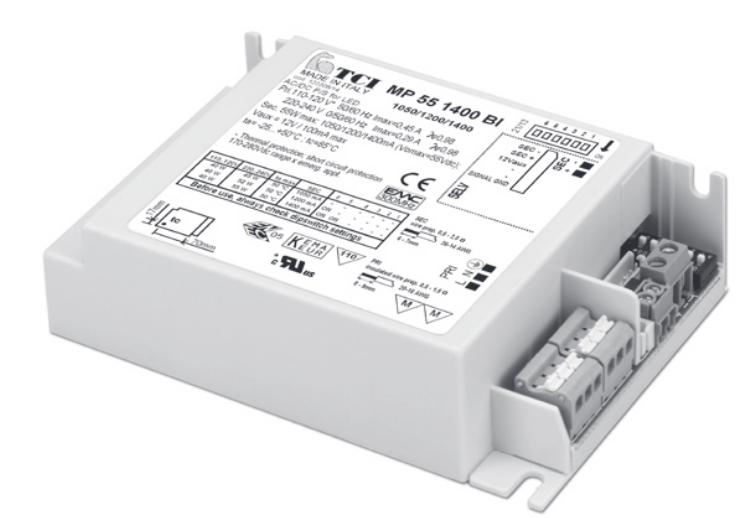

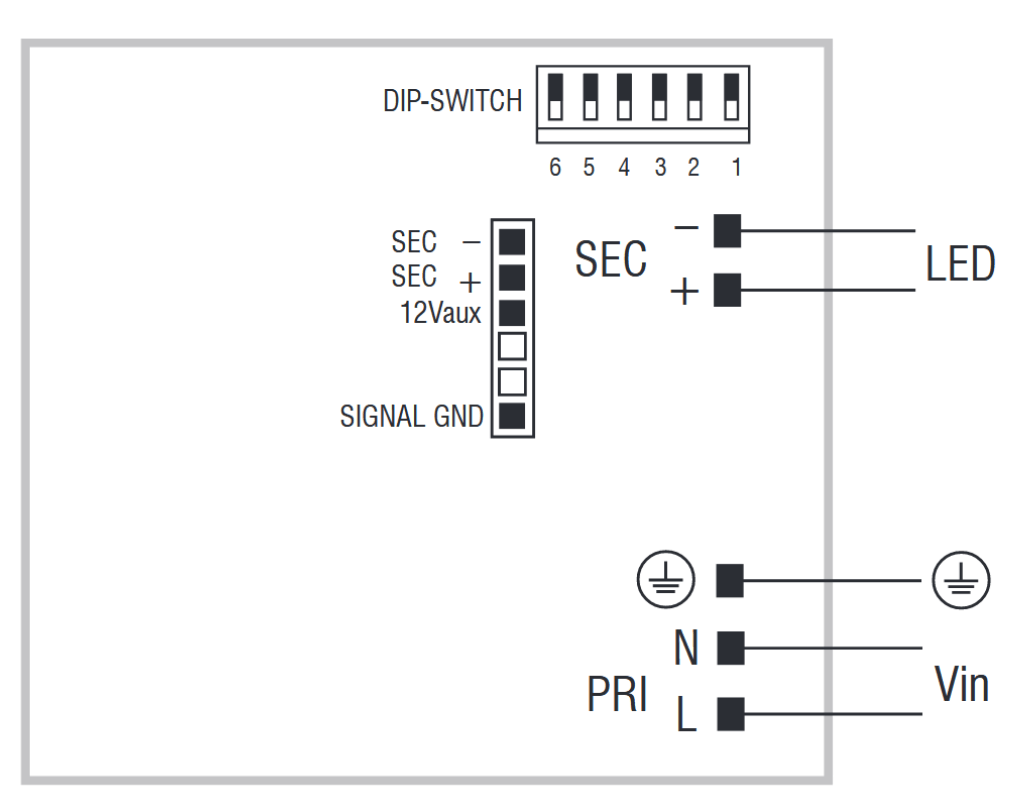

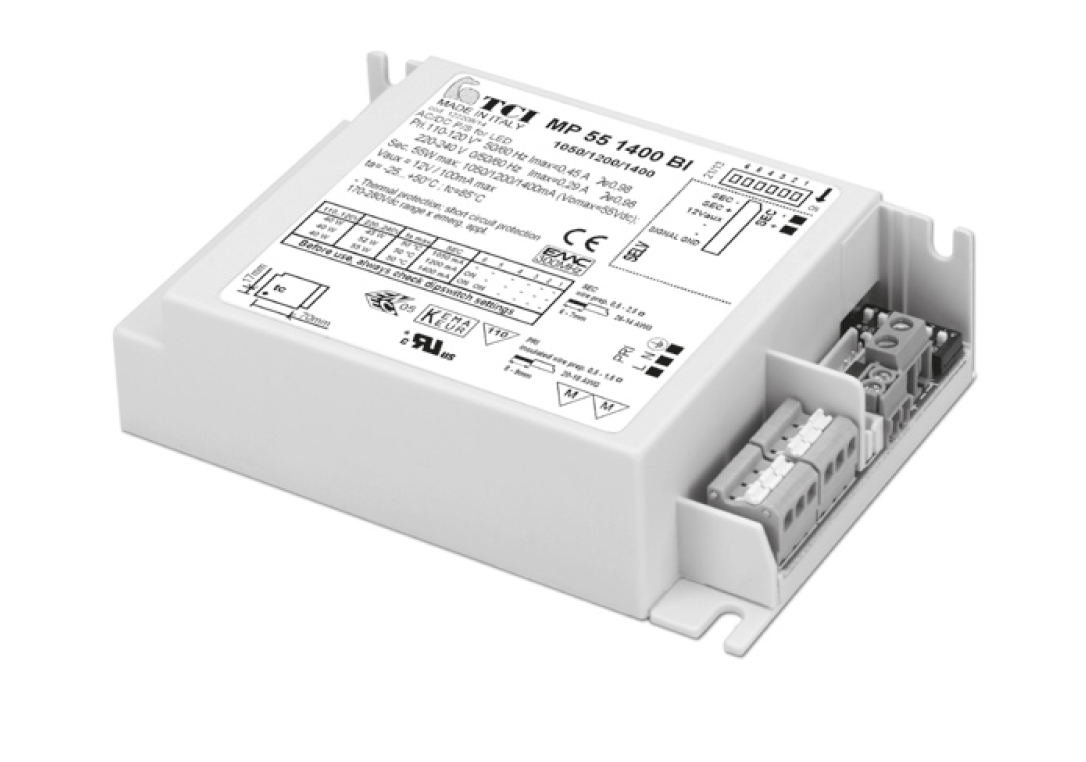

Setting options MP 55 1400/2 and MP 1400 BI
| Dip-SW | Power out | Voltage out | Current out | # LED |
| Position 1 | 45 W | 2...44 V | 1,05 A const. | 12 |
| Position 2 | 52 W | 2...44 V | 1,2 A const. | 12 |
| Position 3 | 55 W | 2...39 V | 1,4 A const. | 11 |
Accessories not supplied: 6pin cable for LED and AUX
For further information please refer to the data sheet. (Download tab)
| #Kategoriefilter: | LED-Treiber-alles mit CC |
|---|---|
| Constant Current: | 1,0A, 1,05A, 1,2A, 1,4A, 1,6A, 1,75A, 2,1A |
| Power range: | 20 - 50 W, 50 - 100 W |
