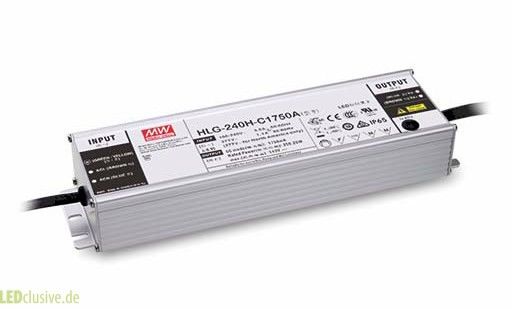

HLG-240H-C Constant Current Power Supply from Mean Well

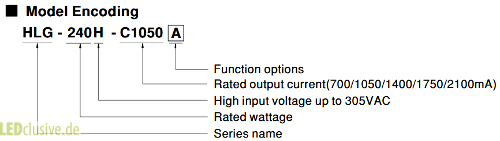

Meanwell HLG-240H-Cxxx"Type"
The HLG240H-C is a high performance, dust- and waterproof AC-DC LED constant current power supply up to 250W max nominal power.
It is equipped with proven features, e.g. dimming methods, which ensure flexible application of the product.
Due to the high power (up to 250W) different high-power LED modules and COB can be operated on this driver. In addition, protection class IP65/IP67 allows application outdoors.
HLG-240H-C features (type dependent):
- 7 years manufacturer's warranty
- Universal AC input from 90V up to 305V AC
- As well as DC input from 127V to 431V DC
- Built-in PFC circuit
- Protection against short circuit, overvoltage and overload (temperature protection)

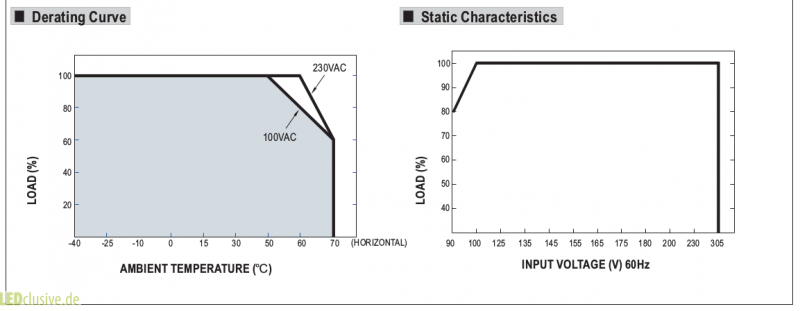

- self-cooling via housing by air convection, operating range -40 to +90 degrees Celsius
- OCP (over current protection) possible via terminals or internal potentiometer
- IP65 Protection for outdoor installations
- Dimming function via 1-10V, PWM or resistor possible, SmartTimer dimming
- Type HL for use according to Class I Zone 2 (gases and vapours)
- Overload protection by current limitation, auto recovery
- Suitable for operation of LED modules via constant current (700mA - 2100mA)
- Complies with worldwide standards for lighting
HLG-240H-C type xxx "A"
- Internal potentiometer for fine adjustment of the output current
- IP65, for indoor and outdoor applications
HLG 240H-C Type xxx "B":
- Constant current control via 1-10V or PWM input, as well as external potentiometer
- IP67 protection. For indoor and outdoor applications
- High power via DALI dimming in conjunction with DAP-04 DALI PWM converter
Further information on dimming via DALI and PWM is available in this article:
DALI PWM solution for dimming LED technology
Technical Data Meanwell HLG-240H-C
| Version | For LED lighting applications | ||||
| Model | Switching power supply, H-C | ||||
| Surge strength | 4 kV | ||||
| Input | 90 - 305 VAC / 127 - 431 VDC 47 - 63 Hz |
||||
| Output parameters: | |||||
| Constant current | 700mA | 1050mA | 1400mA | 1750mA | 2100mA |
| Output voltage, Control range | 178 ~ 357V | 119 ~ 238V | 89 ~ 179V | 71 ~ 143V | 59 ~ 119V |
| Power | 249,9W | 249,9W | 250,6W | 250,25W | 249,9W |
| Current setting range, Type A | 350 ~ 700mA | 525 ~ 1050mA | 700 ~ 1400mA | 875 ~ 1750mA | 1050 ~ 2100mA |
| Design | HLG | ||||
| Approbation | UL / EN Class C | ||||
| Dimensions | 244,2mm x 68mm x 38,8mm (H x W x D) | ||||
For further technical details please refer to the data sheet (in tab Download)
On Request we also offer other versions.
| #Kategoriefilter: | LED-Treiber-alles mit CC |
|---|---|
| Application/IP-Code: | IP65/67 (Outdoor) |
| Constant Current: | 0,7A, 1,05A, 1,75A, 2,1A |
| Dimmable/Control: | 1..10V, PWM |
| Meanwell Series: | HLG |
| Power range: | 100 - 250 W |
