Large Downlight Linea 120 LV
Product information "Large Downlight Linea 120 LV"

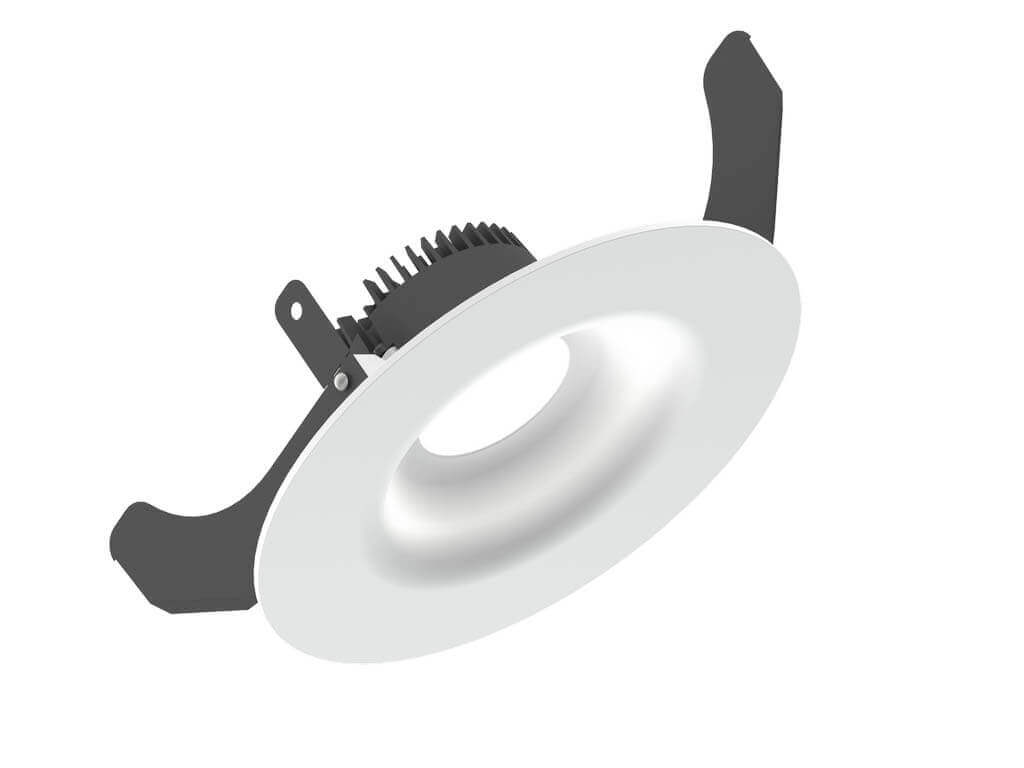

Illuxtron Linea 120 - LV (Low Voltage) Downlight
These recessed spotlights are available in 2700K, 3000K and 4000K. The power is 13.8W or 20.1W, depending on the selection, at 220-240V.
This downlight is also available in the following versions:
| Version | Power range | Beam Angle | Special |
| HV-FD (High Voltage - Flimmerfree Dimmtechnology) | 10,1-10,5W | 40° / 80° | directly connected to 220-240V |
| LV (Low Voltage) This Version | 13,8 - 20,1W | 24° / 60° / 80° | CRI-97 Standard, inclusive PSU |
| LV-TW (Low Voltage - True White) | 11,4W | 60° / 80° | Tuneable White technology |
What makes these LED downlights so special are the reflectors with microfacets. These microfacettes of the sensor series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits:
Special features of these so-called Dark Light - Reflectors
- High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology
- low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of LED light spectra for very good colour rendering
The most important technical details of the Linea 120 Series:

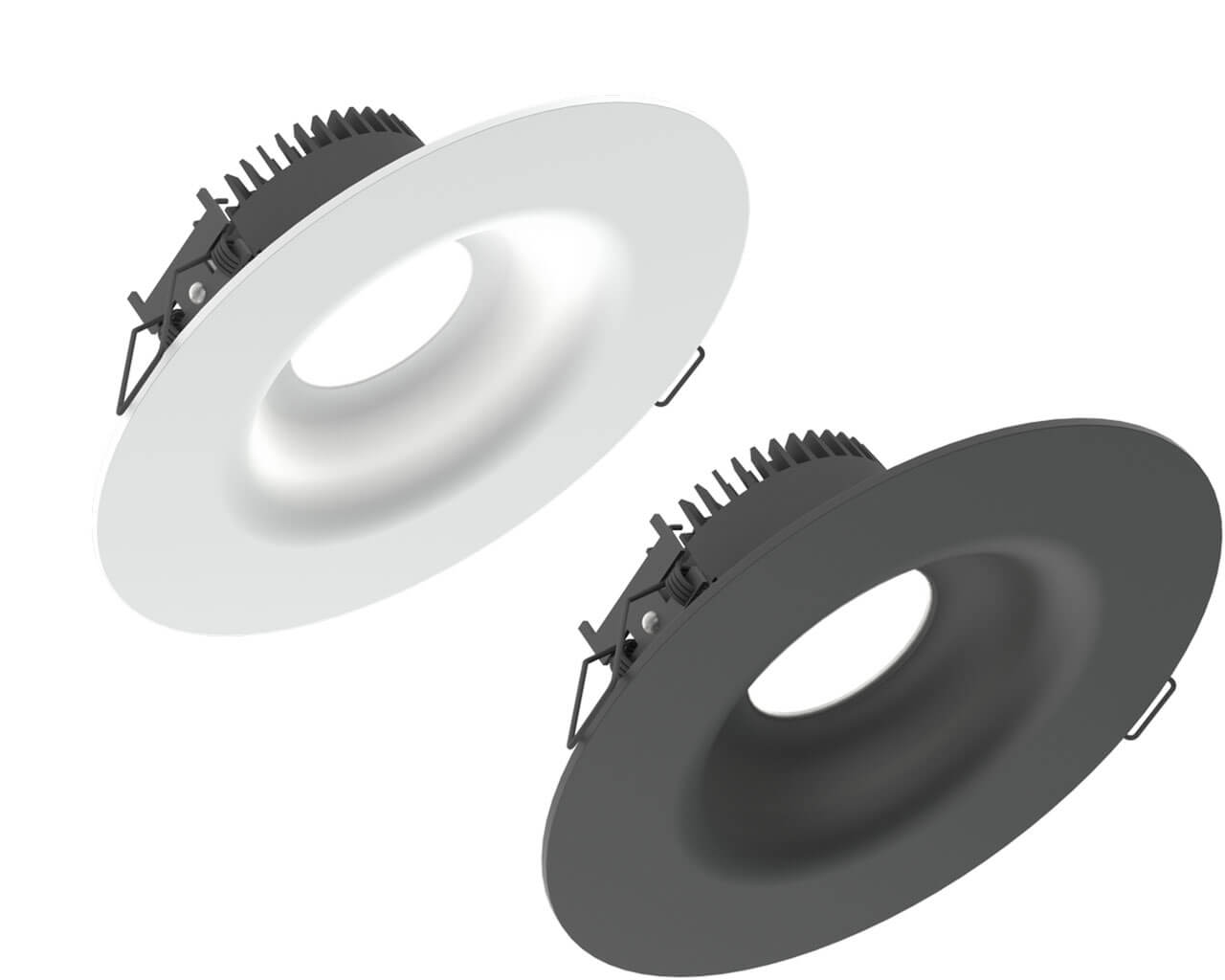

| Casing color | matt white RAL 9016 (XX=MW) matt black RAL 9005 (XX=BL) |
| Material | housing: die-cast aluminium Reflector glass: Polycarbonate |

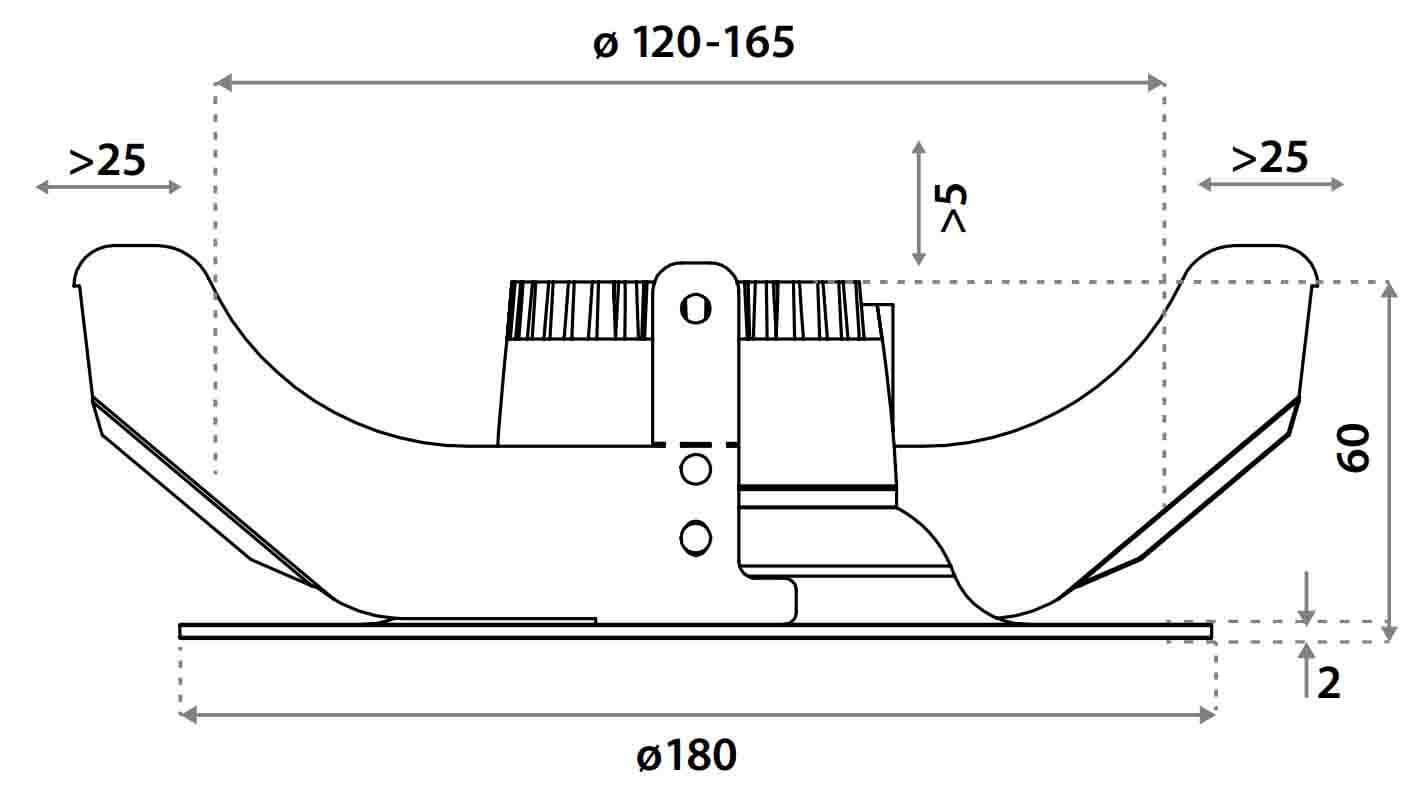

| Dimensions | 180 mm x 65 mm |
| Required installation depth | > 70 mm |
| Application | Inside area |
| Emitted beam angle (FWHM) | 60° |
| CRI / Ra (typ.) | 83 |
| Colour consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Lifetime | at 25°C |
| L70B50 | 180,000 h |
| L80B50 | 113,000 h |
| L90B50 | 54,000 h |
| Safety sign | EN60598 / EN62031 / EN62471 |
| EMV Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |
Linea 120 - LV (Niedrigvolt)
The new CRI-97 standard is comparable to Sunlike and Xicato, but more efcient. The colour points of the LED remain on the black baseline and have been optimised according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
| Dimmability | Casambi (*Note) | ||||||
| Art.No. | 895A03XX2Q02 | 895K03XX2Q02 | 895B03XX2Q02 | 895L03XX2Q02 | 895G03XX2Q02 | 895M03XX2Q02 | 895E03XX2Q02 |
| Colour temperature | 2700K | 3000K | 4000K | 1800 - 3000K | |||
| UGR | 24,0 | ||||||
| Luminous flux | 1150 lm | 1625 lm | 1250 lm | 1800 lm | 1350 lm | 1925 lm | 1250 lm |
| Lm/W (with EVG) | 83 | 81 | 91 | 89 | 96 | 96 | 91 |

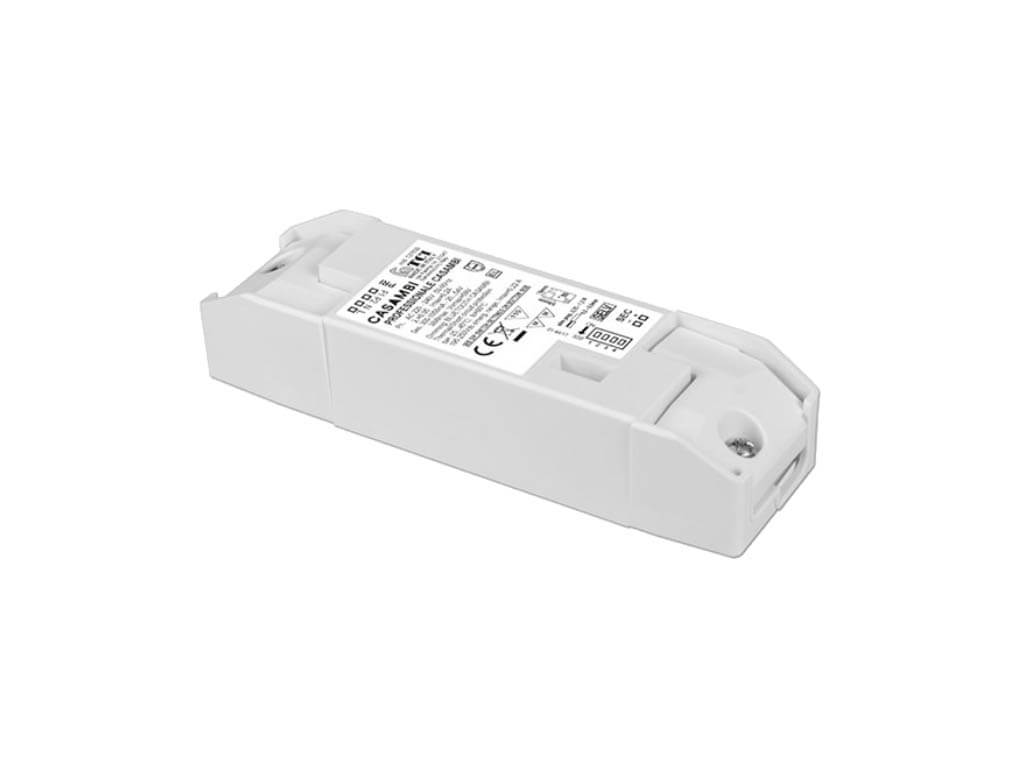

| Type | Inkl. PSU | ||||||
| Input | 220-240 V | ||||||
| Power | 13,8 W | ||||||
| Protection class | II | ||||||
| Powerfactor | 0,95 | ||||||
*Note: This downlight is also available with beam angles of 24° and 80°, and in a switchable, DALI, 1-10V&Push and Triac version with different mounting options.
For data sheets of the Downlight Linea 120 - LV series see Download Tab:
Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This explains the longer delivery time of 1-3 weeks depending on the workload.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 4000K |
| Dimmable/Control: | 1..10V, Casambi radio, DALI, Phase-Cut (Triac) |
| Hole diameter: | 120mm, 150mm, 160mm, 165mm |
