LED aluminum triangle profile silver with cover

€253.10*

Content: 2 Meter (€126.55* / 1 Meter)

Prices incl. VAT plus shipping costs

Covering

transparent

opal white

Length

1 m

2 m

packing unit

Product number: ALU945789-200-11

Product information "LED aluminum triangle profile silver with cover"

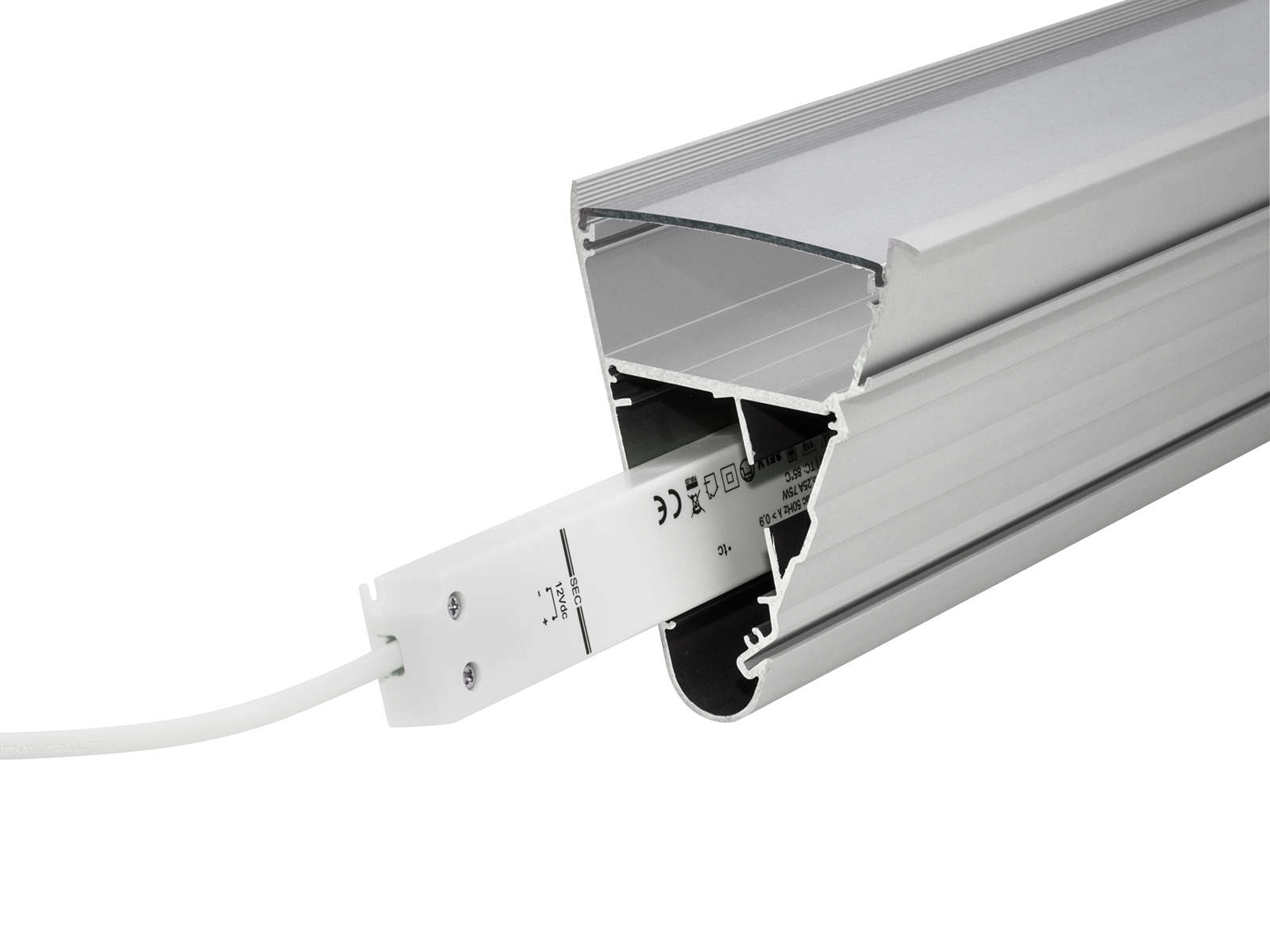

Aluminum triangle profile silver with cover, length 1 to 2 meters

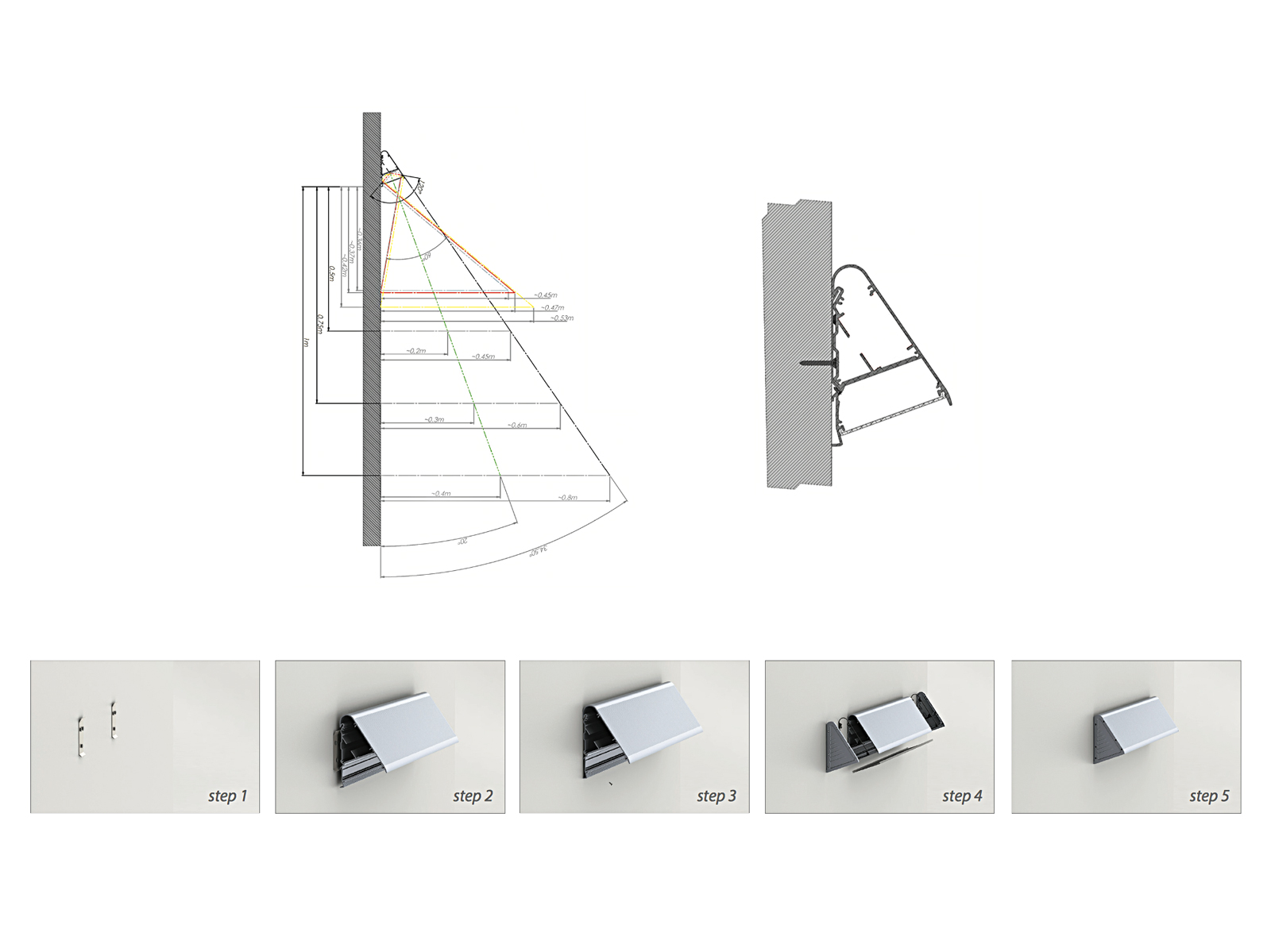

The triangle profile enables a protected and concealed installation of flexible LED strips. The lighting is directed downwards at an angle, for example, to a workplace.

Info:

We are happy to offer you individual cuts of our aluminum profiles on request.

Technical specifications:

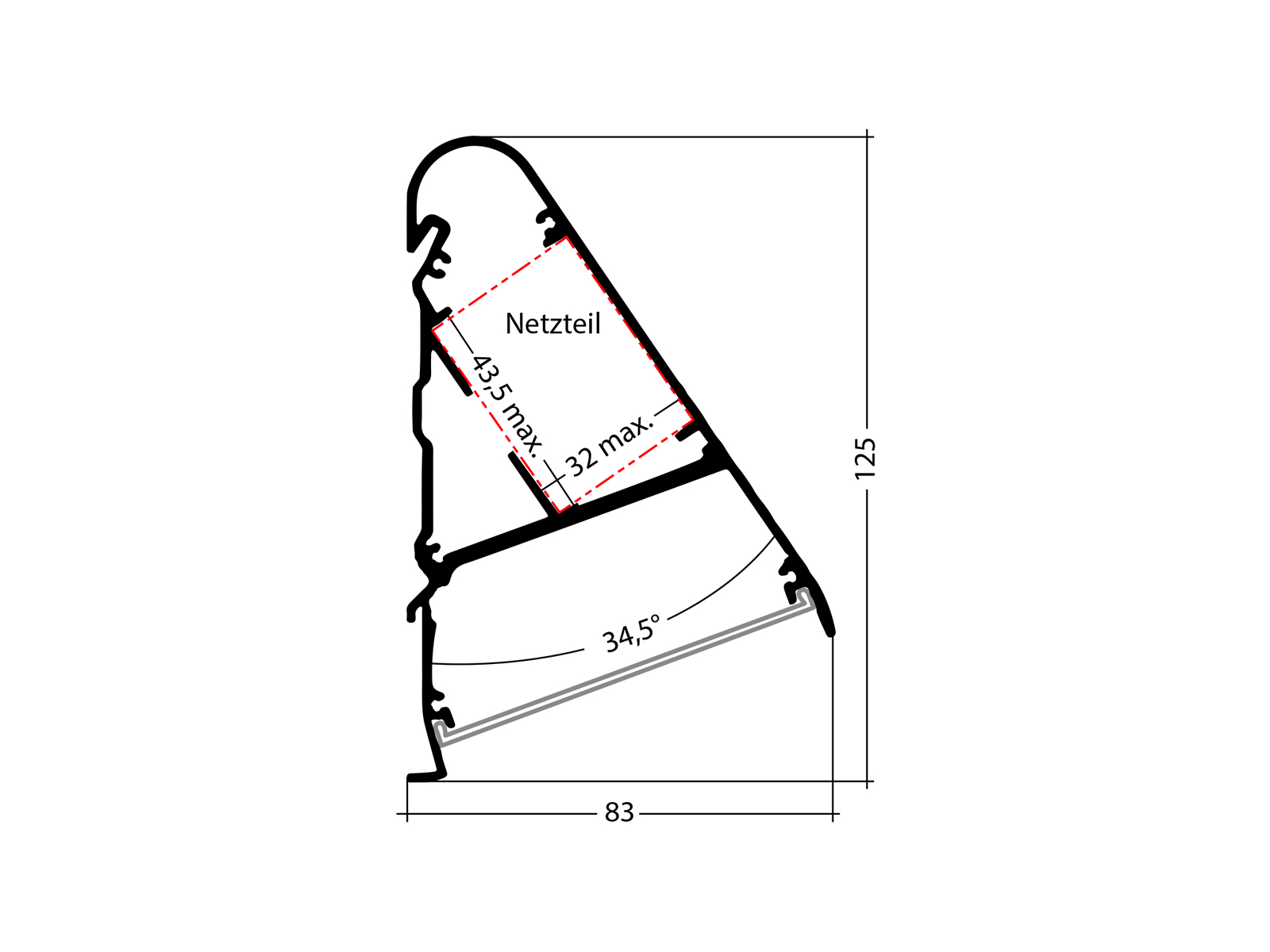

Dimensions (LxWxH) in mm: 1000 x 125 x 83
Material: aluminum, silver anodized

For self-adhesive LED strips up to a maximum width of 14mm Cover to choose from:

Opal white cover (the light is strongly diffused and has a glare-free effect)
Transparent cover (the LED light source is visible, but maximum light transmission)

Scope of delivery:

LED aluminum triangle profile, length depending on the selection under options 1m or 2m
Cover of your choice
without lamps
without side cover

Note when buying end caps:
There are different end caps for the left and right for the triangle profile, so you need a left and a right end cap for each profile.

Power/Meter:	> 20W/m
