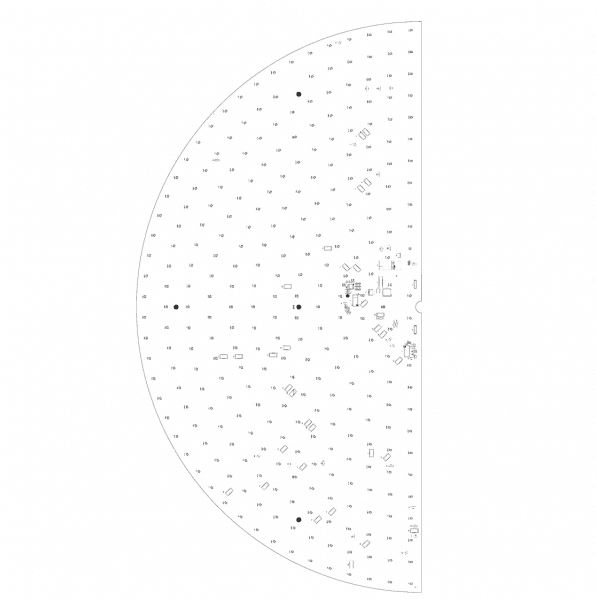

LED board 39W semicircle 230 V 284 LEDs
Product information "LED board 39W semicircle 230 V 284 LEDs"
Semicircle LED board with trailing-edge dimmer, bright
Due to its design, this efficient semicircular high-voltage LED board is ideal for special indoor applications and is designed for 230V mains voltage. Its features include a sturdy aluminum core, which ensures ideal heat dissipation (cooling). In addition, the LED module is bright and convinces with efficiency and good colour rendering.
Further features:
- Dimmable by dimmers with phase cut on the trailing edge
- With contact terminals on the board
- Tc-temperature to be measured on the board besides LEDs
- Protection class: 1 is applied for the rear side when grounded
- Front side must be protected against contact
Note:
Ripple control pulses and other power disturbances can cause brightness variations, especially with dimmers.
Technical data:
| Article number | 810348 | 810347 | 810346 | 810345 |
| Colour temperature | 2700 K | 3000 K | 4000 K | 5700 K |
| Type | AR230-505XW9 | AR230-505WW9 | AR230-505NW | AR230-505CW |
| Nominal input voltage | 230 Vac | |||
| Power max. | 39 W | |||
| Luminous flux typ. | 3395 lm | 3930 lm | 4290 lm | 4290 lm |
| Colour rendering index (CRI) | 90 | |||
| Beam angle | 120 ° | |||
| Rated Max. temp. (tc) | 60 °C | |||
| Number of LEDs | 284 | |||
| Dimensions | 505×6,4 mm | |||
For further information please refer to the data sheet in the Download tab.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 4000K, >5000K |
| Dimmable/Control: | Phase-Cut (Triac) |
