LED moisture-proof luminaire IP65 DALI
Product information "LED moisture-proof luminaire IP65 DALI"
LED moisture-proof luminaire IP65 GAGARIN optionally with DALI
The perfect LED moisture-proof luminaire from LEDON 30W or 45W for lighting demanding environments such as: garages, underground car parks, car parks, production facilities or basements in private and public areas. Of crucial importance in their individual lighting solution, are aspects such as efficiency, longevity and their insensitivity to external influences. This moisture-proof luminaire is available in 2 different dimensions with DALI, Touch DIM with corridor function (motion detector) or without.| Description | Product No. | EAN Code | Dimmable |
| LED MPR 1160 30W/140D/840 230V |
29001140 |
9 009453 010001 | No |
| LED MPR 1560 45W/140D/840 230V |
29001141 |
9 009453 010018 | No |
| LED MPR 1160 30W/140D/840 230V DALI |
29001187 |

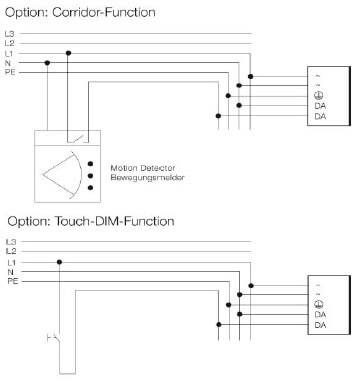

9 009453 010025 | DALI, Touch-DIM, Corridor function |
| LED MPR 1560 45W/140D/840 230V DALI |
29001188 |
9 009453 010032 | DALI, Touch-DIM, Corridor function |
Technical data for the LED moisture-proof luminaire IP65:
| Version | Without motion detector | With motion detector - Dali, Touch-DIM, Corridor function |
Without motion detector | With motion detector - Dali, Touch-DIM, Corridor function |

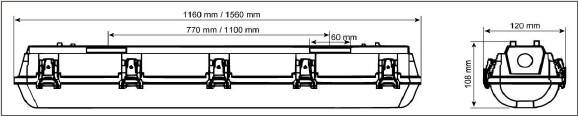

| Length in mm | 1160 mm | 1160 mm | 1560 mm | 1560 mm |
| Width (inc.) | 120 mm | |||
| Height | 108 mm | |||
| Mass | 2,0 kg | 2,0 kg | 2,76 kg | 2,76 kg |
| Power in W | 36 W | 30 W | 45 W | 45 W |
| Luminous flux in lm | 3600 Im | 3600 Im | 5600 Im | 5600 Im |
| Luminous efficacy (efficiency) | 120 Im/W | 120 Im/W | 124 Im/W | 124 Im/W |
| Protection/Shock Resistance | IP65/IK08 | |||
| color temperature | 4000 K, Neutral White | |||
| Color rendering index Ra | 80 | |||
| Abstrahwinkel | 140° | |||
Further technical data can be found in the data sheet.
| Color Temperature/Color: | 4000K |
|---|---|
| Dimmable/Control: | DALI, Push-Button |
