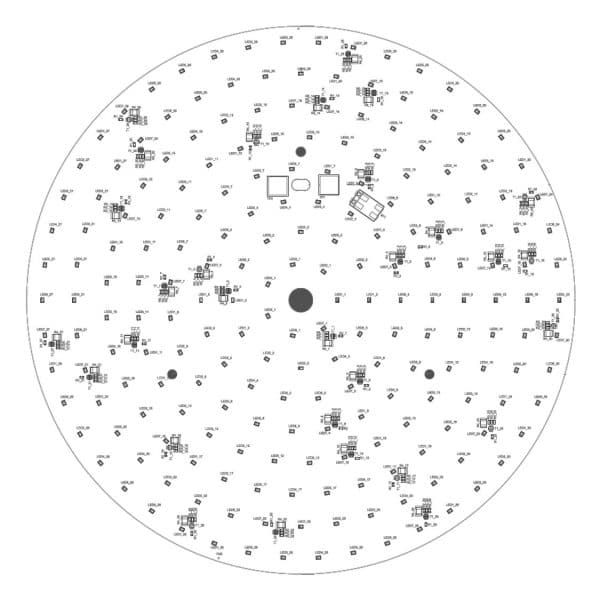

LED on board 21,5W round 24 V 240 mm 210 LEDs
Product number:
5953-810377
Product information "LED on board 21,5W round 24 V 240 mm 210 LEDs"
High efficiency round 21,5W LED circuit board - PWM dimming, self cooling
This self-cooling round LED module is equipped with an aluminum core and designed for 24V low voltage. The board is particularly bright and stands out by efficiency and good colour rendering.
Further product features:
- With contact terminals on the board
- Tc-temperature to be measured on the board besides LEDs
- Dimmable with PWM dimmers
- Self cooling, doesn?t need a heat sink
Note:
Ripple control pulses and other network disturbances can cause brightness variations, especially with dimmers.
Technical data:
| Article number | 810378 | 810377 | 810376 | 810375 |
| Colour temperature | 2700 K | 3000 K | 4000 K | 5700 K |
| Type | AR24-240-927 | AR24-240-930 | AR24-240-840 | AR24-240-857 |
| Nominal input voltage | 24 Vdc | |||
| Power max. (LED-Modul) | 21,5 W | |||
| Luminous flux typ. | 1750 lm | 2250 lm | ||
| Colour rendering index (CRI) | 90 | 90 | 80 | 80 |
| Beam angle | 120 ° | |||
| Rated Max. temp. (tc) | 85 °C | |||
| Number of LEDs | 210 | |||
| Dimensions | 240×6 mm | |||
For further information please refer to the data sheet in the Download-tab.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 4000K, >5000K |
| Constant Voltage: | 24V |
| Dimmable/Control: | PWM |
