LED Platine 42W rund 230 V 380 mm 299 LEDs
Product number:
5944-810336
Product information "LED Platine 42W rund 230 V 380 mm 299 LEDs"

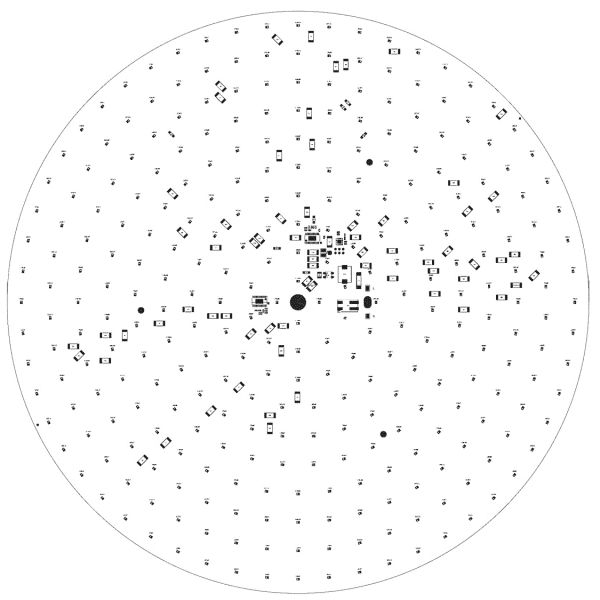

High efficiency round 42W LED circuit board - trailing edge dimmer, very powerful
This bright round LED module is mounted on a sturdy aluminum carrier, which ensures ideal heat dissipation (cooling). It is designed for 230V mains voltage and stands out by efficiency, good colour rendering and advanced operating electronics on the board. In addition, the beam angle of 120 ° ensures large-area illumination.
Further product features:
- Dimmable by dimmers with phase cut on the trailing edge
- With contact terminals on the board
- Tc-temperature to be measured on the board besides LEDs
- Protection class 1 is applied for the rear side when grounded
- Front side must be protected against contact
Note:
Ripple control pulses and other network disturbances can cause brightness variations, especially with dimmers.
Reference:
- Matching covers transparent: 035769 / opal 036343
Technical data:
| Article number | 810338 | 810337 | 810336 | 810335 |
| Colour temperature | 2700K | 3000K | 4000K | 5700K |
| Type | AR230-380XW9 | AR230-380WW9 | AR230-380NW | AR230-380CW |
| Nominal input voltage | 230 Vac | |||
| Power max. (LED-Modul) | 42 W | |||
| Luminous flux typ. | 3560 lm | 4120 lm | 4500 lm | 4500 lm |
| Colour rendering index (CRI) | 90 | 90 | 80 | 80 |
| Beam angle | 120 ° | |||
| Rated Max. temp. (tc) | 60 °C | |||
| Number of LEDs | 299 | |||
| Dimensions | 380×6,4 mm | |||
Further information of the 42W LED board can be found in the datasheet in the download tab.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 4000K, >5000K |
| Dimmable/Control: | Phase-Cut (Triac) |
| Power range: | 20 - 50 W |
