LED RGBW wall controller with DMX 512 output
Product information "LED RGBW wall controller with DMX 512 output"
LED RGBW wall controller with DMX 512 output
Create impressive lighting effects - RGBW wall control with sensor touch surface.
Control LED, RGB and RGBW technology

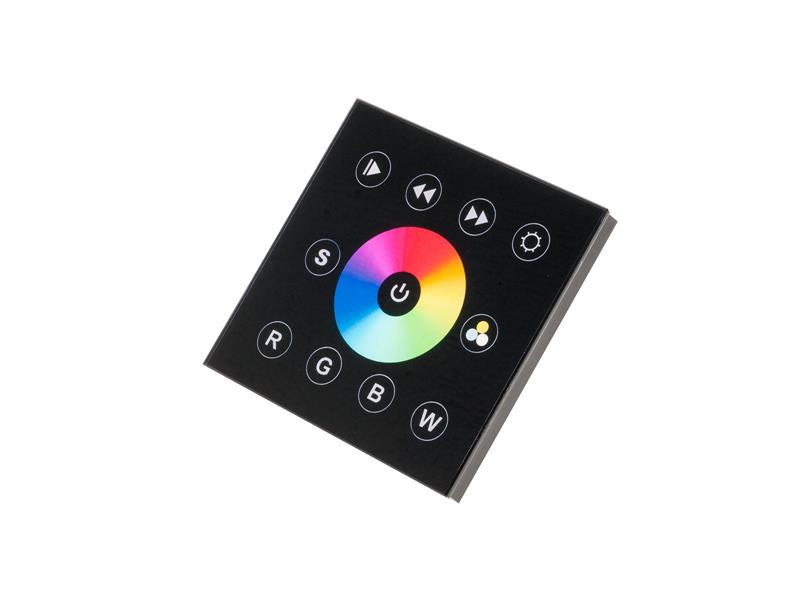

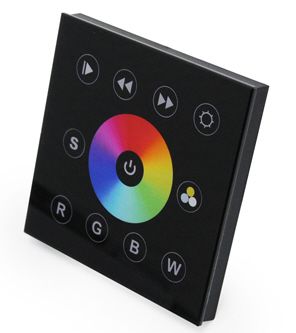

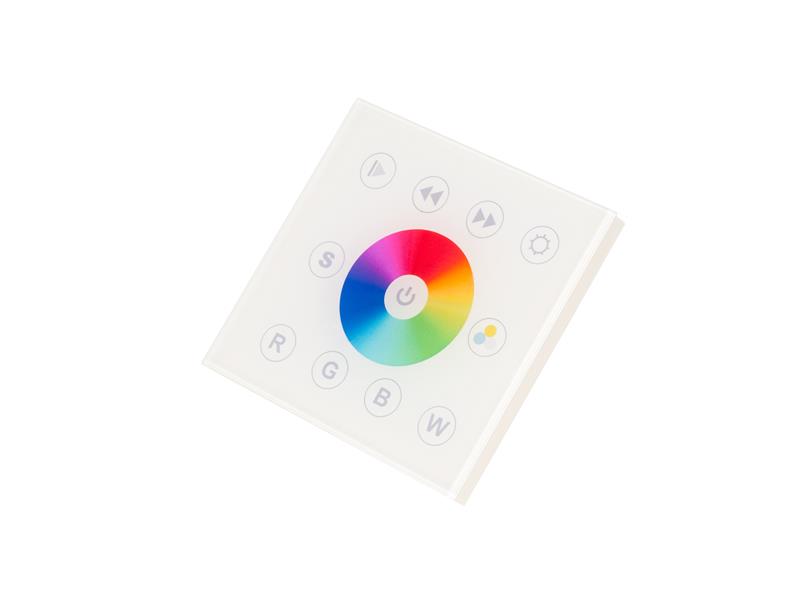

The touch-sensitive glass front wall of the RGBW control is optionally available in black or white.
Features:
- The flow speed of the color changing program can be adjusted via the speed keys in 8 stages.
- Your desired color can be saved and accessed by pressing a button on the color memory.
- Choice of three white color temperatures: warm white, neutral white, cool white.
- Select the desired color by touching the color wheel.
- Suitable for a conventional flush-mounted socket.
Technical Data LED RGBW wall controller:
| Supply Voltage: | 12V DC |
| Maximum load: | 200 mA |
| Power consumption: | max. 2,4W |
| DMX addressing: | 1-512 |

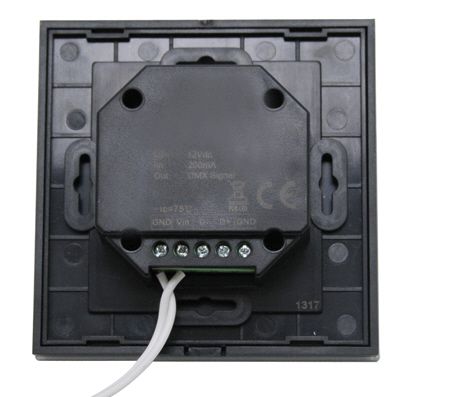

| DMX line: | Terminal connections |
| Dimensions (LxWxH) in mm: | 86 x 86 x 30 |
| Features: |
|
Warning: You need a 12Vdc power supply and a DMX converter to use the wall control.
| Color Temperature/Color: | RGB/3-Ch, RGBW/4-Ch |
|---|---|
| Constant Voltage: | 12V |
| Dimmable/Control: | DMX |
