LED Track spotlights BWS40
Product information "LED Track spotlights BWS40"

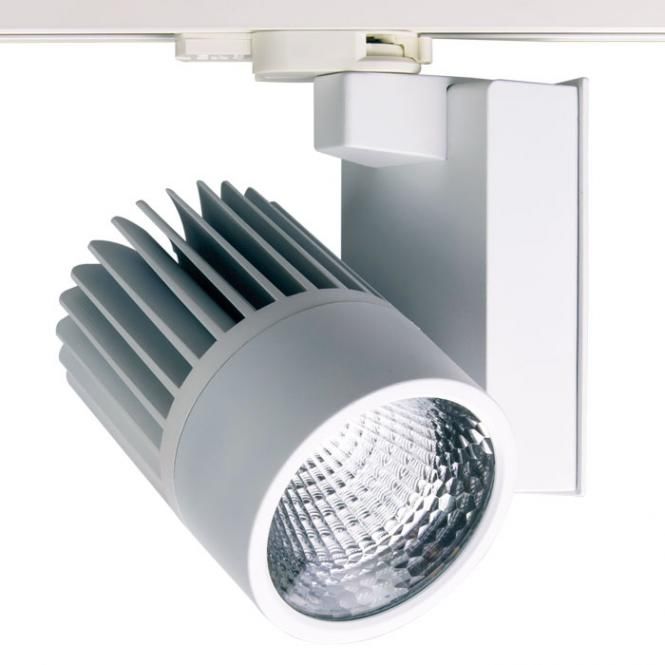

LED track spotlights
This version of the BWS series is available in CoB LED module with 3 different beam angles (15 °, 24 ° and 40 °). In addition, you can choose the LED track spotlight from 4 color combinations. The housing is made of painted die-cast aluminum with clear protective glass.
Data for the BWS30 track spotlight:
- Protection class I
- Supply voltage: 220-240V
- Integrated electronic power supply
- LED operating current: 700mA
- Eutrac®-3-phase electronic adapter
- CRI > 90
- Energy efficiency: A++ -A
Ideal for lighting food (vegetables, meat and bakery products) and is also used in shops for object lighting. In particular, due to the very good color rendering index, it is ideal for eg clothing stores.
Variation-specific data of the LED track spotlight BWS30:
| Color temperature | 2700K | 3000K | 4000K | ||||||
| Beam angle | 15° | 24° | 40° | 15° | 24° | 40° | 15° | 24° | 40° |
| Power | 29W | 29W | 29W | ||||||
| Luminous flux | 2237lm | 2255lm | 2124lm | 2350lm | 2357lm | 2232lm | 2404lm | 2402lm | 2282lm |
| Traversable angle | 130° | 130° | 130° | ||||||
| System efficiency | 77lm/W | 78lm/W | 73lm/W | 81lm/W | 81lm/W | 77lm/W | 83lm/W | 83lm/W | 79lm/W |
| UGR | 19.35 | 18.45 | 18.80 | 19.55 | 18.60 | 18.95 | 19.65 | 18.70 | 19.05 |
| Dimension (H x W) | 176mm x 126mm | 176mm x 126mm | 176mm x 126mm | ||||||
| Outer diameter | 79mm | 79mm | 79mm | ||||||
| Color Temperature/Color: | 2700K, 3000K, 3500K, 4000K |
|---|
Login
sw_similar
%
LED Track Spotlights DALI BWS30-DA
€232.73*
€236.81*
(1.72% saved)
LED track spotlights with DALI
This version of the BWS30 LED track spotlight features a DALI dimming function. It can be purchased in CoB LED module with 4 different beam angles (15°, 24°, 40° and 60°). The BWS30 has a housing made of painted die-cast aluminum and a clear protective glass. This LED track spotlight is available in 4 housing colors.
Data for the BWS30 DALI track spotlight:
Protection class I
Supply voltage: 220-240V
Integrated electronic power supply
LED operating current: 700mA
Eutrac®-3-phase electronic adapter
CRI > 90
Energy efficiency: A++ -A
Attention: Is available in CRI97 on demand
Ideal for lighting food (vegetables, meat and bakery products) and is also used in shops for object lighting. In particular, due to the very good color rendering index, it is ideal for eg. clothing stores.
Variation-specific data of the LED track spotlight BWS30 with DALI dimming:
Colour temperature
2700K
3000K
3500K
4000K
Beam angle
15°
24°
40°
60°
15°
24°
40°
60°
15°
24°
40°
60°
15°
24°
40°
60°
System power
26W
26W
26W
26W
Luminous flux (lm)
2290
2276
2342
2315
2382
2367
2436
2408
2417
2401
2473
2443
2418
2403
3135
2445
pivotable
130°
130°
130°
130°
System efficacy (lm/W)
89
88
91
90
92
92
95
93
94
93
96
95
94
93
96
95
UGR
19,35
18,45
18,80
*
19,55
18,60
18,95
*
*
*
*
*
19,65
18,70
19,05
*
Dimensions (H x B)
176mm x 126mm
176mm x 126mm
176mm x 126mm
176mm x 126mm
Outside diameter
79mm
79mm
79mm
79mm
* Data not available yet
For further information please refer to the data sheet in the Download-Tab.
