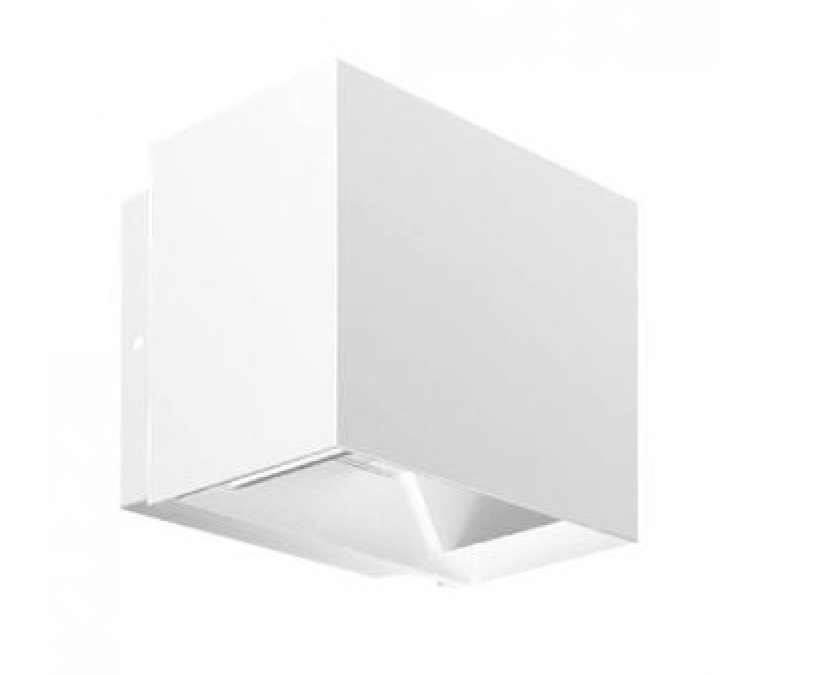

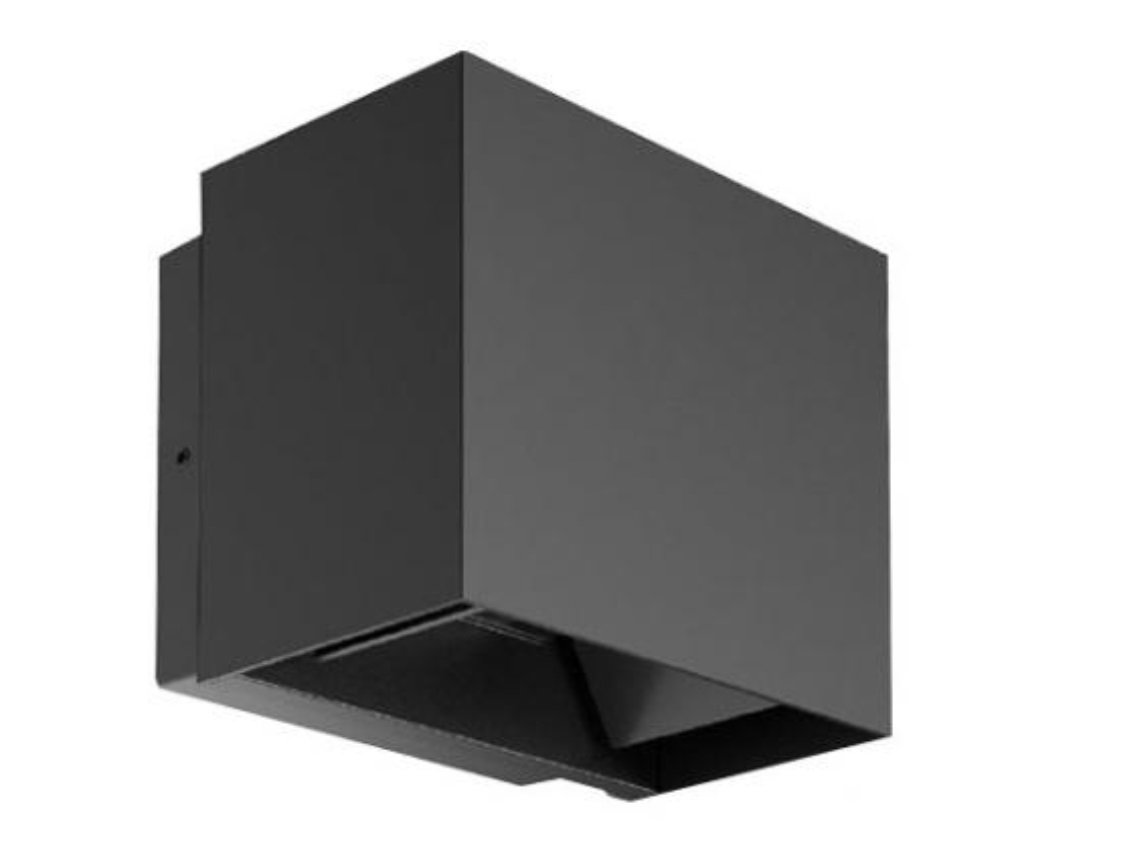

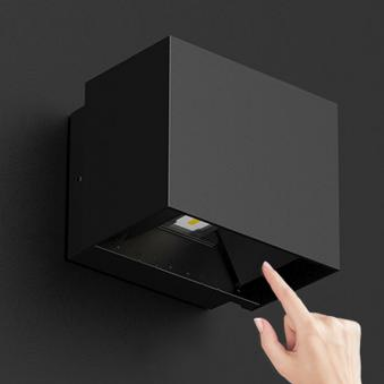

LED Wall Mounted Luminaire UWL UP65
Product information "LED Wall Mounted Luminaire UWL UP65"
Elegant wall mounted luminaire with IP65

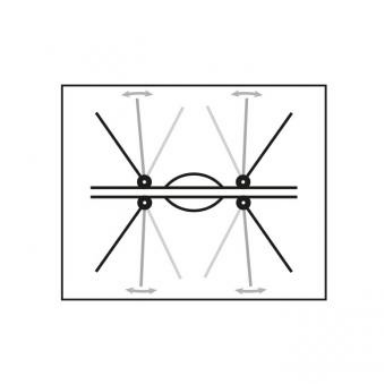

With this outdoor wall mounted luminaire, the beam angle can be adjusted individually between 15 ° and 120 °. The housing is made of die-cast aluminium.Further features:
- 2 light emissions directed upwards and downwards
- Protection type: IP65
- Protection class: 1
- Built-in electronic power supply
| System power | 10 W |
| Luminous flux | 499 lm |
| Colour temperature | 3000K |
| Colour rendering index | CRI >80 |
| Beam angle | 15°-120° |
| System efficacy | 50 lm/W |
| Operating current | 230 V |
| Energy efficacy | A++ - A |
| Weight | 0,649 kg |
| Dimensions | L=120*W=97*H=100 mm |
For further information please refer to the data sheet in the Download tab.
| Application/IP-Code: | IP65/67 (Outdoor) |
|---|---|
| Color Temperature/Color: | 3000K |
| Lamp shape: | Ceiling/wall mounting |
Login
sw_similar
LED Wall light Wash22
€344.09*
LED wall light for architectural lighting design
The version with transparent ultra-white glass shades and adjustable asymmetrical parabolic reflectors emits a direct, sharp and incisive light.
It is quite simple to adjust the reflector: adjustment can be made even if the light is on. Unscrew, lift the reflector, turn 180° and screw. This allows the light to be applied to the wall, with the wall-washer effect accentuated, or outwards e.g. be directed to the illumination of sidewalks.
General features:
Opal glass and linear LED module
Clear glass and Power LED
Rear cable entry
Surface treatment of aluminium: pickling+ phosphorus chromate + epoxy coating + varnish with UV-stabilized epoxy powde
Housing colours white, graphite grey and metal grey
Protection type: IP65
Protection class: I
Built-in electronic power supply
Technical data:
Light up with
Linear LED module
Power-LED
Quantity lamps
1
2
1
2
System power
9,3 W
9,5 W
Colour temperature
3000K / 4000K
3000K / 4000K
Operating current
500mA
350mA
Luminous flux
513 lm
1026 lm
930 lm
1860 lm
Connection voltage
230 V
Colour rendering index
CRI >80
System efficacy
55 lm/W
98 lm/W
Energy efficacy
A++ - A
Mechanical load
IK08
Protection type
IP65
Protection class
I
Dimensions
L=222*W=116*H=100 mm
Weight
2,148 kg
For further information please refer to the data sheet in the Download-tab.
Variants from €351.05*
LED Wall light Wash24
€316.57*
LED wall light for architectural lighting design
The version with transparent ultra-white glass shades and adjustable asymmetrical parabolic reflectors emits a direct, sharp and incisive light.
It is quite simple to adjust the reflector: adjustment can be made even if the light is on. Unscrew, lift the reflector, turn 180° and screw. This allows the light to be applied to the wall, with the wall-washer effect accentuated, or outwards e.g. be directed to the illumination of sidewalks.
General features:
Opal glass and linear LED module
Clear glass and Power LED
Rear cable entry
Surface treatment of aluminium: pickling+ phosphorus chromate + epoxy coating + varnish with UV-stabilized epoxy powder
Housing colours white, graphite grey and metal grey
Protection type: IP65
Protection class: I
Built-in electronic power supply
Technical data:
Light up with
Linear LED module
Power-LED
Quantity lamps
1
2
1
2
System power
9,3 W
9,5 W
Colour temperature
3000K / 4000K
3000K / 4000K
Operating current
500mA
350mA
Luminous flux
513 lm
1394 lm
930 lm
1860 lm
Connection voltage
230 V
Colour rendering index
CRI >80
System efficacy
55 lm/W
75 lm/W
98 lm/W
Energy efficacy
A++ - A
Mechanical load
IK08
Protection type
IP65
Protection class
I
Dimensions
L=222*W=116*H=100 mm
Weight
2,02 kg
For further information please refer to the data sheet in the Download-tab.
Variants from €362.95*
LED Outdoor wall light Wash42
€392.71*
LED Outdoor wall light Wash42
The milled opal glass screens create a soft, comfortable light.
To prevent water build-up on the surface of the wall light, the glass shade is flush mounted with the frame.
The latest-generation LED light sources ensure high luminous efficacy and a long durability.
General features:
Opal glass and linear LED module
Marine die-cast aluminium alloy housing
Rear cable entry
Protection type: IP65
Protection class I
Housing colours white, graphite grey and metal grey
Colour temperature 3000K and 4000K
Built-in electronic power supply
Technical:
Light up with
Linear LED module
Quantity lamps
1
2
System power
11W
Colour temperature
3000K / 4000K
3000K / 4000K
Operating current
700mA
Luminous flux
640 lm
1280 lm
System efficacy
58 lm/W
Colour rendering index
CRI >80
Energy efficacy
A++ - A
Mechanical load
IK08
Protection type
IP65
Protection class
I
Lifespan
L80 B20; 60.000 h
Dimensions
L=421*W=71*H=70 mm
Weight
2,024 kg
For further information please refer to the data sheet in the Download-tab.
Variants from €486.71*
LED Wall light Wash52
€523.89*
LED Outdoor wall light Wash52 curved
The milled opal glass screens create a soft, comfortable light.
To prevent water build-up on the surface of the wall light, the glass shade is flush mounted with the frame.
The latest-generation LED light sources ensure high luminous efficacy and a long durability
General features:
Opal glass and linear LED module
Marine die-cast aluminium alloy housing
Rear cable entry
Protection type: IP65
Protection class I
Housing colours white, graphite grey and metal grey
Colour temperature 3000K and 4000K
Built-in electronic power supply
Technical data:
Light up with
Lineares LED-Modul
Quantity lamps
1
2
System power
11W
Colour temperature
3000K / 4000K
3000K / 4000K
Operating current
700mA
Luminous flux
698 lm
1394 lm
System efficacy
63 lm/W
Colour rendering index
CRI >80
Energiy efficacy
A++ - A
Mechanical load
IK08
Protection type
IP65
Protection class
I
Lifespan
L80 B20; 60.000 h
Dimensions
L=530*B=81*H=70 mm
Weight
2,272 kg
For further information please refer to the data sheet in the Download-tab.
Variants from €523.90*
