LUNATONE 24033444 DALI Power Supply PS2

€53.79*

Prices incl. VAT plus shipping costs

6 Reviews

No longer available

Mounting

Socket Installation (24033444-80)

Product number: 529-24033444-80

Product information "LUNATONE 24033444 DALI Power Supply PS2"

Lunatone 24033444 DALI power supply designed for:

ceiling installation,
DIN rail installation, or
socket installation

Centralised DALI power supply
Suited for the power supply of a complete DALI circuit up to 64 standard DALI devices
Output current up to 230mA
DALI is not SELV. The installation regulations for low voltage are applicable

Technical data

Supply: from the mains
Frequency of the supply voltage: 50/60Hz
Supply voltage: 120/240VAC
Maximum output current of 230mA for ceiling installation and DIN rail installation / maximum output current of 30mA for socket installation
Maximum power of 4W for ceiling installation and DIN rail installation / nominal power for socket installation: 1W
DALI output
Protection class: IP20
Temperature: 0-50 °C

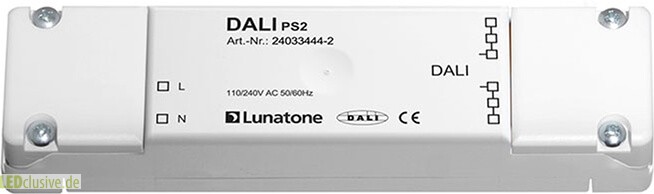

Dimensions for ceiling installation 24033444-2 (LxWxH): 120,20 mm x 30,16 mm x 21,60 mm

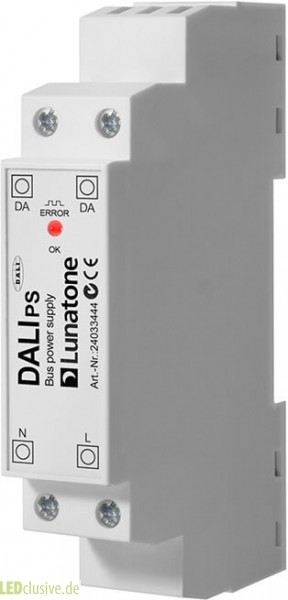

Dimensions for DIN rail installation 24033444 (LxWxH): 90,0 mm x 17,8 mm x 58,0 mm

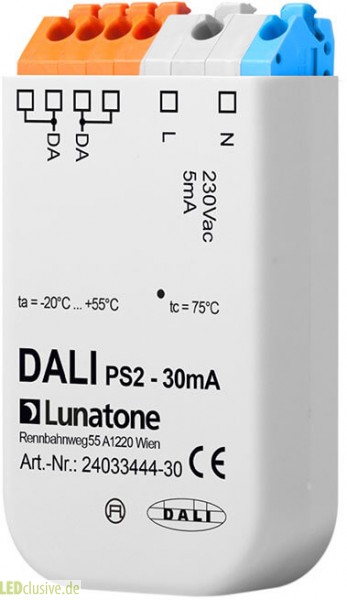

Dimensions for socket installation 24033444-30 (LxWxH): 58,5 mm x 32,5 mm x 15,0 mm
Cross-section of connecting wires: max. 2.5 mm²

Application/IP-Code:	IP20 - IP44 (Indoor)
Dimmable/Control:	DALI
