Quad 75 LV
Product information "Quad 75 LV"

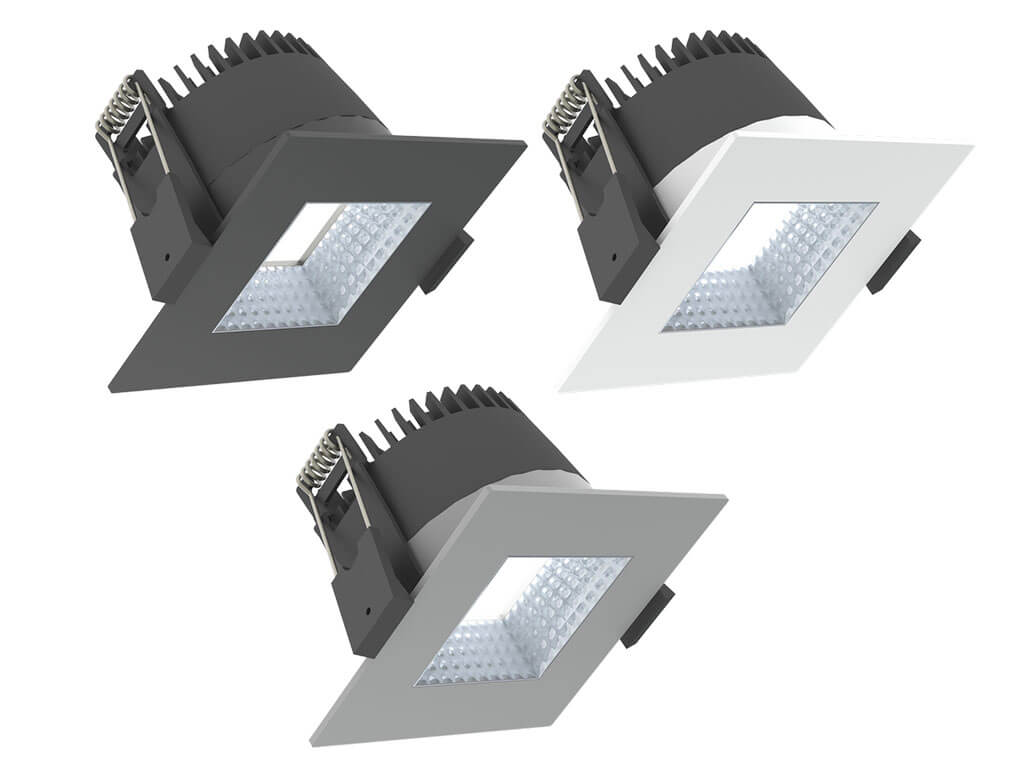

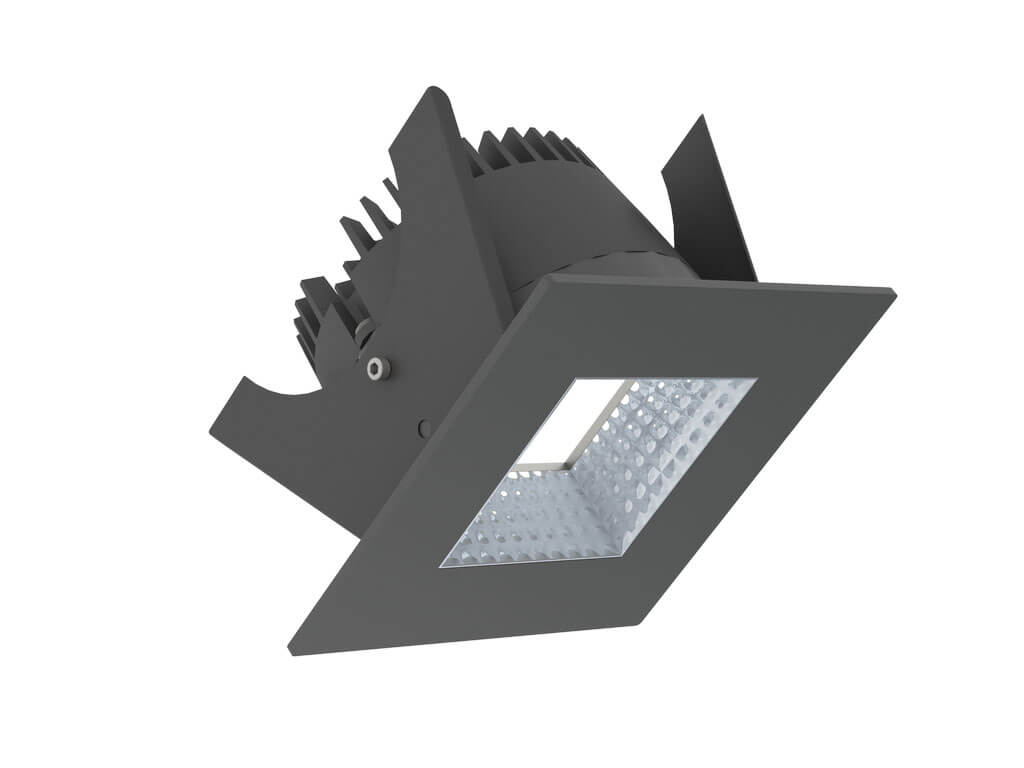

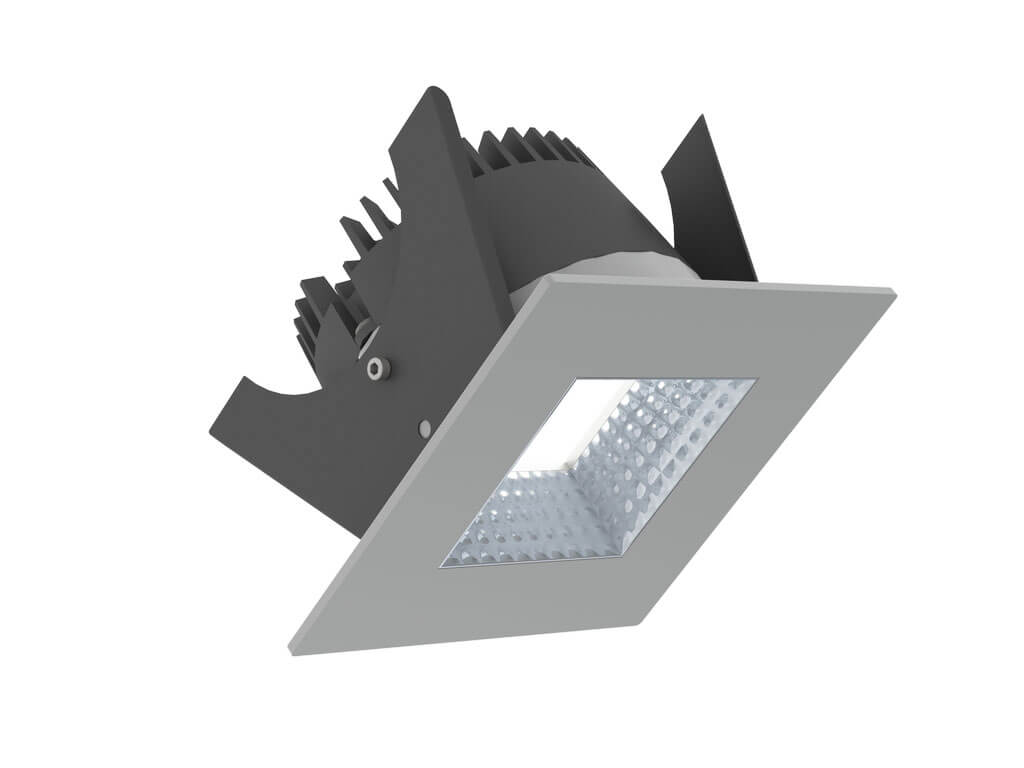

Illuxtron Quad 75 LV (Low Voltage) Downlight
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
| Version | Power range |
Beam angle |
Special feature |
| HV-FD (High Voltage - Flimmerfree Dimmtechnology) | 10,1-10,3 W | 40° / 80° | directly connectable to 220-240V |
| HV-WD | 11,2 W | 80° | directly connectable to 220-240V, Power factor (>90) |
| LV (Low Voltage) This Version | 13,8 W | 24° / 60° / 80° | CRI-97 Standard, inc. PSU |
| LV-TW (Low Voltage- Tuneable White) | 11,4 W | 60° / 80° | Tuneable White Technology |
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Quad 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
- High luminous efficacy thanks to the very good reflectivity of micro-facet technology
- Low glare values (UGR index) by avoiding unnecessary stray light
- Ideal light mixing of the LED light spectra for very good colour rendering
Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.
The most important technical details of the Quad 75 series:
| Housing colour |
matt white RAL 9016 (XX=MW) |
| Material | Housing: Die-cast aluminium Reflector glass: Polycarbonate |
| Dimensions | ø 90 mm |
| Required installation depth | > 65 mm |
| Ceiling cut-out |
75 mm: Use of ceiling springs. |
| Usage | Indoors |
| Colour Consistency (MacAdam) | SDCM3 |
| IP Code | IP20 / IP44 |
| IK Code | IK03 |
| Operating temperature (Ta) | -20°C / +45°C |
| Lifetime | at 25°C |
| L70B50 | > 70.000 h |
| L80B50 | > 69.000 h |
| L90B50 | > 36.000 h |
| EMV-Directive | EN55015 |
| Guarantee | 7 years |
| Energy class | A |
Quad 75 Low Voltage (LV)
High Efficiency, CRI 97
The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
For further information on Quad 75 LV downlights please refer to the respective data sheet.
Quad 75 LV
| Dimmability |
Casambi | |||||
| Art.No. | 935A03XX4F02 | 935A03XX4F02 | 935A03XX4F02 | 935A03XX4F02 | ||
| Colour temperature | 2700 K | 3000 K | 4000 K | 1800 - 3000 K | ||
| UGR | 23,1 | |||||
| Luminous flux | 1150 lm | 1250 lm | 1350 lm | 1250 lm | ||
| Lm/W (with EVG) | 83 | 91 | ||||

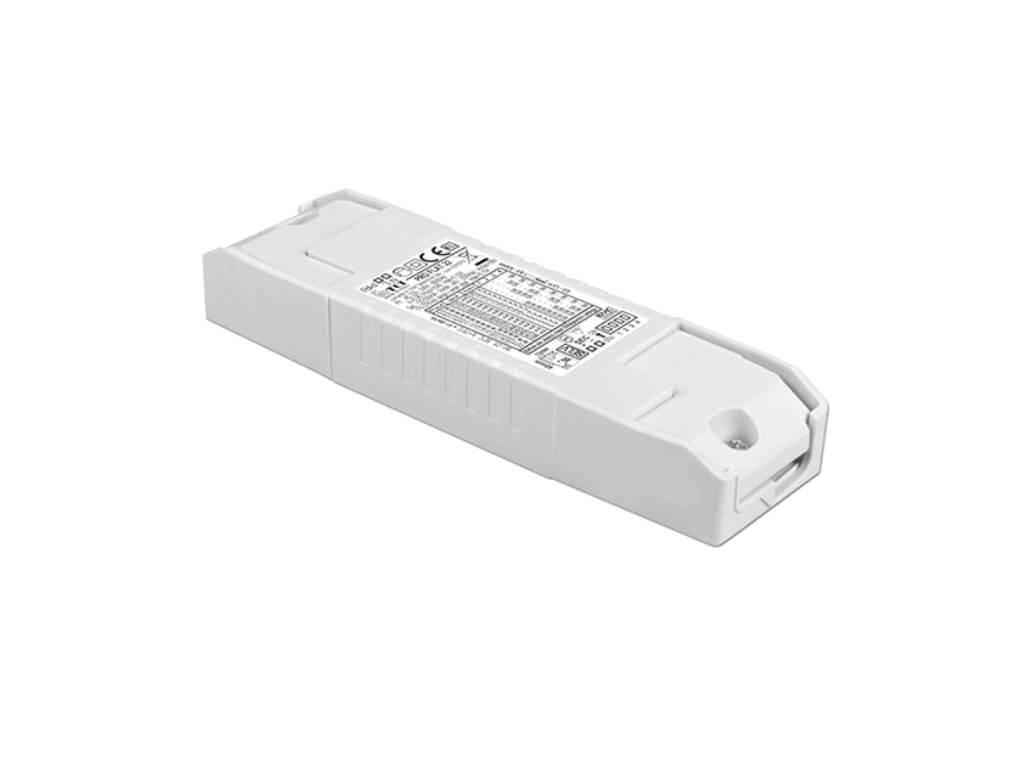

| Type | Incl. PSU | |||||
| Input | 220-240 V | |||||
| Power | 13,8 W | |||||
| Protection class | II | |||||
| Pf | 0,95 | |||||
*Note: This table shows only the switchable 1150lm version with 60° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting types and the beam angle 80°.
For data sheets of the Quad 75 series downlights, see Download Tabs:
Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Color Temperature/Color: | 2700K, 3000K, 4000K |
| Dimmable/Control: | 1..10V, Casambi radio, DALI, Phase-Cut (Triac) |
| Hole diameter: | 75mm |
Login
sw_similar
Large Downlight Linea 120 LV
€104.72*
Angle of radiation:
60 °
|
Dimmable:
Triac
|
Mounting method:
Gyproc spring
|
Surface:
Black
|
color temperature:
3000 K - 1250 lm
Illuxtron Linea 120 - LV (Low Voltage) Downlight
These recessed spotlights are available in 2700K, 3000K and 4000K. The power is 13.8W or 20.1W, depending on the selection, at 220-240V.
This downlight is also available in the following versions:
Version
Power range
Beam Angle
Special
HV-FD (High Voltage - Flimmerfree Dimmtechnology)
10,1-10,5W
40° / 80°
directly connected to 220-240V
LV (Low Voltage) This Version
13,8 - 20,1W
24° / 60° / 80°
CRI-97 Standard, inclusive PSU
LV-TW (Low Voltage - True White)
11,4W
60° / 80°
Tuneable White technology
What makes these LED downlights so special are the reflectors with microfacets. These microfacettes of the sensor series provide perfect illumination of objects and rooms. The microfacettes were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable benefits:
Special features of these so-called Dark Light - Reflectors
High luminous efficacy due to very good efficiency thanks to the very good reflectivity of microfacet technology
low glare values (UGR index) by avoiding unnecessary stray light
Ideal light mixing of LED light spectra for very good colour rendering
The most important technical details of the Linea 120 Series:
Casing color
matt white RAL 9016 (XX=MW)matt black RAL 9005 (XX=BL)
Material
housing: die-cast aluminium Reflector glass: Polycarbonate
Dimensions
180 mm x 65 mm
Required installation depth
> 70 mm
Application
Inside area
Emitted beam angle (FWHM)
60°
CRI / Ra (typ.)
83
Colour consistency (MacAdam)
SDCM3
IP Code
IP20 / IP44
IK Code
IK03
Operating temperature (Ta)
-20°C / +45°C
Lifetime
at 25°C
L70B50
180,000 h
L80B50
113,000 h
L90B50
54,000 h
Safety sign
EN60598 / EN62031 / EN62471
EMV Directive
EN55015
Guarantee
7 years
Energy class
A
Linea 120 - LV (Niedrigvolt)
The new CRI-97 standard is comparable to Sunlike and Xicato, but more efcient. The colour points of the LED remain on the black baseline and have been optimised according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
Dimmability
Casambi (*Note)
Art.No.
895A03XX2Q02
895K03XX2Q02
895B03XX2Q02
895L03XX2Q02
895G03XX2Q02
895M03XX2Q02
895E03XX2Q02
Colour temperature
2700K
3000K
4000K
1800 - 3000K
UGR
24,0
Luminous flux
1150 lm
1625 lm
1250 lm
1800 lm
1350 lm
1925 lm
1250 lm
Lm/W (with EVG)
83
81
91
89
96
96
91
Type
Inkl. PSU
Input
220-240 V
Power
13,8 W
Protection class
II
Powerfactor
0,95
*Note: This downlight is also available with beam angles of 24° and 80°, and in a switchable, DALI, 1-10V&Push and Triac version with different mounting options.
For data sheets of the Downlight Linea 120 - LV series see Download Tab:
Note:The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This explains the longer delivery time of 1-3 weeks depending on the workload.
Variants from €88.06*
Fluxe 90 LV
€98.77*
Angle of radiation:
80 °
|
Dimmable:
Triac
|
Mounting method:
Ceiling spring
|
Surface:
White
|
color temperature:
2700 K
Illuxtron Fluxe 90 LV (Low Voltage) Downlight
The Fluxe downlights fall under the first luminaires from Illuxtron. Over the years the series was expanded and grew with new technologies and now consists of 5 luminaires with different hole sizes and specifications. The Fluxe 90 recessed downlights from Illuxtron are real powerhouses!
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
Version
Power range
Beam angle
Special feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology)
10,1-10,3 W
40° / 80°
directly connectable to 220-240V
HV-WD
11,2 W
80°
directly connectable to 220-240V, Power factor (>90)
LV (Low Voltage) This Version
13,8 W
24° / 60° / 80°
CRI-97 Standard, inc. PSU
LV-TW (Low Voltage- Tuneable White)
11,4 W
60° / 80°
Tuneable White Technology
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Fluxe 90 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
High luminous efficacy thanks to the very good reflectivity of micro-facet technology
Low glare values (UGR index) by avoiding unnecessary stray light
Ideal light mixing of the LED light spectra for very good colour rendering
Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.
The most important technical details of the Fluxe 90 series:
Housing colour
matt white RAL 9016 (XX=MW)matt black RAL 9005 (XX=BL)
Material
Housing: Die-cast aluminiumReflector glass: Polycarbonate
Dimensions
ø 105 mm
Required installation depth
> 75 mm
Ceiling cut-out
90 mm: Use of ceiling springs.92 mm: Use of wire springs.
Usage
Indoors
Colour Consistency (MacAdam)
SDCM3
IP Code
IP20 / IP44
IK Code
IK03
Operating temperature (Ta)
-20°C / +45°C
Lifetime
at 25°C
L70B50
162.137 h
L80B50
99.652 h
L90B50
44.082 h
Safety signs
EN60598 / EN62031 / EN62471
EMV-Directive
EN55015
Guarantee
7 years
Energy class
A
Fluxe 90 Low Voltage (LV)
High Efficiency, CRI 97
The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
For further information on Fluxe 90 LV downlights please refer to the respective data sheet.
Fluxe 90 LV
Dimmability
CasambiNein (*Note)1-10V & Push (*Note)DALI (*Note)Triac (*Note)
Art.No.
805C03XX4K02
805C03XX4K02
805C03XX4K02
805C03XX4K02
Colour temperature
2700 K
3000 K
4000 K
1800 - 3000 K
UGR
23,1
Luminous flux
1150 lm
1250 lm
1350 lm
1250 lm
Lm/W (with EVG)
83
91
Type
Incl. PSU
Input
220-240 V
Power
13,8 W
Protection class
II
Pf
0,95
*Note: This table shows only the switchable 1150lm version with 24° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting types and the beam angles 60° and 80°.
For data sheets of the Fluxe 90 series downlights, see Download Tabs:
Note:The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
Variants from €82.11*
Fabio 75 LV
€190.40*
Angle of radiation:
80 °
|
Dimmable:
Casambi Dimmable
|
Mounting method:
Ceiling spring
|
Surface:
Black
|
color temperature:
3000 K
Illuxtron Fabio 75 LV (Low Voltage) Downlight
Compact, technologically innovative and economical. So powerful in light output that they are also available in other versions!
Version
Power range
Beam angle
Special feature
HV-FD (High Voltage - Flimmerfree Dimmtechnology)
10,1-10,3 W
40° / 80°
directly connectable to 220-240V
HV-WD
11,2 W
80°
directly connectable to 220-240V, Power factor (>90)
LV (Low Voltage) This Version
13,8 W
24° / 60° / 80°
CRI-97 Standard, inc. PSU
LV-TW (Low Voltage- Tuneable White)
11,4 W
60° / 80°
Tuneable White Technology
These recessed spotlights are available in 2700K, 3000K and 4000K. What makes these little powerhouses so special are the reflectors with micro facets. These micro facets of the Fabio 75 series provide perfect illumination of objects and rooms and were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:
Special features of these so-called Dark Light - reflectors
High luminous efficacy thanks to the very good reflectivity of micro-facet technology
Low glare values (UGR index) by avoiding unnecessary stray light
Ideal light mixing of the LED light spectra for very good colour rendering
Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.
The most important technical details of the Fabio 75 series:
Housing colour
matt white RAL 9016 (XX=MW)matt black RAL 9005 (XX=BL)matt grey RAL 9005 (XX=GR)
Material
Housing: Die-cast aluminiumReflector glass: Polycarbonate
Dimensions
ø 90 mm
Required installation depth
> 65 mm
Ceiling cut-out
75 mm: Use of ceiling springs.77 mm: Use of wire springs.
Usage
Indoors
Colour Consistency (MacAdam)
SDCM3
IP Code
IP20 / IP44
IK Code
IK03
Operating temperature (Ta)
-20°C / +45°C
Lifetime
at 25°C
L70B50
> 70.000 h
L80B50
> 69.000 h
L90B50
> 36.000 h
EMV-Directive
EN55015
Guarantee
7 years
Energy class
A
Fabio 75 Low Voltage (LV)
High Efficiency, CRI 97
The new CRI standard is comparable to Sunlike and Xicato, but more efficient. The color points of the LED remain on the black baseline and have been optimized according to the new TM30 standard, which includes saturation, red (R9) and skin tones.
For further information on Fabio 75 LV downlights please refer to the respective data sheet.
Fabio 75 LV
Dimmability
CasambiNein (*Note)1-10V & Push (*Note)DALI (*Note)Triac (*Note)
Art.No.
835A03XX4C02
835A03XX4C02
835A03XX4C02
835A03XX4C02
Colour temperature
2700 K
3000 K
4000 K
1800 - 3000 K
UGR
23,1
Luminous flux
1150 lm
1250 lm
1350 lm
1250 lm
Lm/W (with EVG)
83
91
Type
Incl. PSU
Input
220-240 V
Power
13,8 W
Protection class
II
Pf
0,95
*Note: This table shows only the switchable 1150lm version with 24° beam angle. This downlight is also available dimmable as DALI, Casambi, Triac and 1-10V&Push, as well as different mounting types and the beam angles 60° and 80°.
For data sheets of the Fabio 75 series downlights, see Download Tabs:
Note:The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilization.
Variants from €76.16*
