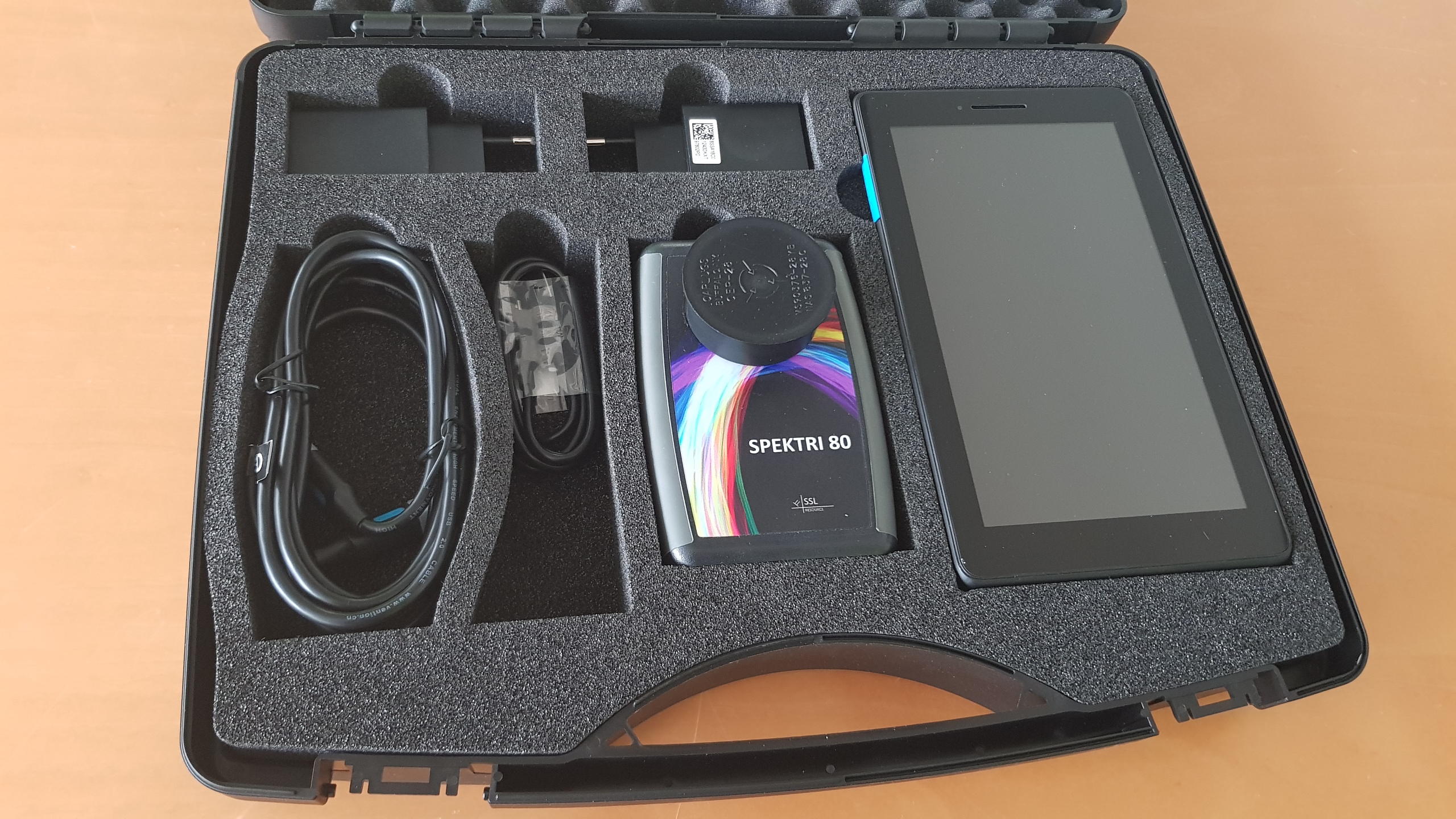

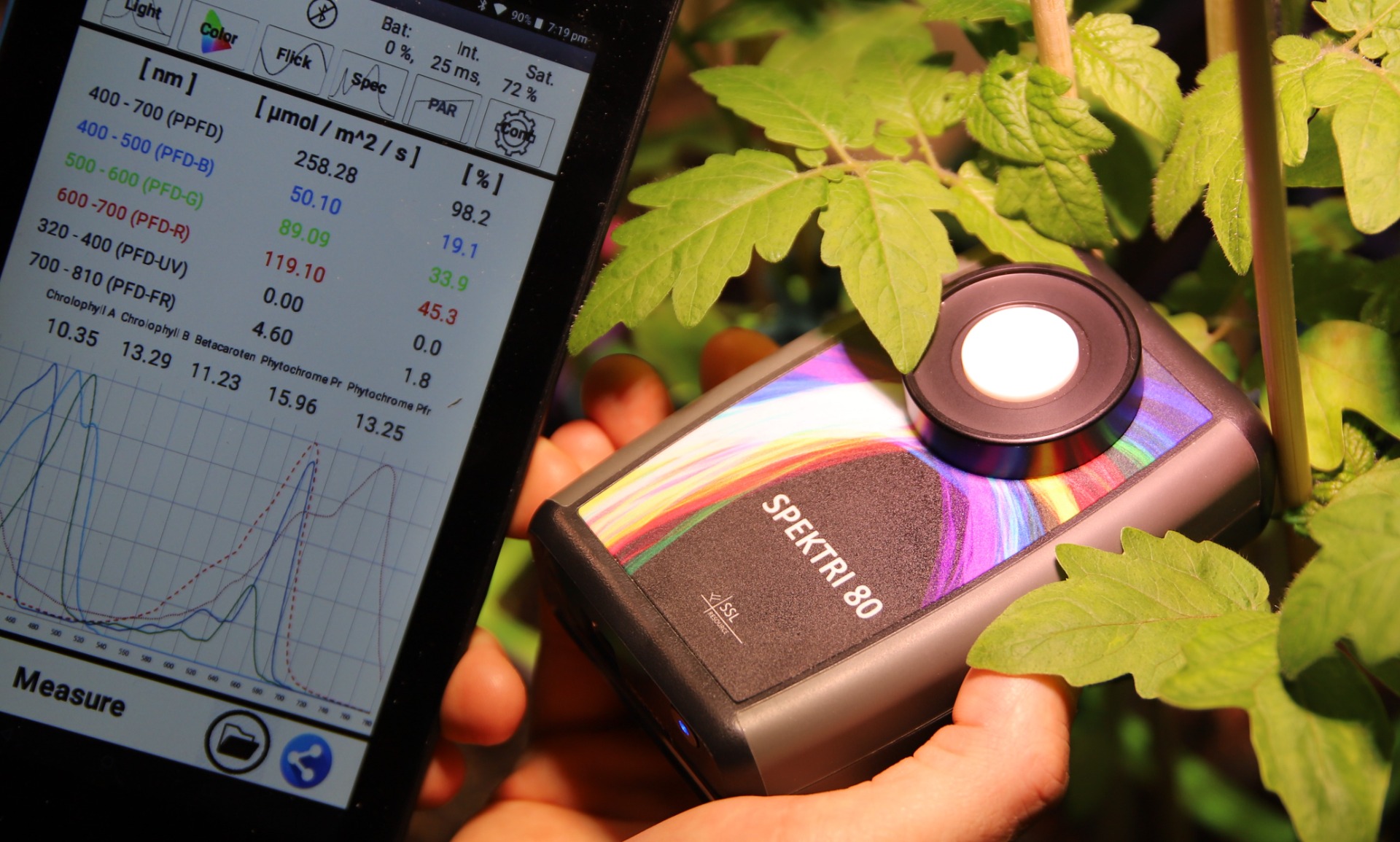

SSL Spektri 80 Lightmeter

Color temperature measurement with Lighting Navigator The simplest solution for successful light projects The Light Navigator from the well-known manufacturer Asensetek is more than just a luxmeter. Besides the color temperature measuring, also the color rendering index CRI/Ra can be determined and the light spectrum can be displayed. Thus the Light Navigator is the perfect device for all those, who just want to check the technical data of a lamp or a light, or measure their consisting light installation rapidly. Additionally different standards are deposited for the individual countries. That way it's possible to check if your present installation meets with the standards, with little research only.  The meter works as an independent sensor, just like the other Lighting Passport devices from Asensetek and is coupled via bluetooth with your smartphone or any other smart device (iOS or Android). Download the app, connect via bluetooth and you're ready to go.       Technical data of the Asensetek Lighting Navigator:   Size   Width: 63.1 mm   Depth: 17.5 mm   Height: 63.1 mm   Net weight   92 g ± 1 g (with stand)   Wavelength range   380 ~ 780 nm   Illuminance range Measurable   50 ~ 50,000 lux    Optical resolution (FWHM)   10 nm   Accuracy (@ 1,000 lux Standard Light Source)   CCT:± 3.5 %   Illuminance:± 5 %   Integration time   6 ms ~ 16 s   Operating temperature/   humidity range   0 ~ 35 °C, relative humidity under 80 % with no condensation   Storage temperature/   humidity range   -10 ~ 45 °C, relative humidity of 85 % or less (@ 35 °C) with no condensation Measuring the color temperature and counting with the app of Lighting Navigator     Main Features   Filter   Measurement   Comparison    Measurement Capability   CCT   CRI (Ra)    Illuminance   Spectrum   R9 Rank   IEC-SDCM Rank (MacAdams)   Other Features   Photograph, Note, Auto Connection,    Standard Estimation, GPS Orientation,   Social Media Integration   Language   English, Traditional Chinese, Simplified Chinese   AppStore   Google Play

Flicker-Meter and spectrometer Lighting Passport Pro Essence The "Lighting Passport Pro Essence" offers an excellent price / performance ratio in terms of light measurement.It unifies a spectrometer and a flicker-meter – convincing quality at a fair price. Integrated flicker Integrated temperature and humidity sensors High repeatability (2s) with the "Precision Mode" Extensions by purchasing additional Apps With its 10nm optical resolution it can easily bear the comparison to competitive products. Due to the Smartphone-App its handling is very simple and without adding a lot of training. After a simple Bluetooth-coupling (e.g.) with your Smartphone (iOS or Android) you can launch one of the corresponding Apps and instantly analyze the spectrum, the power-line flicker and following photometrical parameters of your source of light. With the spectrometer sensor Lighting Passport PRO Essence you are capable to measure a plurality of photometric parameters in conjunction with your smart device (depending on the respective Apps from the Appstore (iOS) or Google Playstore (Android)). Advantages of the PRO Essence spetrometer and flickermeter: Choose among many different measurable parameters Very handy (68,5 x 17 x 56 mm) Weighing only 79 grams Simple and intuitive to use Your data are available instantly after the measurement and can be (e.g.) sent via e-Mail to your colleague who is able to import all data with the same app The measurement results are displayed on the iPhone, iPad, iPod or Android (4.4) with a free app immediately after measurement in clear, colored charts. Changing the Display is possible via "finger slide". For a detailed overview of all possibilities and the available Apps, as well as the compability please visit our product site LightingPassport-Spectrophotometer.    Lighting Passport Pro Essence Technical Data in conjunction with SGE (Spectrum Genius Essence):  Wavelenght range  380-780nm  Illuminance range  Measurable: 5-50000lux  Reliable Chromaticity: 100-50000lux  Optical resolution  10nm  Repeatability (2s)  x,y: 0.001  Integration time  6ms - 16s  Language German English Chinese Simplified Chinese Japanese Frensh Russian Italian Turkish Spanish  Measurement mode  Single  Multiple  Subtract background  Measurement Capability CCT CRI (Ra) R1 - R15 CQS Illuminance Foot Candle CIE 1931 CIE 1976 Spectrum Diagram C78.377-2008 IEC-SDCM ?p TLCI(Qa) GAI TM-30-15 ((opt. purchasable) Flicker Index Flicker Percentage Flicker Frequency Key Funktions Photograph Note Auto Connection Auto Dark Calibration Data Comparison GPS Orientation Smart Pass Social Media Integration  Accuracy:  Wavelenght  ± 0.5nm  x,y (@ 1000lux)  ± 0.003  Illuminance  ± 5%  CCT  ± 3%  Flicker messurement  ± 5%  Flicker range  5-200Hz    Weight  79g ±1g Dimensions (LxWxH)  68.5 x 17 x 56 mm Works on Android 4.4.2 that has Bluetooth 4.0 or iOS (from 4S) Equipment for Lighting Passport Pro Essence: Soft case for secure storage and transportation A stand for seperate use of sensor and your smart device Battery charger Fanny Pack You can find further information for comparison on our detailed product page http://spectrophotometer.eu/ If you want more modes, more accuracy and more measurable photometric parameter, we recommend the Lighting Passport PRO versions  "PRO standard set" and "PRO flagship set". The Lighting Passport Overall Introduction is a detailed description of functions, software, specifications, application areas and much more about Lighting Passport Sets Essence, Standard and Flagship.

Mavospec Base M521G | Lite M530G - Spectrometer from Gossen The MAVOSPEC BASE and its "little brother" the MAVOSPEC LITE are perfect for everyday measurements of all conventional and modern light sources such as LEDs or OLEDs. In any lighting situation - from private residential to professional to industrial - compliance with defined values and standards, as well as consideration of quantitative and qualitative requirements, is crucial for the lighting effect achieved. The MAVOSPEC light meters support light planning, find problems in electrical installations and offer simple light measurement and documentation for every user. All characteristic measured variables such as illuminance, color temperature, color rendering index, etc. are determined from the measured spectrum and displayed in an understandable way on the color display. The operation is user-friendly and intuitive via ring controller and few keys. Versatile application possibilities and a wide range of use make the MAVOSPEC BASE and MAVSPEC LITE the reliable partner of the lighting specialist for selection, tuning, verification, comparison, evaluation of the light and color quality of different light sources or different manufacturers. Note: The following calibration certificates for both products are available on request: Factory certificate - H997S The Mavospec spectrometers in comparison Measured Quantity / Measuring Device MAVOSPEC LITE    MAVOSPEC BASE Luminance E [lx] x x Irradiance Ee   x Luminous Efficacy Ratio – LER   x Spectral Power Distribution [mW/m²/nm] x x Color Coordinates x,y [CIE 1931] x x Color Coordinates u,v [CIE 1960] x x Color Coordinates u‘,v‘ [CIE 1976] x x Correlated Color Temperature [K] – CCT x x Color Temperature Difference to Planck Duv x x Color Rendering Index Ra, R1…R14 – CRI x x Gamut Area Index – GAI x x Color Rendering IES TM-30 Rf, Rg   x Dominant Wavelength   x Purity   x Flicker Index, %, Frequency, Scope, IEEE 1798   x Peak Wavelength   x Reference Mode   x PPFD [μmol/m²s], UV, Blue , Green, Red, FR   x TLCI   x Report Excel Template Excel Template Datalogger Excel Template Excel Template Aluminum Case   x .videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;} For a detailed comparison of the technical data of Mavospec Base and Mavospec Lite, please refer to the PDF file under downloads. Unboxing Gossen Mavospec Base (M521G) u. Lite (M530G) - Light spectrometer leaves nothing to be desired   Hint: Open the video directly on YouTube and switch on the subtitle for Englisch.   We show you the Mavospec Base and the Mavospec Lite. Two very variable light meters that allow a wide range of applications. 0:00 Introduction/Intro 0:35 Unboxing with measurement 03:33 Functions of the devices explained using the example M521G (Mavospec Base) 06:36 Presentation of the measured values 11:52 Pros and Cons 13:28 Outro Spectral power Distribution - measurable with both devices represents the radiant power of a light source for a wavelength or wavelength band in the visible range. It provides information about the colour characteristics and can be used to compare the colour composition of different light sources. The colour rendering property can also be derived from this, because missing or reduced areas in the spectrum cause errors in colour rendering. Color rendering index - measurable with both devices Ra is a measure of the colour rendering properties of lamps whose theoretical maximum value is 100. The higher the colour rendering index, the better the colour rendering properties of the lamp. The most natural colour rendering possible is achieved by using lamps with Ra > 90. Ra is the arithmetic mean of the color deviation of the first 8 of 14 test colors according to DIN 6169, with the color rendering index Re, calculated across all 14 test colors and the additional test color 15 (Asia Skin Color), which also takes saturated colors, leaf greens and skin tones into account. DIN EN 12464 defines the colour rendering properties of lamps for lighting in different types of rooms and activities. color coordinates - measurable with both devices are a measure to precisely define a color or the color location belonging to the color in the CIE standard color system. The human eye has sensory cells for the perception of the three primary colours red, green and blue. The spectral eye sensitivity curves were determined by the CIE for the normal observer in 1931 and show the sensitivity for the individual wavelength ranges. Flicker - only Mavospec Base refers to changes in the brightness of the light due to voltage fluctuations. The noticability threshold for luminance changes is a frequency-dependent variable that indicates from which relative luminance change at a given frequency this is perceived. These fluctuations have an impact on human health. A good LED driver regulates voltage fluctuations and avoids flicker. The flicker value is a measure of the quality of the lamp or luminaire and should be as low as possible. Illuminance strength - measurable with both devices indicates the intensity with which a surface is illuminated. It is one lux if the luminous flux from one lumen illuminates the surface of one square metre evenly. One luxmeter is used to measure illuminance on horizontal and vertical surfaces. However, it does not reflect the impression of brightness of a room, as this depends largely on the reflective properties of the room surfaces. Under normal lighting conditions, no uniform light distribution is usually achieved, which is why specifications in standards usually refer to average illuminance. It is calculated as the weighted arithmetic mean of all illuminances in the room. Colour temperature - measurable with both devices is a measure to quantitatively determine the respective colour impression of a light source. The unit of colour temperature is Kelvin (K). In concrete terms, it is the temperature whose light effect is most similar to the colour to be described at the same brightness and under fixed observation conditions. Color rendering IES TM-30-15  - only with Mavospec Base is a new IES standard for evaluating the colour rendering of light sources, which works with 99 reference colours distributed over the entire colour space. It therefore includes considerably more colours and shades in the calculation of the Fidelity index Rf, which describes the same relationship as the colour rendering index Ra. The Gamut-Index Rg provides information regarding color saturation and color shift similar to the Gamut-Area-Index GAI of the previous observation of color rendering.
