Vector 100

Product information "Vector 100"

Illuxtron Vector 100 Downlight

These emitters are available in 2200-3000K, 2700K, 3000K and 4000K. A selection of housing colours is available.

This surface mounted luminaire is here also available as sensor activated version.

What makes these LED downlights so special are the reflectors with micro facets. These micro-facets of the Sensor series ensure perfect illumination of objects and rooms.
The micro facets were developed by the leading Bartenbach Institute for Illuxtron and result in the following remarkable advantages:

Special features of these so-called Dark Light - reflectors

High luminous efficacy thanks to the very good reflectivity of micro-facet technology
Low glare values (UGR index) by avoiding unnecessary stray light
Ideal light mixing of the LED light spectra for very good colour rendering

Further details of these technical features can be found in the Illuxtron Mini recessed luminaire overview.

The most important technical details of the Vector 100 series:

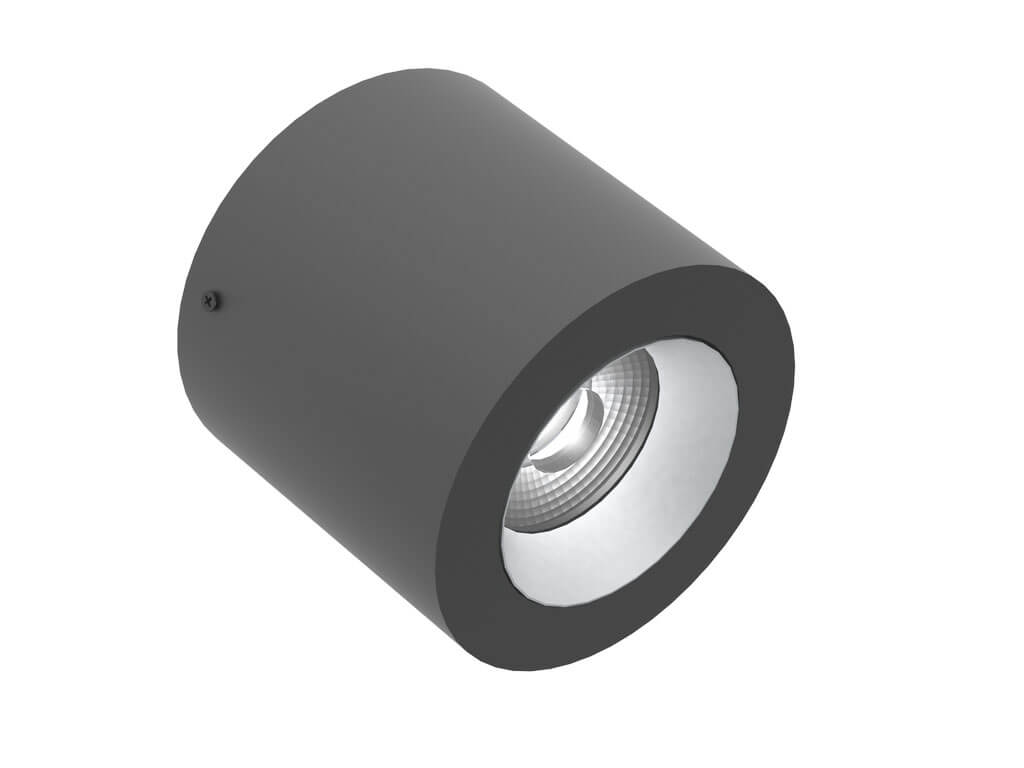

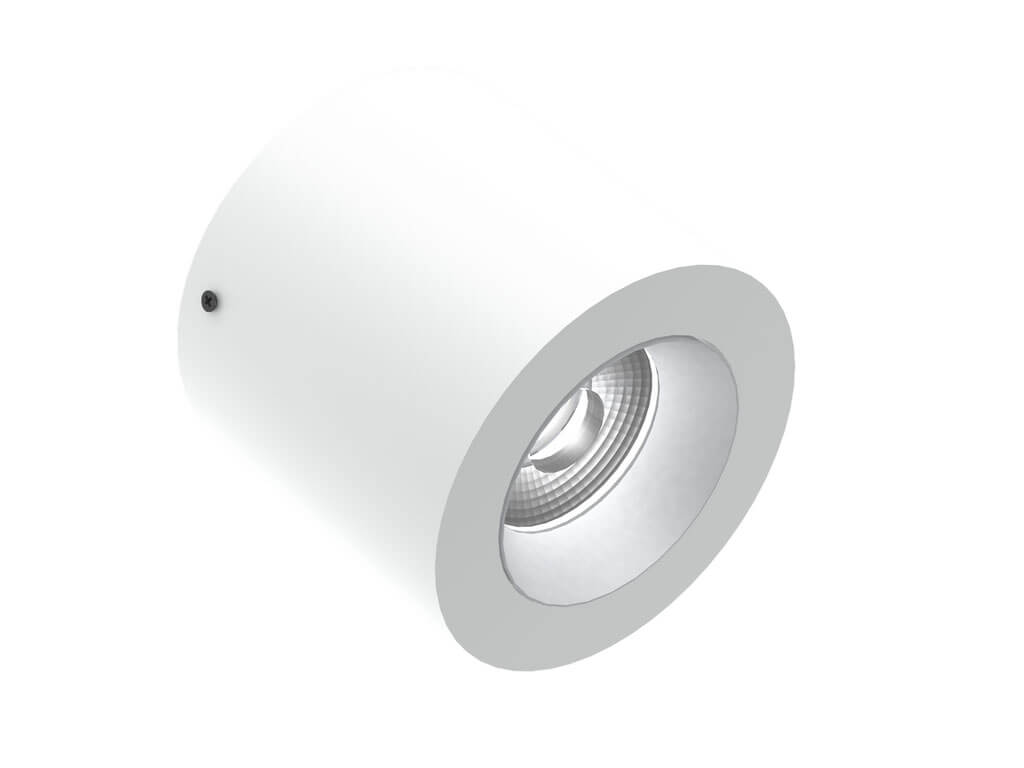

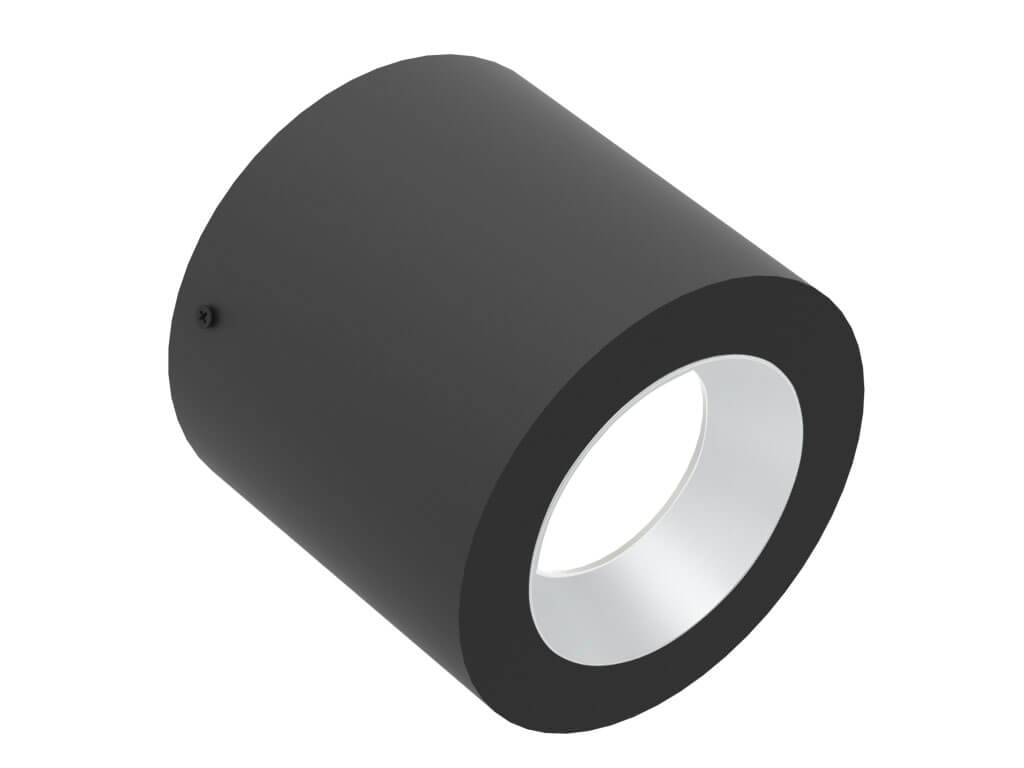

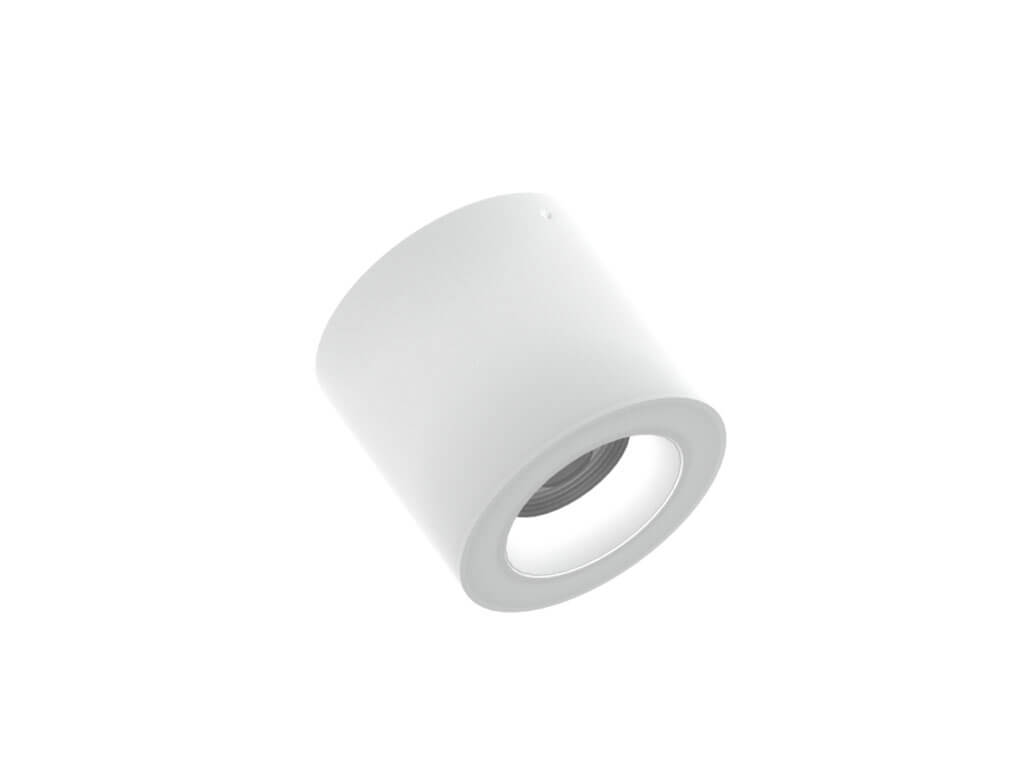

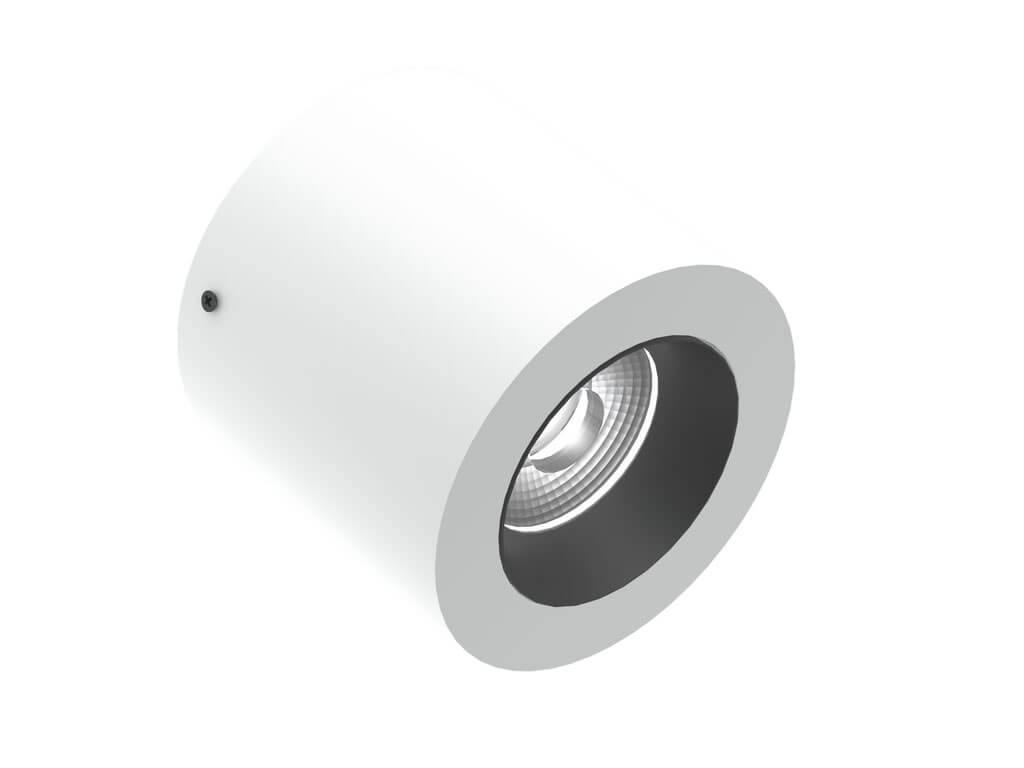

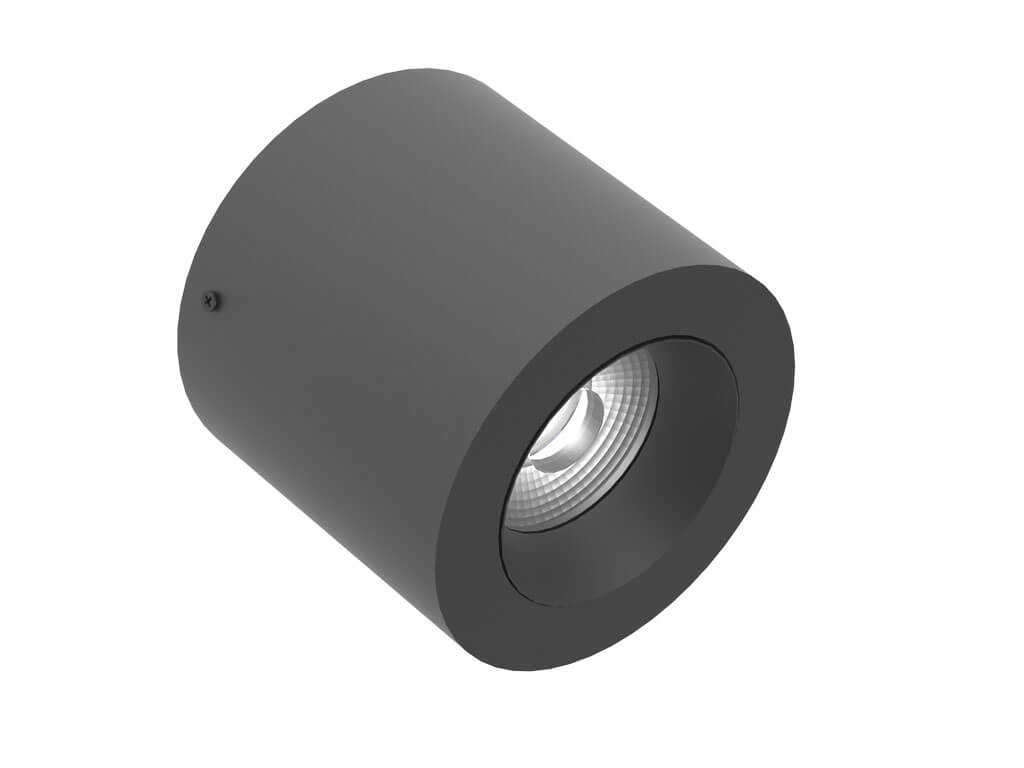

Housing colour	matt white RAL9016 / Gold (XX=61) matt white RAL9016 / Silver (XX=63) matt white RAL9016 / White (XX=64) matt white RAL9016 / Black (XX=62) matt black RAL9005 / Gold (XX=71) matt black RAL9005 / Silver (XX=74) matt black RAL9005 / White (XX=75) matt black RAL9005 / Black (XX=72)
Material	Housing: Die-cast aluminium Reflector glass: Polycarbonate
Dimensions	103 mm x 92 mm
Required installation depth	92 mm
Usage	Indoors
Beam angle (FWHM)	40° / 80°
UGR	23,2 / 24,5
CRI / Ra (typ.)	93
Colour Consistency (MacAdam)	SDCM3
IP Code	IP20
IK Code	IK03
Operating temperature (Ta)	-20°C / +45°C
Lifetime	bei 25°C
L70B50	>70.000
L80B50	>70.000
L90B50	>54.000
Safety signs	EN60598 / EN62031 / EN62471
EMV-Directive	EN55015
Guarantee	7 years
Energy class	A

Vector 100 High voltage flicker-free dimming technology (HV-FD)

Flicker-free - no stroboscopic effect

Studies associate flickering light with health problems. Although flickering at this frequency is not visible without aids, there is evidence that the human brain can perceive flickering up to 200Hz. Possible problems include headaches, eye strain, impaired vision or, in extreme cases, epileptic seizures. The highest quality power supplies have a flicker content of 1-3%, while high-voltage technology has a flicker content of only 0.4%.

Flicker-free - Patented dimming up to 0.1%

The level of dimming depends on the quality of the dimmer. With a high quality dimmer a dimming range of 0.1-100% can be covered. Even at the lowest dimming level, this technology always stays below 2.4% flicker.

Perfect for video recording

Flicker effects should be taken into account when recording video, otherwise the images will be traversed by several black lines, which makes reasonable filming impossible.

For further information about Vector 100 HV-FD Downlights please refer to the respective data sheet.

Vector 100 HV-FD

Dimmability	Triac
Art.No.	7B2A03XX5B02	7B2A03XX5D02	7B2A03XX5F02	7B2A03XX5H02
Colour temperature	2700 K	3000 K	4000 K	2200 - 3000 K
UGR	24,5
Luminous flux	600 lm
Lm/W (with EVG)	57	58	59	58
Type	Inc. Connection cable
Input	220-240 V
Power	10,5 W	10,3 W	10,1 W	10,3 W
Protection class	I
Pf	0,99

*Note: This table shows only the version with a beam angle of 80°. This downlight is also available with a beam angle of 40°.

For data sheets of the Vector 100 downlight series, see Download tab:

Note:
The products of the manufacturer Illuxtron are individually manufactured according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on capacity utilisation.

Application/IP-Code:	IP20 - IP44 (Indoor)
Color Temperature/Color:	2700K, 3000K, 4000K
Dimmable/Control:	Phase-Cut (Triac)
Lamp shape:	Ceiling/wall mounting
