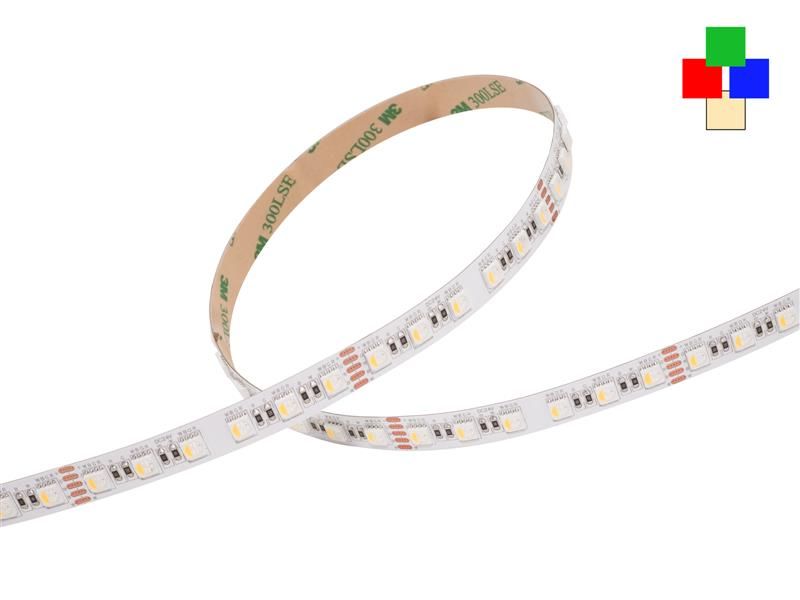

24V LED strip RGB-TW 5-channel 60LEDs/m
Product information "24V LED strip RGB-TW 5-channel 60LEDs/m"
Flexible 24V LED Strip RGB-TW 19W/m for indoor-applications with 60LEDs/m
A modern RGB-dualwhite LED Strip for indoor-application, which offer maximum flexibility and are ideal for effect and ambient lighting. Trough modern 5-channel Technology you get stronger colored and white lighting which is more pleasant. Further more there is a broader spectrum of Colour and two additional channels for white colour, warm and cold which are both useable at the same time. The LED strip is equipped with RGB fullcolour LEDs and dualwhite LEDs, which are arranged one after another. Arranged in this manner, the colour temperature is easily customizable.
With our flexible 24V RGB-TW LED strips, you can for example illuminate shelves and display cases or highlight furniture through selective attachment. This Version of LED strip is compatible to our ALU-Profiles, which also serve as cooling.

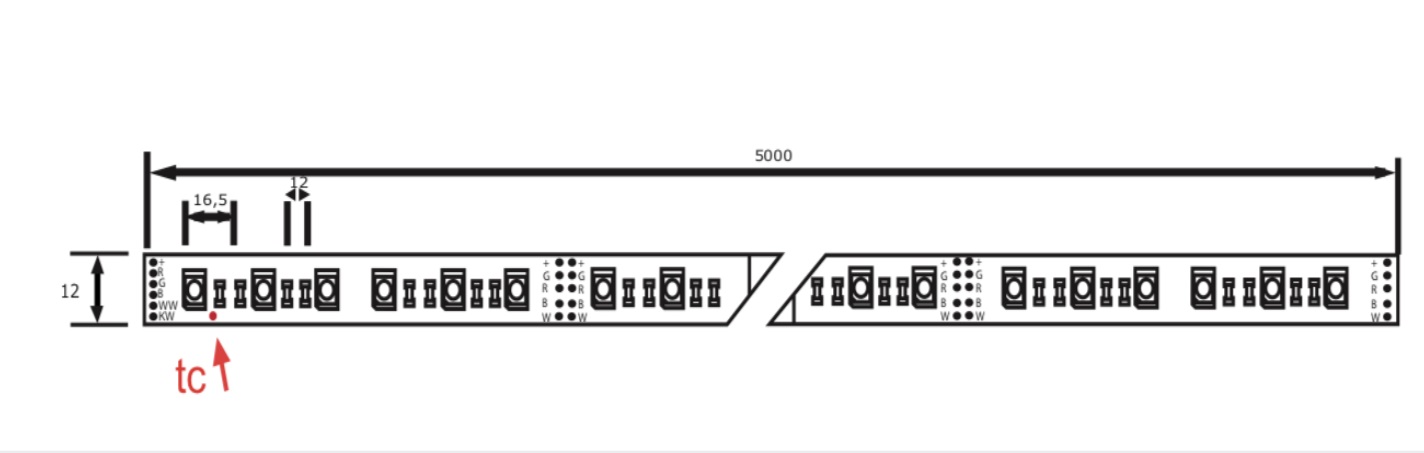

For sustained use, pls take note of the cooling instructions on the Datasheet to ensure function for longer.
Most important Features of the RGB/TW LED stripes
- The supply voltage of 24V enables a wide range of power Adapters and use inside trucks
- The beam angle of 120° ensures an extensive illumination
- The assembly density of 60 LEDs/m ensures an evenly and homogeneous light distribution
- Trough RGB-WW/KW/TW-Technology you are able to chose colour and colour-temperature freely
- Because of the additional white channels, you are able to use the RGB strips as neutral lighting
Application examples
- Background lighting of TVs
- Highlighting through targeted illumination
- Effect lighting and lighting of furniture
- Lighting of truck cabins and holds
- Increase accessibility through lighting of stairs and tripping hazards
- Indirect lighting of suspended ceilings
- Atmospheric lighting of Basement Party rooms
- Many more possibilities of usage indoor
Technical Data of the 24V RGB-Tunable White
| Version | Indoor, flexible |
| Power supply | 24V DC |

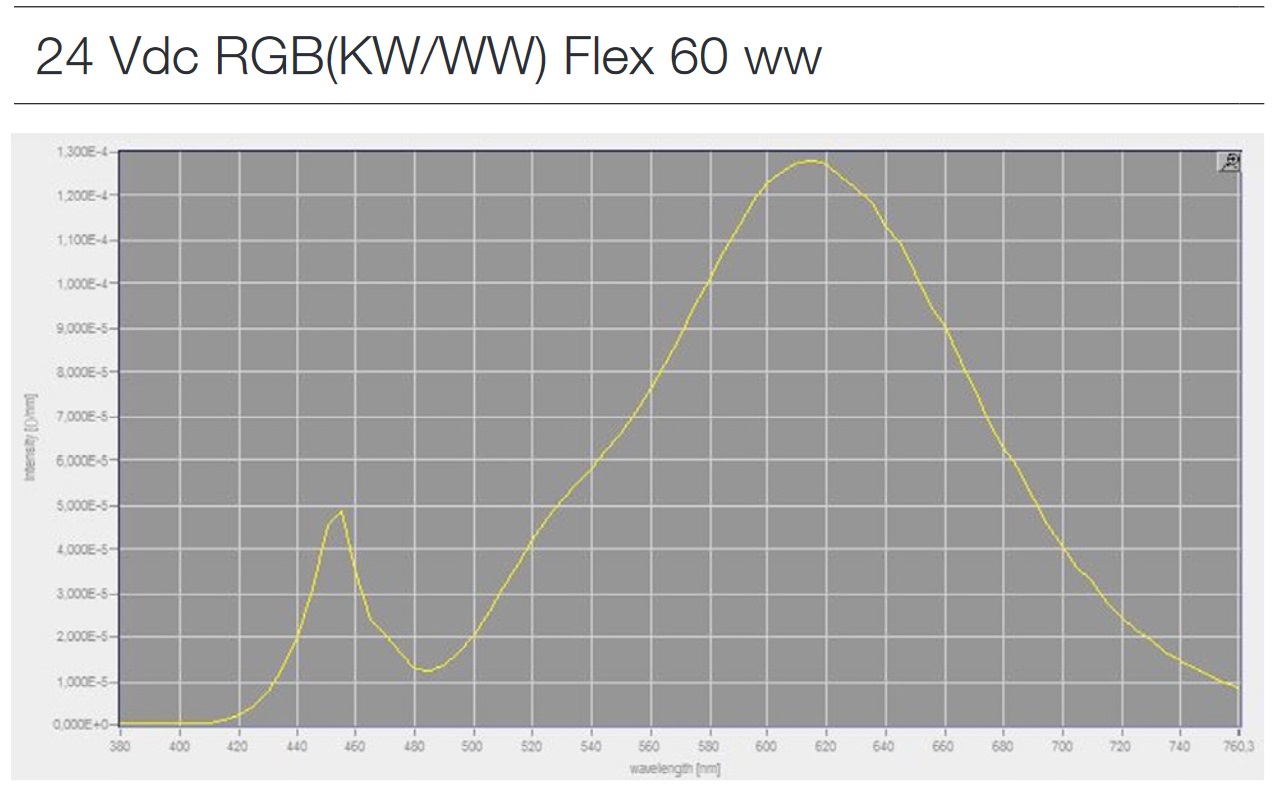

| Colour temperature channel | Cold white 6000K + warm White 2400K |
| Luminous flux | 1300lm/m total 474lm/m Cold White 411lm/m warm White 600 lm/m RGB |
| Power | 19W/m |
| Packing density | 60 LEDs/m |
| Beam angle | 120° |
| Width | 15mm |
| Height | 2,5mm |
| Colour Rendering index | CRI 84 |
| Dimmable | yes, with PWM |
In our shop you will find a large selection of matching 24V power supplies
| Amount LEDs/m: | 60 LEDs/m |
|---|---|
| Application/IP-Code: | IP20 - IP44 (Indoor) |
| Color Temperature/Color: | Tuneable White |
| Constant Current: | 0,7A |
| Constant Voltage: | 24V |
| Lamp shape: | flexible (stripes) |
| Power/Meter: | 10-20W/m |
| rated luminous flux lm/m: | 1000-2000 lm/m |
Login
sw_related

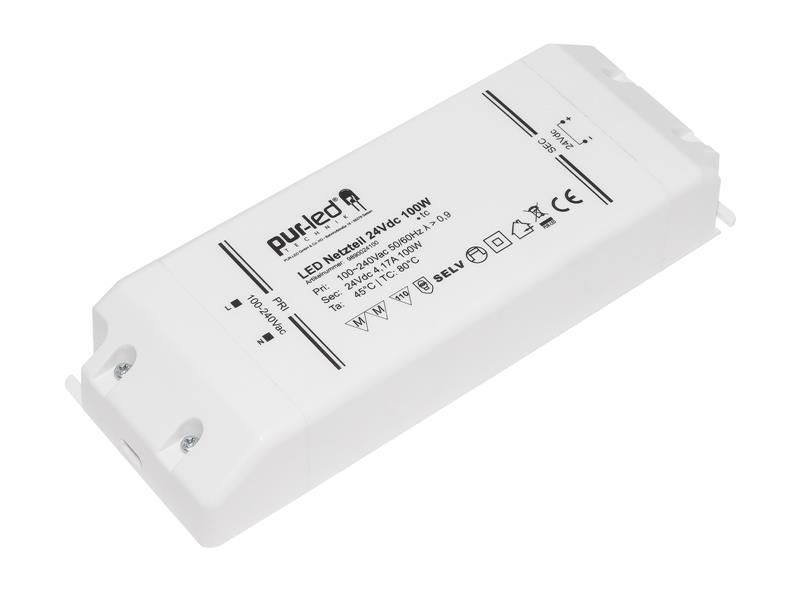

LED Power supply 100W IP20
€85.93*
100Watt LED powersupply for LED applicatation stabilized. No minimum load required.
While showing MM- and F-symbols the powersupply are allowed to operate on flammable surface. Sofar it can be used in furnitures.
High security by protections for over current, short or over temperature and further SELV, MM, F and safetyclass II.
Technical data of the 100 W powersupply.
Version
12 Volt
24 Volt
Output voltage:
12Vdc especially for LED stabilized
24Vdc especially for LED stabilized
Output current:
8,33A max
4,16A max
Input voltage:
230Vac
Input range:
200-240Vac 50Hz
Power:
1-100 Watt (consider 10% reserve).
Efficiency:
=90%
Surface color:
white
Working range:
-20°C to +45°C (tc=75°C)
Include connectors it fulfills:
EN55015; EN61346-1; EN61347-2-13; EN61000-3-2 Class C; EN61000-3-3; EN61547
Safety:
SELV, MM, F, Safety class 2, IP20
Protection:
Protection for overcurrent, short, over temperature
Dimensions (LxWxH) in mm:
180x66x32
Variants from €79.56*
LED Power supply 50W IP20
€47.09*
50Watt LED powersupply for LED applicatation stabilized. No minimum load required.
While showing MM- and F-symbils the powersupply are allowed to operate on flammable surface. Sofar it can be used in furnitures.
High security by protections for over current, short or over temperature and further SELV, MM, F and safetyclass II.
Technical data of the 50 W powersupply.
Versions
12 Volt
24 Volt
Output voltage:
12Vdc especially for LED stabilized
24Vdc especially for LED stabilized
Output current:
4,16A max.
2,08A max.
Input voltage:
230Vac
Input range:
200-240Vac 50Hz
Power:
1-50W ( consider 10% reserve )
Ripple:
<180mV Vp-p
<240mV Vp-p
Efficiency:
=85%
Surface color:
white
Working range:
-20°C to +45°C (tc=75°C)
Include connectors it fulfills:
EN55015; EN61346-1; EN61347-2-13; EN61000-3-2 Class C; EN61000-3-3; EN61547
Safety:
SELV, MM, F, Safety class 2, IP20
Protection:
Protection for overcurrent, short, over temperature
Dimensions (LxWxH) in mm:
160x85x18
Variants from €43.59*
LED Power supply 75W IP20
€65.91*
75Watt LED powersupply for LED applicatation stabilized. No minimum load required.
This power supply is characterized by its high security, it is excellent with an MM and F-symbol, so the power supply can also be mounted on normal flammable surfaces. It is therefore also suitable for installation in furniture.
High security by protections for over current, short or over temperature and further SELV, MM, F and safetyclass II.
Technical data of the 75 W powersupply.
Version
12 Volt
24 Volt
Output voltage:
12Vdc especially for LED stabilized
24Vdc especially for LED stabilized
Output current:
6,25A max
3,125A max
Ripple:
120mV Vp-p
240mV Vp-p
Input voltage:
230Vac
Input range:
200-240Vac 50Hz
Power:
1-75 Watt (consider 10% reserve).
Efficiency:
85%
83%
Surface color:
white
Working range:
-20°C to +45°C (tc=75°C)
Include connectors it fulfills:
EN55015; EN61346-1; EN61347-2-13; EN61000-3-2 Class C; EN61000-3-3; EN61547
Safety:
SELV, MM, F, Safety class 2, IP20
Protection:
Protection for overcurrent, short, over temperature

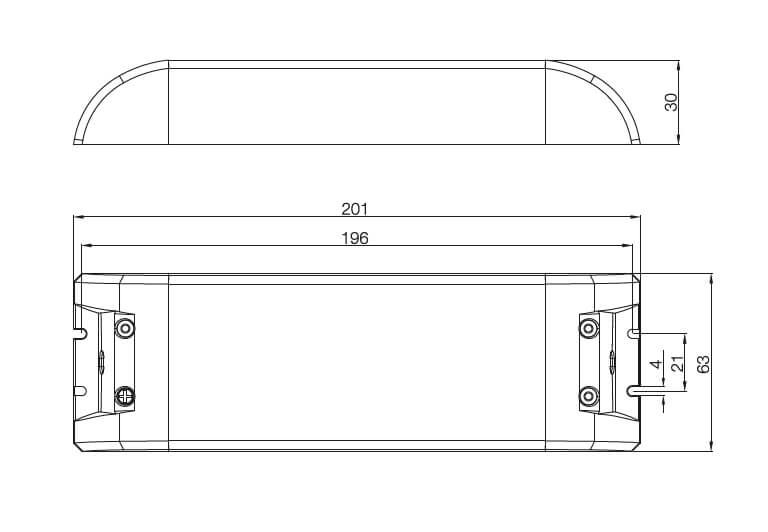

Dimensions (LxWxH) in mm:
