5m LED strip COB 8W/m 12V/24V 320 LEDs/m

€57.76*

Content: 5 Meter (€11.55* / 1 Meter)

Prices incl. VAT plus shipping costs

3 Reviews

No longer available

Constant Voltage

24V

12V

color temperature

2200K (candle)

2700K (extra warm)

3000K (warm white)

4000K (neutral white)

6500K (cool white)

Product number: COB8-24-65

Product information "5m LED strip COB 8W/m 12V/24V 320 LEDs/m"

Elegant COB LED bar 8 W / m - 5m length, good colour rendering

This flexible "chip-on-board" LED band, which has SMD LEDs, can be easily implemented in a wide variety of indoor applications.In addition, there is a particularly wide beam angle of 180 °, which - paired with very good colour rendering (CRI> 90) - ensures optimum illumination. The fact that the LED tape is self-adhesive and can be separated between the individual units further emphasizes its versatility and flexibility.
The COB LED strips are available in versions with 12V and 24V constant voltage. In addition, there are versions with different colour temperatures in a range from 2200 K to 6500 K.

The innovative COB technology in LED strips

With the newly developed "Chip-On-Board" technology, a homogeneous beam quality can be achieved with LED strips, since the individual LED points are no longer visible. With a continuous light band, delicate, narrow lines of light can be created. This is not least due to an extremely densely populated LED strip (here: 320 LEDs / m). The use of COB LED strips as effect light or path and orientation lighting is particularly impressive.

Product overview / features:

5 m flexible COB LED Strip with SMD-LED
With 15 cm connection cable
Self-adhesive (additional fixture is recommended

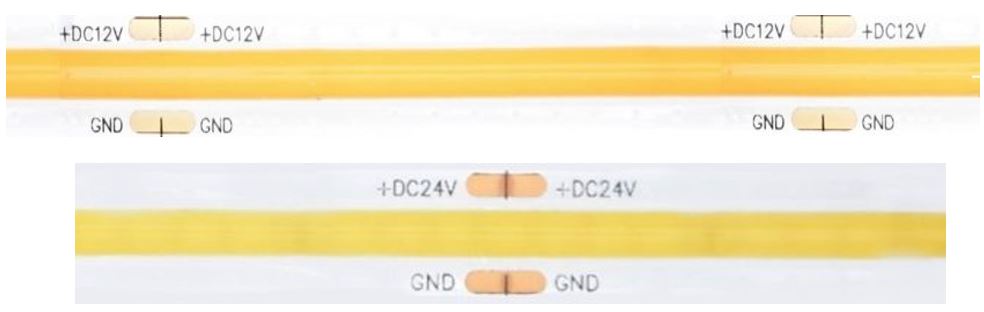

Divisible between units, with solder pads
Recommendation: Control the Ts-temperature at the solder point of an LED
Bending radius in places with components min. 50 mm; attach without pressure
Extensive illumination thanks to a large beam angle of 180 °
Densely mounted LED strip: 320 LEDs / m

Installation note:
It is advisable to attach the COB LED strips to a heat-conducting surface in order to achieve optimal cooling. When mounting on an electrically conductive material, care must be taken to insulate the connections.

Technical data:

Art. no. for 12Vdc	808100	808101	808102	808103	808104
Type for 12Vdc	OSC12-8-965	OSC12-8-940	OSC12-8-930	OSC12-8-927	OSC12-8-922
Art. no. for 24Vdc	808105	808106	808107	808108	808109
Type for 24Vdc	OSC24-8-965	OSC24-8-940	OSC24-8-930	OSC24-8-927	OSC24-8-922
Power max.	8 W/m
Luminous flux typ.	800 l/m	750 l/m	700 l/m	700 l/m	650 l/m
Colour temperature	6500 K	4000 K	3000 K	2700 K	2200 K
Variance of colour temperature	± 300 K	± 250 K	± 200 K	± 150 K	± 150 K
Colour rendering index (CRI)	> 90
Viewing angle	180 °
Rated max temperature (tc)	60 °C
Number of LEDs	320 /m
Nominal input voltage	12 Vdc / 24 Vdc

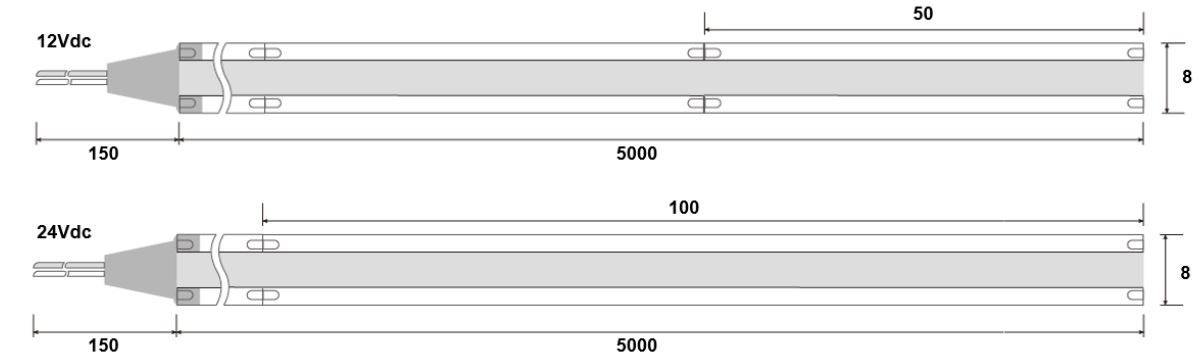

Length of a unit	50 mm / 100mm
Max. length after feed-in	2,5 m / 5 m
Dimensions	5000 x 8 x 1,6 mm

For more information, please refer to the data sheet in the Download tab.

Amount LEDs/m:	320 LEDs/m, COB
Application/IP-Code:	IP20 - IP44 (Indoor)
Color Temperature/Color:	2700K, 3000K, 4000K, >5000K
Constant Voltage:	12V, 24V
Lamp shape:	flexible (stripes)
Power/Meter:	< 10W/m
rated luminous flux lm/m:	501-1000 lm/m
