DALI ROT Accessories - Rotary Knob / Cover and Adapter

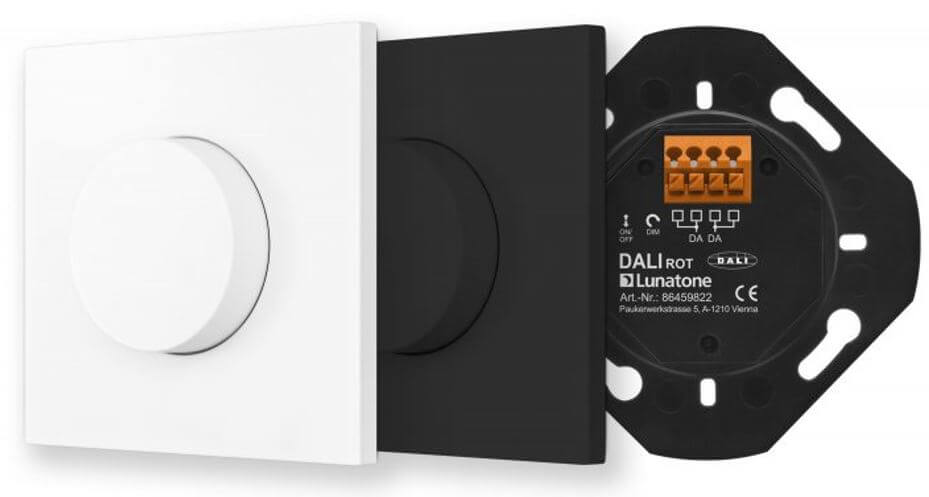

DALI ROT is a dimmable rotary switch including a control module for switching, dimming and setting the color or color temperature of LED luminaires. With the right accessories in the form of a cover and an adapter, DALI ROT is ideally suited for standard flush-mounted boxes and is used in combination with most switch programs. The corresponding DALI ROT control module can be found under the following link:
Dimmable Rotary Switch DALI ROT - Control Module.
The rotary knob or the cover is available in different versions depending on the design and color.
- Construction: Standard or Jung Series A
- Color: Black or White
Specification DALI ROT Accessories:
| Article Number | Item Name |

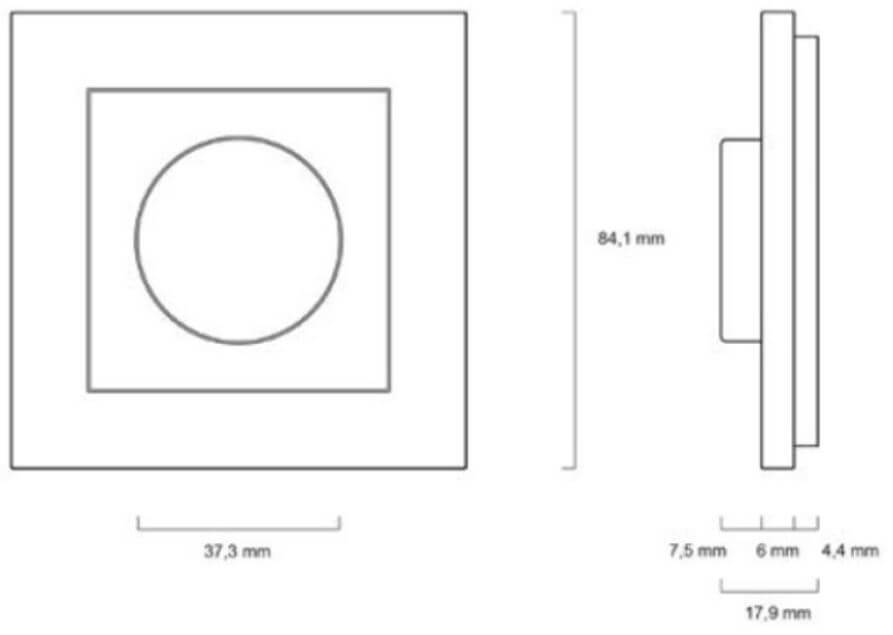

| Z-86459822-C-J-W | Rotary knob and cover, Jung Series A, alpine white |
| Z-86459822-C-J-S | Rotary knob and cover, Jung series A, black |

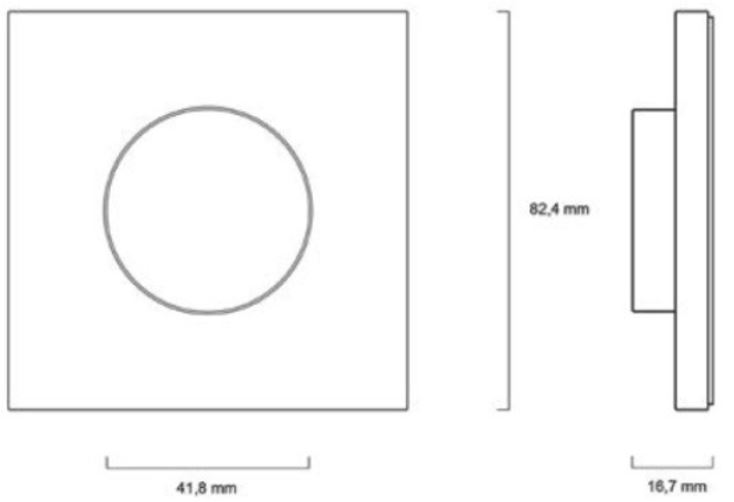

| Z-86459822-C-0-W | Rotary knob and cover, standard, white RAL9016 |
| Z-86459822-C-0-W | Rotary knob and cover, standard, black |

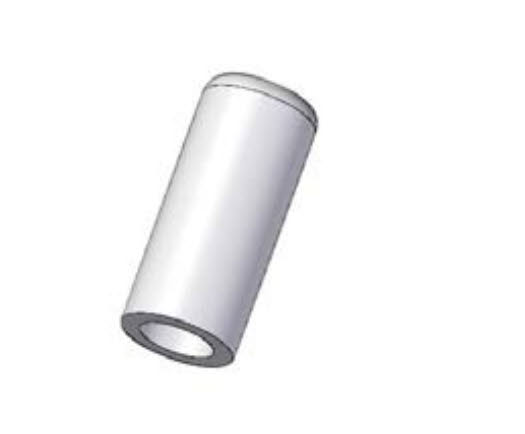

| Z-86459822-A | Adapter 6 mm |
For more information, please refer to the manufacturer's data sheet in the download tab.
| Lamp shape: | Socket installation |
|---|
Login
sw_related
Dimmable Rotary Switch DALI ROT
€70.26*
DALI ROT Rotary Switch with Control Module - Dimming in DALI Systems
With the help of the highly functional DALI ROT control module, the brightness and color of DALI luminaires can be set depending on the variant. For this, the module has several versions for controlling Tuneable White or RGB/W capable luminaires. Individual DALI commands can be assigned to the pushbutton and rotary knob. DALI ROT is particularly suitable for commercially available flush-mounted boxes and is used in combination with most switch programs.
Product overview / features:
DALI ROT control module for switching, dimming and setting color or color temperature, depending on the variation (dimming function):
Intensity : Brightness control
TW : Control of brightness and color temperature of DT8 Tunable White luminaires
RGB : Control of brightness and color of DT8 RGB luminaires
RGBW : Control of brightness and color / white channel of DT8 RGBW luminaires
Multi-master capable, i.e. installation of several modules in a DALI circuit
Simple software configuration and installation in a standard flush-mounted box
Variants also available with direct bus power supply 70mA (-PS)
Notes :
The control module is compatible with covers and rotary knobs from common manufacturers. Suitable accessories can also be found under the following link: DALI ROT Accessories - Rotary Knob, Cover and Adapter.
Detailed instructions regarding installation and commissioning can be found in the attached data sheet (starting page 6).
Technical data:
Specification DALI ROT (standard version):
Type
DALI ROT
DALI ROT TW
DALI ROT RGB
DALI ROT RGBW
Article number
86459822-I-0
86459822-TW-0
86459822-RGB-0
86459822-RGBW-0
DALI interface, supply:
Type of input
DALI, supply
Marking of terminals
DA, DA
Voltage range
9.5V ... 22.5 VDC according to IEC62386
Typical Current consumption DALI
1.6 mA
Environmental conditions:
Transport and storage temperature
- 20 °C ... + 75 °C
Operating temperature
- 20 °C ... + 75 °C
Rel. humidity
15% ... 90%, non-condensing
General data:
Dimensions (LxWxH)
70mm x 70mm x 45mm
Axis diameter
4mm, adapter for 6mm
Assembly / use
Installation box
Protection class
II if installed as intended
Protection type housing
IP40
Protection class terminals
IP20
Operation
Push button and rotary knob
Function
Intensity
Intensity & Tunable White
Intensity & RGB
Intensity & RGBW
Specification DALI ROT PS (bus supply):
Unless specified otherwise in the table below, the information applies to the standard version.
Type
DALI RED
DALI ROT TW
DALI RED RGB
DALI ROT RGBW
Article number
86459822-I-PS
86459822-TW-PS
86459822-RGB-PS
86459822-RGBW-PS
Input: L, N
Type of input
Supply, mains voltage
Marking of terminals
N, L
Input voltage range
230 VAC
Max. Input current
17 mA
Mains frequency
50Hz / 60Hz
Power consumption max.
2 W
Switch-on ramp-up time
<250 ms
Output: DA +, DA-
Type of output
DALI
Marking of terminals
DA-, DA +
Output voltage range
12 VDC ... 20.5 VDC
Guaranteed DALI output current
70 mA
Max. DALI output current
80 mA
No-load proof
Yes
Short-circuit proof
Yes
General data:
Dimensions (LxWxH)
70mm x 70mm x 60mm
For more information, please refer to the data sheet in the download tab.
Variants from €73.77*
