Aviora FL Panel

Product information "Aviora FL Panel"

Aviora FL Panels with reflector microfacetted optics

Modern design with revolutionary optics
The special structure of the reflector microfacettes (Bartenbach development) of the Aviora generates a radiation of 85° FWHM (corresponds to 100° FWTM), without the generation of disturbing scattered light. Normally the beam angle of a luminaire is half the highest lux value of the light beam (Full Width at Half Maximum, FWHM). This is usually accompanied by a lot of stray light outside the beam, which causes disturbing glare. For this reason, Illuxtron panels also work with beam sizes that are based on the height of the 10% lux value (half the half-width or "Full Width at Tenth Maximum", FWTM).
In other words, the LED panel directs the light exactly where you want it, onto the work surface and only slightly onto the walls with a pleasant transition. This makes it possible to meet the 500 lux requirement on the work surface of a 5 x 5 metre room with only 4 x 20 watts.

Features and benefits of the Illuxtron Aviora FL

Casing color	matt white RAL 9016
Material	housing: metal
	reflector glass: polycarbonate

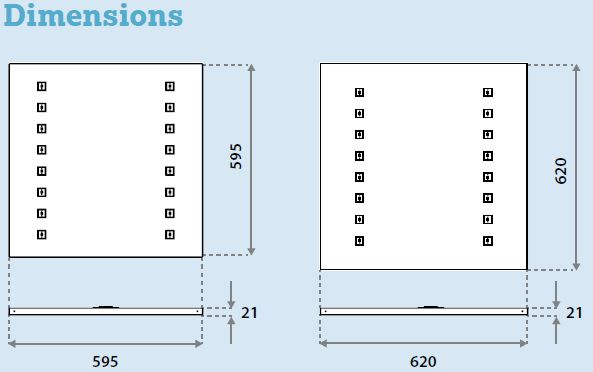

Dimensions	595x595 (XX=33)	620x620 (XX=27)
Height	21 mm
Application	Inside area
Beam angle (FWHM/FWTM)	standard 85°/100°
UGR (4H8H 70/50/20)	< 19
Colour consistency (MacAdam)	SDCM3
IP Code	IP20
IK Code	IK03
Operating temperature (Ta)	-20°C / +45°C
Lifetime at	25° C
L70B50	134.000 hrs.
L80B50	82.000 hrs.
L90B50	37.000 hrs.
Safety sign	EN60598 / EN62031 / EN62471
EMV Directive	EN55015
Guarantee	7 years
Energy class	A+
Type	incl. LED driver
Input	220V - 240V/50Hz
Protection class	II
Ripple	< 3%
Performance levels	37,3 W	56 W
Power factor /Pf	0,98	0,95
inrush current	5A 50µS	20A 400µS

Aviora FL 595x595 / 620x620

All Aviora LED Panels are available with either 2700-6500K, 3000K or 4000K, as well as different lumen packages or powers, as well as ballasts included in the set (dimmable via Casambi, DALI, 1-10V&Push or switchable only)
overview of available Aviora FL panels with article numbers.

Colour temperature		3000 K		4000 K		2700-6500 K
Luminous flux		4100 lm	5350 lm	4350 lm	5650 lm	3450 lm
Power		37,3 W	56,0 W	37,3 W	56,0 W	26,6 W
Luminous efficacy (with EVG)		110 Lm/W	96 Lm/W	117 Lm/W	101 Lm/W	139 Lm/W
Art. No.	Switchable	XXED03MWF202	XXEE03MWF202	XXED03MWF302	XXEE03MWF302	-
	1-10V & Push	XXED03MWG202	XXEE03MWG202	XXED03MWG302	XXEE03MWG302	-
	DALI	XXED03MWH202	XXEE03MWH202	XXED03MWH302	XXEE03MWH302	XXED03MW6T02
	Casambi	-	-	-	-	XXED03MW6U02

For further information on the Aviora FL panels, please refer to the data sheet in the download tab.

Note:
The products of the manufacturer Illuxtron are manufactured individually according to your specification especially for you. This also explains the longer delivery time of 1-3 weeks depending on the load.

Application/IP-Code:	IP20 - IP44 (Indoor)
Color Temperature/Color:	3000K, 4000K
Dimmable/Control:	1..10V, Casambi radio, DALI
Lamp shape:	LED Grid Inlay
