Casambi DALI - CBU-ASD Modul
Product number:
488-800688
Product information "Casambi DALI - CBU-ASD Modul"
Casambi Dimmer Bluetooth Unit - dimming via app by DALI light control

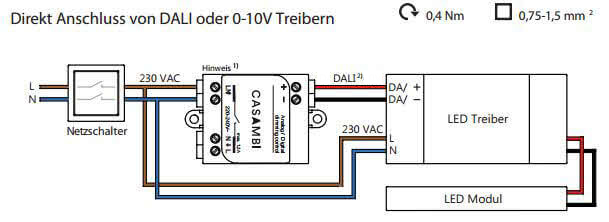

Compact controller to integrate a DALI-compatible LED driver in your lighting unit.
Control a lamp via smartphone with Casambi Bluetooth App for the Casambi Dimmer Unit...
... to create a perfect lighting control system
Through a Bluetooth connection and appropriate App you can dim your Smart Device lamps, switch
individual lights on and off, create light scenes and a desired mood in your own 4 walls.

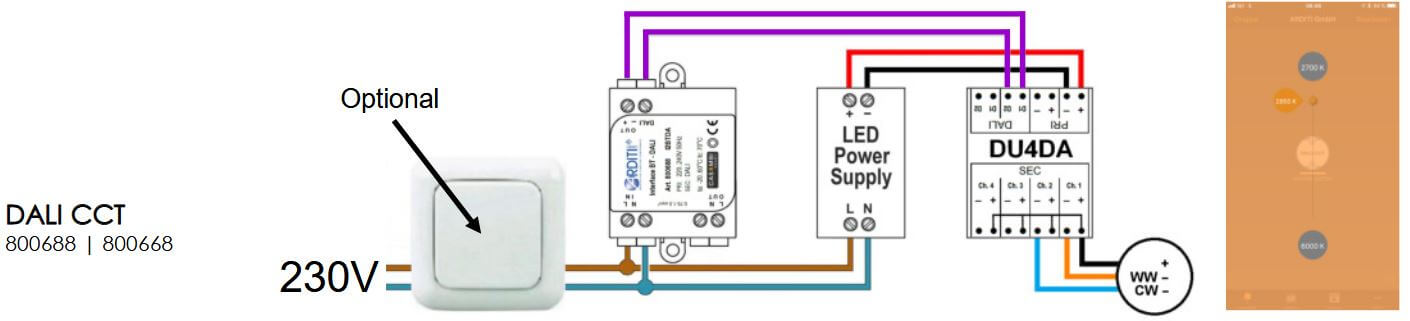

Available in 4 different versions:

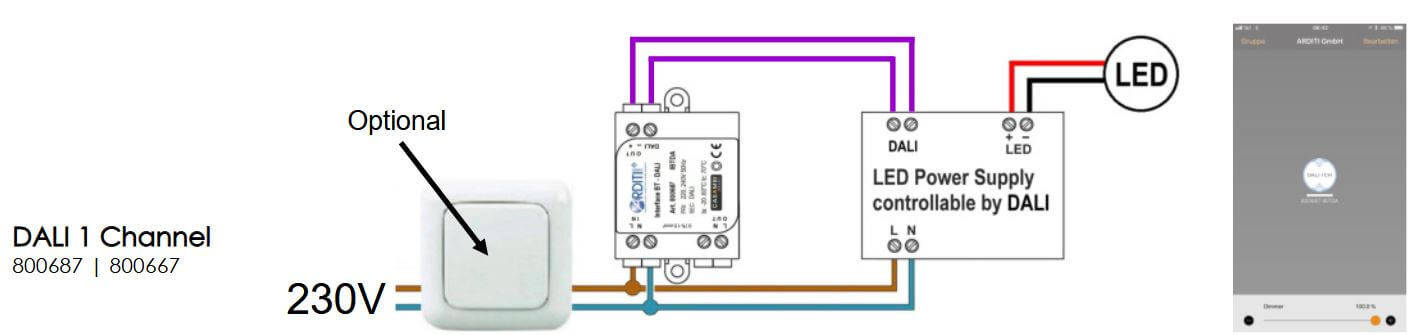

- 1 Channel (sent via DALI-Broadcast)

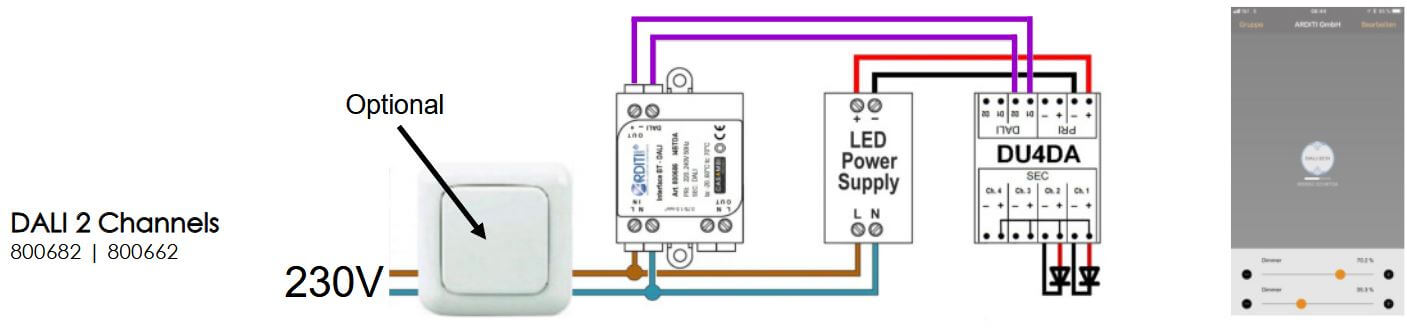

- 2 Channel (sent to DALI addresses*: 0, 1)

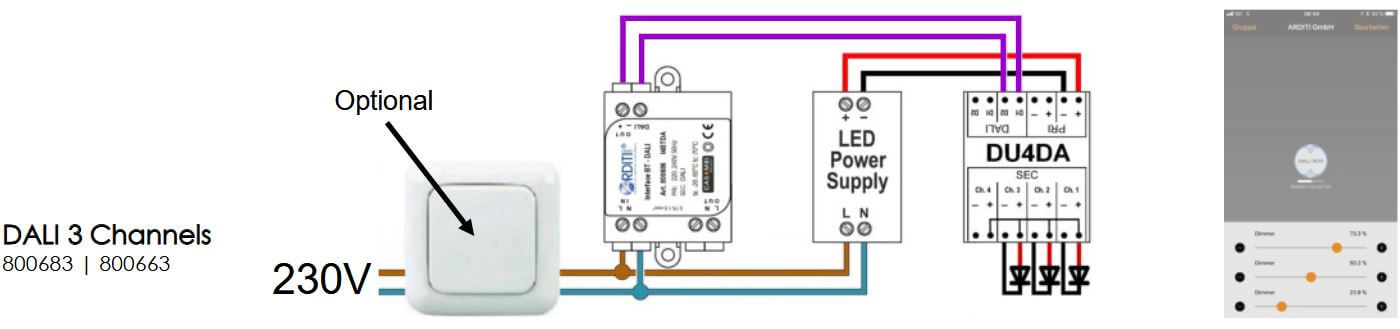

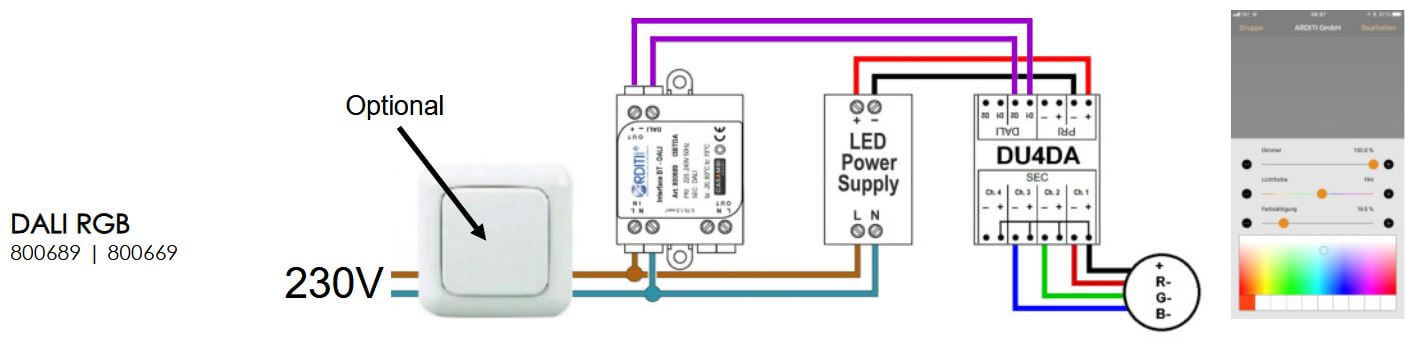

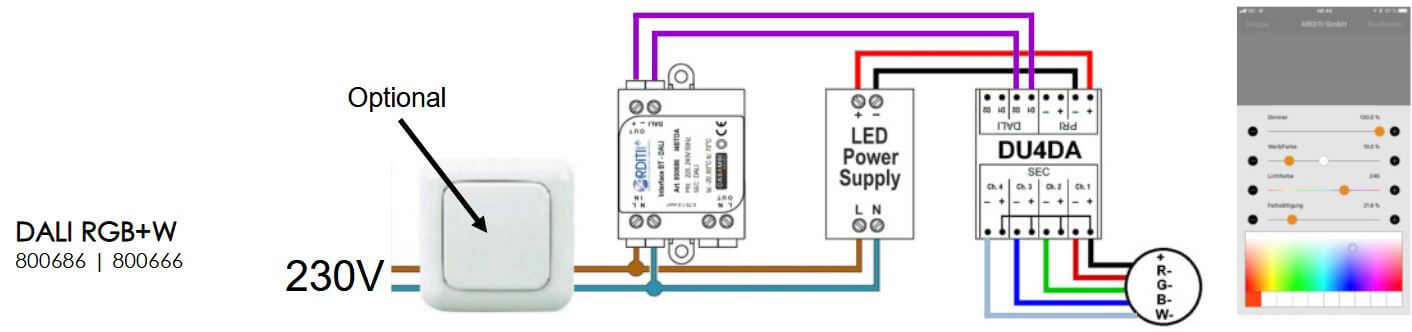

- 3 Channel RGB (sent to DALI addresses*: 0, 1, 2)

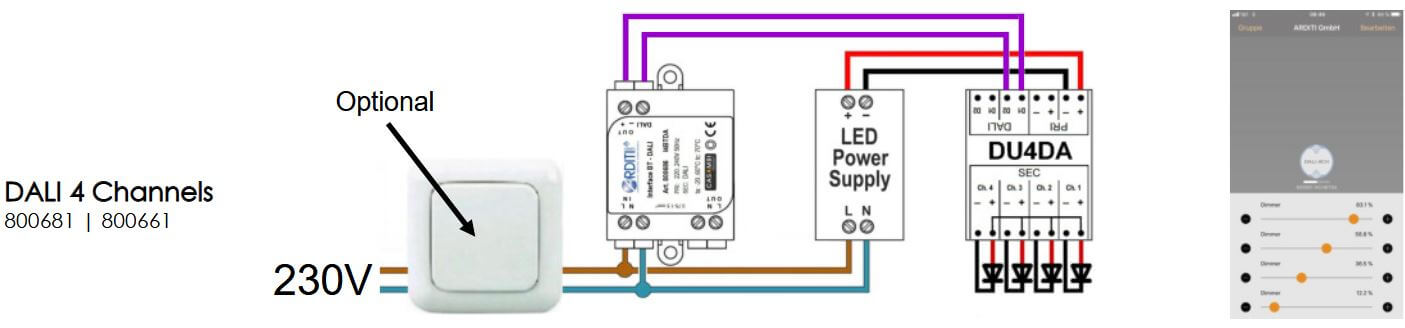

- 4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3)
(* DALI addresses of devices has to be programmed regarding this)
Another Casambi highlight:
Even with your conventional light switch you can dim and switch your lights.
Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI
are missing and you still want to dim. So you can easily adjust with Casambi reduce lights.

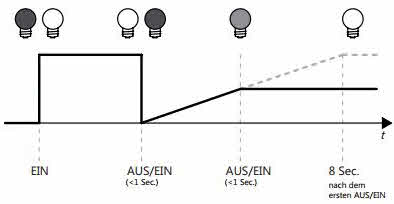

1. Switch on illumination with a usually switch.
2. Short off and on again withing 1 second. The illumination slowly dims up.
3. Another short off and on again at the desired dimming level. The current dimming value is stored.
4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%.
All products by Casambi family have following features:
- Creates automatically a wireless Mesh-Network with other Casambi products.
- Wireless control using the free Casambi App for smartphones and tablets.
- Integrate the use of regular wall switches for dimming and scene control.
- Support for external on / off motion sensors.
Compatible devices and minimum requirements for Casambi App:
| Android | iOS |
| min. Android 4.4 KitKat with Bluetooth 4.0 | from iPhone 4S |
| recommended: Android 5.0 Lollipop with Bluetooth 4.0 | from iPad 3 |
| or current Android versions | from iPod 5 |
These functions does the free Casambi App:
- Dimming of single or multiple lights with simple touch gestures.
- Controlling the lighting of your stores, offices, or personal spaces.
- Installation of single or complex scenarios with one or more lightings.
- Define the security of the network. There are four different levels of security for access control.
- Also support Philips HUE.
Casambi App free download:
Casambi App Android (Google Play)
Casambi App iOS (iTunes)
Specifications of Casambi CBU ASD Bluetooth Unit:
| Input | |
| Input voltage | 220-240VAC (50Hz) |
| Max. input voltage | 1.2A |
| Standby power | 220-240VAC (50Hz) |
| DALI Output | |
| Bus voltage | 12VDC |
| Current | 7mA |
| Radio transceiver | |
| Frequency range | 2,4-2,483 GHz |
| Max. output power | +4 dBm |
| Mechanical data | |
| Dimensions | 56.5 x 35.8 x 22.3 mm |
| Weight | 48g |
| Protection | IP20 |
| Protection class | Built-in class II |
 |
Casambi App in Appstore |
 |
Casambi App for Android |
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Dimmable/Control: | BT4.0 (2,4 GHz), Casambi radio, DALI, DALI DT8 |
Login
9 November 2020 09:20
n/a
17 May 2022 13:31
n/a
22 February 2021 09:32
Funktioniert einwandfrei, schade, daß ein zusätzliches Relais/Schütz genutzt werden muß
23 November 2020 10:05
n/a
5 September 2022 13:56
Bin begeistert
DALI-Version: ? War in ´nem Tag da ? Steuerbar über den Taster, funktioniert sogar bei unserer EIB-Anlage ? Bedienbar auch komfortabel mit der kostenlosen APP ? Schnell installiert ? Weit günstiger, als alles was ich sonst gefunden habe ? Durch die kostenlose App-Steuerung entfallen zusätzlich die Kosten für eine Fernsteuerung
19 April 2021 03:48
n/a
12 September 2022 08:18
Super Gerät
Sehr günstige Möglichkeit DALI-Leuchten zu steuern. Durch die App-Funktion entfällt der Kauf eines Funksenders. Das Gerät funkioniert sogar bei unserem EIB-Taster. Wir sind sehr zufrieden.
16 May 2021 08:08
n/a
5 December 2020 00:49
n/a
19 February 2021 09:10
n/a
sw_similar
Casambi Module light control via app 1-10V
€74.90*
Casambi Module - Dimming via App with 0-10V and 1-10V
Compact Casambi Module for integrating with 0-10V (alternatively 1-10V) enabled LED driver in your lighting unit.
Dimm a lamp via smartphone with the Casambi App for the Casambi Module ...
... to create a perfect lighting control system
Through a BT 4.0 (2,4 GHz) connection and appropriate App you can dim your Smart Device lamps, switch
individual lights on and off, create light scenes and a desired mood in your own 4 walls.
Another Casambi highlight:
Even with your conventional light switch you can dim and switch your lights.
Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI
are missing and you still want to dim. So you can easily adjust with Casambi reduce lights.
1. Switch on illumination with a usually switch.
2. Short off and on again withing 1 second. The illumination slowly dims up.
3. Another short off and on again at the desired dimming level. The current dimming value is stored.
4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%.
All products by Casambi family have following features:
Creates automatically a wireless Mesh-Network with other Casambi products.
Wireless control using the free Casambi App for smartphones and tablets.
Integrate the use of regular wall switches for dimming and scene control.
Support for external on / off motion sensors.
Compatible devices and minimum requirements for Casambi App:
Android
iOS
min. Android 4.4 KitKat with BT 4.0 (2,4 GHz)
from iPhone 4S
recommended: Android 5.0 Lollipop with BT 4.0 (2,4 GHz)
from iPad 3
or current Android versions
from iPod 5
These functions does the free Casambi App:
Dimming of single or multiple lights with simple touch gestures.
Controlling the lighting of your stores, offices, or personal spaces.
Installation of single or complex scenarios with one or more lightings.
Define the security of the network. There are four different levels of security for access control.
Also support Philips HUE.
Casambi App free download:
Casambi App in Appstore
Casambi App for Android
Specifications of Casambi CBU ASD Bluetooth Unit:
Input
Input voltage
220-240VAC (50Hz)
Max. input voltage
1.2A
Standby power
220-240VAC (50Hz)
Output
Voltage
0-10V
Current
max. 7mA
Radio transceiver
Frequency range
2,4-2,483 GHz
Max. output power
+4 dBm
Mechanical data
Dimensions
56.5 x 35.8 x 22.3 mm
Weight
48g
Protection
IP20
Protection class
Built-in class II
For further technical data to Casambi Modules please refer to data sheet (ref Download)
%
CBU-TED Casambi Dimmer via phasecut
€60.06*
€66.73*
(10% saved)
Casambi Dimmer using phasecut CBU-TED
High quality and compact phasecut-dimming CBU TED by Casambi. It can be replaced with traditional
switch, only one installation in a switch case or a ceiling connection with lamps.
Bluetooth dimmer for actuating LED and halogen lamps
With your smartphone or tablet, you can dim lamps, actuate switches, create light scenes and form desired
lighting effects. You need only a BT 4.0 (2,4 GHz) connection and the appropriate app from Casambi.
The activation of the Casambi CBU-TED via BT 4.0 (2,4 GHz) saves complicated installation of cables.
The Bluetooth wireless Mesh-Network allows to control several lighting units.
You have lights or lamps and want instead a wall dimmer (trailing edge dimmer) to control the brightness
from your mobile phone? A Casambi dimmer like this one works instead of a wall dimmer. Connect the
Bluetooth dimmer between a switch and light lamps. Now you have a smart lighting control in your house.
Additional highlight:
Dimming the lights ALSO with your conventional light switch! That's how it works:
1. Switch on illumination with a usually switch.
2. Short (under 1 sec) off/on again. The illumination slowly dims up.
3. At the desired dimming value tip your swich again shortly off/on. The current dimming value is stored.
4. If the second tip off/on is not switched within 8 sec, the illumination dims up to 100%.
All product by Casambi family have following features:
Creates automatically a wireless Mesh-Network with other Casambi products.
Wireless control using the free Casambi App for smartphones and tablets.
Integrate the use of regular wall switches for dimming and scene control.
Support for external on / off motion sensors.
These functions does the freed Casambi App:
Dimming of single or multiple lights with simple touch gestures.
Controlling the lighting of your stores, offices, or personal spaces.
Installation of single or complex scenarios with one or more lightings.
Define the security of the network. There are four different levels of security for access control.
Also support Philips HUE.
Specifications of Casambi CBU TED Bluetooth Unit:
Input
Input voltage
85-240VAC (50-60 HZ)
Max. input voltage
0,65A
Standby power
< 300mW
Output
Max. power
Incandescent and high voltage halogen bulbs:
150 W @ 230 VAC
High voltage AC LED modules:
150 W @ 230 VAC
Dimmable LED and CFL bulbs:
50 W @ 230 VAC
Dimmable electronic transformers:
50 W @ 230 VAC
max. Inrush Current
10 A(100ms)
must be observed!
Minimum load requirement
1W
Max. current
0,65A
Radio transceiver
Frequency range
2,4-2,483 GHz
Max. output power
+4 dBm
Mechanical data
Dimensions
40,4 x 36,3 x 14,0 mm
Weight
15 g
Protection
IP20
For further technical data please refer to data sheet:
Compatible devices for Casambi App are:
iPhone iOS 10, IPad iOS 10 and Android 4.4-Version (KitKat) and all higher versions of the 3 named devices.
Download App for free:
Casambi App in Appstore
Casambi App iOS (iTunes)
Casambi App for Android
Casambi App Android (Google Play)
.videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;}
CBU-TED overview
In this video, we’ll provide a brief overview of the CBU-TED and its features and functions.
Casambi Dimmer Bluetooth DALI light control Class II
€68.81*
Casambi Dimmer 2,4Ghz Radio Unit Class II - dimming via app by DALI light control
Compact controller to integrate a DALI-compatible LED driver in your lighting unit.
Control a lamp via smartphone with Casambi App for the Casambi Dimmer Unit...
... to create a perfect lighting control system
Through a 2,4Ghz radio Connection and appropriate App you can dim your Smart Device lamps, switch
individual lights on and off, create light scenes and a desired mood in your own 4 walls.
Available in 4 different versions:
1 Channel (sent via DALI-Broadcast)
2 Channel (sent to DALI addresses*: 0, 1)
3 Channel RGB (sent to DALI addresses*: 0, 1, 2)
4 Channel RGBW (sent to DALI addresses*: 0, 1, 2, 3)
(* DALI addresses of devices has to be programmed regarding this)
Another Casambi highlight:
Even with your conventional light switch you can dim and switch your lights.
Conceived as backup when the phone is straight not with, or as a simple alternative, if cables for DALI
are missing and you still want to dim. So you can easily adjust with Casambi reduce lights.
1. Switch on illumination with a usually switch.
2. Short off and on again withing 1 second. The illumination slowly dims up.
3. Another short off and on again at the desired dimming level. The current dimming value is stored.
4. If the second off / on is not switched between 8 seconds, will the illumination dim up to 100%.
All products by Casambi family have following features:
Creates automatically a wireless Mesh-Network with other Casambi products.
Wireless control using the free Casambi App for smartphones and tablets.
Integrate the use of regular wall switches for dimming and scene control.
Support for external on / off motion sensors.
Compatible devices and minimum requirements for Casambi App:
Android
iOS
min. Android 4.4 KitKat
from iPhone 4S
recommended: Android 5.0 Lollipop
from iPad 3
or current Android versions
from iPod 5
These functions does the free Casambi App:
Dimming of single or multiple lights with simple touch gestures.
Controlling the lighting of your stores, offices, or personal spaces.
Installation of single or complex scenarios with one or more lightings.
Define the security of the network. There are four different levels of security for access control.
Also support Philips HUE.
Casambi App free download:
Casambi App in Appstore
Casambi App for Android
Specifications of Casambi CBU ASD Radio Unit:
Input
Input voltage
220-240VAC (50Hz)
Max. input voltage
1.2A
Standby power
220-240VAC (50Hz)
DALI Output
Bus voltage
12VDC
Current
7mA
Radio transceiver
Frequency range
2,4-2,483 GHz
Max. output power
+4 dBm
Mechanical data
Dimensions
56.5 x 35.8 x 22.3 mm
Weight
48g
Protection
IP20
Protection class
Built-in class II
For more information please refer to the data sheet in the Download-Tab.

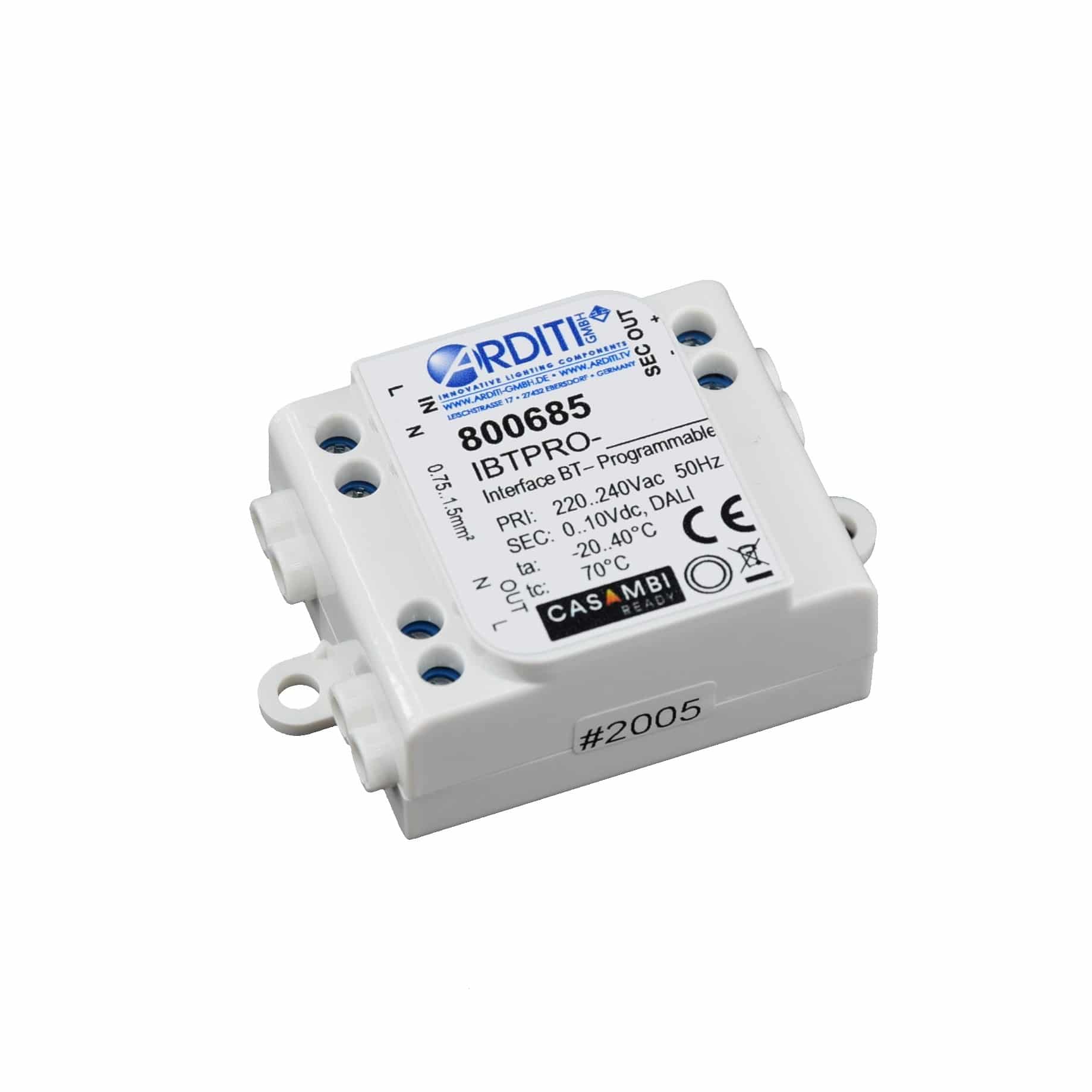

Casambi DALI interface for up to 60 devices , incl. PS
€209.09*
Waterproof Casambi Interface for controlling DALI devices (ASD25, ASD60)
This configurable Casambi module allows convenient regulation or control of multiple LED control gear with DALI signal input. This lighting control function is performed by a smart device (Apple, Android) with the Casambi app. Depending on the version of this Casambi interface, up to 25 or 60 DALI participants can be integrated into the network.
Product Overview / Features:
Waterproof interface for convenient control of up to 25 or 60 LED control gears with DALI signal input
Configuration of the other interface types is possible before pairing to a network: change profile
Casambi interface sends DALI broadcast (1Ch), 4 groups (DALI groups G0-G3), RGBW
Gateway is not needed, but setup possible
Integrated antenna
Connection cables, 15 cm each
Use the free app from CASAMBI (Apple / Android) to conveniently control all settings (downloads below in the description)
Control brightness
Configuring luminaires and luminaire networks
Creating scenes and animations
New devices are detected automatically
Intelligent timer and gallery functions
Set sharing options (only me, everyone, only with password, ...)
Technical data:
Article no. built-in housing
808893
808894
Type Built-in housing
IBTPRODAC
IBTXPRODA25C
Power supply input
220..240 Vac; 50 Hz
Alternative control
None
Button
Radio signal
2.4..2.483 GHz; 4 dBm
Signal output
DALI, max. 100 mA; SELV
DALI, max. 50 mA; SELV
Ambient temperature
-20.. +40 °C
-20.. +50 °C
Degree of protection
IP 44
Dimensions (without cable)
38 x 38 x 26 mm
27 x 61 x 22 mm
Experience the new application diversity of CASAMBI.
Through Casambi, you can conveniently control your lighting via smartphone or tablet, wirelessly and easily individually. The control runs via Casambi LE (low energy). If several Casambi modules are in use, a so-called "mesh network" is built up. Each additional Casambi module increases the range, because each module establishes a direct connection to all others.
Your luminaires can now not only be dimmed, switched on and off, but the timer function allows you to control the lighting according to time. A maximum of 3 lights can be combined into a group, light scenes can be stored, and much more.
The compact modules are simply mounted in front of the luminaire, so there is no need to run additional cables. The setup is extremely simple, all components are automatically recognized in the network and in the app.
CASAMBI QR-Code and Links:
Casambi App in the Appstore
Casambi App for Android
.videoHolder{max-width:1120px;max-height:630px;}.videoWrapper {max-width:1120px;position: relative;padding-bottom: 56.25% !important;height: 0;}.videoWrapper iframe {position: absolute;top: 0;left: 0;width: 100%;height: 100%;max-height:630px; max-width:1120px;}
CASAMBI Tutorial Video
CASAMBI Tutorial Video (language is german)
You can find many other supporting videos about Casambi at YouTube .
For more information, please refer to the data sheet in the download tab.
Variants from €252.96*
sw_related
TCI MAXI JOLLY US DALI 60 W | 127413 | 151413
€54.95*
TCI DC Maxi Jolly US DALI 60W - Flickerfree Constant Current Dimming via DALI
Two successors of the famous LED ballast from TCI: DC Maxi Jolly US DALI 50W. (#123413)
Noteworthly innovations:
Power: 60W instead of 50W
Novel dimming to avoid flicker
Type 127413
Hybrid: Combination of linear (AM) and known PWM
Conditionally suitable for cameras according to the following dimming ranges
Linear dimming (flickerfree) in the range of 100% - 25%
Switching to PWM (2KHz) in the range 25% - 1%
As a result, very precise dimming even in the lower dimming range
Optionally switch to PWM only at 240Hz by setting a bridge possible. (Details in the data sheet)
Master/slave operation possible via sync lines
Type 151413
Pure amplitude dimming (linear dimming)
Camera-friendly without restriction (no flicker, even at high shutter speeds, as no PWM)
Dim2warm available
Tc-value of 90°C
Note: Value for constant current, or voltage can be set via dip switch.
By the possibility to configure currents from 350mA to 1050mA, As well as a power of up to 60W, this LED constant current converter is versatile. In addition, it offers dimming options for 1-10V or also via touch operation.
Overview of the technical data of the LED ballast 60W from TCI
Multi-Current Converter - Universally applicable.
Ext. Temperature sensor optional (connection for NTC available)
Dimming option via 1-10V control voltage. (Or alternatively via a 100K ohms potentiometer)
Push button or button operation: On / off by means of short push button, change of the brightness of the held button.
As a US version with remarkable improvements:
Improved EMC
Improved Overvoltage proctection (Surge) of 3.5-4kV
UL certified
Dipswitch settings
Dip-SW
Power
Spg. sec
Current sec
Position 1
25 W
2...74 V max.
350mA const.
Position 2
35 W
2...72 V max.
500mA const.
Position 3
39 W
2...72 V max.
550mA const.
Position 4
46 W
2...72 V max.
650mA const.
Position 5
50 W
2...72 V max.
700mA const.
Position 6
54 W
2...72 V max.
750mA const.
Position 7
60 W
2...70 V max.
850mA const.
Position 8
60 W
2...66 V max.
900mA const.
Position 9
60 W
2...60 V max.
1.00A const.
Position 10
60 W
2...57 V max.
1.05A const.
Efficiency of the LED driver depending on the power: 30W - 60W: 87% - 92%
All TCI Jolly LED ballasts with PWM are dimmable via sync cable. Thus, the control is possible via only one push-button.
Up to 10 LED converters (slave) can be operated via a master.
Switches and installation materials are not included in the scope of delivery.
For detailed description please refer to the data sheet.
History of this proven TCI LED Converter for dimming via DALI, 1-10V or Push
TCI 122412 --> Setting range 350mA - 1.4A and fixed voltage 48V
TCI 122413 --> Setting range 350mA - 1.05A and fixed voltage 48V, US version with higher surge voltage
TCI 123413 --> Like 122413, but also compliance with the ecodesign directive with standby power <0.5W
%

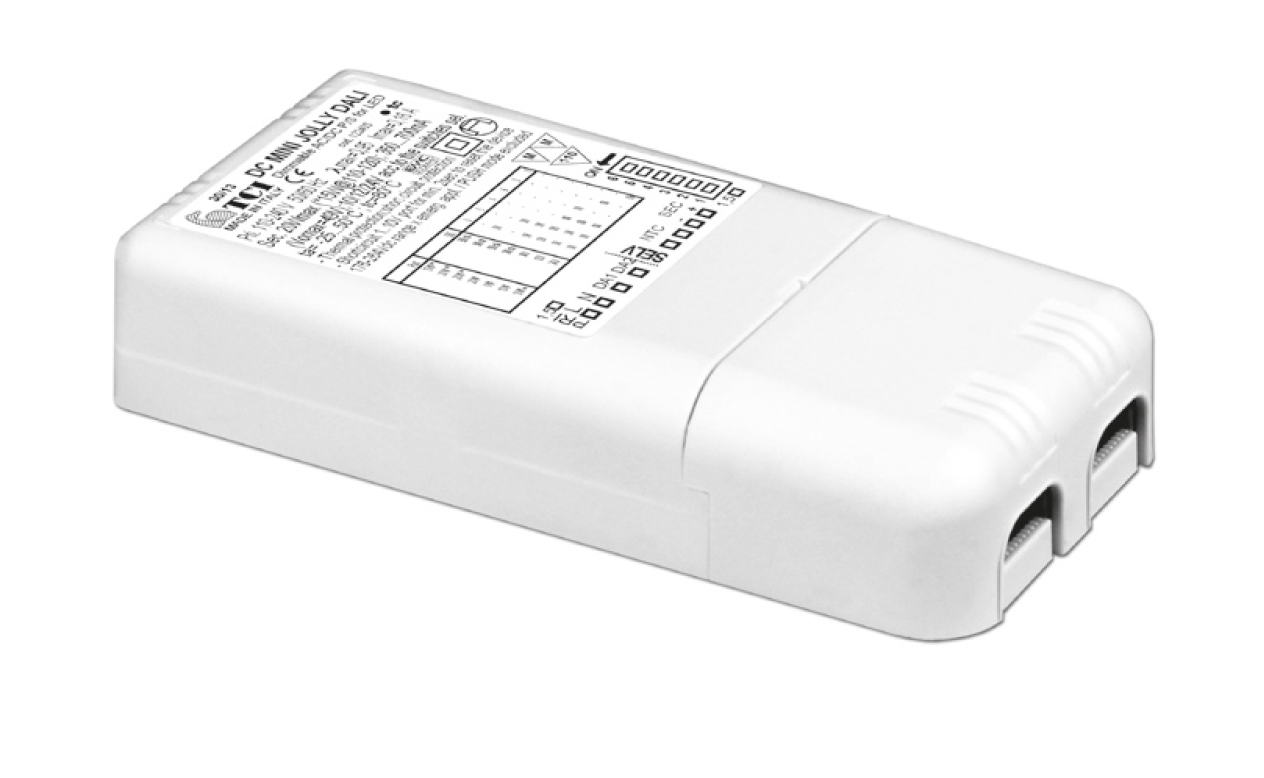

TCI DC Mini Jolly DALI 20W | 125403 | 151403
€37.07*
€39.45*
(6.03% saved)
TCI DC Mini Jolly DALI | Proven LED driver 20W | DALI | 250mA - 700mA adjustable, (24V) | With strain relief or also as recessed version
TCI125403 (20W) is the technologically improved successor of #123403 and its innovation is the combination of PWM and AM control. This so-called hybrid control ensures absolutely flicker-free light in the range of 100% - 25% through linear control. Only in the range below 25% to 1% the known PWM control is switched over. Thus, the advantages of both methods are used.
By short-circuiting the NTC input when switching on, it is possible to switch between "PWM-only" and activation of constant voltage operation (see 123403) and hybrid operation. Confirmation by single flashing (PWM), double flashing (hybrid).
Read also this technical article on the dimming types PWM / AM / Hybrid.
TCI151403 (20W) is a pure linear controller. The LED current can be dimmed linearly (AM) from 100% to 1%. Perfectly suitable for the use with Dim2Warm.
Attention: Constant voltage operation is not possible.
As a proven multi-current converter - universally applicable. Also available as Built-In version (123403BI, 125403BI, 151403BI)
Technical Details:
Dip-SW
Power
Voltage out
Current out
# LED
Position 1
12 W
15...49 V
250mA const.
max 14
Position 2
17 W
2...49 V
350mA const
max 14
Position 3
19 W
2...49 V
400mA const
max 14
Position 4
20 W
2...45 V
450mA const
max 13
Position 5
20 W
2...40 V
500mA const
max 11
Position 6
20 W
2...36 V
550mA const
max 10
Position 7
20 W
2...33 V.
600mA const
max 9
Position 8
20 W
2...28 V
700mA const
max 8
Position 9*
16 W
24 V constant
700mA max
-
*Position 9 only available for 125403/125403BI.
Efficiency of DALI LED drivers depending on power: 10-20W: 87% - 91%
Flicker ( Output Ripple ) <= 3%
For a detailed description please refer to the data sheets (see downloads)
History (predecessor) of this proven TCI DC MiniJolly DALI 20W
TCI 123403 (formerly 122403) with 20 Watt. Constant current, resp. voltage. All adjustable via dip switches.
(123403 is identical successor of 122403 and already complies with the Ecodesign Directive).
The LED current is controlled via pulse width modulation (PWM) without exception.
Variants from €35.50*
%
Casambi Push Button Interface
€139.50*
€154.11*
(9.48% saved)
Casambi Push Button Interface for flush boxThis Casambi push button interface can be easily installed behind any push button to send Bluetooth signal to the Casambi network. As known from the Casambi Xpress the Casambi push button interface can be setup by Casambi app and controls according the programmed buttons (1-4) the whole network.After installation, just start the app and the Casambi Push Button interface pops up in the app and can be configured very simple. In case the details are described in manual.Everybody who disliked the controlling by switching sequences or wants to have unique design for wallswitches, this Casambi switching interface is the ultimate solution.
Technical Data of Casambi Push Button Interface SC-TI-CAS
Power supply
230VAC, 50Hz
Power consumption
max. 10mA
Cable length of button connections
max. 30cm
Ambient temperature
0 - 55°C
Applied standards
DIN EN 60669-2-1ETSI EN 301 489-1 v.1.9.2ETSI EN 301 489-17 v.2.2.1ETSI EN 300 328 v.1.8.1NOTE!The connected pushbuttons and their wiring must be insulated for the maximum supply voltage of the push button interface and ensure the appropriate contact protection after proper installation.
Dimensions
Ø 53mm x 21mm
Battery-free radio switch for Casambi
€75.11*
Casambi battery-free wall switch
General information about the wall switches:
Radio switches for controlling Casambi devices have up to four freely programmable buttons
Battery-free, as the energy is generated by an electrodynamic energy generator (Enocean technology) when the button is pressed
Casambi wall switch/radio switch is maintenance free (no battery replacement)
Due to the ability to be battery-less, it can be mounted flexibly
The middle part can be used in frames from other switch series of the frame size 55x55mm (Jäger Direkt, Mertens, Gira, etc.)
Setup and operating instructions:
Initial programming must be done via tablet with NFC interface or smartphones with Android operating system
For installation: Set network mode to "balanced"
After successful setup with Android devices, the switch can also be managed and programmed with iOS systems
Technical data for the Casambi wall switch:
Variation
2 Buttons/single rocker
4 Buttons/double rocker
Type
RW2EBTW
RW4EBTW
Product number
808922 (White)*
808994+808923 (Anthracite)
808924 (White)*
808994+808923 (Anthracite)
Radio signal
2,402 - 2,48 GHz, Casambi Low Energy (BLE)
Channels
2
4
Reach
up to 10 meters in a room
Lifespan
> 50,000 switching operations
Ambient temperature
-20 - 65°C
Dimensions
81 x 81 x 14mm
Dimension middle part
55 x 55 x 14mm
*Radio modul 808923 already included
Manufacturer video about the product (Arditi 808922, 808924)
Eltako switch relay 10A/230VAC R91-100-230V for Casambi ASD
€28.18*
ELTAKO switch relay for Casambi-ASD-Modul
This switch relay is used to interrupt the power supply of Casambi controlled light Installation together with the low current contact inside Casambi ASD-Moduls. The decoupling takes place either via the Casambi app or manually at the relay. To avoid standby currents at 0% dimming via the Casambi app, and to completely switch off the connected lighting, a relay sized for the power to be switched must be used. A corresponding typical circuit diagram can be found under the tab More Images.
Features:
For installation and AP mounting with manual operation and switch position display
Duty cycle 100%, control power requirement 4-5 Watt
Contact distance 2mm
The universal control voltage covers the voltage range 8-253V AC 50-60Hz and 10-230V DC
Technical data:
Input voltage 230-250 V
max. switching Current 10A
Protection: IP 20
Dimensions: Length 50 mm x Width 26 mm x Depth 32 mm
Test voltage contact / contact 2kV/ and test voltage control connections / contact 4 kV
Casambi Motion Detector Sensor
€150.45*
CASAMBI Detector/Sensor for Motion and Brightness Control
With this small and practical light sensor you are able to control your desired lighting depending on movement or brightness.
The control signals are simply transmitted via BT 4.0 (2,4 GHz) into your CASAMBI network where the sensor can be configured and it provides a variety of funcitons. This can be achieved by the communication of the sensor with smart devices, such as mobile phones or tablets via CASAMBI app. Furthermore, the detector is resistant against an ambient temperature between -20°C and +60° including a protection level of IP44. Thus, it can be employed in indoor- and in outdoor-applications.
The product is available in versions with a supply input of 12..24V and 220..230V. In addition, there is a version in which the sensor is supplied with battery compartment and 2x AA battery (3V), and which is only suitable for "Evolution" networks. Furthermore, it is possible to choose between the different housing colors white, gray and black.
Product Overview / Technical Features:
Sensor for motion and brightness/daylight in Casambi networks
Communicates with Casambi App on smart devices
for operation of luminaires, scenes etc. in Casambi networks
to be configured and used in many ways
Sensor max. 5m, 100° horizontal, 64 zones
Hints for the assembly:
Device built-in, mounted in drill-hole 25..27mm
For installation the relevant standards and the recognized technical rules must be respected.
The version designed for evolution networks requires the supplied magnet to decouple the sensor.
Technical Data:
Part number
808930
808931
808932
808933
808934
808935
808890
808891
808892
Type
SEMLBT230W
SEMLBT230GR
SEMLBT230B
SEMLBT14W
SEMLBT14GR
SEMLBT14B
SEMLBTBAW
SEMLBTBAGR
SEMLBTBAB
Power supply input
220..240 V
12..24 Vdc/ac
3 Vdc (2 x AA)
Radio signal
2,4..2,483 GHz; 4 dBm
Frequency
50..60 Hz
Housing color
weiß
grau
schwarz
weiß
grau
schwarz
weiß
grau
schwarz
Ambient temperature
-20..+60 °C
-20..+50 °C
Degree of protection IP
44
44 Front, 20
Dimensions
38 / 25 x 48 mm
CASAMBI QR-Code and Links (instant download here)
Casambi App im Appstore
Casambi App für Android
Further features CASAMBI sensor motion detector can be found in the datasheet stored in the Download Tab.
Variants from €159.63*
