LED Alu U-profile Slim XS silver with cover
Product number:
ALU94515120-200-11
Product information "LED Alu U-profile Slim XS silver with cover"
LED Alu U-profile Slim XS silver with cover 1-3m in one piece
Aluminum U-profile Slim XS, extra narrow version. The aluminum ensures a beautiful look and at the same time for sufficient cooling of the LED stripes. The material is anodized aluminum. The cover snaps in place.
Info: We would be happy to offer you individual cuts of our aluminum profiles on request.
Technical specifications:

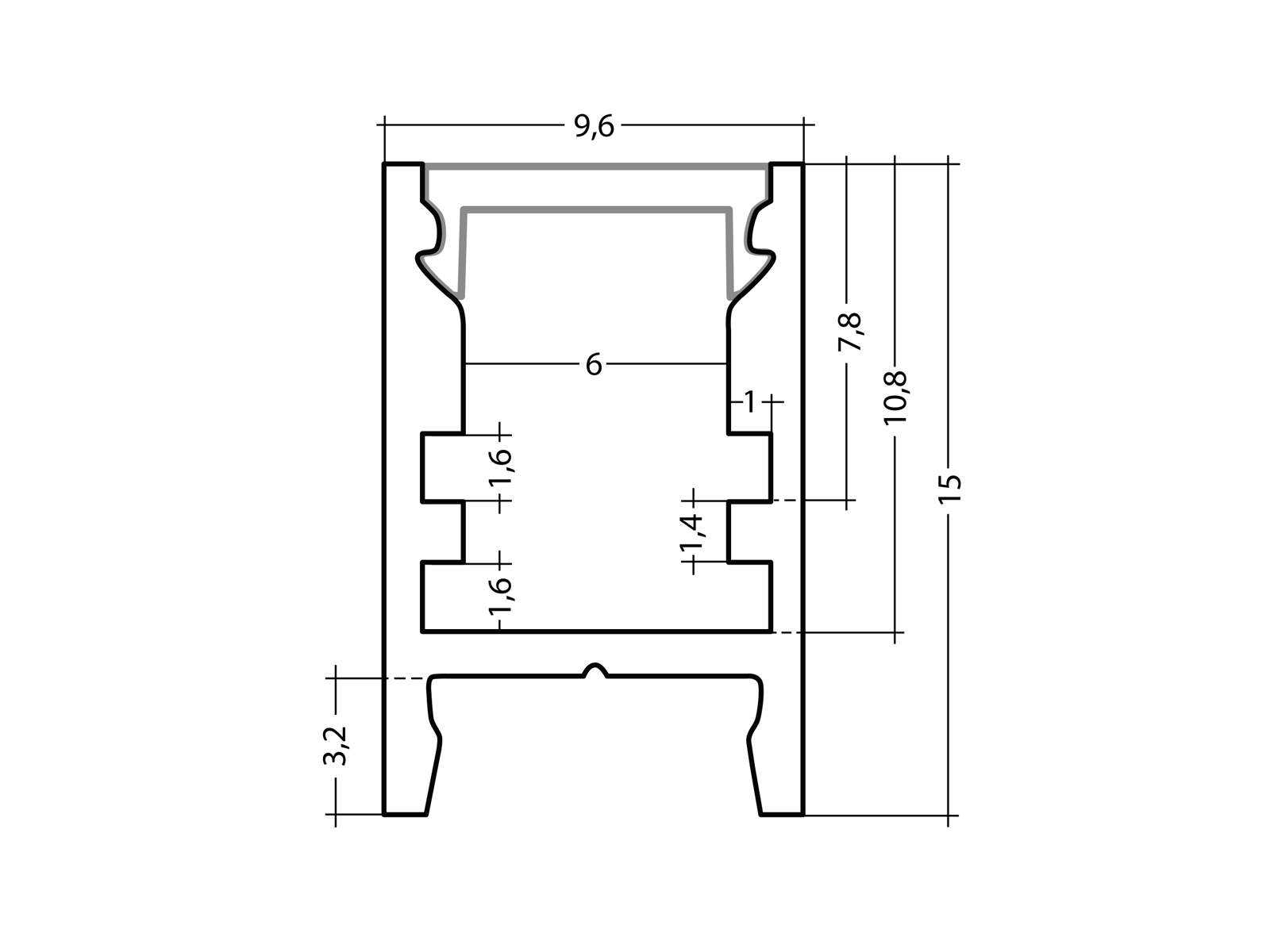

- Dimensions (LxWxH) in mm: 1000/2000/3000 x 9.6 x 15 (length selectable via options)
- Inside dimension: 6mm
There are two cover variants to choose from:
- Cover opal white (the light is strongly scattered and appears glare-free)
- Cover transparent (the LED illuminant is visible, maximum light transmission, however, visible circuit board)
Application areas:
- Showcases
- Wooden furniture
- Cabinets
- stairs
- Business expenses
- Booth construction
Scope of delivery:
- LED Aluminum U-Profile Slim XS, length depending on the selection under options 1m, 2m or 3m
- Cover of your choice
- without bulbs
| Lamp shape: | Cooling profile gen., U-profile |
|---|---|
| Power/Meter: | < 10W/m |
