Mounting profile for U aluminum profile Slim XS or profile 25mm
Product number:
ALU945151209-200
Product information "Mounting profile for U aluminum profile Slim XS or profile 25mm"
Mounting profile for U aluminum profile Slim XS or profile 25mm
Matching mounting profile made of transparent plastic for U aluminum profile Slim XS or profile 25mm in lengths of 1 to 3 meters in one piece.
Technical specifications:
- Material: Plastic
- Color: transparent
- Dimensions (LxWxH) in mm: 1000-3000 x 8 x 3
Scope of delivery:
- 1x mounting profile
| Application/IP-Code: | IP20 - IP44 (Indoor) |
|---|---|
| Lamp shape: | Cooling profile gen. |
Login
sw_related
Aluminum profile 25mm silver with cover
€87.71*
Aluminum profile 25mm silver with cover 1-5m in one piece
This aluminum profile offers you a wide range of mounting options for ceiling installation or for hanging from the ceiling.
Aluminum profile 25mm 1-3m in one piece. The aluminum ensures a beautiful look and at the same time for sufficient cooling of the LED stripes. The material is anodized aluminum. The cover snaps in place.
A special feature of this profile is the second chamber (cable duct) in which the supply lines can be laid invisibly.
Info: We would be happy to offer you individual cuts of our aluminum profiles on request.
Note: In the dimensional drawing you can see a mounting rail below the profile. This can be ordered under "Accessories".
Technical specifications:
Dimensions (LxWxH) in mm: 1000-3000 x 20 x 24,7
Inner dimension: 13 mm
The following cover variants are available:
Opal white cover (the light is strongly diffused and has a glare-free effect)
Clear cover (the LED light source is visible, but the highest light transmission is visible on the circuit board)
Application areas:
Ceiling lighting
wooden furniture
Cabinets
Business expenses
Exhibition construction
Scope of delivery:
LED aluminum Profil 25 mm, 1-3m length
Opal or clear cover
without lamps
without end cap and bracket
Variants from €94.26*
LED Alu U-profile Slim XS silver with cover
€28.87*

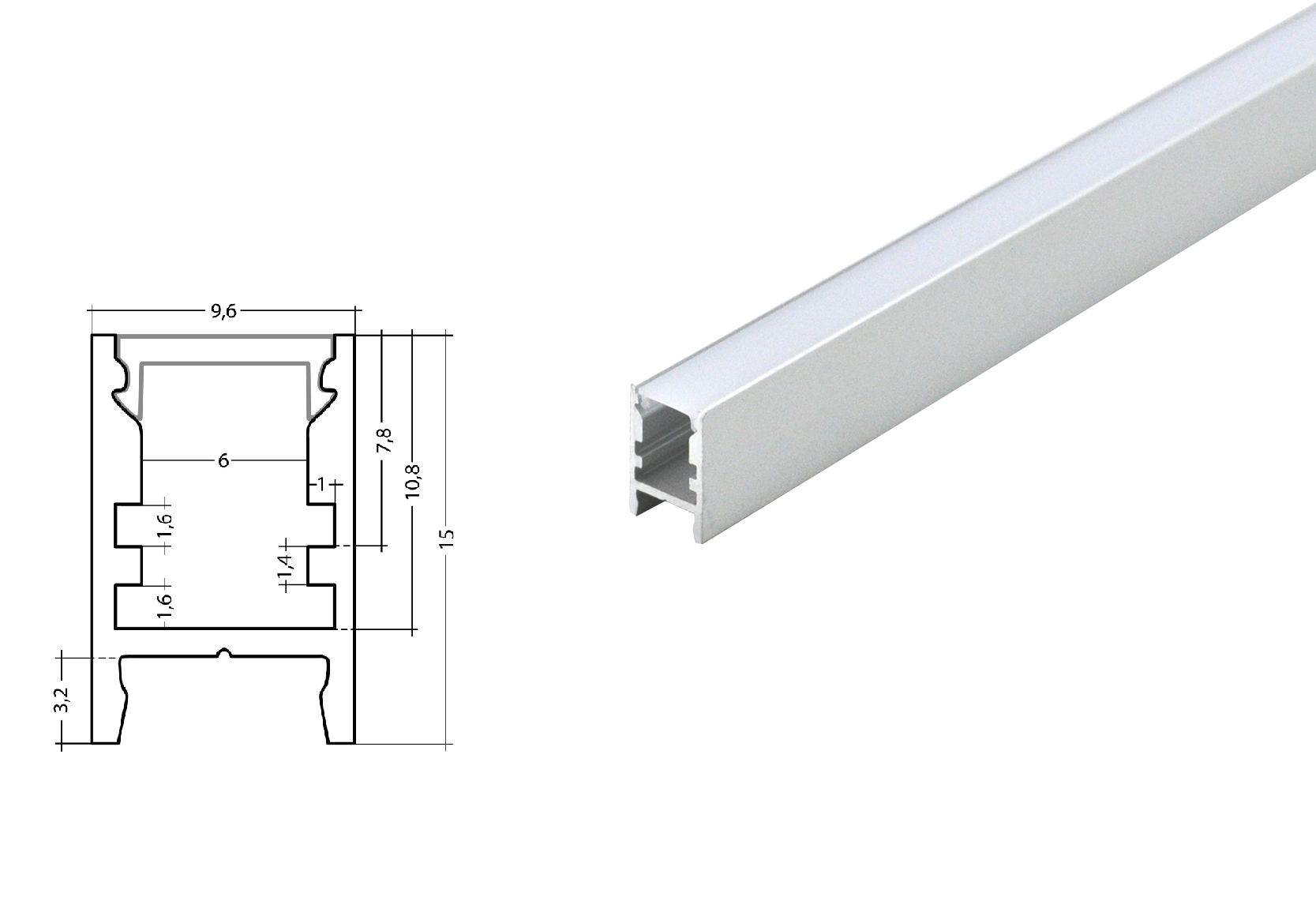

LED Alu U-profile Slim XS silver with cover 1-3m in one piece
