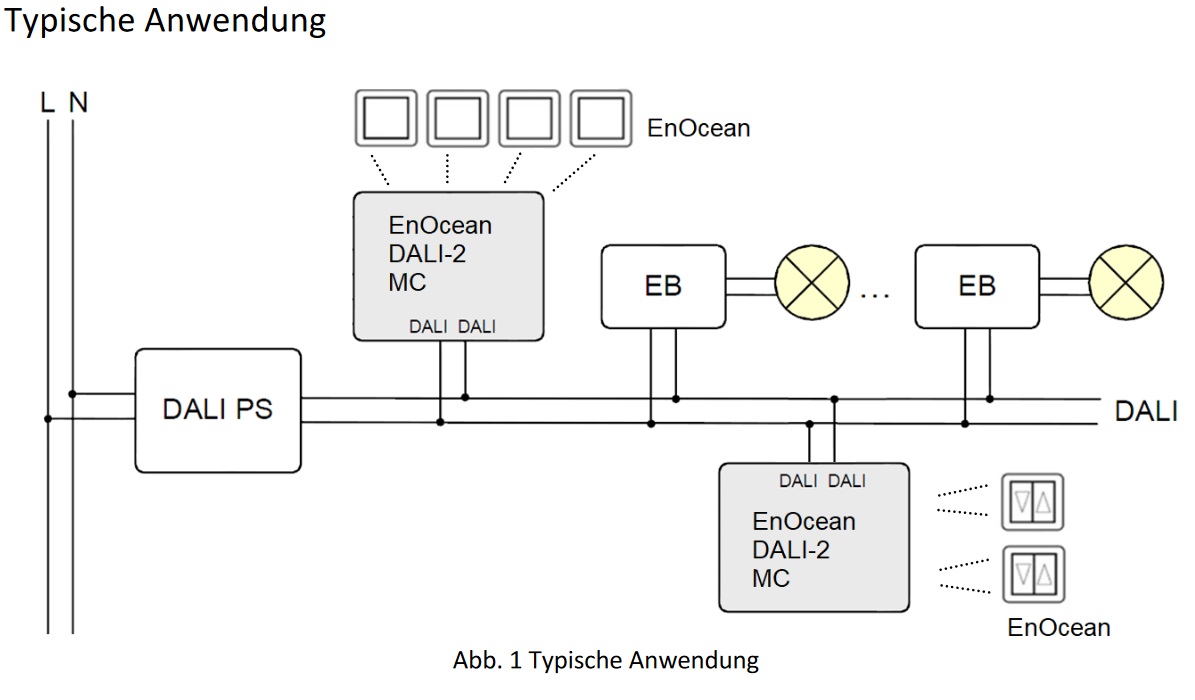

EnOcean DALI-2 Multicontrol Modul | 86463327

DALI MC / DALI-2 MC Multi Control control module 86459532 with 1 to 4 programmable, potential-free inputs The DALI MC (+) from Lunatone is a & nbsp; push button coupler / interface for connecting four conventional switches or buttons. Now also the versions for DALI-2. Various DALI commands can be assigned to each input via PC software: dim up, dim down, off, recall min., Recall max., Goto scene 1-16, direct arcpower ...%, mask and predefined macros. The compact DALI-2 MC / DALI MC + can be inserted into the flush-mounted box behind the switch, turning a standard light switch or button into a DALI control device. The compact device can be inserted into the flush-mounted box behind the switch. In addition to the configuration via the DALI Cockpit PC software, selected settings can also be made using an NFC-enabled smartphone and the Lunatone NFC app. Features DALI MC (in phase out): Compact control module with four freely programmable switching inputs or analog inputs (MC +) for mains voltage A maximum of 2 functions can be assigned to each input, depending on the switching behavior (short or long button press, toggle, edge-controlled relay mode) connection a 100KOhm potentiometer (MC + only) The following functions are available: dim up, dim down, recall min, max got scene 1-16 direct arcpower in% and both predefined and self-configurable macros Control of the color temperature (DT8) with Step Cooler, Step Warmer commands (MC + only) With analog inputs, the input signal is converted directly into a DALI dimming level. The conversion can be initiated periodically or by a trigger (MC + only). Possibility of a configurable power-up function, i.e. automatic sending of an adjustable command after a voltage interruption Configuration via DALI-Cockpit and DALI-USB interface (also DALI-PS required) Possibility of addressing individual addresses (1-64), groups (1-16), and broadcast multi-master capability, several modules can be installed in a DALI circuit Use with default setting for dimming and switching applications without additional configuration possible The module can be inserted in a flush-mounted box directly behind a light button The module is supplied directly via the DALI line and does not have to be connected to the network The buttons are connected directly to the module (potential-free closing contacts) (MC) DALI MC + with alternatively also an analog input. Connection of 100kOhm potentiometer possible. Features for DALI-2 MC Compact DALI-2 control module with 4 potential-free inputs Multi-master capable. Several modules can be installed in a DALI circuit and / or a DALI group. Individual DALI commands can be assigned to each input Integrated DALI-2 application controller Simple integration through four DALI-2 pushbutton instances In addition to the standard DALI commands, the application controller also enables DALI DT8 TC and RGB (W) control Supports short button press, long button press (with repetition for dimming) and Toggle In addition to buttons, also suitable for switches. New: Alternative button function, each of the inputs can also be assigned a second function, which can be activated / deactivated via a scene command on the DALI bus or via a switch on input 4. In this way, for example, the partition wall problem can be solved. Sequences, macros and other functions are available in the application controller. Simple configuration via LUNATONE DALI USB interface and DALI cockpit software tool. New: NFC variant for simple, contactless configuration with LUNATONE NFC smartphone app Easy installation: the device can be placed in a flush-mounted box and is supplied via the DALI bus DALI-2 control unit according to IEC62386-103. Technical data for DALI-2 MC: Type DALI-2 MC DALI-2 MC integration DALI-2 MC NFC Article number 86459532-2-app 86459532-2-int 86459532-NFC GTIN GTIN 9010342013492 GTIN 9010342012730 Delivery status App-Controller App-Controller App-Controller activated Instances activated App-Controller App-Controller activated Note The application controller leads to direct DALI control commands, which are executed immediately by the DALI drivers. (see MC +) The DALI-2 instances generate event messages that are interpreted and processed by higher-level control units (WAGO, Beckhoff, LUNATONE DALI-2 KNX gateway). The DALI-2 MC NFC includes a nearfield communication interface. This means that the configuration can be carried out not only with the DALI Cockpit software, but also via this NFC interface with a smartphone app.   DALI interface, supply:   Type of exit DALI, DALI-2, Multimaster Identification of terminals DA, DA Voltage range 9.5V - 22.5Vdc according to IEC62386 typ. Current consumption DALI (16.5V) 1.7 mA max. Current consumption DALI (22.5V) 2 mA DALI addresses none DALI-2 addresses one inputs & nbsp;   Entrances for Potential-free buttons / switches Number of inputs 4 Identification of input terminals T1, T2, T3, T4, COM Control pulse length min. 40ms Control pulse length long button press adjustable from 200-5100ms Max cable length button inputs 50cm General data: & nbsp;   Dimensions 40mm x 28mm x 15mm Assembly Installation installation box, installation in protection class II devices max. Rated temperature tc 75 ° C Expected lifetime 200,000h Protection class SKII if installed as intended Protection type housing IP40 Protection class terminals IP20 For further information (also DALI MC +) please refer to the data sheets in the download tab.

DALI control module with 1-4 switching inputs for 230V (L) Each switching input can be assigned an effective range, switching behavior and DALI commands. In addition to the standard functions such as dimming, switching, scene recall, etc., predefined macros such as color temperature control, dynamic scenes, sequences and user-defined command lists are also supported. The compact control module can be inserted in the flush-mounted box behind the switch. Overview: DALI(-2) control unit with switching input (MC1L) or 4 switching inputs (MC4L) for mains voltage. The function can be configured for each switching input (MC4L) 4 potentiometers - buttons that by pushing and turning adjust the settings (on/off and dimming) manually on the module (POTI) Each input can be assigned an effective range, switching functions and DALI command(s) (MC4L) DALI DT8 support for controlling the color temperature of luminaires using corresponding macros (MC4L) Configurable “Power Up” Function (MC4L) The module can work as an application controller or as a digital input instance, which only sends information about the status of the input (according to IEC62386-301) (MC1L; POTI) Application Controller: direct control of DALI devices - effective range, switching behavior and DALI commands can be defined (MC1L, DALI-2 MC4L) In addition to the standard DALI commands, the application controller also enables DALI DT8 TC and RGB(W) control (DALI-2 MC4L) Easy integration with four DALI-2 pushbutton instances (DALI-2 MC4L) NFC variant for easy, contactless configuration with LUNATONE NFC smartphone app (DALI-2 NFC) DALI-2 control unit according to IEC62386-103 (DALI-2 MC4L) Galvanic isolation between switching input and DALI interface DALI DT8 support for controlling the color temperature of luminaires using appropriate macros configurable “power-up” behavior The configuration is done using the DALI Cockpit and an interface module (e.g. DALI USB) Multi-master capable, several modules can be used on the same bus Suitable for installation in protection class II devices or box installation   Type DALI MC1L DALI MC4L DALI MC4L-HS DALI-2 MC4L DALI-2 MC4L-HS DALI-2 MC4L POTI Article number 86458507-1L 86458507-4L86458507 -4L 86458507-4L86458507-4LHS 86458507-4L-2-app 86458507-4L-HS-2-app 86458507-4L-2-int 86458507-4L-HS-2-int 86458507-4L-NFC 86458507-4L-POTI Note On switch signal --> A DALI command 4 x L input --> 4 different DALI commands App controller enabled Instances enabled Configurable via NFC (Lunatone app) 4 potentiometers for adjusting the light level Electrical data   Supply from DALI bus typ. Power Consumption 3.5mA (DALI) 3.5mA (DALI)   2.6mA (DALI) 1,7mA (DALI) Input 1 switching input "L" 4 switching inputs for "L"    Switch inputs for "L" 4 switch inputs for "L" Output DALI DALI   DALI, DALI-2, Multimaster DALI, DALI-2, MultimasterDALI, DALI-2, Multimaster Specifications   Ambient temperature -20°C … +75°C Protection class IP20 Connection wires cross-section Socket installation with spring clamp for 0.5 … 1.5 mm2 (AWG 20 … AWG 16), DIN rail with screw terminal for 0.5 … 2.5 mm2 (AWG20 …AWG14) Dimensions (LxWxH) see figures or data sheet Case Type Socket installation socket installation or DIN rail   socket installation or DIN rail socket Installation or DIN rail     For more information, please refer to the respective data sheets in the download tab
